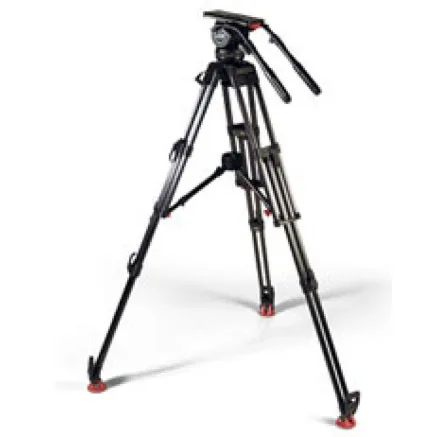

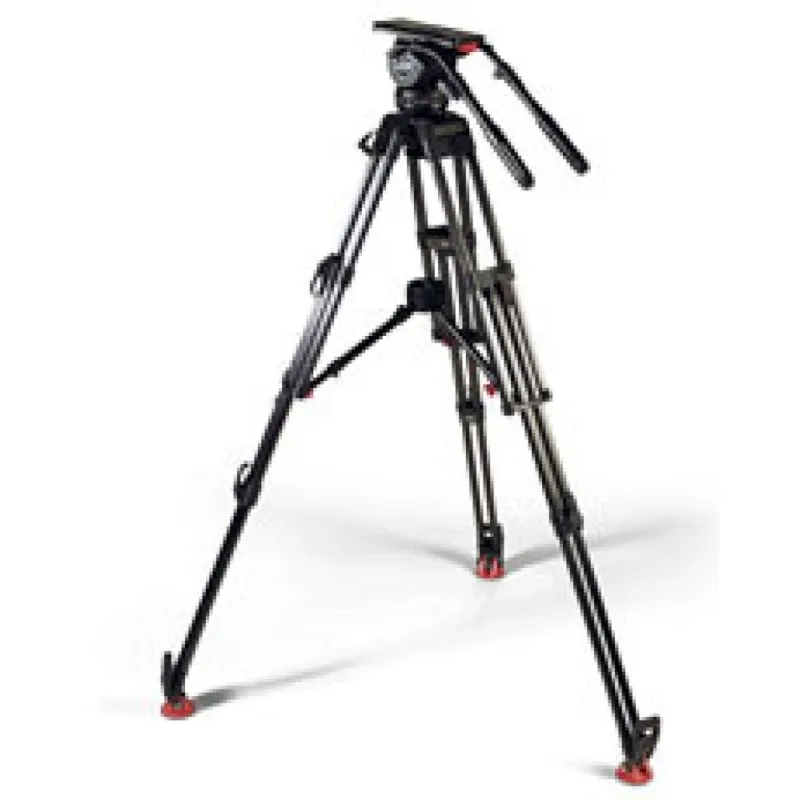

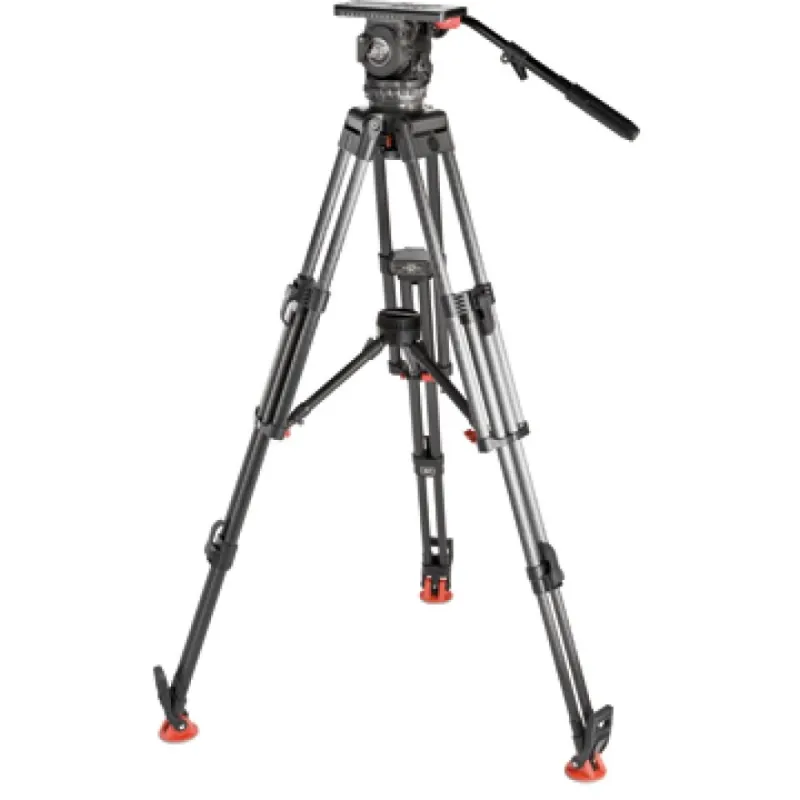

Sachtler System 20 S1 HD MCF tripod kit with mid-level spreader & bag

This tripodset includes a Sachtler Video 20 S1 fluid head, the tripod ENG 2 CF HD, the mid-level spreader 100/150, the rubber feet 100/150 and the padded bag ENG/EFP.

The information collected by us, of course, sets can be changed depending on the customer.

description of the individual products:

S1 20 fluid head
The S1 fluid heads are the latest models of the two legendary Sachtler Video 18 and Video 20 ENG / EFP series. Now with 4 steps more, the Video 20 S1 has a 16-step counterbalance and enables extremely fine tuning for the camera users. Additionally, the payload range of the Video 20 S1 has been broadened and can take on cameras starting at two kilograms. The fluid head now also has a Boost Button for a quick payload range shift and is therefore not only suitable for conventional usage in the ENG area with digital and HDV camcorders but also suitable for DSLR cameras. Sachtlers well-proven Speedbalance technology enables quick and fine adjustment.

ENG 2 CF HD
The ENG 2 CF is extremely lightweight, solid and stable. Although the ENG 2 CF HD weighs just 4 kg / 8.8 lb, its completely dual tube design ensures it can safely and stably carry payloads of up to 95 kg / 209 lb even at its maximum height of 161 cm / 63.4. And with its folding handle, you can easily carry the tripod in a horizontal position.
Double extension tripods are ideal for a much wider variety of applications, due to their expanded height range, i.e. lower bottom and higher top positions. In addition, their transport length is even shorter. For extra stability, Sachtler offers heavy duty (HD) versions with larger tube diameters. With the quick clamping system, you can securely- and visibly ? lock the tripod.

Mid-level spreader 100/150
Weight <=>0.75 kg / 1.7 lbs
Build up radius<=> 28 - 46 cm / 11 - 18.1 in

Rubber feet 100/150
Weight <=>0.58 kg / 1 lb
Payload<=> 95 kg / 209 lbs
Height <=>40 mm / 1.6 in
Build up radius <=> 7.2 cm / 2.8 in

Padded bag ENG 2 CF HD
Weight<=> 2.4 kg / 5.3 lbs
Dimensions (L X W x H) <=>96 x 23.5 x 20 cm / 37.8 x 9..3 x 7.9 in

This tripod set consists of the following products:

- Video 20 S1 Fluid Head (#2010)
- Tripod ENG 2 CF HD (#5390)
- Mid-level spreader 100/150 (#7007)
- Rubber feet 100/150 (#7004)
- Padded bag ENG/EFP (#9106)

More information about the respective products, please refer directly to the individual product pages!

S1 20 fluid head

Weight

3.4 kg / 7.5 lbs

Payload

2 - 25 kg / 4 - 40 lbs (2 - 15 kg / 4 - 33 lbs, 12 - 25 kg / 26 - 55 lbs depending on boost button setting)

Sliding range - plate

120 mm / 4.7 in

Counterbalance

in 16 steps + Boost Button

Grades of drag

7 each horizontal and vertical + 0

Tilt range

+90/-70

Temperature range

-40 to +60 C / -40 to +140 F

Camera fitting

Touch & Go plate 16

Tripod/Pedestal fitting

100 mm bowl, integrated flat base fitting

Pan bar(s)

1, telescopic, Type Plus right

Level

self-illuminating Touch Bubble

Batteries Level

1 × CR2032

ENG 2 CF HD

Weight

4 kg / 8.8 lbs

Payload

95 kg / 209 lbs

Height with spreader

55 - 161 cm / 21.7 - 63.4 in

Height with mid-level spreader

56 - 157 cm / 22.0 - 61.8 in

Head fitting

100 mm

Transport length

75 cm / 29.5 in

Extension

2-fold

Mid-level spreader 100/150

Weight

0.75 kg / 1.7 lbs

Build up radius

28 - 46 cm / 11 - 18.1 in

Rubber feet 100/150

Weight

0.58 kg / 1 lb

Payload

95 kg / 209 lbs

Height

40 mm / 1.6 in

Build up radius

7.2 cm / 2.8 in

Padded bag ENG 2 CF HD

Weight

2.4 kg / 5.3 lbs

Dimensions (L X W × H)

96 × 23.5 × 20 cm / 37.8 × 9..3 × 7.9 in
