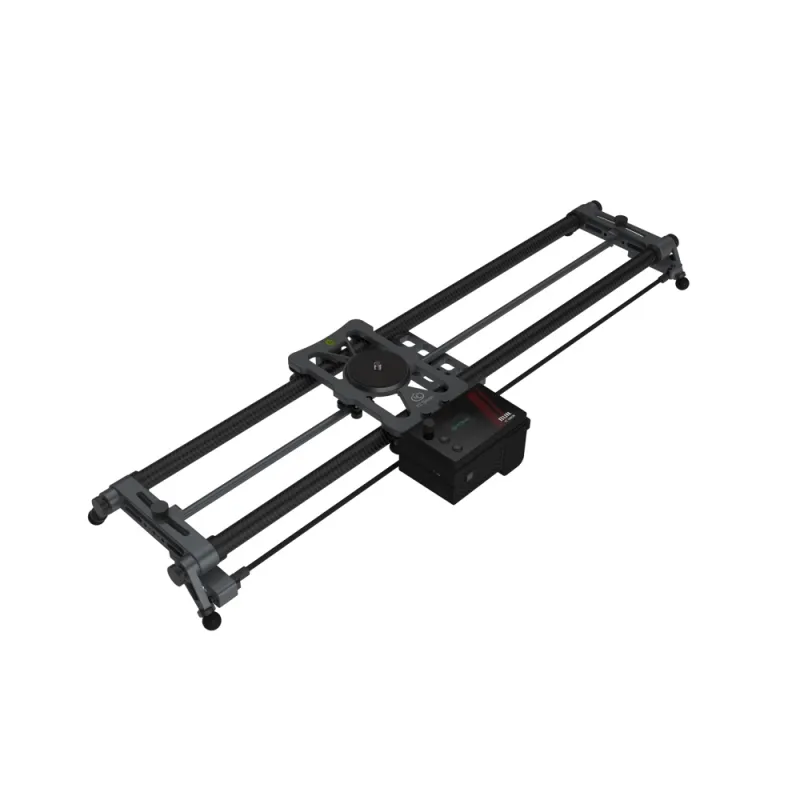

YC Onion 120cm HOTDOG 3.0 Motorized Slider with RS2 Interlink Module,RS2 Power Supply Module MHDB120_B_RS2

For all your creative shooting

The YC Onion 120cm HOTDOG 3.0 Motorised Slider with RS2 Interlink Module and RS2 Power Supply Module gives you the ability to create smooth and even camera movements while recording videos. This allows you to create professional-looking shots and cinematic effects. Use the belt buckle with quick attach and you can instantly switch between manual or motorised mode.

Highlights

• High precision 100% carbon fibre rail
• ARRI support legs, suitable for any surface
• Quick switch between manual and motorised mode
• Features YC Onion YC RS2 Interlink Module which is compatible with the DJI RS 2 stabiliser
• YC Onion YC RS2 Power Supply Module, suitable for L series batteries.

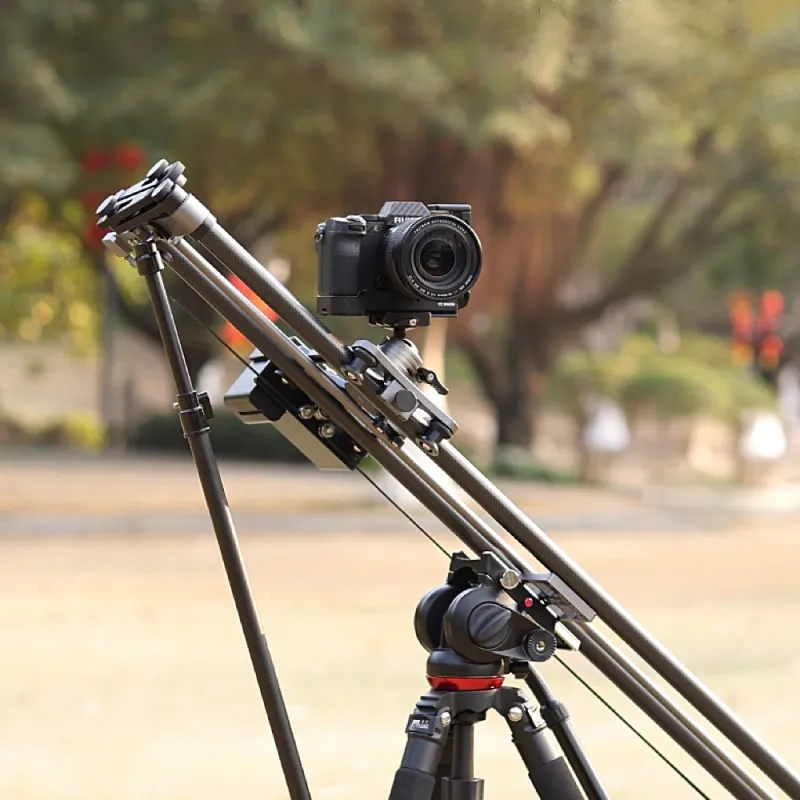

Strong and stable

The HOTDOG 3.0 Motorised Slider is very lightweight due to its carbon fibre construction, making it easily portable, yet it is very stable and durable. With its universal Type C charging port and 2.5mm shutter cable interface, it is compatible with mobile phones, DSLRs, or video cameras, for example. The 360C finely adjustable ARRI support legs are retractable and have a spherical design which provides more stability. The support legs are easy to adjust to different surfaces such as rocks, grass, tree stumps, or beaches.

The follow focus bar lets you quickly switch between pan, parallax, and panoramic shots, creating more options for camera movement. When used vertically, the slider can support up to 6.5 kg; in horizontal position, up to 20 kg; and when used inclined, up to 14 kg.

The motor

The motor has an on/off button, stepless control knob, A/B buttons, and a 1.3 LCD display that shows the status of selected assigned parameters. The control knob allows you to adjust the speed and make various selections. The motor is attached to the slider with the screws provided, and a belt is attached to the motor and the two ends of the slider with quick connectors. You can also remove the motor and strap and use the slider completely manually. The motor can be paired with certain stabilisers from the DJI series and from the ZHIYUN series, allowing for simultaneous motion settings to be assigned for the slider from the same YC Onion app to achieve 4-axis motion control.

The perfect control

With the YC Onion YC RS2 Interlink Module, you can also control the DJI RS 2 stabiliser on your YC Onion Hot Dog 3.0 slider with your smartphone. You have perfect control over your photo and video recordings. The Interlink Module automatically turns on when you turn on the gimbal. An LED indicator lights up white when the module is switched on and blue once the module is paired with the app.

Note: This module is only compatible with DJI RS2 and DJI RS3 Pro.

APP control

The APP control allows you to switch instantly between the two modes, timelapse mode or video mode. Using the APP makes it easier to avoid mistakes you might make by hand. It can improve your shooting efficiency for video and timelapse shots, but the engine also has buttons that allow you to set this manually.

Extend your battery life

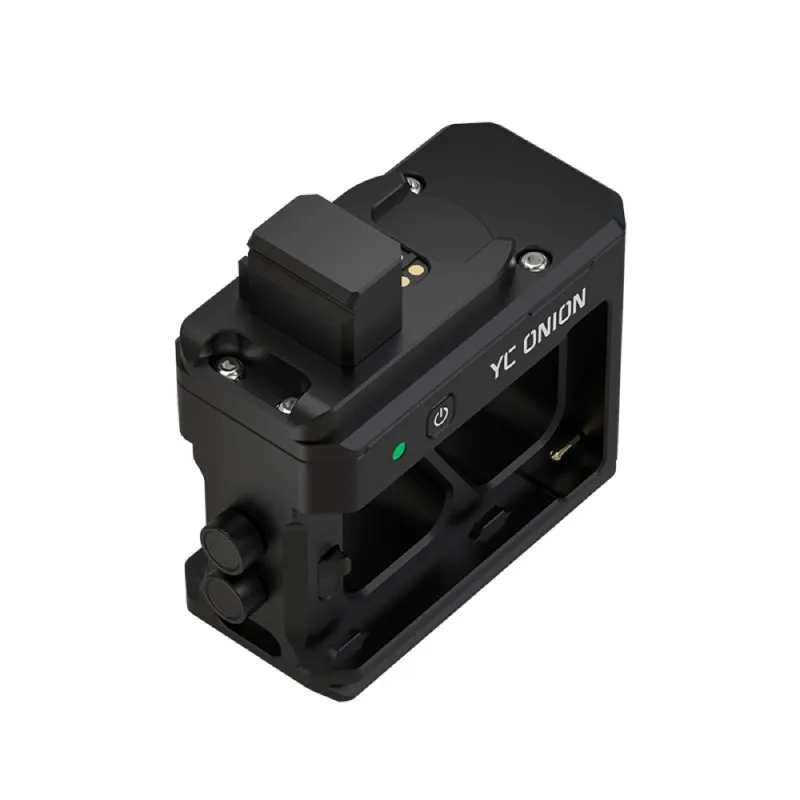

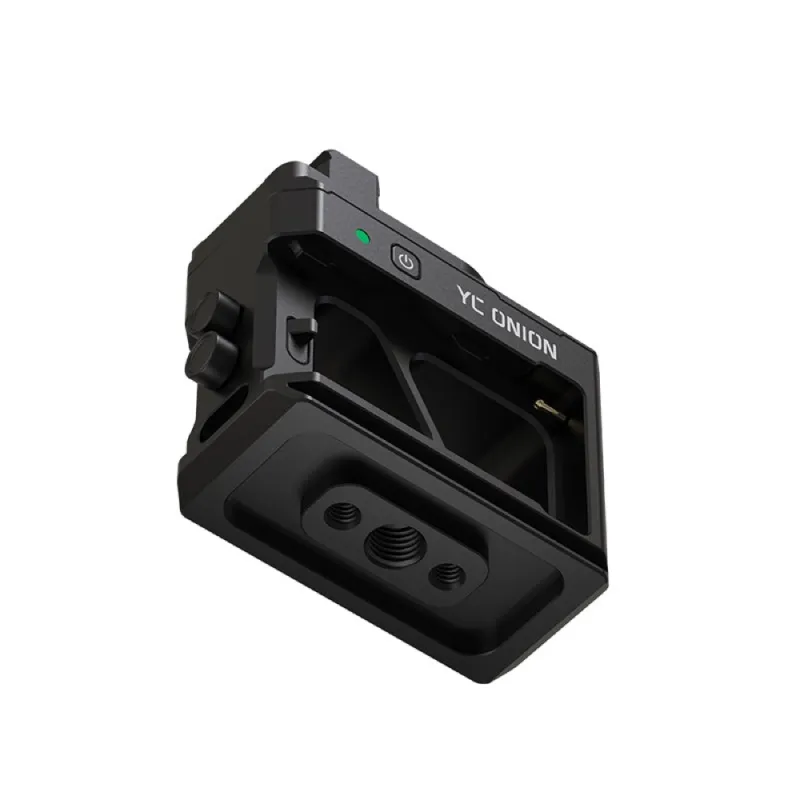

The YC Onion YC RS2 Power Supply Module replaces the battery cartridge that comes with your gimbal and extends your battery life. The base features two 1/4-20 holes and a single 3/8-16 hole, making it easy to mount your gimbal on a standard cine support system.

Features YC Onion 120cm HOTDOG 3.0 Motorised Slider

• Module display: 13-inch screen
• Material: Carbon fibre, aluminium alloy
• Function: Parallel, Parallax, Panoramic
• Payload: Vertical; 6.5 kg, Horizontal; 20 kg, Slanted; 14 kg
• Switching between manual and motorised
• Belt buckle with quick attach
• 16 imported bearings for smoother shots
• YC Onion APP
• Large diameter disc
• Easily adjustable follow focus bar
• Power supply: Sony F970, F750, F550 battery
• Interface power supply: USB C (Type C) power interface
• Net module weight: 0.655 kg
• Dimensions: 120 cm
• Weight (Bun Motor included): 3.23 kg
• Buffer: Enabled by default, cannot be disabled
• Point AB memory function: Only the last set AB point can be used.

Features YC Onion YC RS2 Interlink Module

• Mounts on DJI RS 2 RSA port
• Switches on with Gimbal
• Power supply/Bluetooth connection indicator
• This module is only compatible with DJI RS2 and DJI RS3 Pro.

Features YC Onion YC RS2 Power Supply Module

• Suitable for L series batteries.
• Has two 1/4-20 holes and a single 3/8-16 hole
• Compatible with the DJI RS2 and DJI RS3 Pro only

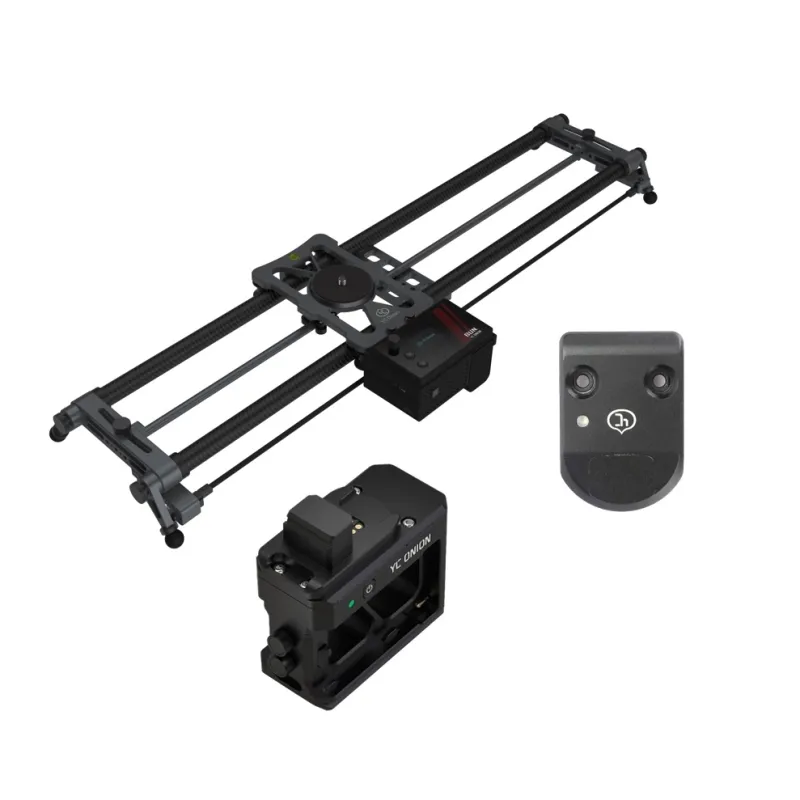

Included in the package

• 1 x YC Onion 120cm HOTDOG 3.0 Motorized Slider
• 1 x YC Onion YC RS2 Interlink Module
• 1 x YC Onion YC RS2 Power Supply Module
