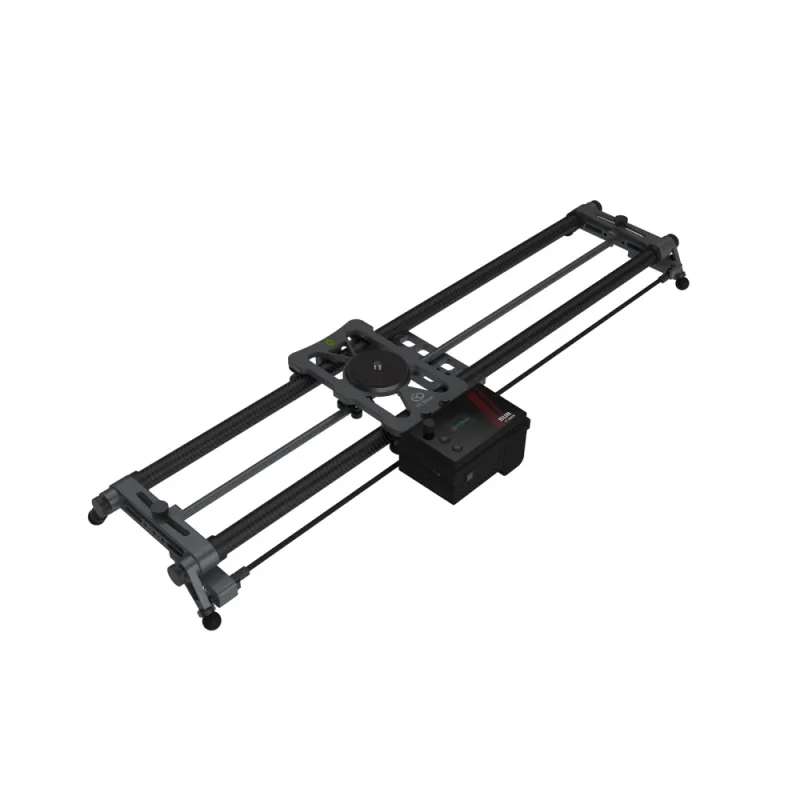

YC Onion 120cm HOTDOG 3.0 Motorized Slider MHDB120_B

For all your creative shooting

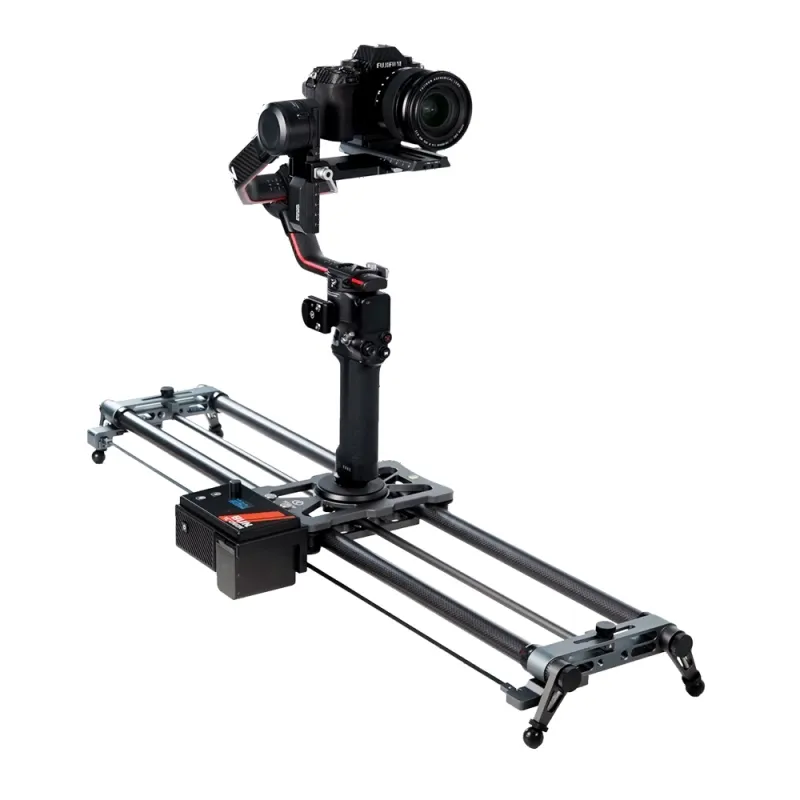

The YC Onion 120cm HOTDOG 3.0 Motorised Slider gives you the ability to create smooth and even camera movements while recording videos. This allows you to create professional looking shots and cinematic effects. Use the belt buckle with quick attach and you can instantly switch between manual or motorised mode.

Highlights

• High precision 100% carbon fibre rail
• ARRI support legs, suitable for any surface
• Quick switch between manual and motorised mode
• Adjustable for mobile phone, DSLR or video camera

Strong and stable

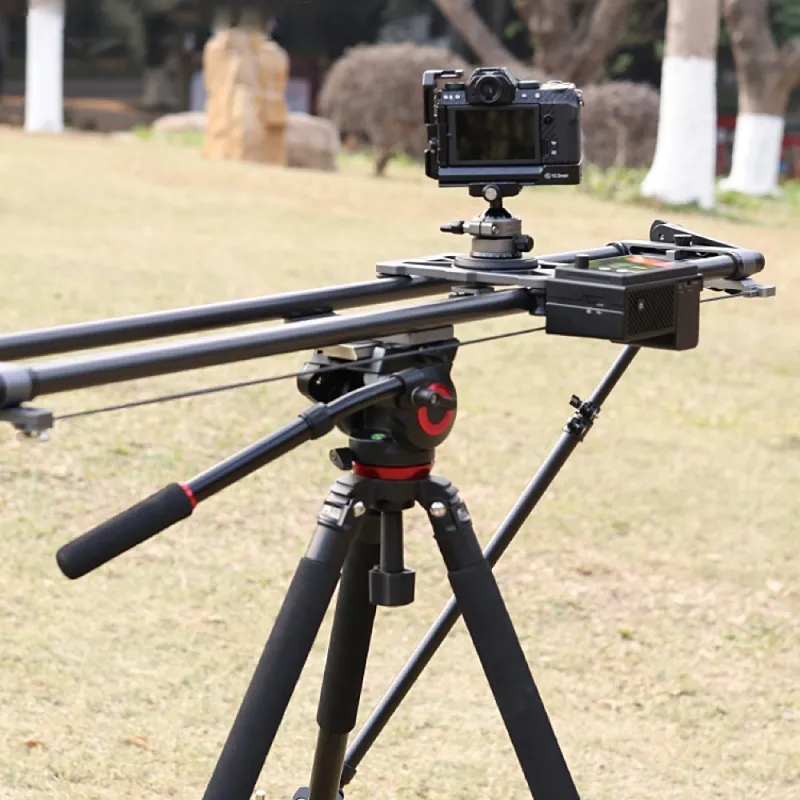

The HOTDOG 3.0 Motorised Slider is very lightweight due to the carbon fibre and makes it easily portable, but is very stable and durable. With its universal Type C charging port and 2.5mm shutter cable interface, it is compatible with mobile phones, DSLRs, or video cameras, for example. The 360° finely adjustable ARRI support legs are retractable and have a spherical design which provides more stability. The support legs are easy to adjust to different surfaces such as rocks, grass, tree stumps, or beaches.

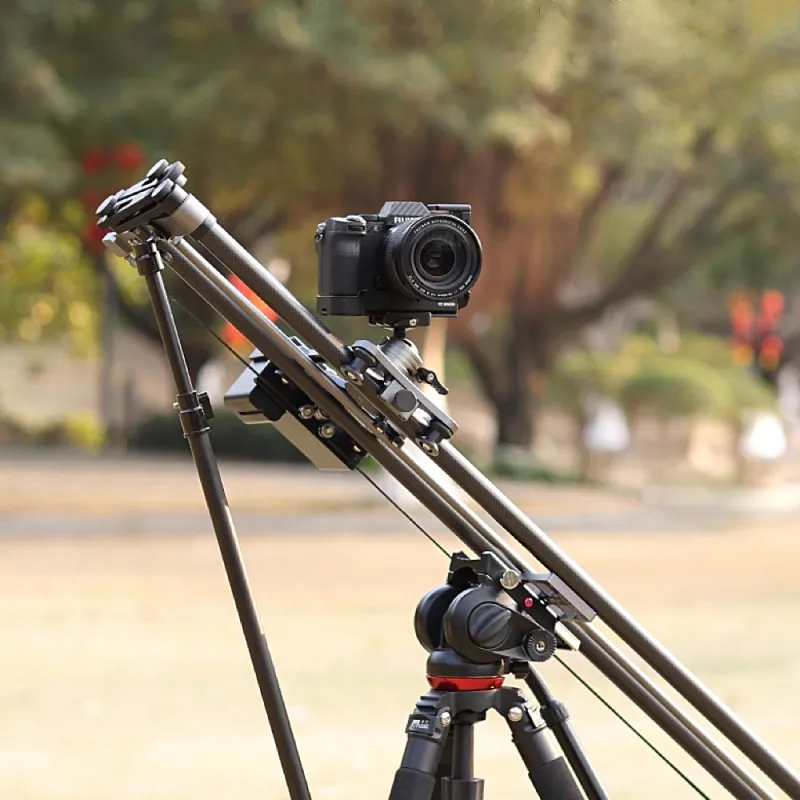

The follow focus bar lets you quickly switch between pan, parallax, and panoramic shots. This creates more options for camera movement. When used vertically, the slider can support up to 6.5 kg, in horizontal position up to 20 kg, and when used inclined up to 14 kg.

The motor

The motor has an on/off button, stepless control knob, A/B buttons, and a 1.3" LCD display that shows the status of selected assigned parameters. The control knob allows you to adjust the speed and make various selections. The motor is attached to the slider with the screws provided, and a belt is attached to the motor and the two ends of the slider with quick connectors. You can also remove the motor and strap and use the slider completely manually. The motor can be paired with certain stabilisers from the DJI series and from the ZHIYUN series all stabilisers. Simultaneous motion settings can be assigned for the slider from the same YC Onion app to get 4-axis motion control. To link the DJI Ronin S or RS 2, an optional YC Onion Interlink module is required.

APP control

The APP control allows you to instantly switch between the two modes, timelapse mode or video mode. Using the APP makes it easier to avoid mistakes you make by hand. It can improve your shooting efficiency of video and timelapse shots, but the engine also has buttons that allow you to set this manually.

Specifications

• Module display: 13-inch screen
• Material: Carbon fibre, aluminium alloy
• Function: Parallel, Parallax, Panoramic
• Payload: Vertical; 6.5 kg, Horizontal; 20 kg, Oblique; 14 kg
• Switching between manual and motorised
• Belt buckle with quick attach
• 16 imported bearings for smoother shots
• YC Onion APP
• Large diameter disc
• Easily adjustable follow focus bar
• Power supply: Sony F970, F750, F550 battery
• Interface power supply: USB C (Type C) power interface
• Net module weight: 0.655 kg
• Dimensions: 120 cm
• Weight (Bun Motor included): 3.23 kg
• Buffer: Enabled by default, cannot be disabled
• Point AB memory function: Only the last set AB point can be used

Included in the package

• 1 x YC Onion 120cm HOTDOG 3.0 Motorised Slider
• 1 x Storage bag
• 1 x Strap
• 1 x Power adapter
• 1 x Bun Motor screw
• 1 x Bun Motor
• 1 x User Guide

Compatible with various types of tripod heads with high precision level controller to find the balance point more accurately.
