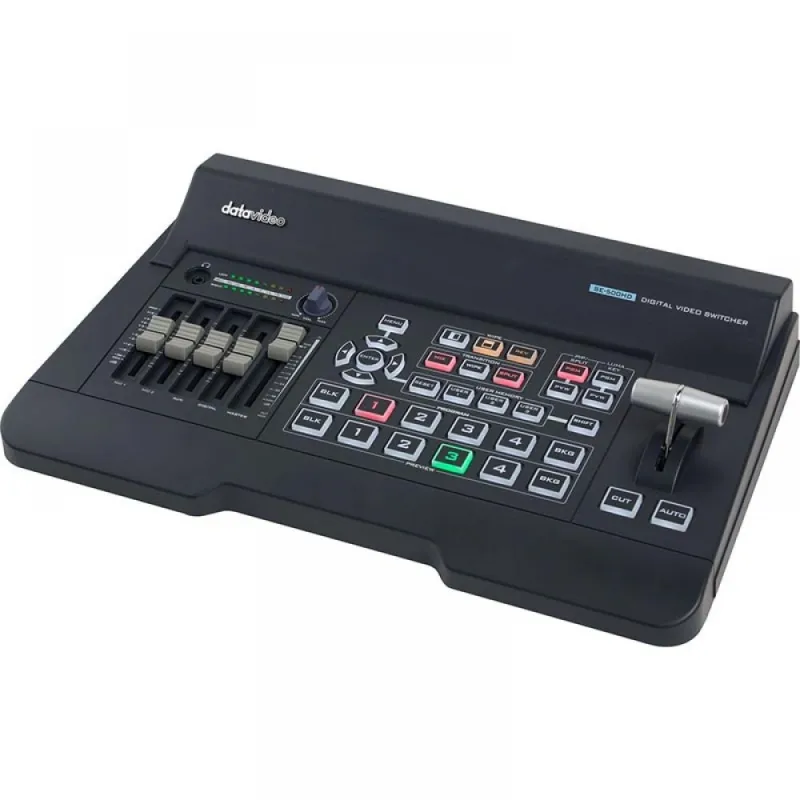

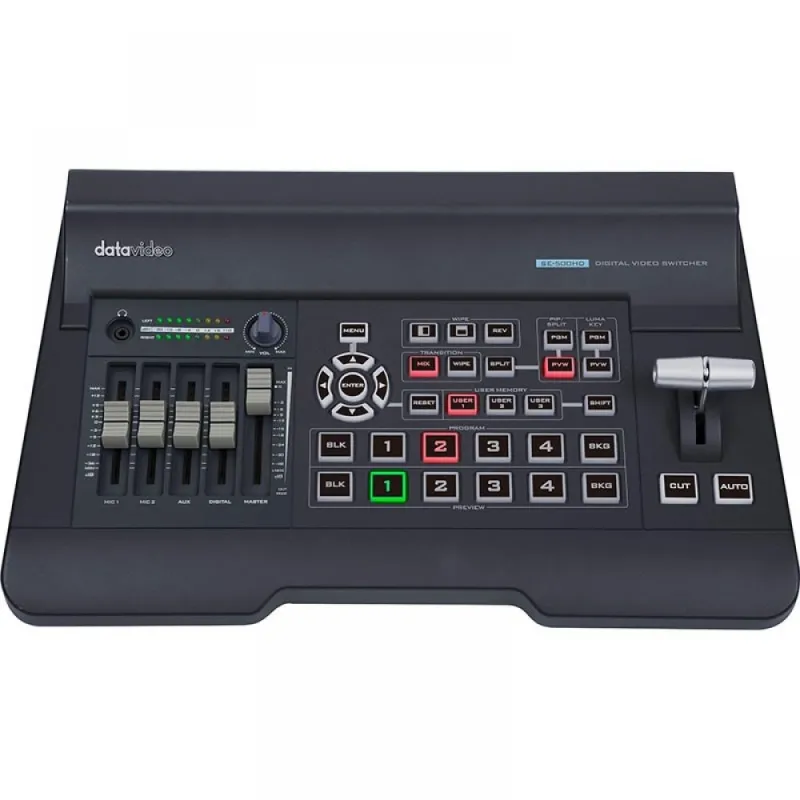

Datavideo SE-500HD 4 Input Full HD Switcher
The SE-500HD is a small, cost-effective, 1080p HDMI video switcher with easy-to-use professional features. It has four HDMI inputs and two HDMI outputs, which allow users to connect consumer camcorders, GoPros, HDMI laptops or tablets. What makes the SE-500HD special is the ability to accept various input resolutions at once, so users no longer need to add converters into the workflow. Don’t let the SE-500HD fool you with its compact size and affordable price. It is loaded with features such as Luma key for graphic overlays, split screen for podcast interviews, and PIP for PowerPoint presentations. It also comes with a built-in audio mixer, so users can plug in microphones and other audio sources directly into the SE-500HD without needing to add an external audio mixer. The SE-500HD is the ideal solution for corporate training, education, podcasts, and house of worship applications.
Features:
4 Channel HD/SD Digital Video Switcher
Supports up to Full HD 1080p

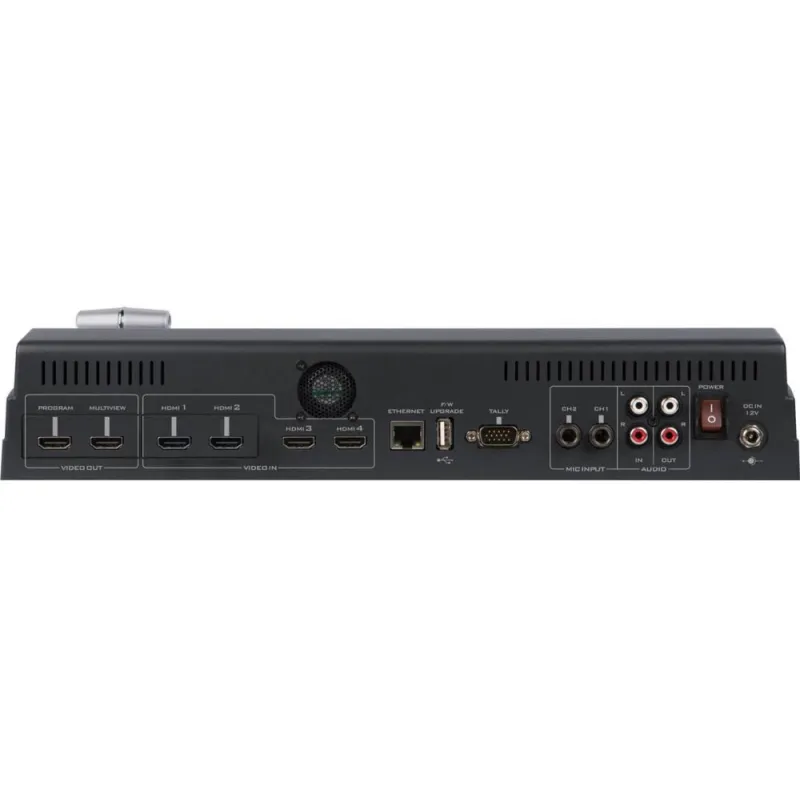

Video Input: 4x HDMI
Video Output: 2x HDMI (1x Multiview | 1x Program)
Audio Input: 1x Stereo RCA | 2x Microphone
Audio Output: 1x Stereo RCA | 1x Stereo headphone mini Jack
Audio Mixer: 2x Mic | 1x Stereo RCA | 1x internal Digital embedded
Audio LED Meter
Transitions: Wipe, Mix & Cut
Keyer: Lumakey
Picture-in-picture and split functions
Tally Output
Delivery:
1x SE-500HD product
1x AD Switch DC 12V with AC Cord
Specifications:
Model Name | SE-500HD |
Product Name | HD/SD 4-Channel Digital Video Switcher |
Video Standard | HD & SD |
Video Format | 1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz 576i 50Hz 480i 59.94Hz |
Video Processing | HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4 |
Input Routable / Crosspoint | N/A |
Video Input Mix HD & SD source Computer Graphic Interface | 4x HDMI |
Video output | 2x HDMI (1 is MV, 1 is PGM) |
Down-converted output | Yes |
Built-in Multi-view monitoring out | HDMI |
Audio input | 1x Stereo RCA (L/R) 2x Mono Microphone De-embedded Digital Audio (2 CH) |
Audio output | 1x Stereo RCA (L/R) 1x Stereo headphone (Mini Jack with volume control) Embedded Digital Audio (2 CH) |
Embedded audio support | embedded 2-CH digital/analogue audio |
Audio Delay Calibration | N/A |
A+V switching | Yes |
Chromakey | N/A |
Title Creator | N/A |
USK | Lumakey |
DSK | N/A |
Picture in Picture | 1 |
Logo Insertion | N/A |
Still Store | N/A |
Effects | FTB, Cut, Wipe with border |
Transition Preview | N/A |
Sync / Reference In/Out | Built-in Genlock (internal) |
Tally Output | 1x D-sub 15pin, dual color |
PC Remote Control | N/A |
Built-in Audio Mixer | 4 channels |
Chassis | Unibody |
Power | DC 12V |
Accessory | CB-46/47/50 (30/50/100m) |
