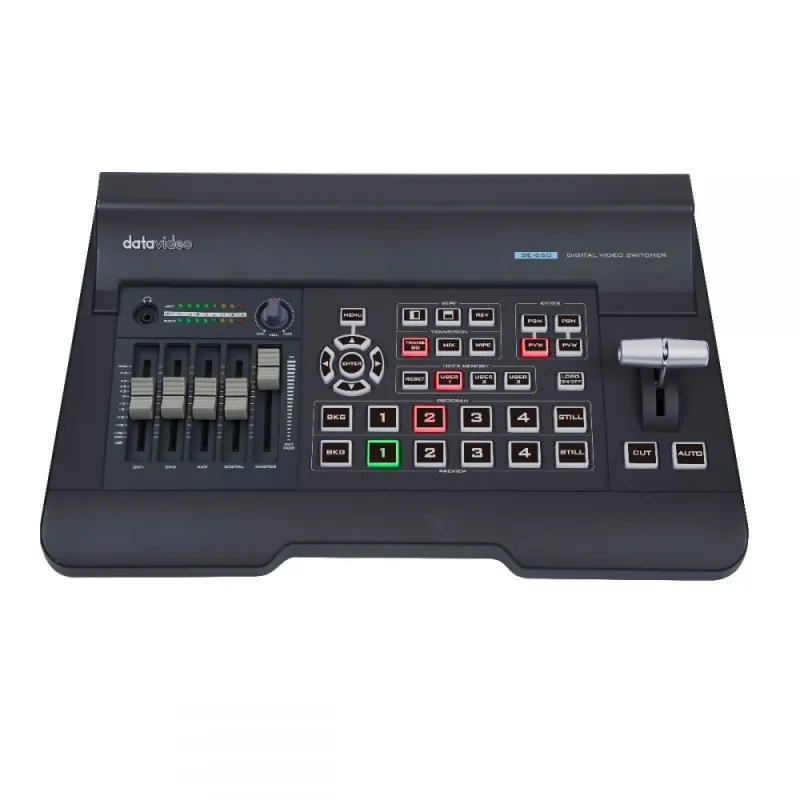

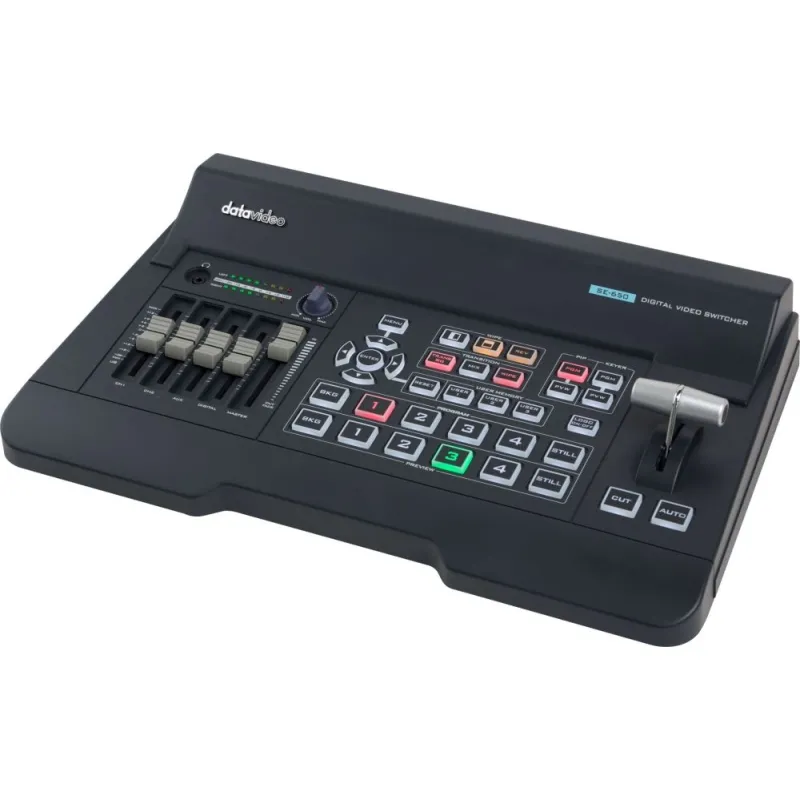

Datavideo SE-650 4 Input HD Digital Video Switcher
The Datavideo SE-650 is a small, costeffective, professional HD digital video switcher. It offers two HD-SDI and two HDMI inputs that support video formats up-to 1080i. It features two HDMI outputs and a user assignable HD-SDI output. The SE-650 is the perfect device for small scale video production using professional cameras and HDMI equipment. The SE-650 also features an audio mixer with microphone and unbalanced RCA audio inputs. Advanced tools include Chromakey, Luma key, PiP, wipe generator, still store and tally.
Features:
4 Input HD digital video switcher
Inputs: 2 x HD-SDI, 2 x HDMI
Outputs: 1 x HD-SDI, 2 x HDMI
Any Input can be used as a Frame store (Stills Store)
Assignable Outputs: Program (w/ LOGO), Clean Program (w/o LOGO), Clean Preview (w/o LOGO), Multiview
Frame Sync on each input
Flexible Mix/Effects Processor with 1 Upstream Keyer, supporting Chromakey & Linear/ Luma Key
1 Upstream PIP, supporting Chromakey & Luma Key
Wipe Generator: 32 Wipe Patterns, including Circle & Heart - Borders & Softness Control
Full M/E Preview function
Logo insertion
XPT (Cross Point Assignment)
Tally Output
6 Channel Audio Mixer
Audio inputs: 2 x RCA Analogue (L/R), 2 x Microphone
Audio outputs: 2 x RCA Analogue (L/R), 1 x Stereo headphone mini Jack
Audio em-bedded function
Multi-language support
Delivery:
1x SE-650 product
1x AD Switch DC 12V with AC Cord
1x Thank You Card
Specifications

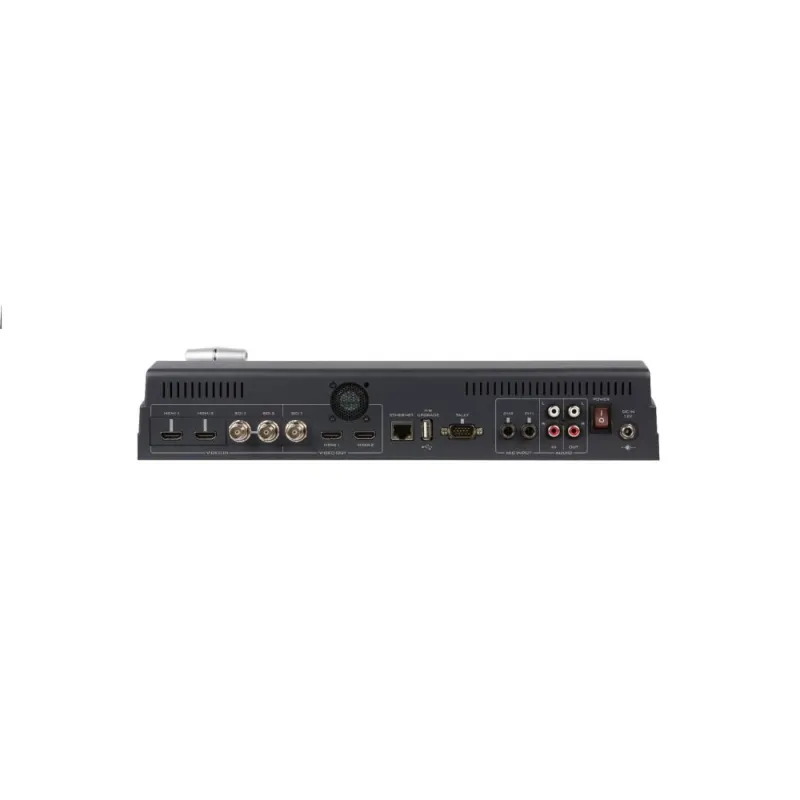

| Interfaces | |
|---|---|
| Video Inputs | 2 x HDMI 2 x HD-SDI |
| Video Outputs | 2 x HDMI (HDMI 1 is user assignable / HDMI 2 is Multiview) 1 x HD-SDI (User assignable) |
| Audio Inputs | 1 x Stereo RCA (L/R) 2 x Mono Microphone De-embedded Digital Audio (2 CH) |
| Audio Outputs | 1 x Stereo RCA (L/R) 1 x Stereo headphone (Mini Jack with volume control) Embedded Digital Audio (2 CH / Channel 1 & 2) |
| Tally | Yes / D-Sub 15 male connector |
| Software Update | USB Port |
| Audio Mixer | |
| Audio Fader | 5 VR (Variable Resistor) 6 Channel (3 Pair) Audio Mixer |
| Audio LED Meter | 2 Rows (Left/Right) |
| Standards | |
| Supported Resolutions | 1080i/50, 1080i/59.94, 1080i/60, 720p/50, 720p/59.94, 720p/60 |
| Internal Processing | YUV 4:2:2 10-bit |
| Extras | |
| Keyers | 2 Keyers (2 Chroma Keyers); linear and luma keyer |
| Upstream Keyers | 2 (M/E Keyer & PIP) |
| Chroma Keyers | 2 High Quality Chroma Keyers; available in Keyer and PIP |
| PIP | 1 x PIP with adjustable size, position, and crop. Border with adjustable width & color |
| Wipes | 32 Wipe Patterns such as Circle and Heart. Variable border width with Softness control. |
| Stills | Any unused channel can also be used as a still buffer. Stills can be stored internally |
| Stinger Transitions | Yes |
| Logo | 1 |
| Accessories for video cameras | iekārtas |
