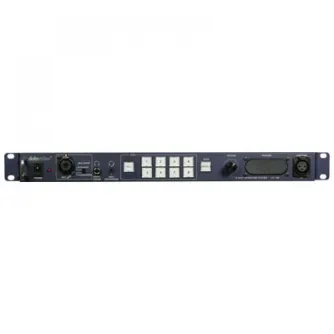

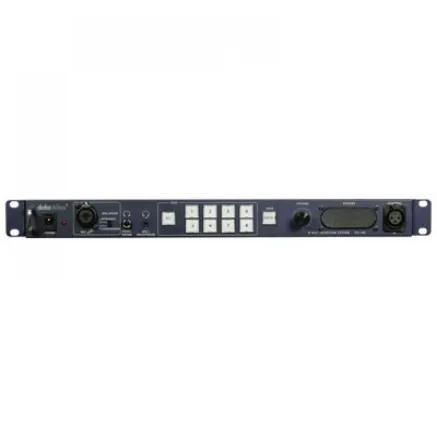

DATAVIDEO ITC 100 INTERCOM TALKBACK SYSTEM ITC-100

8 Way Intercom System

In the production studio, good communication between the director, cameraman, lighting and control room is essential to produce a polished end result. The Datavideo ITC-100 Intercom System provides 8-Way talkback and tally indicators. The director can select to talk to an individual channel or to all channels simultaneously. High S/N ratio and full duplex design makes the communication crisp and clear. The ITC-100 is a standard 19”/1U rack design, so it is easy to integrate into any rack system for using in the field or studio.

Features

- Industry Standard 19”/1U rack design, for easy integration
- Supports 8-Way Intercom (standard package includes 4 sets of ITC-100SL with belt-pack accessories)
- Full Duplex design with additional external earphone and microphone interface
- Two-color Tally light indicator
- Selectable channel talk, broadcast all or mute.
- Half-Duplex design for ITC-100SL to eliminate the environmental noise
- Enables communication between the camera crew
- Communication distance up to 200 meters
- Supplied complete with Gooseneck Microphone and Light

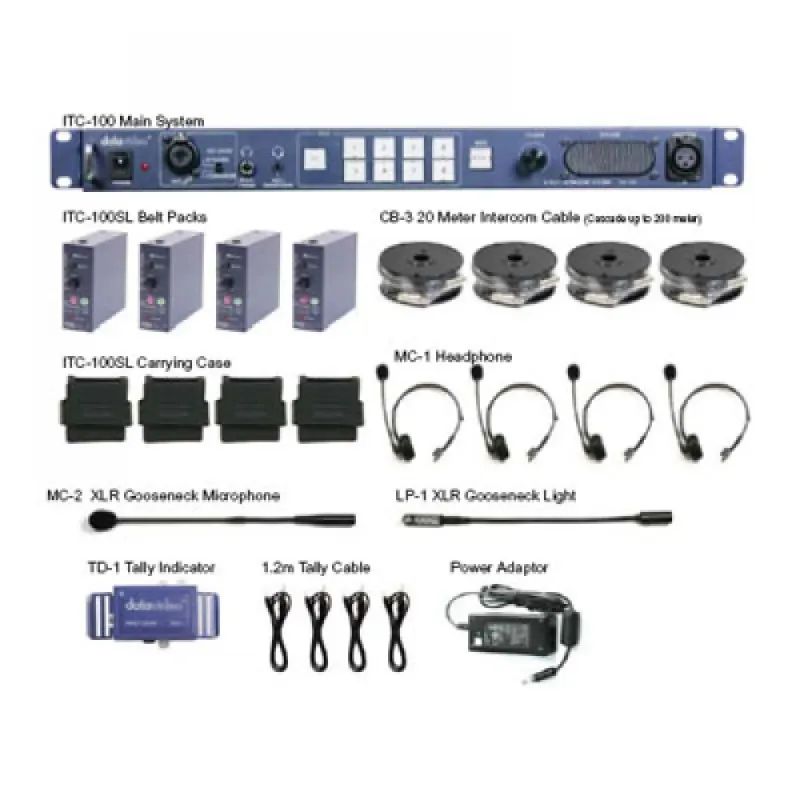

Accessories (included)

- ITC-100 Main system
- 4x ITC-100SL Belt Packs
- 4x CB -3 20 Meter Intercom Cable (Cascade up to 200 meter)
- 4x ITC-100SL Carrying Case
- 4x MC-1 Head phone
- MC-2 XLR Gooseneck Microphone
- LP-1 XLR Gooseneck Light
- TD-1 Tally Indicator
- 4x 1.2m Tally Cable
- Power Adaptor

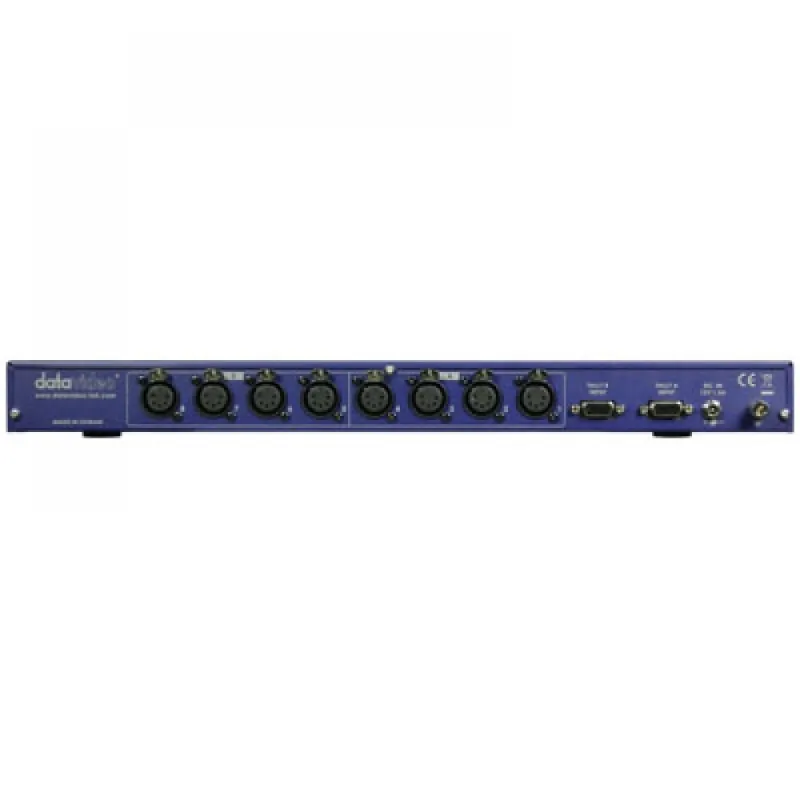

Tally interface

Two D-Sub 15-PIN terminals

Output

Eight terminals of 5-PIN XLR output

Audio Output

One 3.5mm headphone
One 6.5mm earphone output
One speaker out

General Spec

Power indicator
Microphone on/off switch
Intercom select buttons
Mute control
Volume control
DC 12V power indicator
Tally inputs
Full duplex intercom

Dimension

482mm × 250mm × 44mm

Weight

1.9 kg

Power

DC 12V/1.5A
