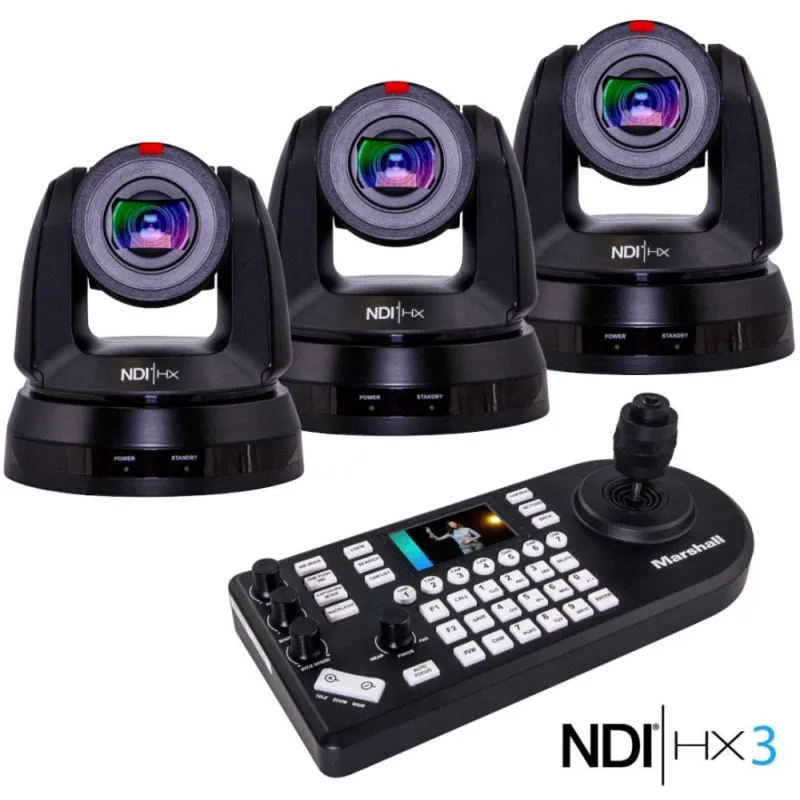

Marshall CV630-ND3-KIT3 Bundle NDI HX3

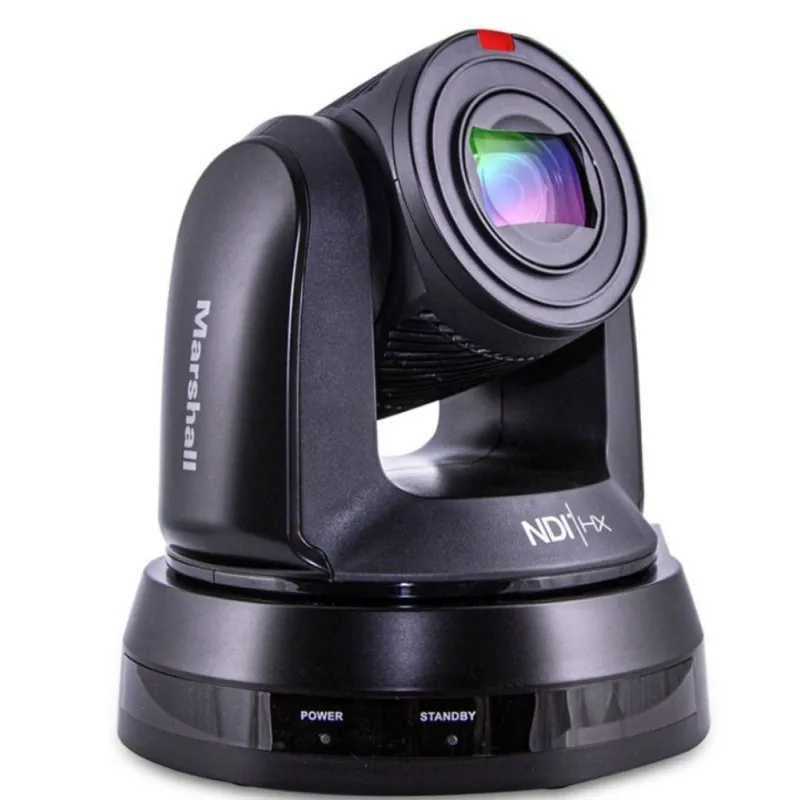

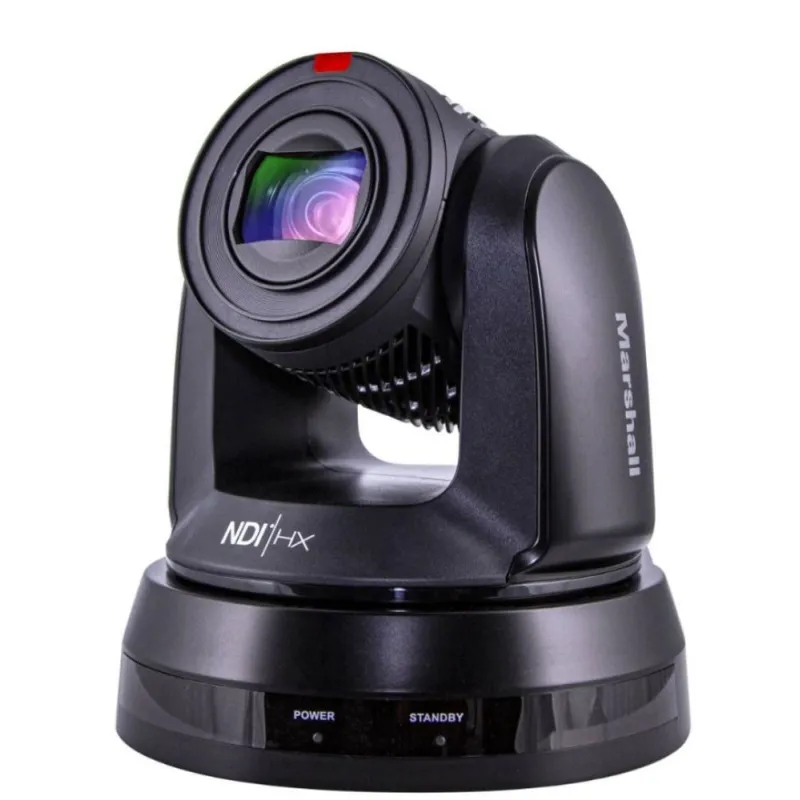

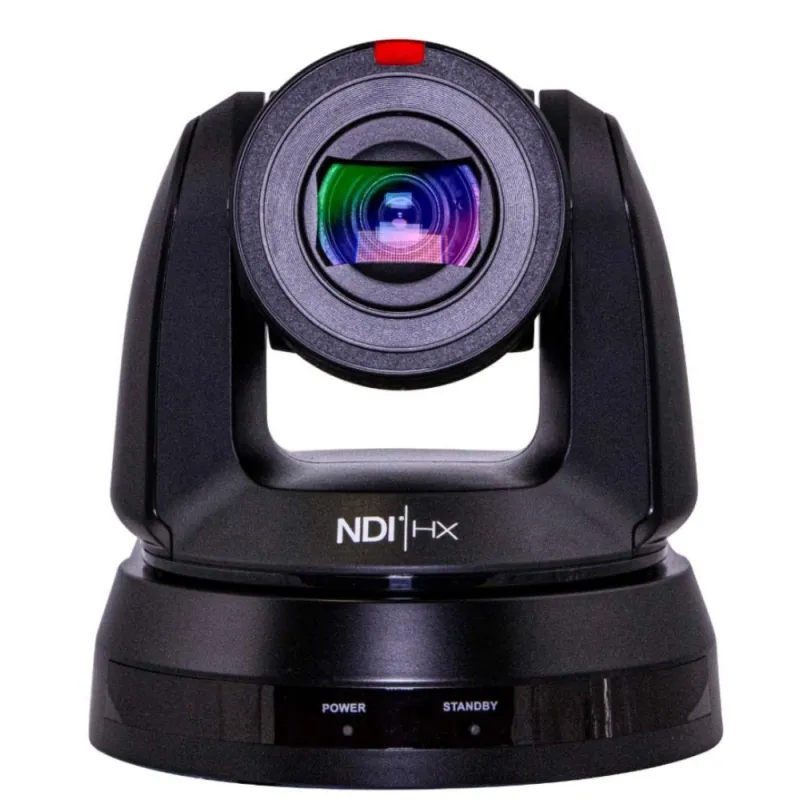

The CV630-ND3 is a compact PTZ camera with a variety of video outputs. You can output the signal via IP, SDI, HDMI and USB at the same time. It outputs recordings in Ultra HD via HDMI and IP. The 3G-SDI port supports resolutions up to 1080p. It can be additionally supplied with power through the IP port (PoE). The modern NDI HX3 format promises low-latency, high-quality image transmission even with low bandwidth.

Sensor & Lens

  • 8 Megapixel Sensor (1/2.5) UHD, CMOS (IMX317)
  • 25x optical zoom
  • horizontal opening angle up to 68°
  • Focal length: 4.8mm ~ 120.5mm
  • Focus range: from 1.5m distance
  • Aperture: F1.5 ~ F3.4

Image settings

  • Shutter-Speed: 1/1 ~ 1/10.000 sek.
  • Focus, Gain, White Balance, Exposure: automatic and manual
  • Image Flip, WDR, 3D NR

Resolution and frame rates

  • 3840 x 2160p (59.94 / 50 / 29.97 / 25 fps) via HDMI and IP
  • 1920 x 1080p (59.94 / 50 / 29.97 / 25 fps)
  • 1920 x 1080i (59.94 / 50 fps)*
  • 1280 x 720p (59.94 / 50 / 29.97 / 25 fps)
Note about interlaced video!
  • NDI does not support interlaced video signals. For example, if the camera is set to 1080i, the video will automatically be converted to 1080p.

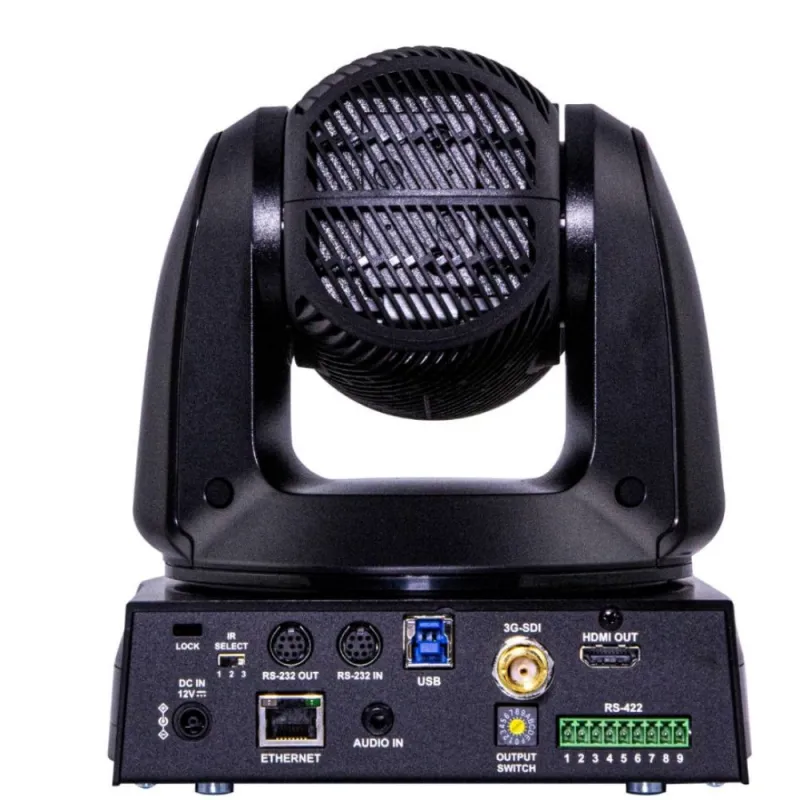

Connections

  • Ethernet
  • 3G-SDI
  • HDMI
  • USB 3.0 (Typ B Port)
  • RS232 (one port each for In / Out)
  • RS422
  • 3.5mm Audio Input mit Passthrough
  • DC-In 12V (for power supply)

Features/technical data

  • IS|HX3
  • PoE+ (IEEE802.3at), simultaneous transmission of video & control signals and power supply via a CAT cable
  • Video compression: H.265/H.264
  • Interfaces for control: RS-232 / RS-422 / Ethernet / USB 3.0
  • Steuerprotokolle: VISCA / VISCA IP / PELCO D / ONVIF / UVC/CGI
  • IP-Protokolle: NDI|HX3 / NDI|HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT
  • Front Tally Light
  • Range of motion: 340° horizontal (pan), 120° vertical (tilt)
  • Tolerated temperature range: 0 °C to 40 °C (in operation), -20 to 60 °C (during storage)

IP streaming output

  • HX3: 1080P
  • HX2: 1080P/4K
  • RTSP
  • HEVC 4K 59.94fps
  • H.264 1080p 59.94fps
  • H.264 640x360 29.97fps
  • Audio
  • Input: Stereo Line In/MIC In, 3.5mm jack plug
  • Output: Ethernet / 3G-SDI / HDMI / USB 3.0
  • Power supply
  • via PoE: 18W
  • via power supply: DC In: 16W

Delivery Content

  • 3x CV630-ND3 (Camera)

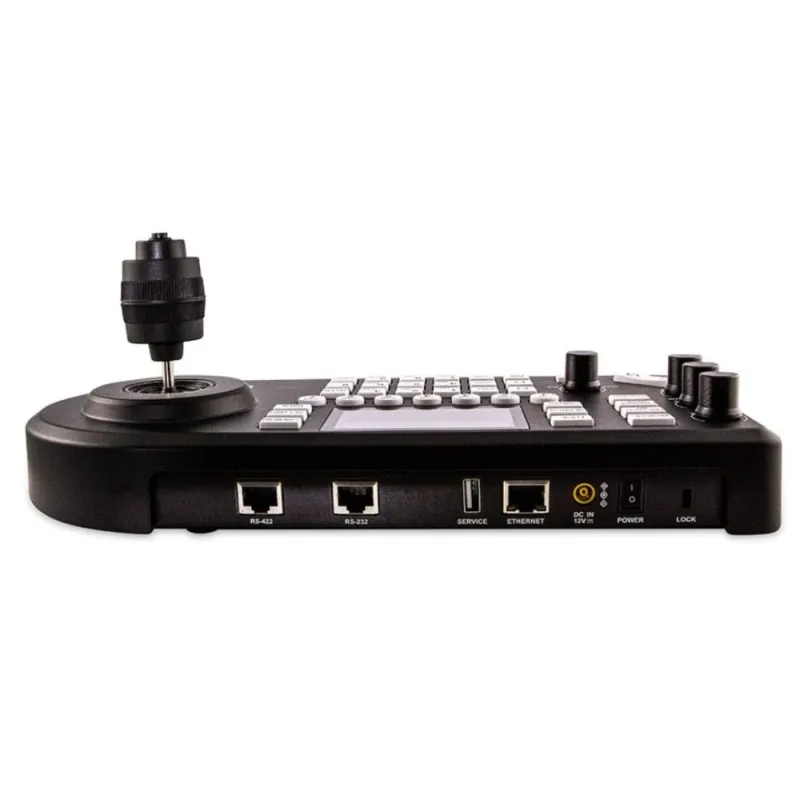

  • 1x VS-PTC-300 (Controller)
  • Adapter plate for ceiling mounting
  • Infrared remote
  • Power supply & cold device cable
