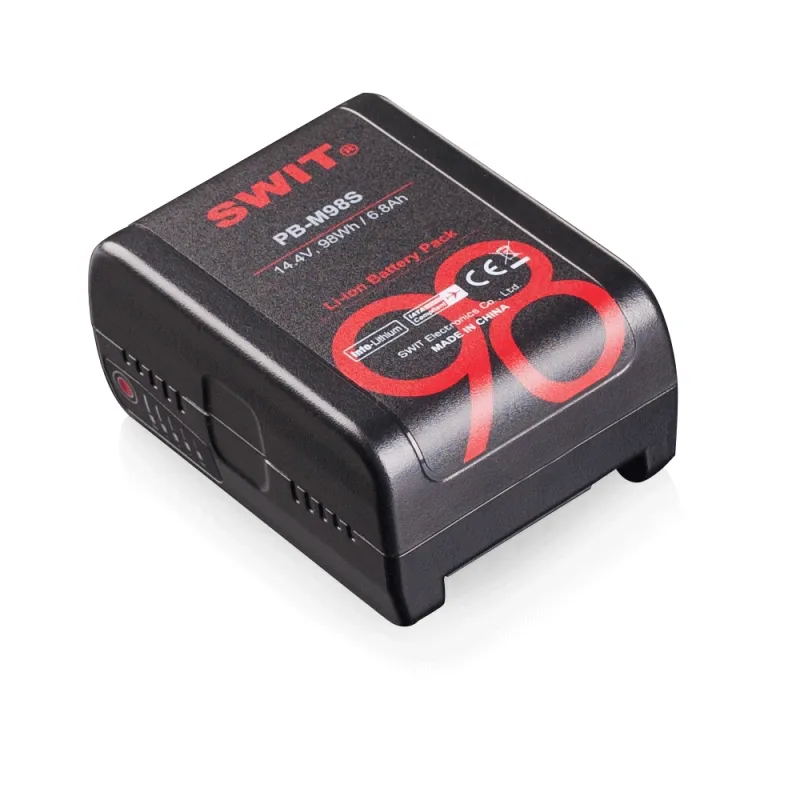

Swit PB-M98S 98Wh Pocket V-mount Battery PB-M98S

Swit PB-M98S is a miniature 98Wh V-Mount battery

PB-M98S

• Tiny V-mount battery, Pocket fit
• 98Wh/6.8Ah fly-friendly capacity
• Max 100W/8A constant load
• 1x D-tap output & charging input
• 1x USB 5V/2A output
• 5-step LED power indicator
• Power info for both SONY & RED
• Wire-Free internal technic
• Multiple circuit protections

Tiny V-mount battery

Pocket fit size
The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabilizers, focus puller monitor, portable LED panel, or small cameras
PB-M98S Pocket V-mount battery is designed for the above applications!
It's only a DV battery size, with high capacity cells and still reaches 98Wh, and without any compromise on the DC sockets!

98Wh Fly Friendly

Max 100W/8A constant load

PB-M98S consists of 8pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity. You can take this battery in carry-on luggage to board airplane
The Max constant load is 100W, 8A.

Built-in D-tap and USB

The pocket size PB-M98S still has D-tap and USB sockets built-in
The D-tap socket share 100W/8A load DC output with the V-mount pins, and support charging input by SWIT PC-U130B2 dual D-tap charger
The USB socket outputs 5V/2A for smart phone fast charging.

5-LED Power Indicator

Low battery warning

PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.

3A Fast Charging

PB-M98S can be charged by all standard V-mount chargers and D-tap chargers. The max charging current is 3A
The following chargers are recommended
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M98S: Approx. 3 hours
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M98S: Approx. 3 hours
Charge 2x PB-M98S: Approx. 5 hours and 15 minutes

SONY&RED Communication

PB-M98S can communicate with both SONY and RED cameras and display digital power info on camera viewfinder.

Wire-Free Internal Tech

PB-M98S has innovative "Wire-Free" internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

Transparent Special Version

Provide the special transparent PB-M98S to show the internal technic of this battery, includes
1. Wire-free technical
2. Class A high grade cells
3. Wider Nickel plate to solder the cells

* The transparent housing has the same intensity than regular housing.
