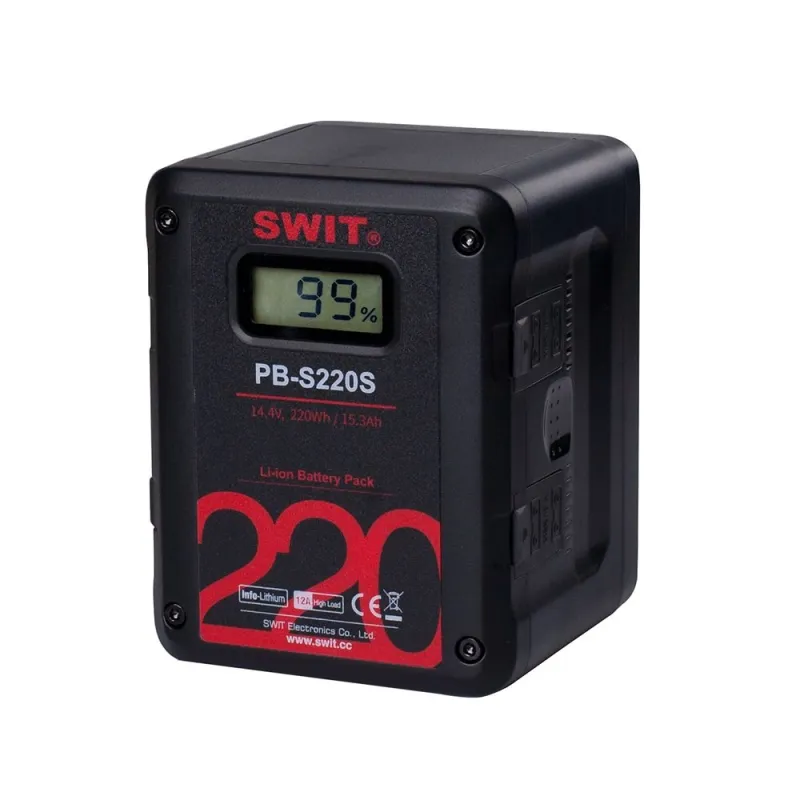

Swit PB-S220S Square Heavy Duty Digital Battery Pack (PB-S220S)
Features:
• Square shape design for Cine-cameras
• Max 150W, 12A high load
• 4× D-tap output sockets
• 1× USB 5V/2A power output sockets
• 6A fast charging by charger S-3812S
• LCD display accurate remaining run time
• Display power info in both SONY & RED
• Multiple circuit protections
Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.
220Wh / 15.3Ah Capacity
Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 220Wh / 15.3Ah high capacity. Can run approx 7 hours for normal ENG cameras and approx 2.5 hours for ARRI ALEXA.
High Load for Cine Cameras
Max 150W / 12A constant output
Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, wireless system work together, and total power will be above 110W, and the normal batteries cannot draw completely.
Using PB-S220S high-load battery, you can get MAX 150W/12A constant power output, which can drive more high power cameras, LCD Monitor and other equipments easily, and won’t reduce battery life during long time high power output.
Multiple output sockets design
4× D-tap output sockets, 1× USB 5V/2A power output socket

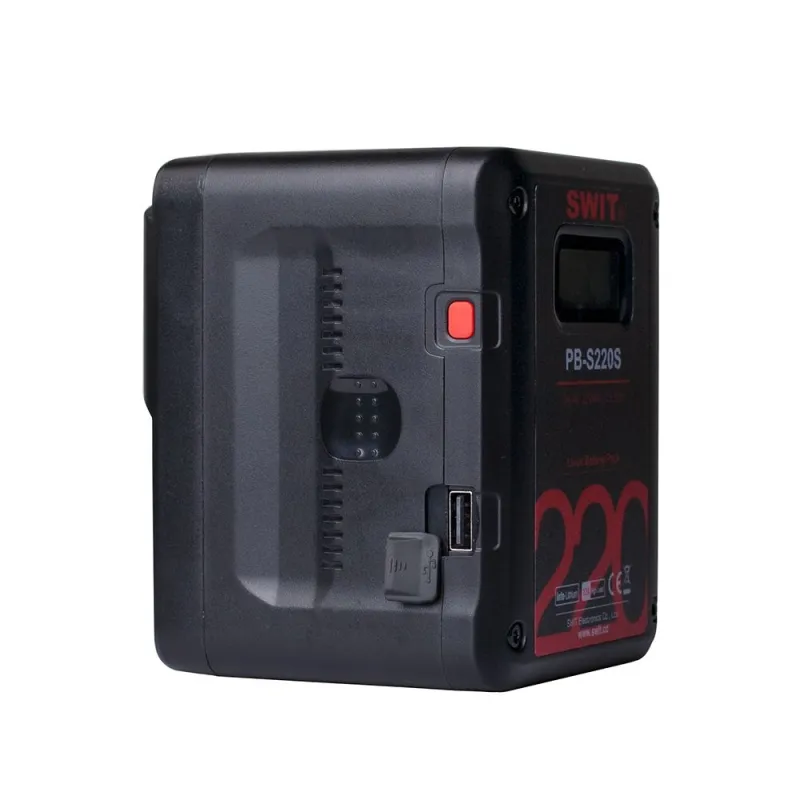

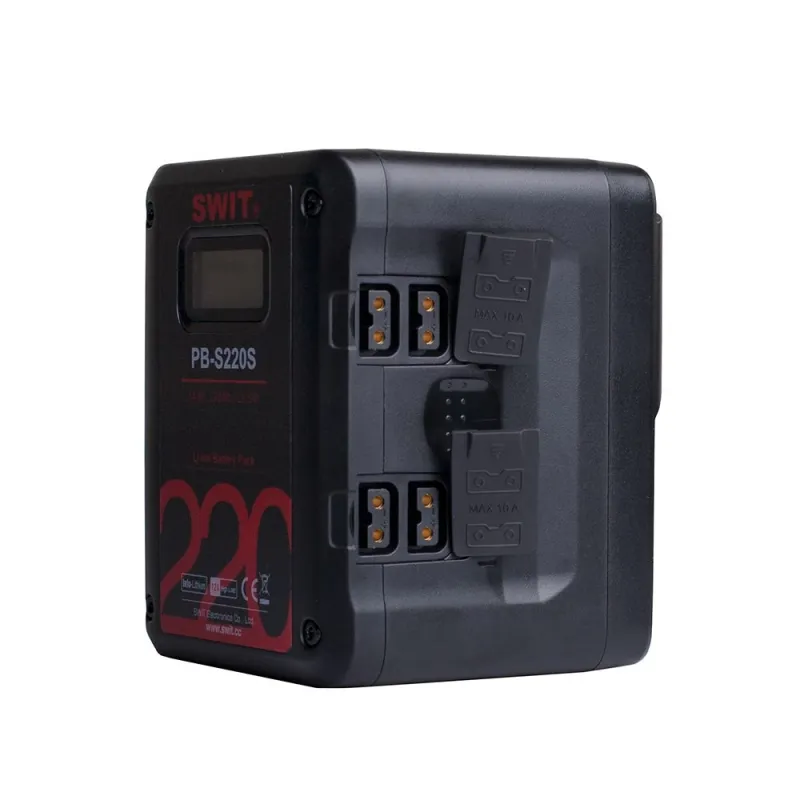

PB-S220S is equipped with 4 D-tap DC output sockets, which can power other on-camera equipments together. The Max output current of D-tap is 10A, 150W. PB-S220S is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.
6A Fast Charging
Using SWIT S-3812S fast charger
PB-S220S supports 6A fast charging by SWIT S-3812 fast charger, to save more than 50% charging time. The 220Wh PB-S220S battery can be charged from 0 to 80% after 2.3 hours, and fully charged within 3.5 hours.
Technical Specifications:
Model | PB-S220S | |

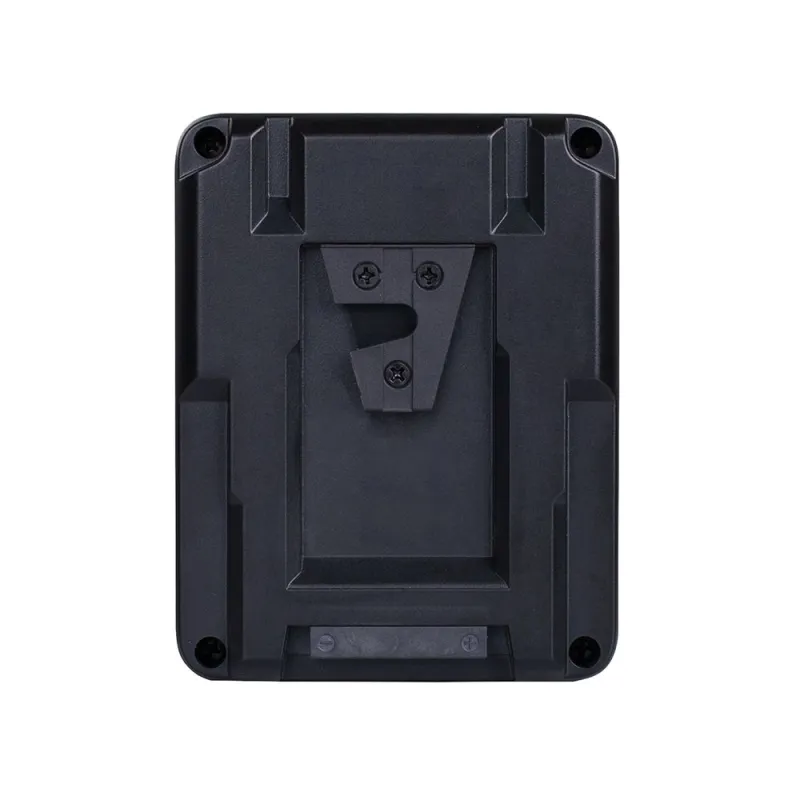

Battery plate | V-mount | |
Nominal voltage | 14.4V | |
Capacity | 220Wh,15.3Ah | |
Max output | Electrodes | 150W,12A |
D-TAP | 150W,12A | |
USB | 10W,5V/2A | |
In total | 150W | |
Dimension | 121×95×96mm | |
Net weight | 1.44kg | |
Max charging current | 6A | |
D-TAP socket number | 4 | |
USB socket number | 1 | |
