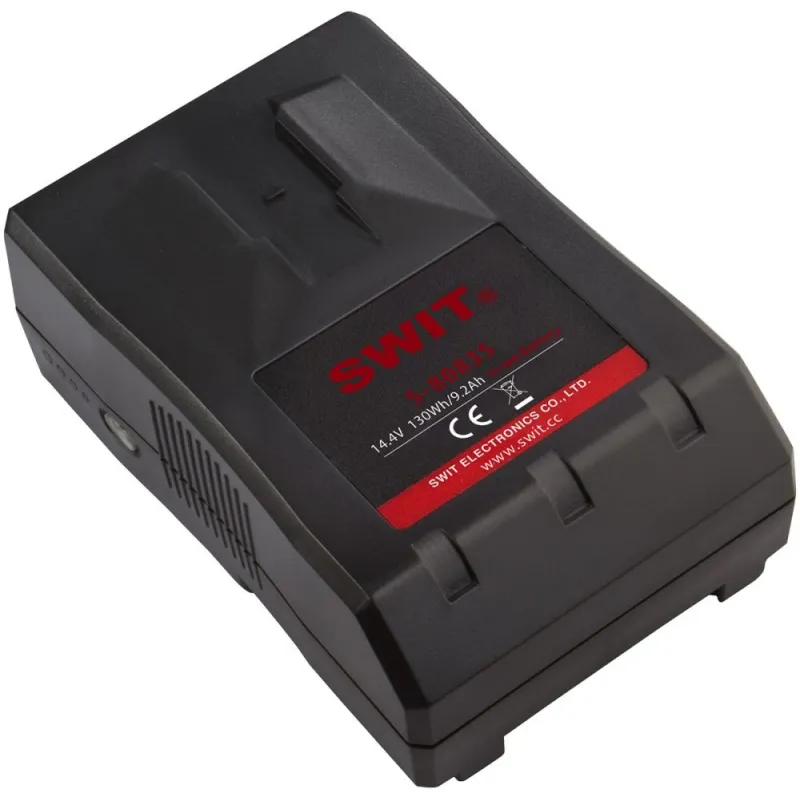

Swit S-8083S V-Mount Camera Battery
S-8083S is the V-Mount rechargeable Li-ion battery pack for professional video cameras. It’s compact design, smaller in size.
130Wh/9.2Ah Capacity
Consists of 12pcs 18650 battery cells, and reaches
130Wh/9.2Ah high capacity. Run approx 4 hours for normal 30W ENG cameras.

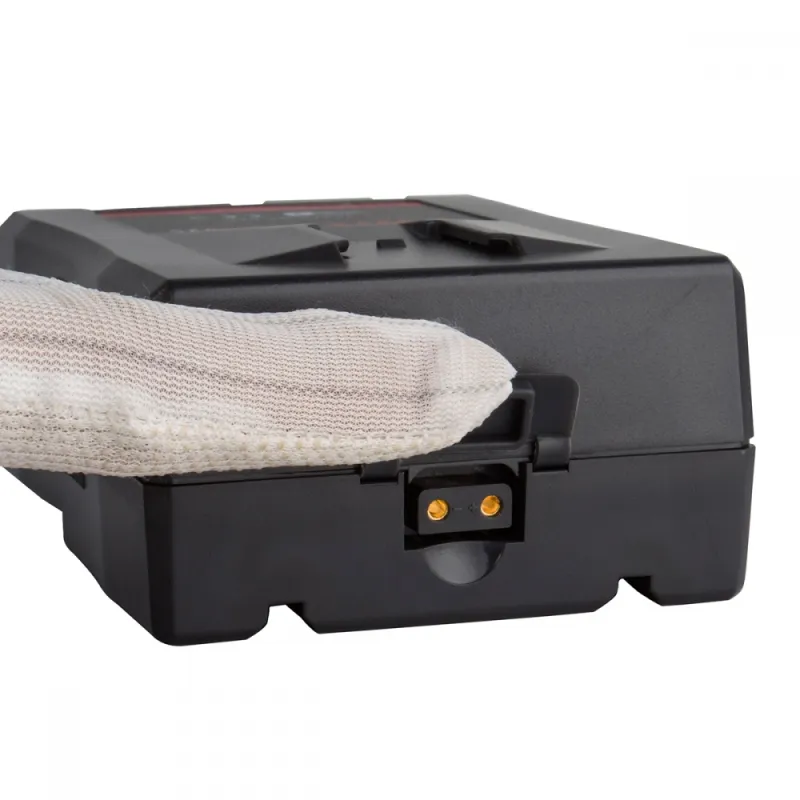

Reliable V-Mount Connection
S-8083S is the standard SONY V-Mount connection and we adopt the high quality metal V-wedge that ensures the reliable Mounting.
Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8083S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc. The Max Power from D-tap is 100W, 8A.

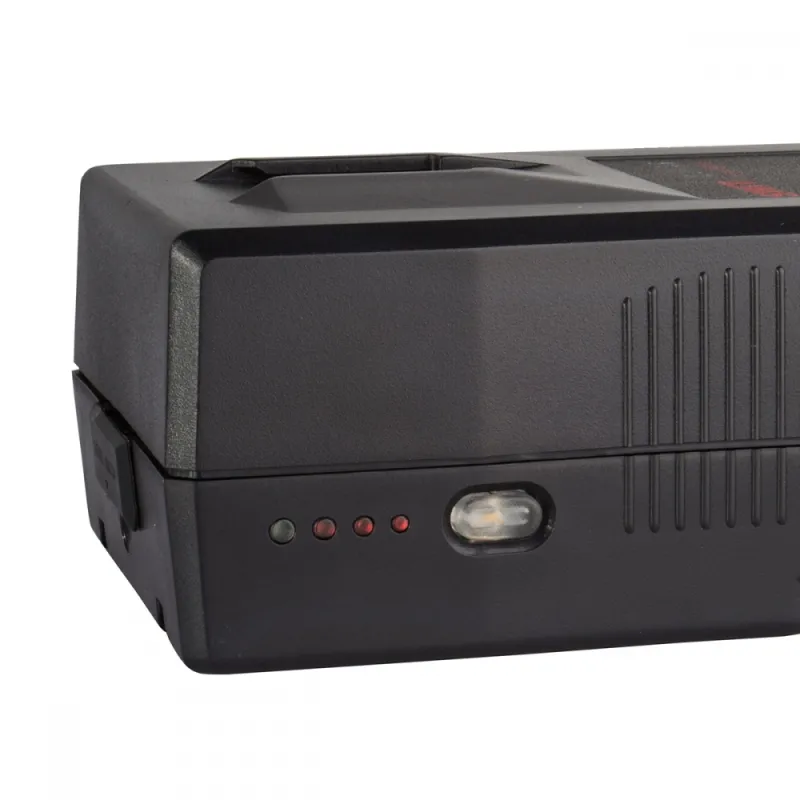

4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
Strong and Durable Housing
Adopt the thicker and wider nickel slice to solder the cells, minimize the voltage drop, dissipate heating, and enhance the assembly intensity. The cells are arranged as triangular structure in the battery pack, stable and anti-shock. The cell holder inside can protect the cells pack, and separate the circuit board from the cells, to keep the boards away from internal pressure and ensure a stable working.
Multiple Safety Protection Design
The battery has an MCU to measure and record the real time data, and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected. Meanwhile, the battery housing adopts high-impact ABS material, with waist design and non-slip tread for secure handling.
Cell balance adjustment
After the batteries are used for a period of time, the cells voltage might get difference, and our specially designed circuit can optimize the imbalanced cells, to prolong the battery life.
Specifications
| Nominal Voltage | 14.4V |
| Capacity | 130Wh/9.2Ah |
| Max output power | 100W |
| Max output current | 8A |
| Mount Type | V-mount |
| Operation Temperature | 0-40°C |
| Net weight | Approx 0.8kg |
| Dimensions | 134×88×52mm |
| Battery type | V-tipa baterijas |
| Connections | D-tap |
