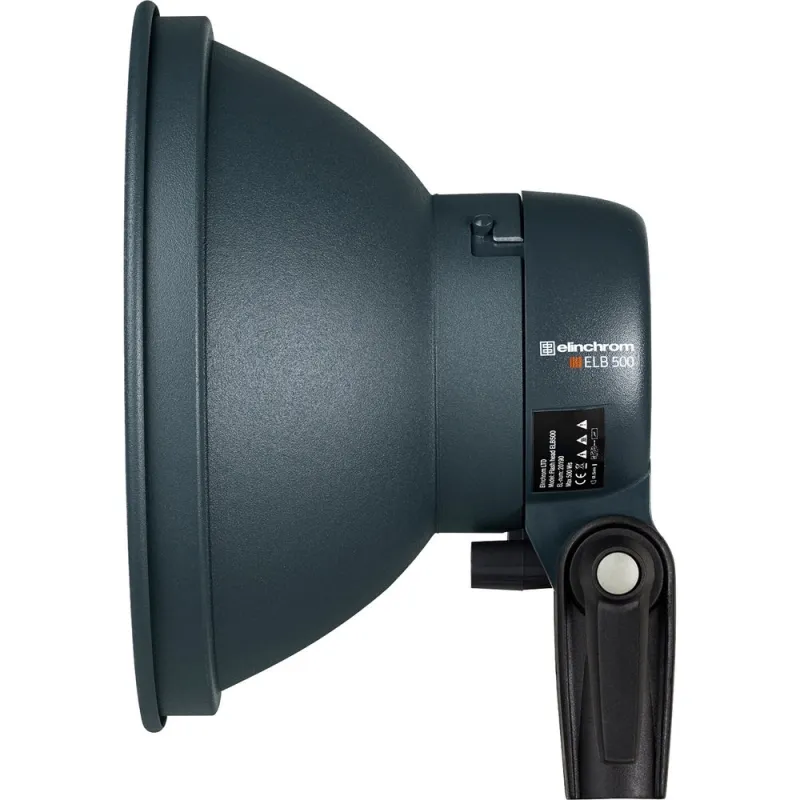

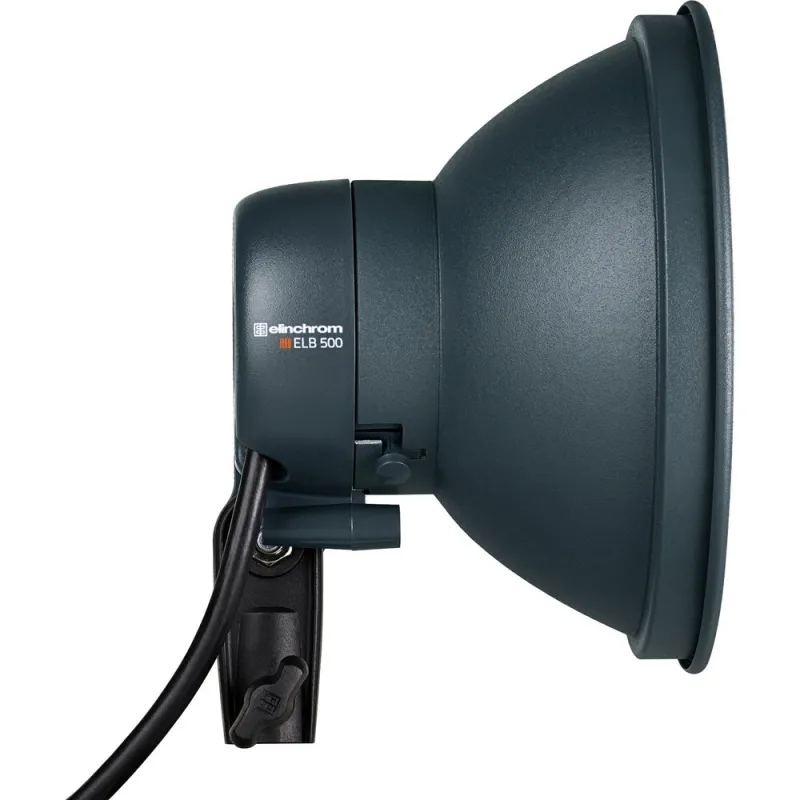

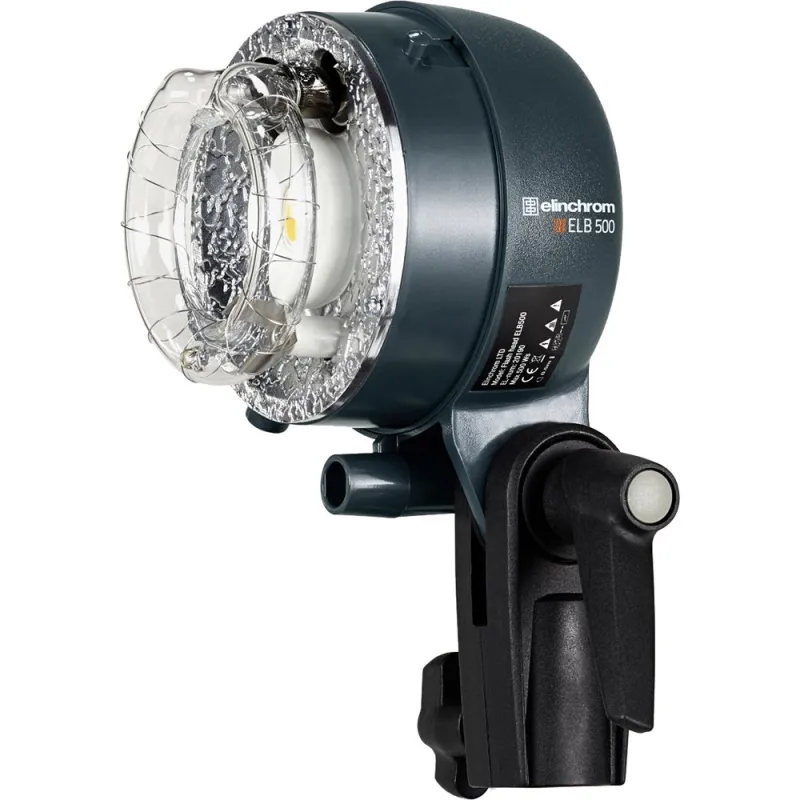

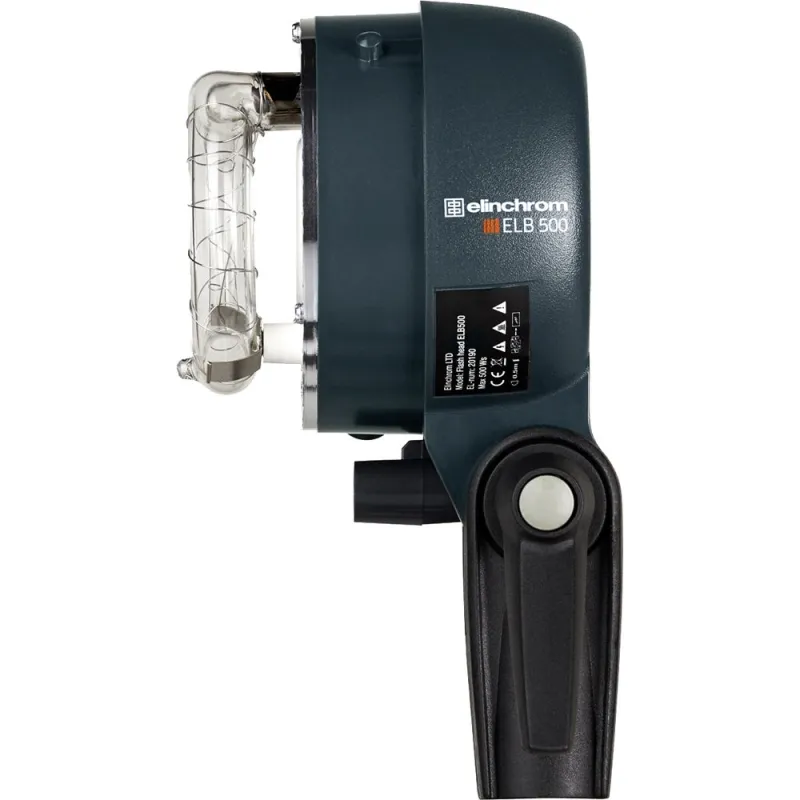

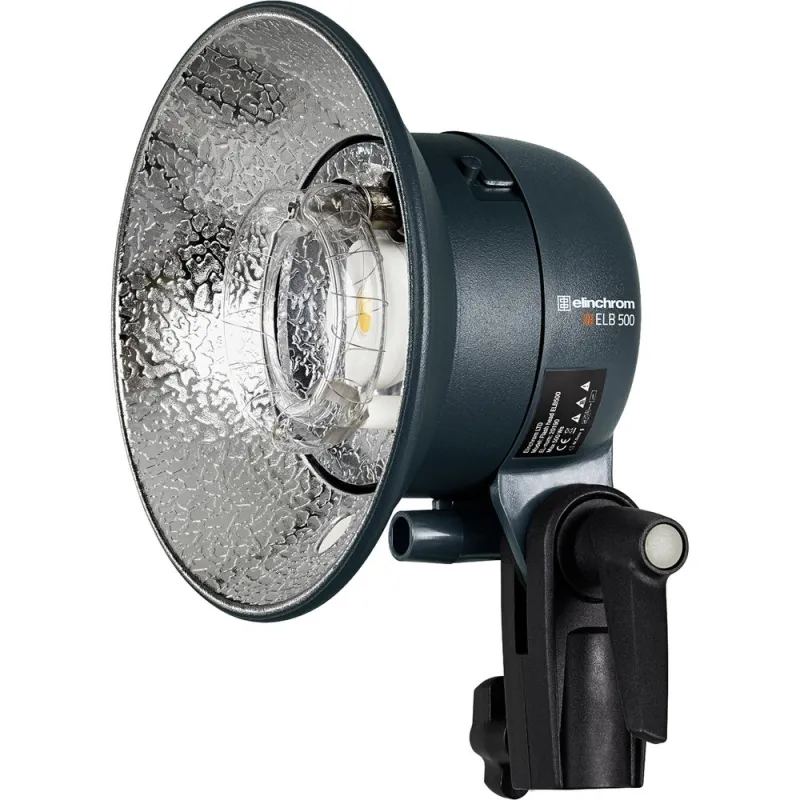

Made exclusively for the ELB 500 TTL battery-powered pack, the ELB 500 TTL Flash Head from Elinchrom has a compact form factor of 3.5 x 3.1 x 6.3" and weighs just 1.5 lb making it ideal for hand-holding or mounting overhead on supports such as a boom. Its Quadra front accessory mount (Q-Mount) is compatible with Portalite softboxes, and can also use full-sized Elinchrom or Profoto softboxes with an optional adapter. The flash head is capable of achieving flash durations as short as 1/3400 sec. in Normal Mode and 1/20,000 sec in Action Mode for special effects. It has a 14W LED modeling light that draws minimal power from the pack's battery, a 5/8" receiver for stand mounting, and comes with an 8' cable for connection to the ELB 500 TTL.
Maximum Watt/Seconds | 500 |
Changeable Reflector | Yes, Quadra Mount (Q-Mount) |
Color Temperature | Flash Head: 5500K @ full power (+/-200K over 7 stops) Flash Head Power Stability: 0.05% Modeling Light: 5200K @ full power (CRI 90) |
Flash Duration | Action Mode: 1/20,000 sec Normal Mode: 1/3400 sec |
Cable Length | 8.0' / 2.4 m |
Modeling Light | 14 W LED (50 W halogen equivalent) Modes: On/Off, free adjustment, proportional, timer, visual confirmation Control: on ELB 500 TTL pack |
Fan Cooled | No |
Mount | 5/8" (16 mm) Receiver 7.0 mm Umbrella fitting |
Dimensions | 3.5 x 3.1 x 6.3" / 9.0 x 8.0 x 16 cm |
Weight | 1.5 lb / 0.68 kg |
Speedlite control | TTL |
Power Watt | 500 |
