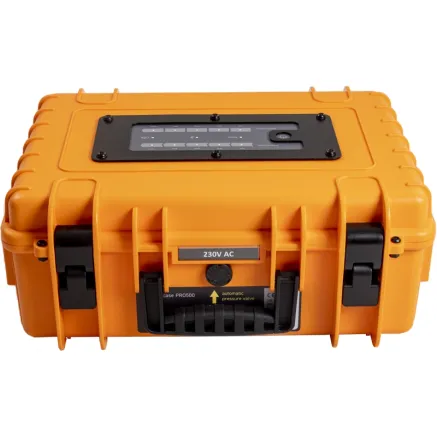

BW OUTDOOR CASES ENERGY.CASE PRO 500 IP54 (300 WATT), BLACK 5.230/B/300

Energy Solutions for Professionals

The BU0026&W energy.case PRO500 offers energy solutions for the professional area. BU0026&W energy.cases are waterproof, shockproof, and vibration-proof. The rugged design allows use even in the most difficult conditions.

Battery Performance

The durable and safe lithium iron phosphate batteries are fully operational even in demanding temperatures. They are available with capacities of 500 and 1500 watt-hours.

Flexible Charging Options

The flexible charging options through solar, mains, car, and truck make handling particularly easy. In addition, the devices are equipped with an MPPT (maximum power point tracking) system, which maximizes the solar yield when using solar cells.

Next Generation Electricity

Next generation electricity energy.cases from BU0026&W have been developed for the toughest requirements and are used all over the world. Whether heavy rain in the jungle or 45°C in the desert - energy.cases always supply reliable power. The ability to charge each energy.case with solar cells or on the vehicle guarantees true independence. This is how mobile power supply works today.

Power to Go

Power to go The BU0026&W energy.case is the power outlet for on the go. It is a simple, mobile power supply for the professional market. Whether 230 Volt as if from a socket or 24 Volt direct current, our energy.cases always supply the right energy. Energy.cases are developed for the toughest requirements, are temperature resistant, and waterproof.

Mobile Power Supply

The compact and emission-free power supplies can be charged with a power supply unit, a car charging cable, or a solar cell and are just as suitable for stationary continuous operation as for changing mobile applications. Mobile energy, where it is needed.

How to Use Electricity on the Move

BU0026&W energy.case opens a new chapter in mobile power supply. It not only scores with a battery capacity of up to 1500Wh and up to 230Volt, but it also has features that are missing from any conventional generator. The energy.case can even be charged during use with the help of solar cells. To protect the powerful battery from dust, moisture, and shocks, it is stored in one of our Ingenious case systems.

Customized Energy Solutions

MOBILE POWER SUPPLY INDIVIDUALLY TAILORED From connections to battery power We create the energy.case according to your individual wishes. We like to work according to the modular system, and with the personally configured energy.case, we can take into account almost every individual wish. Whether it is the number of connections or the required battery power, thanks to our experience, we can quickly and cost-efficiently meet the most diverse demands and requirements. The batteries we use are specially tailored to our systems, meet the highest safety and quality standards, and guarantee a high degree of cost-effectiveness with their long service life.

Specifications

All data at a glance

• Battery capacity: 1500 Wh
• Voltage output 1: 230 V/50 Hz (on request 110 V/60 Hz)
• Continuous power output 1: 300 W (on request 500 W)
• Voltage output 2: 24 V DC (factory-set from 5 V to 48 V)
• Continuous power output 2: 300 W
• Sine wave: pure sine wave
• Lithium iron phosphate battery operation from -20°C to +45°C (Charging possible from 0°C)
• Dimensions: 475 x 365 x 192 mm
• Weight: 12.9 kg
• Tightness: IP54
• Charge sources: AC adapter, 12 V solar cell, 12 V car or 24 V truck
• Charge control: MPPT (maximize solar power)
• Parallel operation: permanently possible (charging and discharging simultaneously)

Output Voltage

Each energy.case has a 230V AC and a 24V DC output. The 24V voltage is fully stabilized, allowing adjustments to voltages between 5V and 48V.

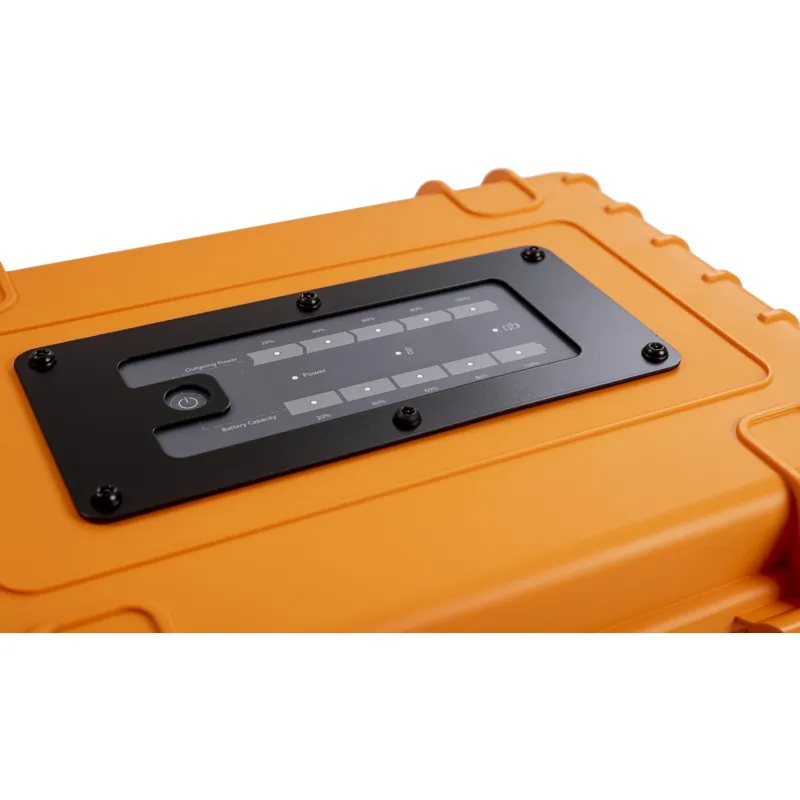

Power Control

The waterproof and shatterproof membrane keypad provides information on the most important operating parameters and has a power-on lock for transport.

Connector Systems

In addition to BU0026&W's standard configuration, customer-specific connectors can be installed. Customization is possible from a quantity of one.

Charging Options

Charging is done by a 230 V charger at the cigarette lighter, at the 24 V connection of a truck, or by the foldable solar cell. The vehicle battery is not overloaded.

Quality Made in Germany

Developed, manufactured, and programmed in Germany, the energy.case meets the highest quality standards.

Advantages at a Glance

• Powerful battery and individual adjustability
• A powerful LiFePo4 battery system is supplemented by an individual adjustment option for the output voltage.
• Robust companions
• The energy.cases were developed for the toughest requirements, are temperature-resistant, and waterproof (IP 44 to IP 66).
• Simple and clear operation
• The robust and low-consumption operating unit provides clear information about performance, temperature, and battery.
• Full charge current
• An energy.case can be charged with a power supply unit, a car charging cable, or a solar cell and is suitable for continuous operation and mobile applications.

Facts Energy.Case 500

FEATURES

• Weight: 8.7 kg
• Dimensions: 18.5 x 14.2 x 7.5 mm
• Battery: LiFePO4
• Battery capacity: 500 Wh
• Sealing: IP54

Performance

• Output power: 290 watts at 24 volts total power
• Output voltages: 5 to 48 volts DC USB with 2.5 amps (not individual)
• Ambient temperature: 0°C to +45°C

Charging Options

• Solar cell
• Car connection
• Truck connection power supply unit

Charge Control

MPPT (maximization of solar power) car battery protection (protects the car battery from deep discharge).

Parallel Operation

Permanently possible (charging and discharging simultaneously) made of flame retardant material according to UL 94 VO.
