Aputure Light OctaDome 120 light box softbox (APA0226A30)

Aputure Light Octadome 120 Overview

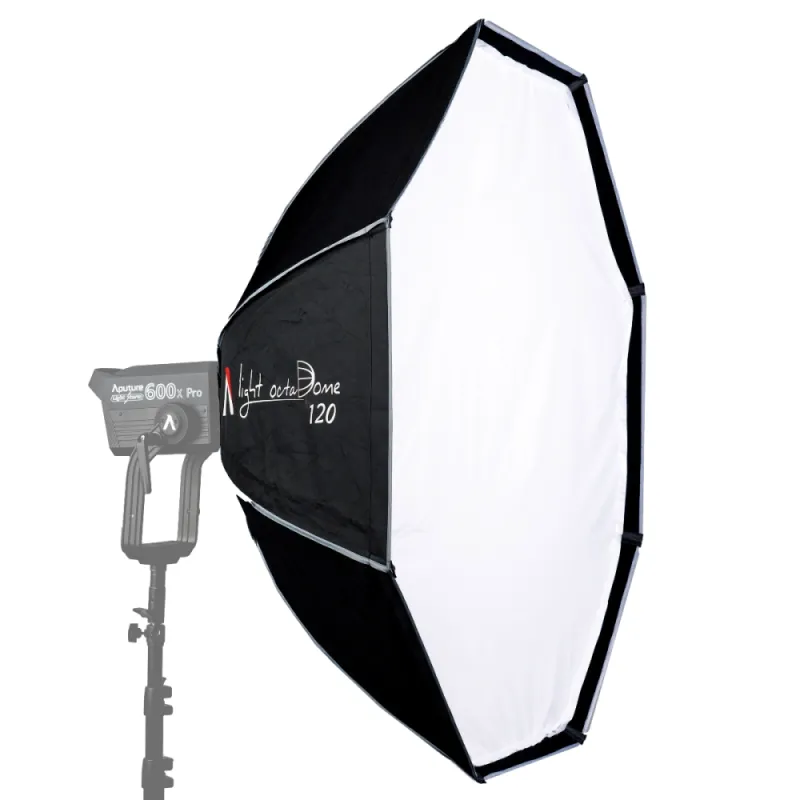

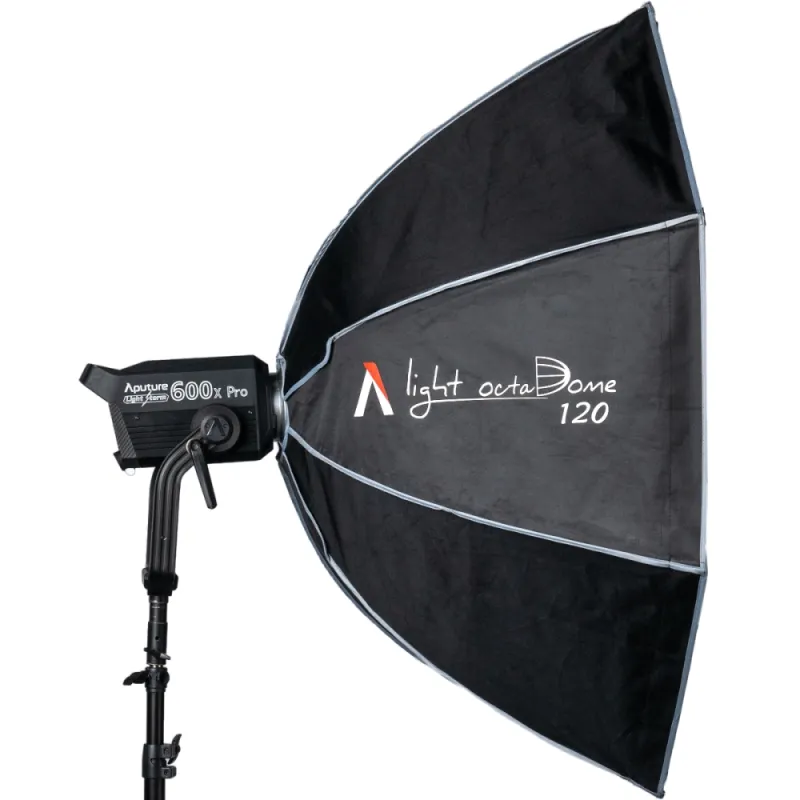

The Aputure Light Octadome 120 is an octagonal folding softbox with a diameter of 120 cm. With it, you can effectively diffuse and soften the spotlight of your lamp. The softbox is compatible with the Bowens mounting standard, allowing you to connect it not only to Aputure Light Storm lights but also to other continuous and flash light sources that support this popular system.

Included Accessories

• Up to 3 diffusion fabrics (one inner and two outer)
• A grid, popularly known as a honeycomb
• A sturdy carry bag for convenient packing of all accessories

Main Product Features

• Diameter: 120 cm
• Fast and convenient assembly
• Lightweight construction for quick dismantling
• Alternative to awkward diffusion panels and rectangular softboxes
• Constructed from strong, high-quality materials
• Supports the popular Bowens mounting system
• 3 different diffusers for fine-tuning the degree of light diffusion
• 45° grating for easy orientation of the light beam
• Transport bag made of thick material included
• Silver interior for very good reflection and minimal light loss

Convenient Work with Light

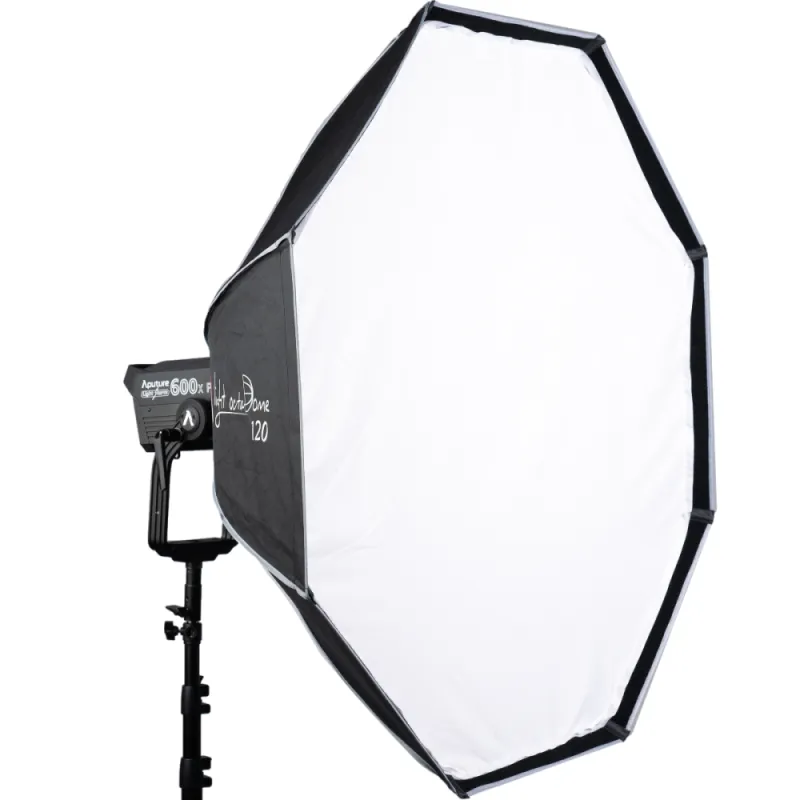

The number 120 in the name of the Octadome softbox refers to the modifier's unfolded diameter of 120 cm. With its help, you can effectively envelop the shooting set with soft and diffused light. The use of silver material inside the dome provides very good reflection, which minimizes light loss.

Universal Bowens Mount

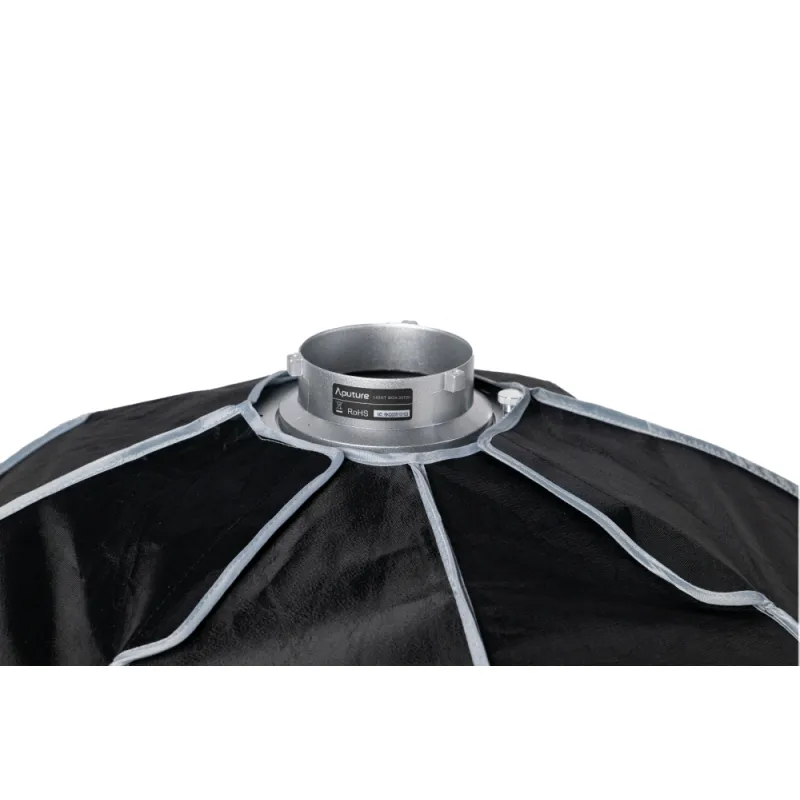

A mount supporting the popular Bowens standard ensures wide compatibility of the modifier with various types of lamps used in film and photography. The Aputure Light Octadome 120 softbox will easily pair not only with many models of the Light Storm range but also with equipment from other brands that are renowned in the industry.

Forget Diffusion Panels!

The octagonal design of the modifier provides a rounder and more natural light output than can be achieved using diffusion panels found on sets installed in 4 x 4 racks or classic rectangular softboxes. The Aputure Light Octadome 120 also provides excellent ergonomics. You attach the grid and diffusers directly to the dome, so you won't need any additional tripods, brackets, or sandbags weighing down the structure!

Matched Light Diffusion

With the Aputure Light Octadome 120 softbox, you will find 3 diffusion fabrics. The inner diffuser offers a diffusion of -1.5 EV. You will install another two fabrics on the dome, much further away from the lamp burner. They provide diffusion at 2 different levels: -1.5 EV and -2.5 EV. You can combine them in any combination, softening light and blurring shadows as required.

Precise Light Beam Control

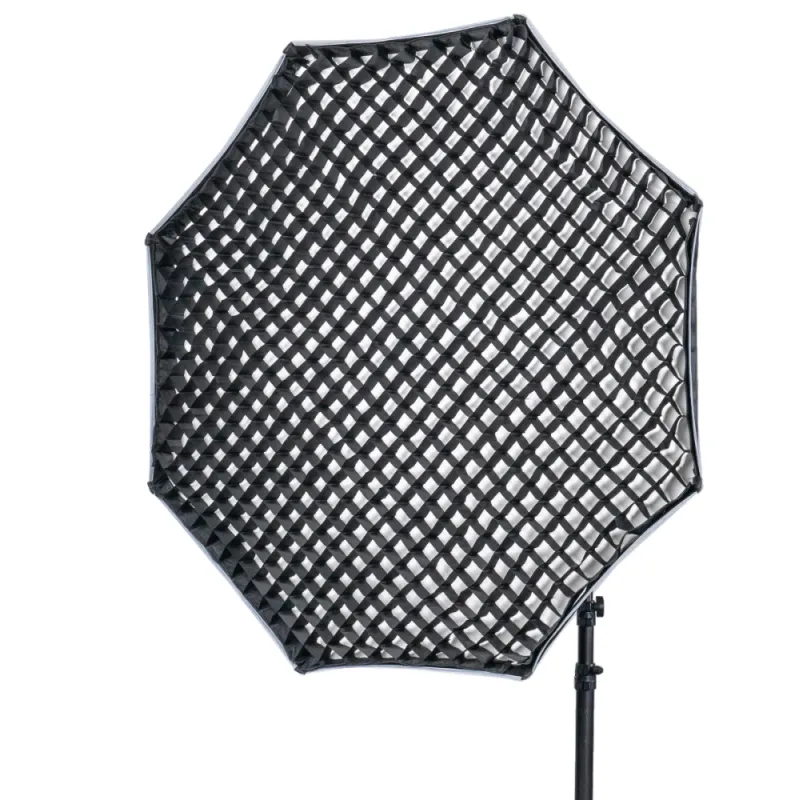

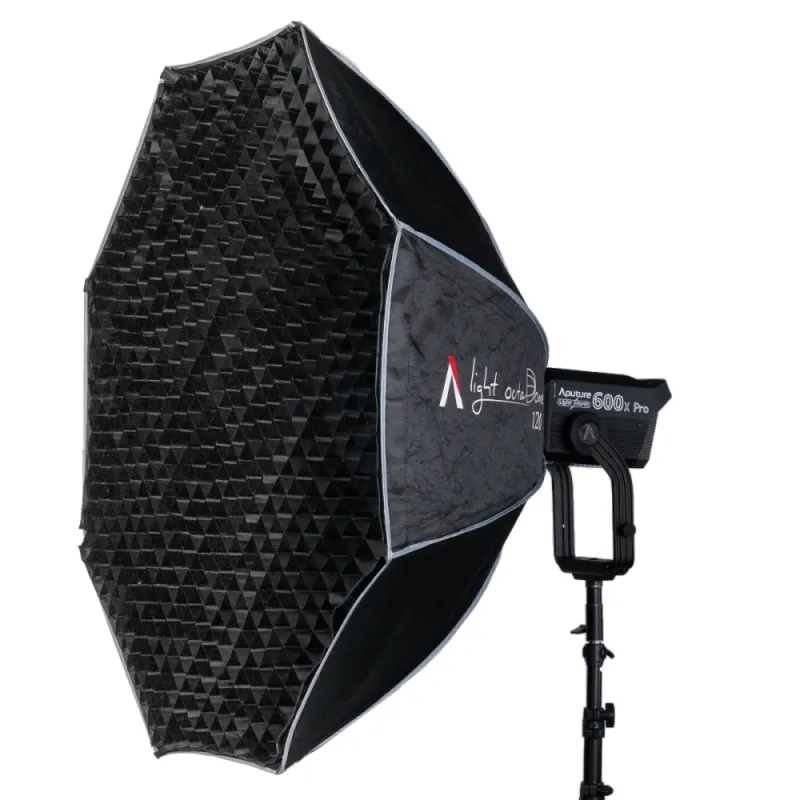

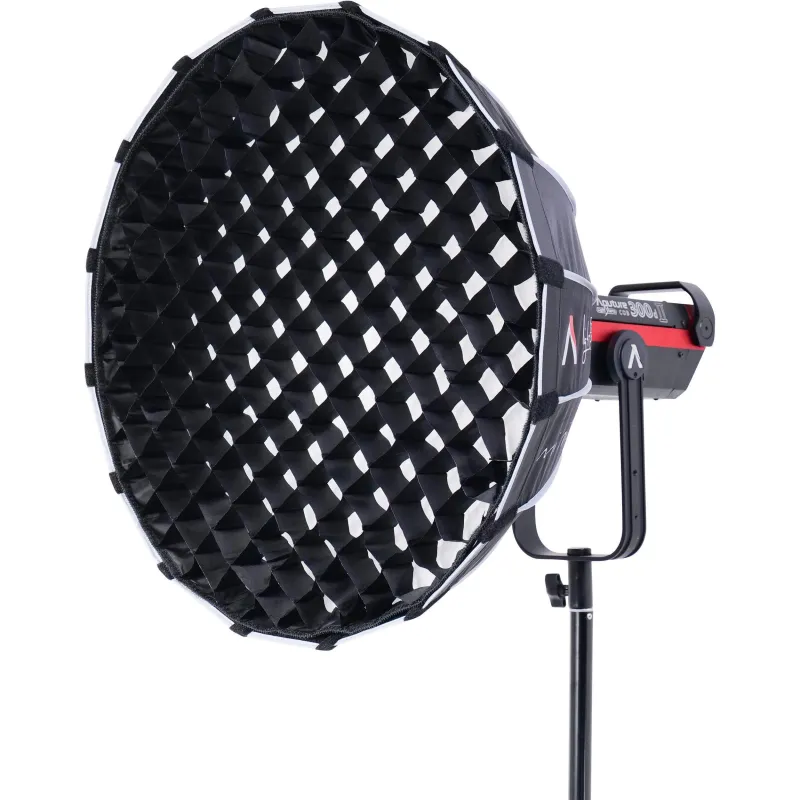

Want to precisely illuminate a selected subject or space without scattering light into the rest of the frame? The honeycomb (also known as a grid) you get with the Aputure Light Octadome 120 softbox will help with this. The distinctive grid will allow you to give the light the right contrast and direct it exactly as you need it!

Fast Unfolding System

The octagonal softbox is a great alternative to square racks of diffusion panels, as well as large 32-sided designs. The Aputure Light Octadome 120 is distinguished by its convenient mounting system, which is based on sturdy steel rods and strong fabrics. The softbox and accessories fit into the small bag included in the kit, which weighs only 1.7 kg with its contents.

Compatibility

• Aputure lamps from the Light Storm series with Bowens standard mount
• Other lights with Bowens mount

Specifications

• Model: Aputure Light Octadome 120
• Type: 8-sided softbox
• Mount: Bowens
• Dimensions (folded): 76 x 15 x 3 cm
• Dimensions (unfolded): 150 x 53 cm
• Weight: 1.7 kg
• Diffusers:
  • External diffuser -1.5 EV
  • External diffuser -2.5 EV
  • Internal diffuser -1.5 EV
• Grid: Angle of illumination 45°, dimensions 120 x 5.3 cm

Set Contents

• Aputure Light Octadome 120 softbox
• Bowens mounting adapter
• External diffuser -1.5 EV
• External diffuser -2.5 EV
• Internal diffuser -1.5 EV
• Grid (honeycomb)
• Transport bag

Photometrics

Below are the photometric values for various lamp models at different distances:

• LS 1200d Pro
  • 1 m: -1.5 EV: 20280 lx, -2.5 EV: 17670 lx
  • 3 m: -1.5 EV: 3280 lx, -2.5 EV: 2666 lx
  • 5 m: -1.5 EV: 1267 lx, -2.5 EV: 1012 lx
• LS 600d Pro
  • 1 m: -1.5 EV: 8830 lx, -2.5 EV: 8030 lx
  • 3 m: -1.5 EV: 1522 lx, -2.5 EV: 1231 lx
  • 5 m: -1.5 EV: 587 lx, -2.5 EV: 486 lx
• LS 300x
  • 1 m: -1.5 EV: 2660 lx, -2.5 EV: 2335 lx
  • 3 m: -1.5 EV: 416 lx, -2.5 EV: 347 lx
  • 5 m: -1.5 EV: 167 lx, -2.5 EV: 136 lx
• LS 300d II
  • 1 m: -1.5 EV: 4710 lx, -2.5 EV: 4120 lx
  • 3 m: -1.5 EV: 797 lx, -2.5 EV: 639 lx
  • 5 m: -1.5 EV: 298 lx, -2.5 EV: 246 lx
