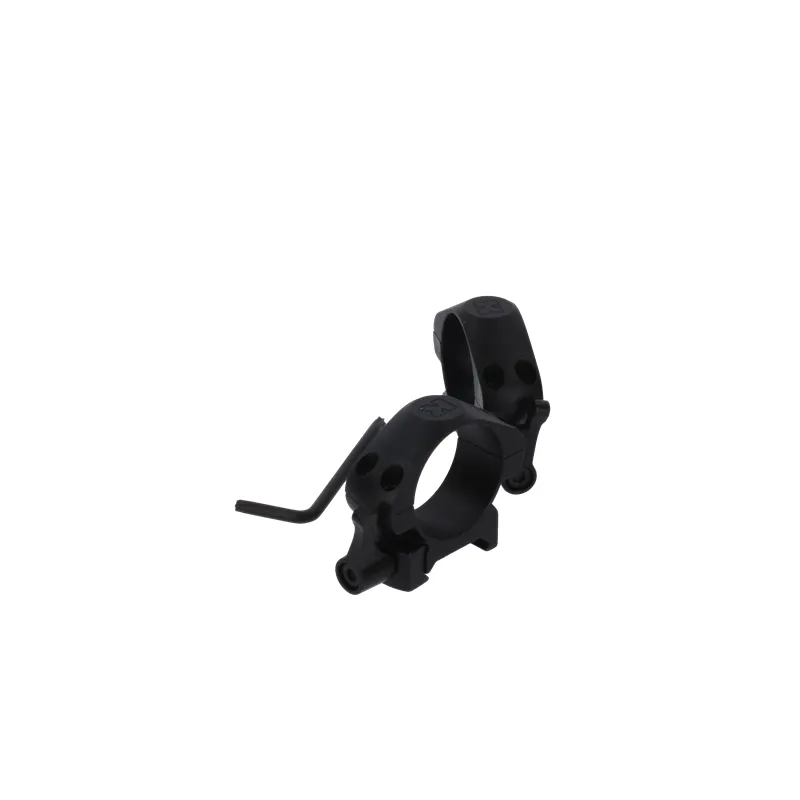

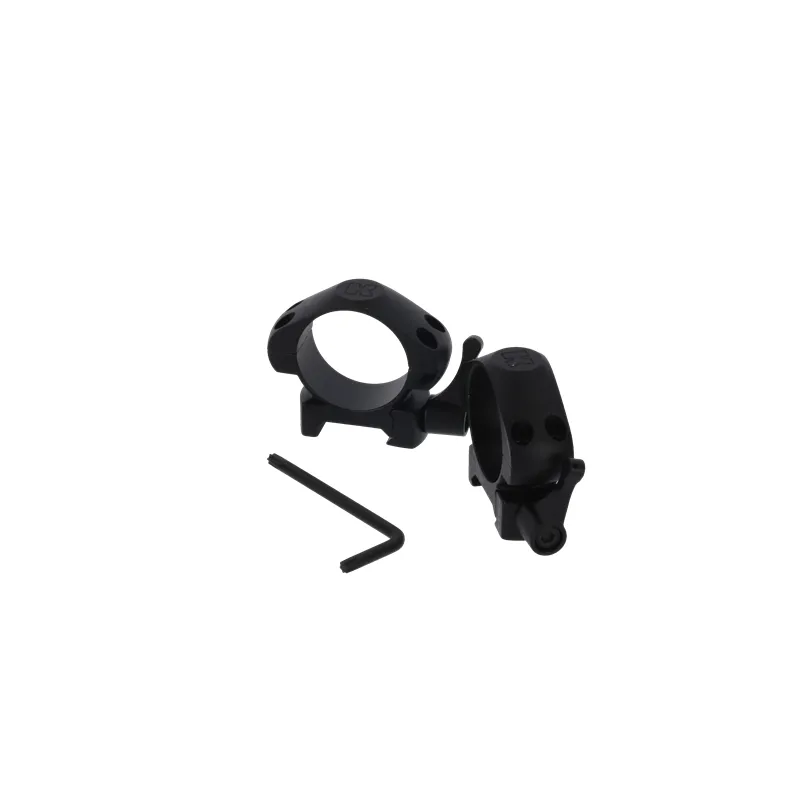

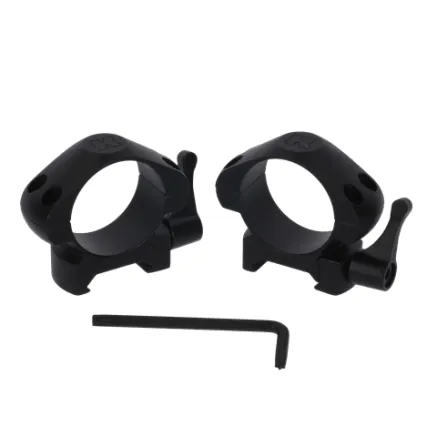

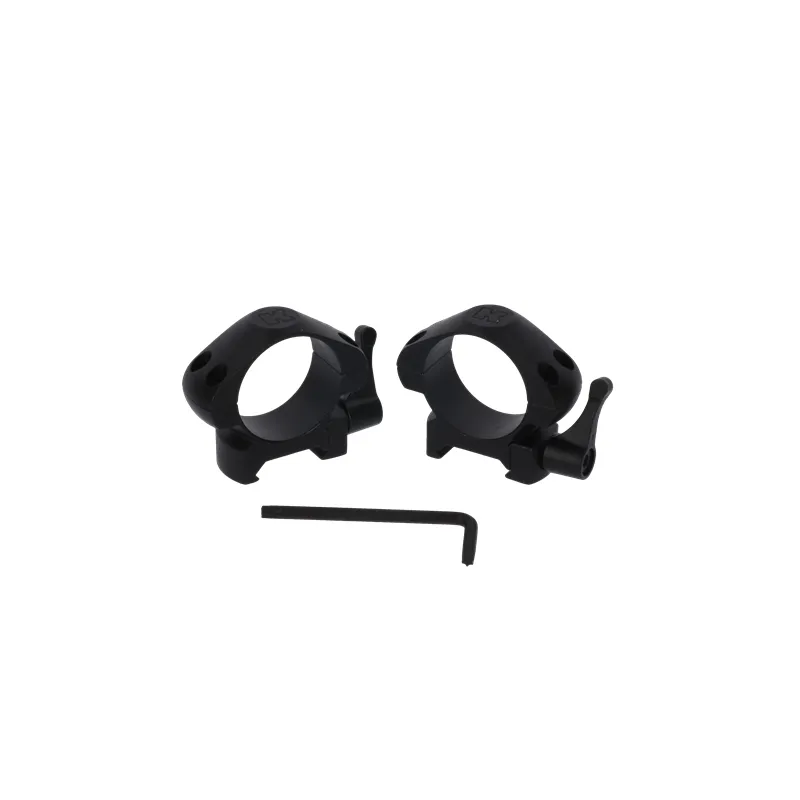

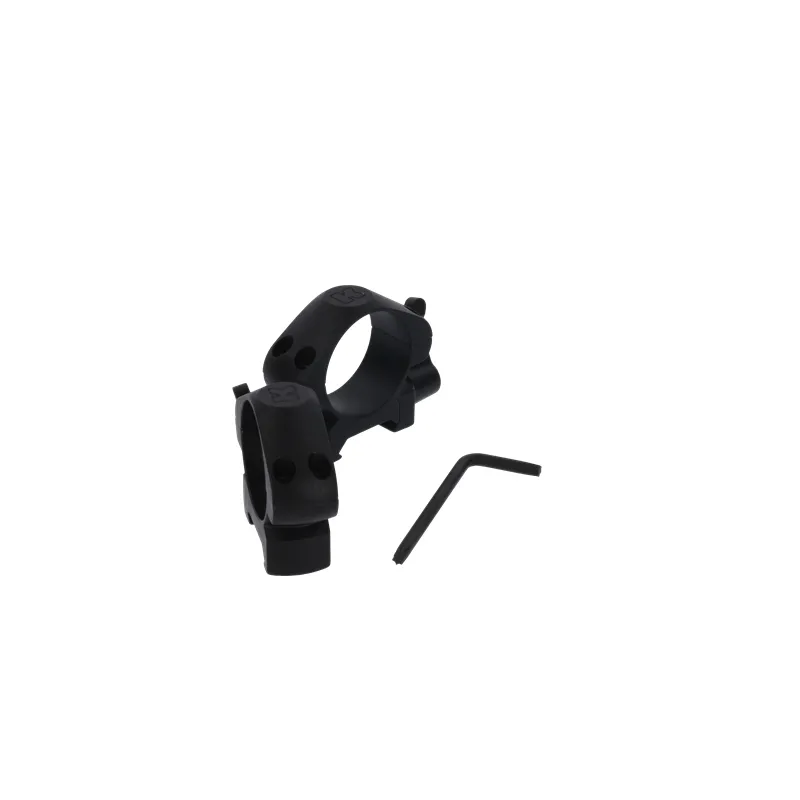

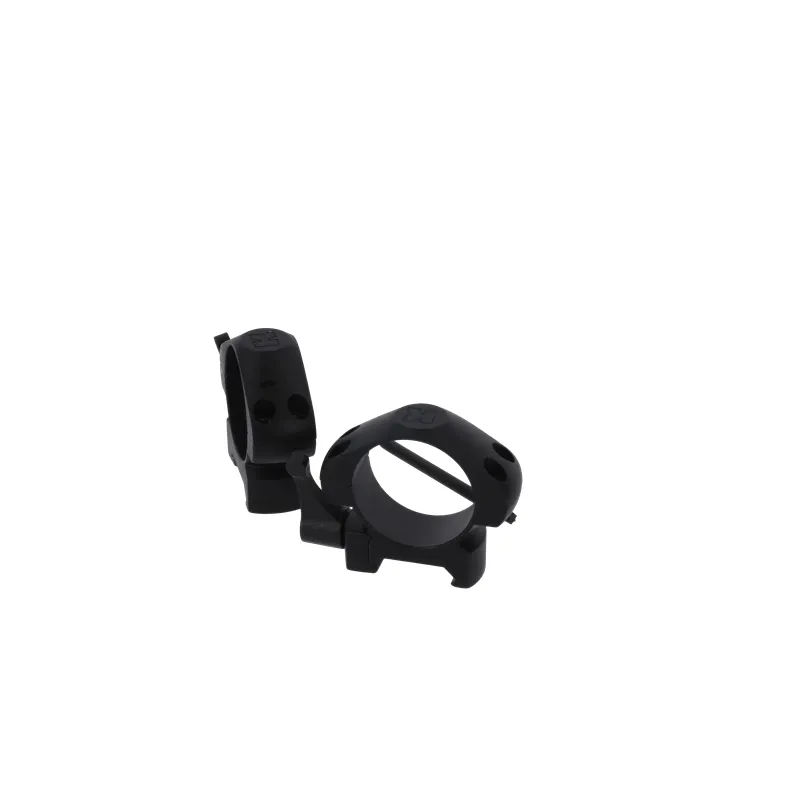

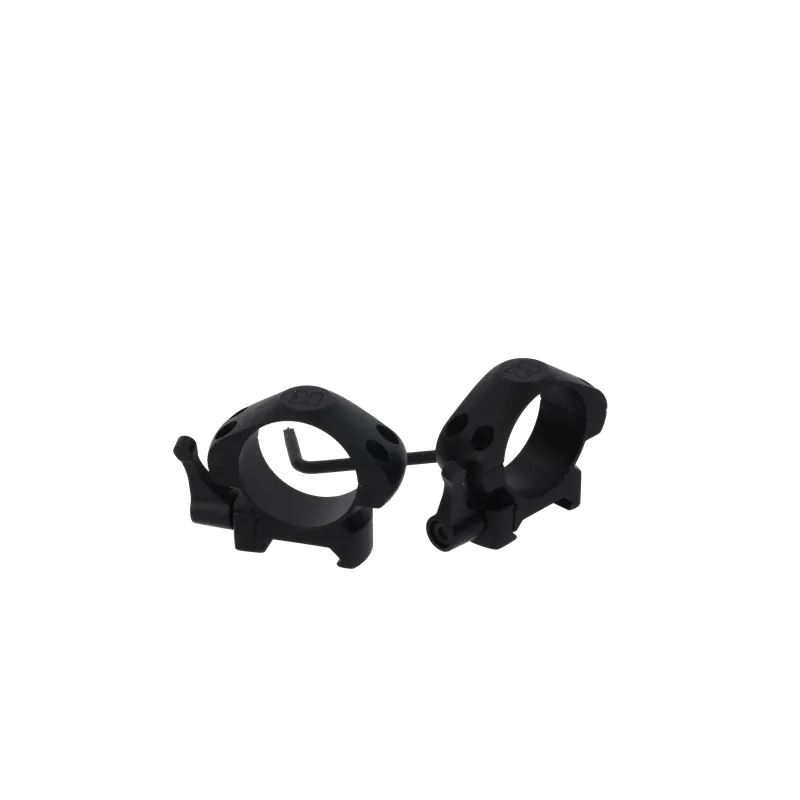

Konus Quick Release Mounting Rings 30 mm Low

The Quick Release Mounting Rings 30 mm Low from Konus consists of two low mounting rings with which you can easily mount your rifle scope on a rifle. These rings are suitable for tubes with a thickness of 30 mm and are compatible with Weaver and Picatinny rails.
;The Konus Quick Release Mounting Rings Low allow you to mount the centre of the mounting rings at a height of 19.3 mm above the rails. This allows you to use rifle scopes with a maximum lens diameter of 32 mm.

The Konus Quick Release Mounting Rings are available in different height versions (see optional accessories). The Konus mounting rings are made of high quality steel.

Application Konus Quick Release Mounting Rings 30 mm Low

To use the Konus Mounting Rings, loosen the upper ring half from the bottom. Then loosen the ring clamp at the bottom left and attach it to the Weaver or Picatinny rails. Then place your rifle scope on the lower ring halves, after which you loosely attach the upper ring half to them. Now you can put your rifle scope in the desired position.
;Because these Konus Quick Release Mountings are equipped with a lever, you can easily lock and unlock your rifle scope on the Weaver and Picatinny Rail. This makes it possible to change rifle scopes quickly and easily, and you can also transport your rifle scope separately and more carefully.
