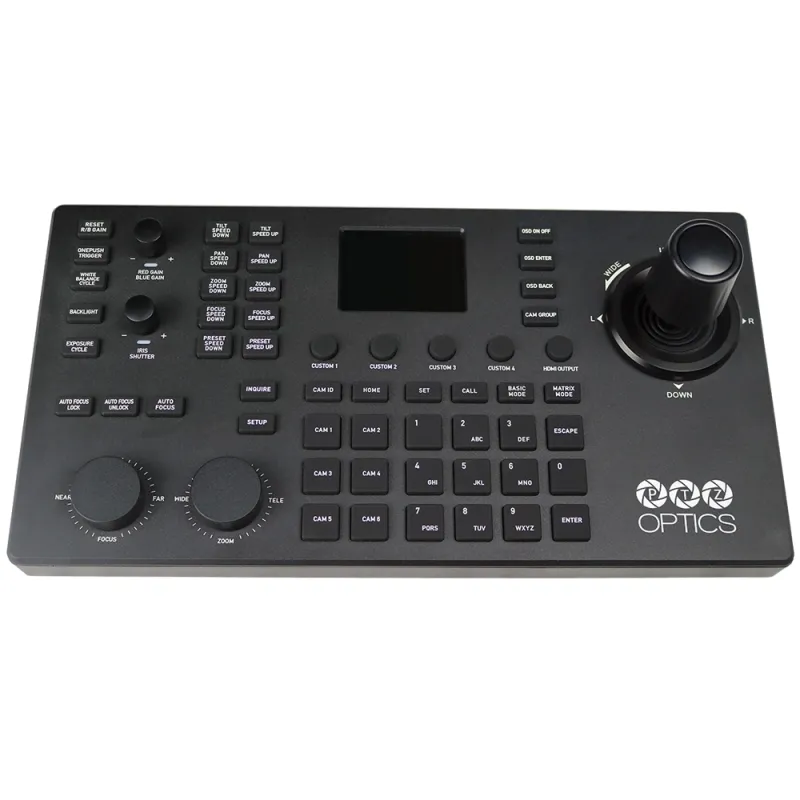

The PTZOptics SuperJoy Joystick Controller offers comprehensive control for PTZ cameras of any generation, supporting mix-and-match serial and network-based control.
Highlights
Simultaneous NDI, IP & Serial Control for a Range of PTZ Cameras
Create 4 Camera Control Groups with Up To 7 Devices Each
Multi-Brand Compatibility, including Sony, BirdDog, NewTek & More
Large LCD Screen with Controller Status and built-in decoder with HDMI output
Basic, Basic Plus & Matrix Modes for Users of All Skill Levels
Up to 255 PTZ Camera Presets, 9 Quick Presets, and 4 Super-Presets
Main Features
Durable metal housing
PTZOptics VISCA over IP & Serial control
Limited NDI & Sony control
Full Pan / Tilt / Zoom camera control
4 Camera Control Groups, 7 Cameras per Camera Group
255 camera presets, 9 Quick presets
4 Customizable buttons (TCP, UDP, & HTTP)
RTSP Decoder via HDMI
Large LCD screen with controller status
2-Year warranty
Technical Specifications
Connections: RS-232, RS-485, RS-422, RJ-45
Control Protocols: VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI
Max Cameras: 28 cameras total (4 groups of 7 channels)
Recommended Max Distance
RS-232 / RS-422: 15m
RS-485: 1200m
Ethernet: 100m
Operation Specifications
Power: 6W - 12VDC / PoE (802.3af) (Only use one power source at a time)
Working Temp: -10°C to +50°C
Working Humidity: 10 - 90 (non-condensation)
Weight: 1.70 kg
Dimensions (mm): 370 W x 180 D x 101 H
