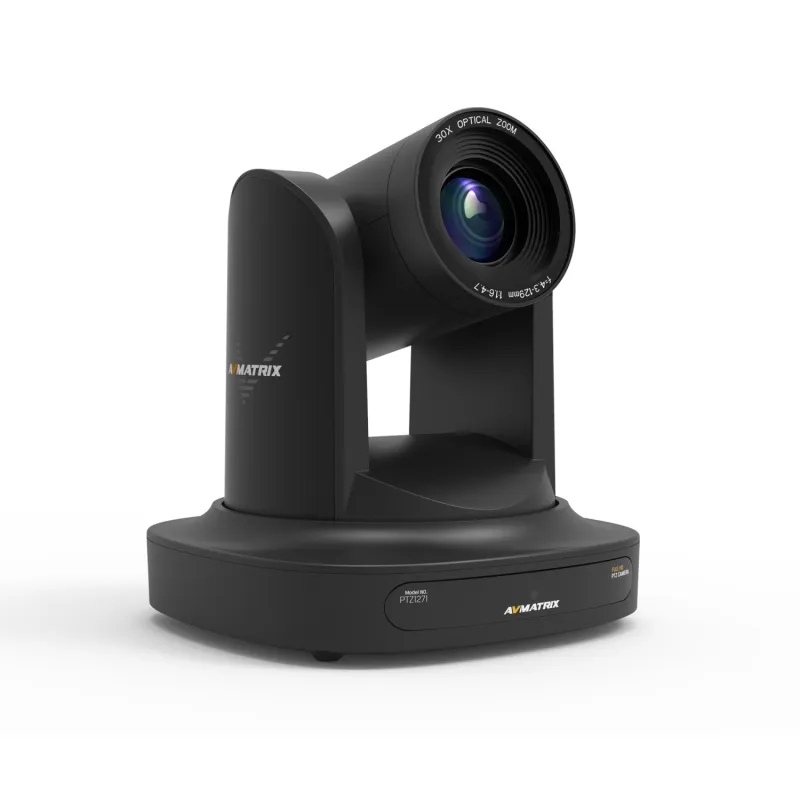

The PTZ1271-30X-POE Full HD PTZ camera from AVMatrix offers precise control and multiple output ports with video resolution up to 1080p and also supports control and streaming over LAN. Designed for broadcast, security and teleconferencing needs, the PTZ1271-30X-POE also supports VISCA, PELCO-D and PELCO-P control protocols.
The integrated f/1.6 to 4.7 lens offers 30x optical and 10x digital zoom functions. This camera supports video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. Power this PTZ camera using the included 12 VDC adapter or via PoE. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and 2D/3D Noise Reduction provide precision control of your images.
Key Features
- 1/2.8" HD CMOS Sensor
- 30x Optical Zoom, 10x Digital Zoom
- HDMI & 3G-SDI Video Output, PoE Power
- Streaming Protocols: RTSP, RTMP, SRT
- RS-232/RS-485 Serial Control
- Onvif, VISCA over IP, VISCA, PELCO-D/P
- Tripod & Optional Wall/Ceiling Mounting
The PTZ camera includes various interfaces. SDI, HDMI, IP outputs allow users to output an up to FHD 1080p signal simultaneously.
The LAN port supports Power Over Ethernet(PoE), NDI|HX 5.0(optional) and IP streaming via RTSP, RTMP protocols. It offers an audio
line-in for NDI/IP streams. Users can control the PTZ camera easily via LAN port or RS-232 /RS-485 serial port.
Provides 20x/30x optical zoom lens for effective close-up and wide-angle shooting.
Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness.
Easily Control
The PTZ camera can be easily controlled by IR remote control Web UI as well as the joystick
camera controller via IP or serial port. Multiple control protocols are supported including
ONVIF, VISCA over IP, VISCA, PELCO-D, PELCO-P.
A variety of Installation
Support image flip function, the bottom thread of the camera can be used for mounting suitable for tripod mounting wall mounting, ceiling mounting. Widely used in many applications in broadcasting, education, church and other fields.
TECHNICAL SPECIFICATION
