New product
The new standard for home studios and the music industry. The microphone for anyone who, even on a limited budget, doesn't want to compromise on Neumann's uncompromising sound. A cardioid condenser microphone with low noise.

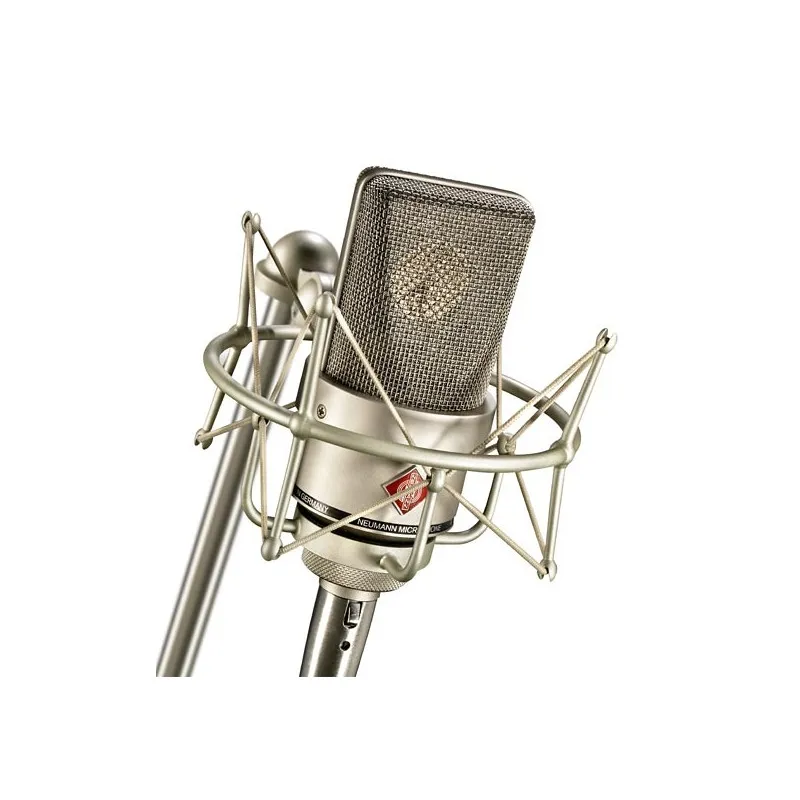

The TLM 103 is a large-diaphragm microphone for professional and semi-professional use when maximum quality is required on a limited budget. Utilising design features proven in other Neumann microphones, the TLM 103 achieves unprecedentedly low self-noise at high SPL. The microphone capsule, derived from the U 87, has a cardioid directional characteristic, is acoustically balanced and achieves high attenuation of the rear sound. The K 103 capsule used is based on the K 87 type, known from the U 67 and U 87 microphones. It has a flat frequency curve up to 5 kHz, with a 4 dB lift at this frequency. The abbreviation TLM stands for "transformerless microphone". In this technology, the conventional output transformer is replaced by an electronic circuit, preventing high-frequency interference and other disturbing phenomena. The entire internal structure is flexibly mounted to eliminate noise. The frequency range starts below 20 Hz and therefore even low bass frequencies are picked up by the microphone without colouring the sound. For this reason, it is recommended to use the WS 87 wind protection or the PS 15 / PS 20 pop filter.
Name | Value |
---|---|
Acoustic system | pressure gradient |
Directional characteristic | cardioid |
Frequency range | 20 ... 20 000 Hz |
Sensitivity at 1 kHz/1 kOhm | 23 mV/Pa |
Nominal impedance | 50 Ohms |
Min. load impedance | 1 000 Ohms |
Noise level according to CCIR | 17.5 dB |
Noise level according to A | 7 dB-A |
Signal-to-noise ratio by CCIR (94 dB SPL) | 76.5 dB |
Signal-to-noise ratio by A (94 dB SPL) | 87 dB |
Max. sound Pressure Level (SPL) at < 0.5% distortion | 138 dB |
Max. output voltage | 13 dBu |
Supply voltage (P48, IEC 61938) | 48 V ± 4 V |
Supply current (P48, IEC 61938) | 3 mA |
Connector | XLR 3M |
Weight | 500 g |
Diameter | 60 mm |
Length | 132 mm |
Connector | XLR |
