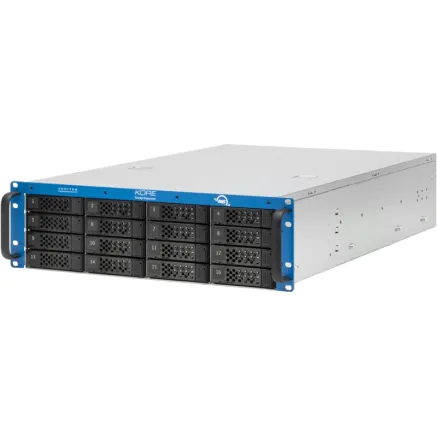

OWC JUPITER NAS KORE 3U HDD 2U RACK, 16 DRIVESMINI-SAS HD FOR CALLISTO NAS EXPANSION SOLUTION, 128TB JKORE3UT128TB

OWC Jupiter KoreUpgrade your workflow with the performance, capacity, reliability, and affordability of OWC Jupiter Kore enterprise-class storage. With two Mini-SAS HD interface ports, each with 48Gb/s of pure performance, youll be able to push through some serious data.

Storage Expansion

• Rack-Mounted Form Factor, 2U + 3U
• 12Gb Mini-SAS HD Performance
• 16-64TB SSD or 32-320TB HDD Storage
• Expand to 2.5PB with a single Callisto serice and 7 Kore Units
• Mac/PC/Linux Compatible

Use its dual Mini-SAS HD ports in tandem for staggering performance speeds up to 96Gb/s, or utilize the second Mini-SAS HD port to add greater JBOD storage capacity. You can also use Kore to expand an existing RAID system such as an OWC Jupiter Callisto.

Up to 320TB, 2.5PB ExpandedOWC Jupiter Kore provides a vast amount of direct-attached or expansion storage capacity with up to 160TB of storage in a 2U 8-drive rack system and up to 320TB of storage in a 3U 16-drive rack system. As your storage needs increase, attach additional Kore systems via Mini-SAS for even greater capacity up to 2.5PB on 3U systems.

RAIDWhen high-performance RAID storage is a requirement for your computer or server, Kore is the perfect storage for connecting to Mini-SAS RAID controller cards and adapters. Since Kore provides high-speed JBOD storage, it can also extend the storage of networked storage servers such as OWC Jupiter Callisto.

Tremendous Mini-SAS HD SpeedAt the core of Kore is the blazing fast Mini-SAS HD interface architecture which provides single cable speeds up to 48Gb/s, or run dual direct Mini-SAS HD cables to achieve up to 96Gb/s. Use this performance to speed up practically any workflow, ingest more video, edit more simultaneous video streams, and move more data around saving time and money by allowing creative professionals to actualize their artistic vision.

2U & 3U RacksWhether building from the ground up, or integrating into an existing system, 8-drive 2U racks and 16-drive 3U racks provide installation flexibiilty so you can add the OWC Jupiter Kore system that best provides the capacity you need in the space you have.

Hot Swap Drives & FansDowntime is unacceptable. When you need to update, upgrade, or replace a drive or fan, you can keep the rest of the system up and running.

Redundant PowerKore has robust power supplies that feature redundancy, the ability to hot-swap, and load balancing to ensure that the system remains up and running 24/7.

Specs At-a-Glance - 8 drives

• 2U rack space
• Up to 16-32TB SSD / 32-160TB HDD of internal raw capacity
• Mini-SAS storage expansion
• 48.0 cm x 9.4 cm x 73.7 cm (WHD)
• 13.56 kg without drives
• (2) Mini-SAS HD (12Gb/s) SFF-8644 ports
• (8) 12Gb/s SAS-3 compliant channels, 96Gb/s total bandwidth (48Gb/s per port)
• 380W high-efficiency 1+1 redundant 90~264 VAC full-range, auto-switching power supply
• Operating Environment 0C to 40C. 20 to 95% non-condensing
• Storage Environment -20C to 80C. 10 to 95% non-condensing
• OWC Limited Warranty
• 3 Years, expandable up to 5 Years

Specs At-a-Glance - 16 drives

• 3U rack space
• Up to 32-64TB SSD / 64-320TB HDD of internal raw capacity
• Mini-SAS storage expansion (up to 2.5PB)
• 48.0 cm x 13.2 cm x 73.7 cm (WHD)
• 18.37 kg without drives
• (2) Mini-SAS HD (12Gb/s) SFF-8644 ports
• (8) 12Gb/s SAS-3 compliant channels, 96Gb/s total bandwidth (48Gb/s per port)
• 650W 2+1 redundant active PFC 90~264 VAC full-range auto-switching power supply
• Operating Environment 0C to 40C). 20 to 95% non-condensing
• Storage Environment -20C to 70C. 10 to 95% non-condensing
• OWC Limited Warranty
• 3 Years, expandable up to 5 Years
