Aputure Storm 80c Full-Color Compact Point Source Fixture 80W BLAIR-CG

Introduction

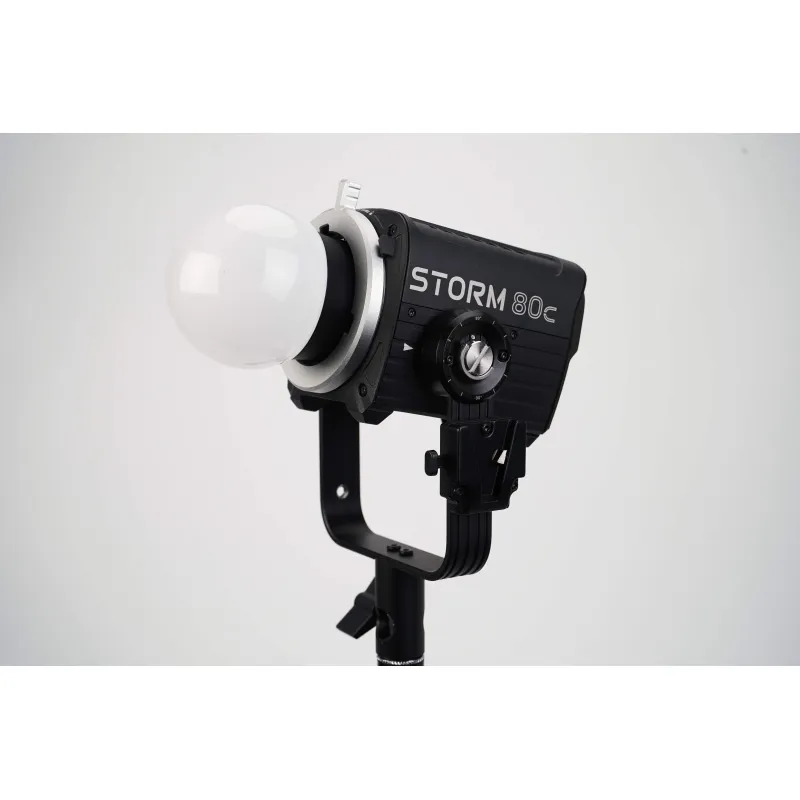

Introducing the Aputure STORM 80c, Aputure's second light in our new STORM family and first to feature our new BLAIR-CG LED chipset. As an 80W color-tunable point source fixture with a color engine based on our breakthrough BLAIR chipset, a Mini ProLock locking Bowens mount, and compact profile, the STORM 80c is a feature-packed versatile fixture suitable for a tremendous range of professional imaging applications from high-end film productions to small-crew video or photo shoots.

Performance and Features

With the new BLAIR-CG chipset, the STORM 80c delivers exceptional brightness and color accuracy. The added Cyan and Green diodes allow the STORM 80c to cover 90+ of the Rec.2020 color gamut, giving users access to a far greater range of saturated colors compared to the BLAIR chipset. The STORM 80c offers:

• 19,850 lux at 1m at 5,600K with its included hyper reflector
• SSI P3200 of 88 and SSI CIE D5600 of 84 at 3,200K and 5,600K respectively
• An indigo diode that enhances the colors of fluorescing materials, resulting in an image that is lit more accurately to match natural daylight and tungsten sources

Color Temperature and Control

Featuring a wide CCT range of 1,800K-20,000K and advanced white-point control with green-magenta color correction (G 100 ASC MITC range), this fixture offers the versatility and critical color accuracy that professionals call for on set. Equipped with advanced dimming technology, the STORM 80c ensures flicker-free, color-accurate operation during shooting even at its lowest output level of <19.8 lux="" at="" 1m="" 5="" 600k="" this="" dimming="" technology="" provides="" users="" with="" an="" unprecedented="" 0="" 1-100="" stepless="" brightness="" control="" p="">

Mounting and Integration

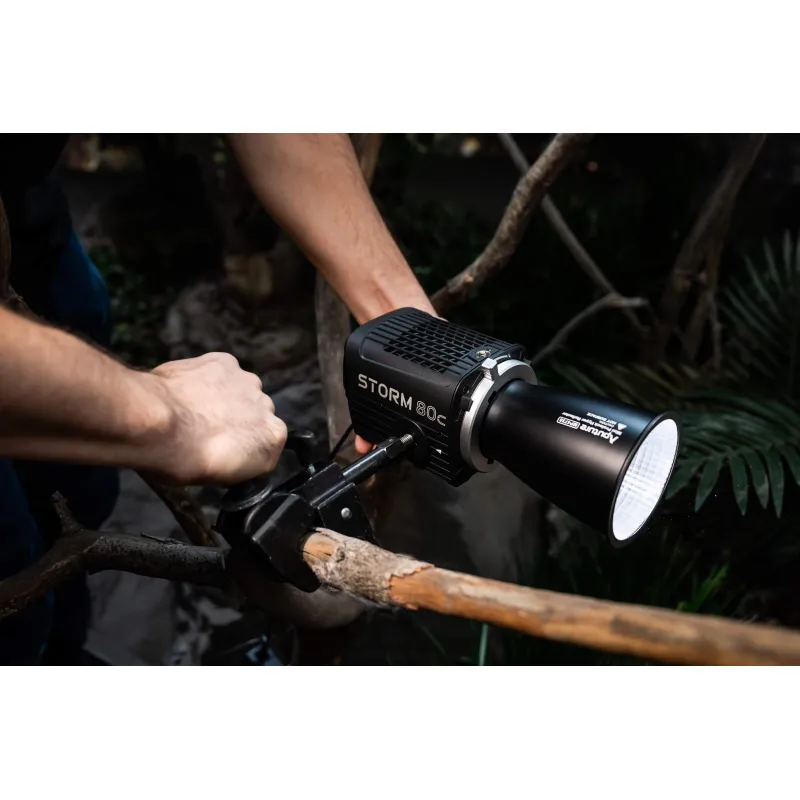

Armed with a newly designed Mini ProLock locking accessory mount, the STORM 80c can support compact modifiers designed specifically for the 80c or be adapted to a full-size Bowens mount while maintaining an easy coupling procedure that reduces the need to make rotational adjustments with accessories to achieve a secure, optically aligned lock.

Control Protocols

Featuring comprehensive lighting control protocol options, including:

• 16-bit DMX512
• LumenRadio CRMX
• Sidus Link/Sidus Link Pro App control

The STORM 80c ensures seamless integration into professional lighting workflows at the lamp head and behind the console. The STORM 80c ships with the new OSII operating system installed, which gives users a more seamless, quick, and intuitive user experience when operating the fixture.

Durability and Design

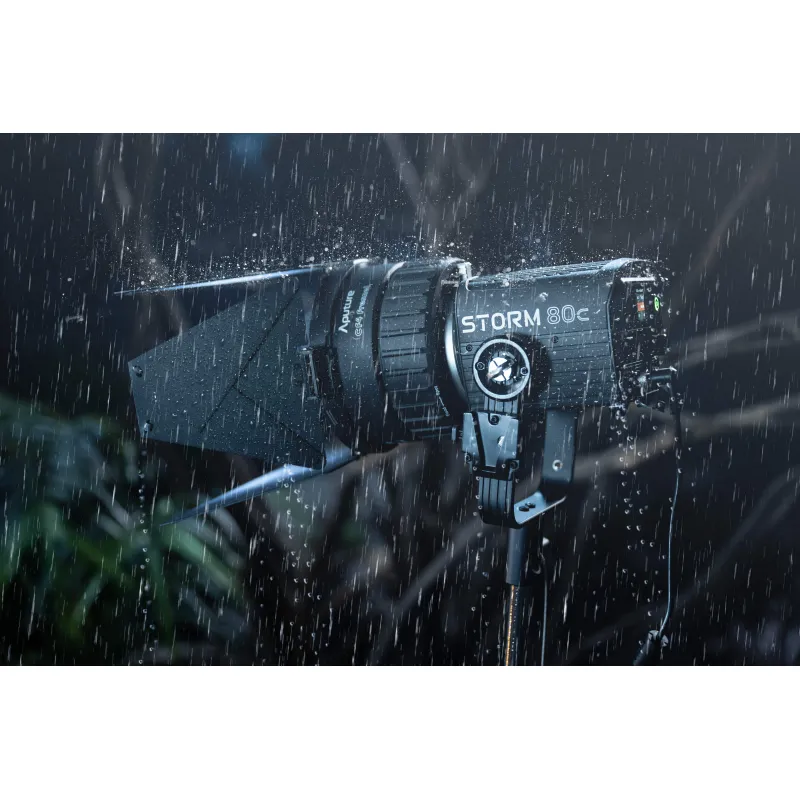

With a rugged IP65 dust and weather-resistant rating, the STORM 80c is capable of withstanding even the most demanding filming environments in inclement weather without any impact on performance or reliability.

Specifications

• 80W Full-Color Compact Point Source Fixture
• New Breakthrough Proprietary LED Chipset: Blue, Lime, Amber, Indigo, Red, Cyan, Green (BLAIR-CG)

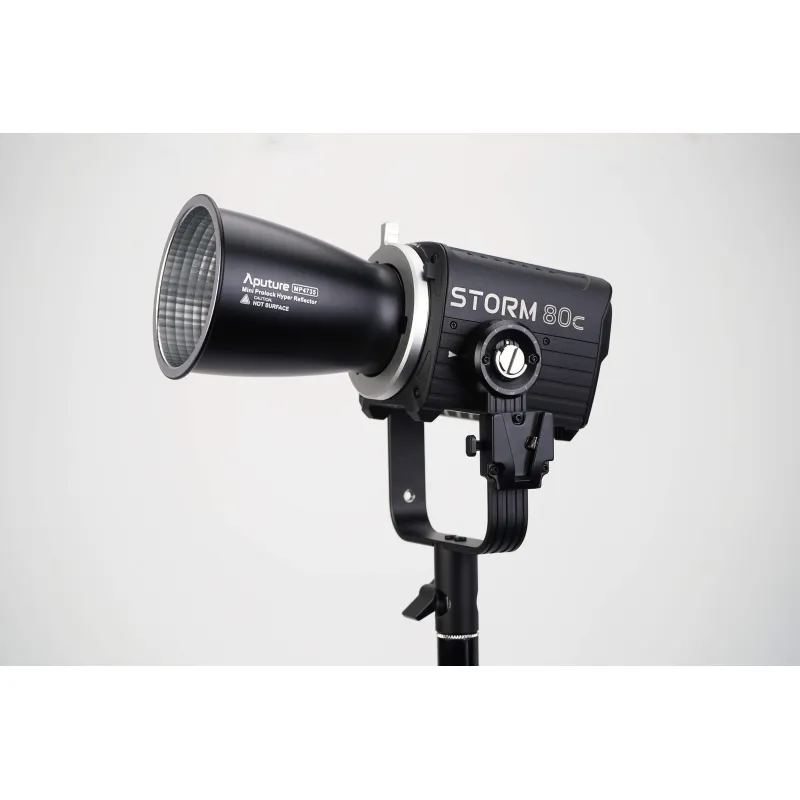

• 19,850 Lux at 1m (5600K) when using included 35° hyper reflector
• CCT Range of 1,800K-20,000K
• Advanced Diode Color Mixing
• Ultra-High Color Accuracy: CRI 97, TLCI 98, CQS CIE D5600 96, SSI P3200 88, SSI CIE D5600 84, TM-30 Rf (avg) 96, TM-30 Rg (avg) 103
• 90+ Coverage of Rec.2020 color gamut
• Compact Design (Lamp Head Weight with Yoke 1.35kg / 2.98lbs)
• Removable Yoke Offers 360° Rotation of Lamp Head
• Versatile Rigging Potential with Four 3/8-16in Threads
• IP65 Weather Resistance
• Multiple Control Methods: Sidus Link and Sidus Link Pro App, LumenRadio CRMX, 16-bit 5-Pin DMX512 In & Out
• Smooth 0.1-100 Stepless Dimming
• Minimum Output <19.8 lux="" at="" 1m="" 5="" 600k="" li="">
• Dual Output Modes: Max and Constant
• High-Speed Photography, Lead-Follow, and Studio Modes
• 4 Fan Modes: Smart, High, Medium, Silent
• 74 DMX Control Profiles with Multiple DMX Dimming Modes and Customizable DMX Signal Loss Behaviors
• 4 Dimming Curves: Linear, Exponential, Logarithmic, S-shaped
• 15 Built-In Light Effects
• 10 Savable Presets

Target Audience

The STORM 80c is a cutting-edge lighting fixture designed to cater to a diverse range of professionals within the film and photography industries calling for compact, color-tunable, and versatile lights, including cinematographers, lighting technicians, videographers, and photographers.

Cinematographers

This advanced LED fixture offers a nifty lighting solution deployable in any shooting condition. Armed with the new BLAIR-CG light engine and IP65 weather resistance, the STORM 80c can be used to give color-tunable and accurate hair and fill lights for subjects in any filming condition, rain or shine.

Lighting Technicians

Lighting technicians will appreciate the STORM 80c's ease of integration into professional setups. Equipped with a variety of control options, this fixture seamlessly adapts to complex lighting networks, enhancing workflow efficiency, and carries a small footprint on set.

Videographers

Videographers benefit from the STORM 80c's output to size ratio, providing 20,185 lux at 5600K at 1 meter while weighing just under 3 pounds. With its versatile Mini ProLock Mount, videographers have the flexibility to quickly achieve their desired lighting looks with modifiers designed and optimized for the STORM 80c.

Photographers

Photographers requiring a portable professional-grade lighting solution will find the STORM 80c to be an indispensable tool in their arsenal. With its small form factor and full color tunability, the STORM 80c can be used across a wide range of photographic applications, from studio portraits to outdoor shoots.

Conclusion

Whether you're a seasoned cinematographer, lighting technician, videographer, or photographer, the STORM 80c empowers you to elevate your craft with its high color accuracy, versatility, and reliability, ensuring exceptional results in every production or photo shoot.

Technical Specifications

• LED Chipset: BLAIR-CG
• CCT: 1,800K - 20,000K
• Color Gamut Coverage: 90+ Rec.2020
• CRI: 97
• TLCI: 99
• CQS (5600K): 96
• CQS (3200K): 97
• SSI (Tungsten): 88
• SSI (D56): 84
• TM-30 RF (Average): 96
• TM-30 RG (Average): 103
• Max Power Consumption: 100W
• Max Power Output: 80W
• Weather Resistance Rating: IP65
• Native COB Beam Angle: 60°
• Included Reflector Beam Angle: 35°
• Operating Voltage: 100V - 240V / 50-60 Hz
• DC Adapter Output: 19V/5.3A
• V-Mount Battery Operating Voltage: 14.4V
• USB-C Power Specifications: In 20V/5A; Out 5V/0.5A
• Operating Temperature: -20°C - 45°C / -4°F - 113°F
• Storage Temperature: -40°C - 80°C / -40°F - 176°F
• Control Methods: On-board, Sidus Link App, Sidus Link Pro App, DMX, RDM, CRMX
• Data Ports: USB-C, Locking 3-Pin DMX Terminal
• Firmware Upgradeable: Sidus Link, Sidus Link Pro, USB-C
• Screen Type: TFT
• Wireless Range: Sidus Bluetooth 100m / 262.5ft, CRMX (TimoTwo) 100m / 262.5ft
• Lamp Head Fan Noise Levels (at 1m): Smart Mode 26.1 dBA, High Mode 26.7 dBA, Medium Mode 24.4 dBA, Silent Mode 22.3 dBA
• Dimensions: Lamp Head (Without Yoke) 10.1 x 10.4 x 14.7cm / 4.0 x 4.1 x 5.8in, Lamp Head (With Yoke) 16.7 x 22.5 x 14.7cm / 6.6 x 8.9 x 5.8in
• Weight: Lamp Head (Without Yoke) 1.01kg / 2.23lbs, Lamp Head (With Yoke) 1.35kg / 2.98lbs, AC Power Adapter 405g / 0.89lb
