New product

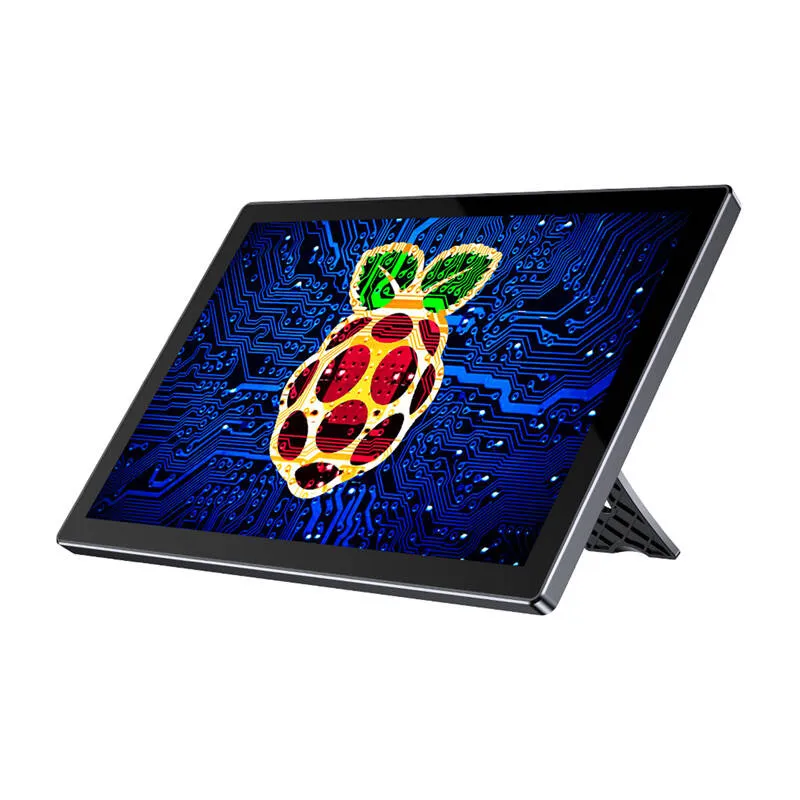

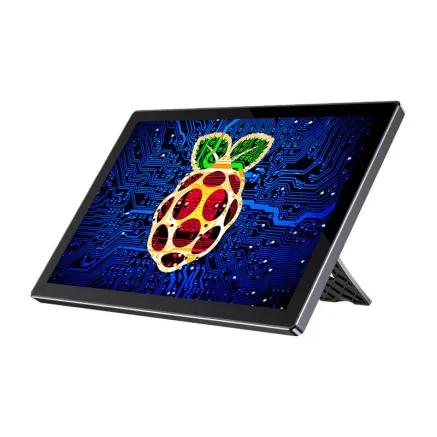

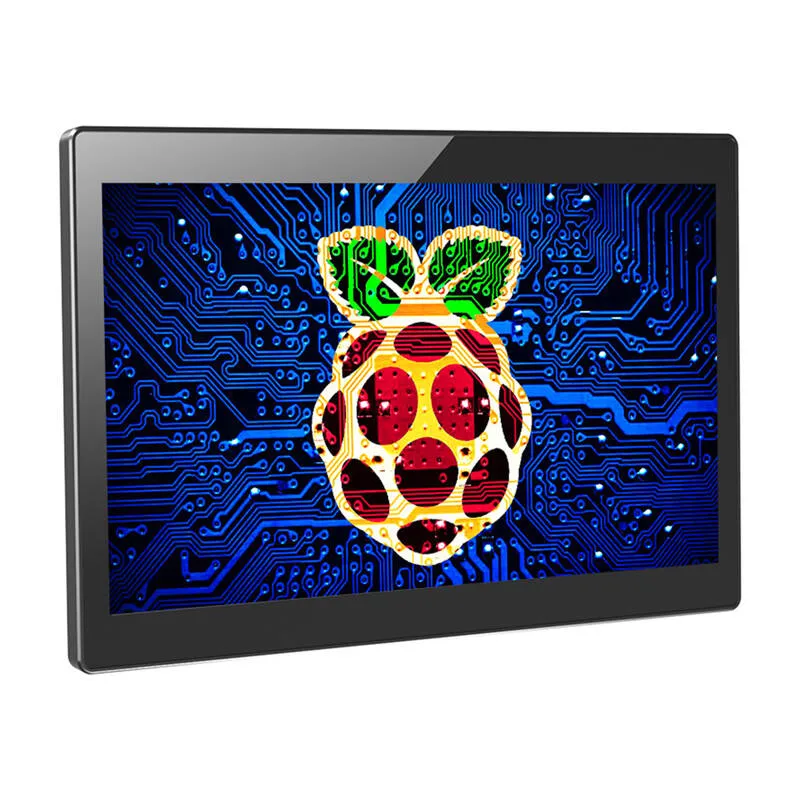

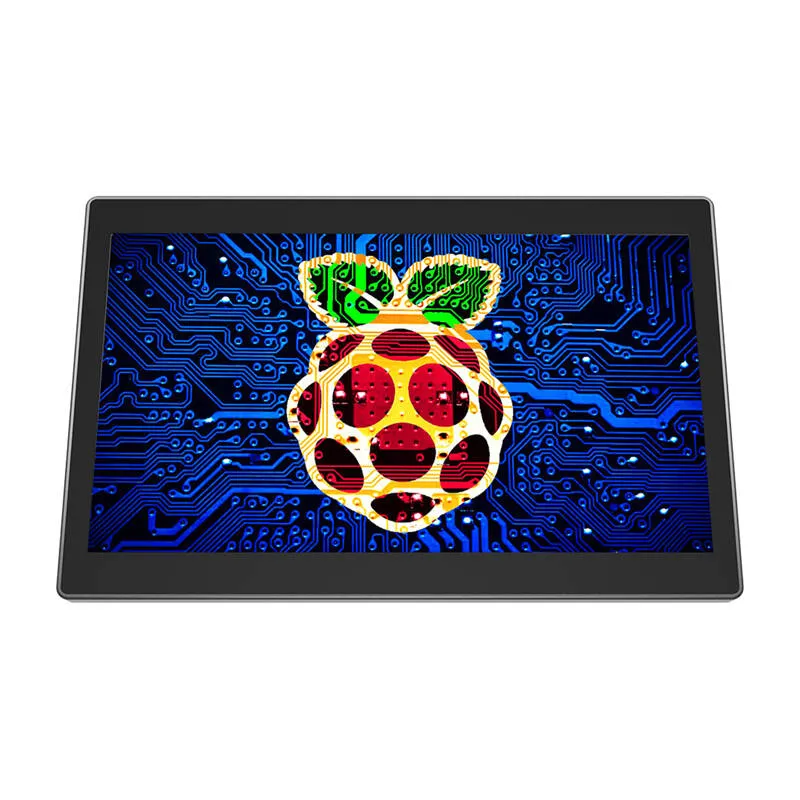

The Uperfect UPi B7 is designed specifically for the Raspberry Pi 4, 4B and 5. It offers 1920x1200 resolution and 10-point touch sensitivity for exceptional image quality and precise operation. It also has a dual speaker that guarantees clear sound. In addition, it stands out for its versatility, with an adjustable stand for comfort and productivity. The monitor is compatible with a wide range of devices, making it ideal for creative projects, daily use and entertainment.
The monitor is extremely easy to install and use. Compared to laptops, connecting a Raspberry Pi 4 to this monitor is very easy and requires no complicated wiring. All you need is a USB-C board for power, and an HDMI board for signal. Only one USB cable is used for touch. The monitor is also compatible with other devices such as computers, laptops and gaming consoles.
The monitor is equipped with 4 VESA holes (75x75mm), which allows it to be mounted on a desk or wall, providing more space for other devices. With the ability to adjust the angle of the stand from 15 to 50, the monitor ensures comfortable working or studying. In addition, 2 built-in fans take care of the devices proper temperature, which translates into efficiency.
When connected to a home monitoring camera, the monitor allows you to keep an eye on your surroundings around the clock, providing 100% protection and security at home. You can also use it while traveling in your car in the form of navigation - you can easily mount the monitor on the dashboard. Uperfect UPi B7 also allows you to display information about the progress of printing with a 3 D printer, allowing you to conveniently keep track of the process without having to use a computer very often. This significantly improves productivity and user comfort.
The monitor comes with all the necessary cables for easy connection to various devices. Thanks to its well-thought-out design and versatility, the monitor is an ideal choice for anyone who appreciates ease of use, high image quality and versatility of use.
USB-C to USB-C cable
HDMI to HDMI cable
USB-A to USB-C cable
power adapter
touch cable x2
USB-C board
side panel x2
HDMI board x2
screw x4
Micro USB board
Phillips screwdriver
user manual
Manufacturer | Uperfect |
---|---|
Model | UPi B7 |
Refresh rate | 60Hz |
Response time | 35 ms |
Screen diagonal | 10.1 |
Resolution | 1920 1200 WXGA |
Display aspect ratio | 16:10 |
Viewing angle | 178 |
Display type | IPS |
Contrast ratio | 800:1 |
Brightness | 370 cd/m |
Color gamut | 75% sRGB |
Color depth | 16.7M(8bit) |
Touch screen | yes, 10-point |
Built-in battery | no |
Gravity sensor | no |
HDR | no |
FreeSync | no |
Material | ABS |
Built-in speakers | yes, 2*8 1W |
Vesa mountable | yes, 75*75mm@M3*6mm |
Controls | no |
Stand mount | yes |
Rated power | 8 W |
Dimensions | 245 160 41 mm |
Weight | 0.62 kg |
Interface | USB-C (audio and video), HDMI (audio and video), DC power port |
