• 25.2MP Live MOS Micro Four Thirds Sensor
• 4K 60p 4:2:2 10-Bit Unlimited Recording
• 5.7K 60p, 4K 120p HFR, FHD 300p VFR
• ProRes 422 HQ, V-Log and DR Boost
• Dual I.S. 2, 7.5-Stop 5-Axis Stabilizer
• 100MP Handheld High-Resolution Mode
• 3.68m-Dot OLED Electronic Viewfinder
• 3.0" 1.84m-Dot Free Angle Touchscreen
• CFexpress Type B & SD UHS-II Card Slots

A LUMIX first: Apple ProRes codec video

Using a CFexpress Type B card (MOV, 5.7K, 5728x3024, 29.97p/25.00p/24.00p), you can internally record ProRes 422 HQ and ProRes 422 codec videos, the professional industry standard, which deliver high image quality at low compression. This significantly reduces the load on the computer during post-production and allows NLE (non-linear editing) without transcoding, streamlining your workflow from start to finish.
･Apple and ProRes are trademarks or registered trademarks of Apple Inc. in the United States and/or other countries.

5.7K 10-bit 60p/50p recording
With 5.7K (5728x3024) 4:2:0 10-bit 60p/50p (17:9) and 5.8K (5760x4320) 30p/25p/24p 4:2:0 10-bit anamorphic (4:3) modes, the LUMIX GH6 offers higher resolution and higher bit rates than ever before, and delivers the latest in high image quality, versatility, and expressive range needed for film, TV, and all types of video production.

Unlimited 4:2:2 10-bit C4K/4K 60p/50p video recording time
The first LUMIX to offer 4:2:2 10-bit C4K/4K 60p/50p internal recording, the GH6 delivers unlimited recording time* when used at the recommended operating temperature**. Ideal for small production teams and in demanding conditions where mobility and high-quality are a must. Also allows for simultaneous internal recording and external recording via HDMI output.
*Under the guaranteed operating environment. When using a battery. The recording time depends on the capacity of the battery and the recording media.
**-10–40℃.
･Corresponding to 4K (4096×2160) as defined by Digital Cinema Initiatives (DCI).
･CFexpress card or an SD memory card with Video Speed Class 90 is required.

7.5-stop Dual I.S. 2 (Image Stabilizer)
5-axis Dual I.S. 2 (Image Stabilizer) combines control of the Body I.S. and Lens O.I.S. to offer 7.5 stops’ worth of correction.*
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.]

HFR/VFR 10-bit recording
High-resolution slow-motion recording, recently gaining popularity in video production, is now made possible using C4K/4K 10-bit 120p/100p HFR (high-frame-rate) video recording with audio. The LUMIX GH6 also offers a wide range of 10-bit ALL-Intra recording modes for high-end editing, so you can shoot FHD 240p/200p HFR and FHD 240fps VFR (variable frame rate) video. With VFR you can record up to 12.5x super slow-motion video (FHD 10-bit 24p/300fps).
･Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.

New Venus Engine
The new Venus Engine delivers approximately twice the processing power as before, enabling high-speed processing of the new sensor's higher pixel counts and higher-resolution, higher-bit-rate video. Image quality performance is also greatly improved. New Intelligent Detail Processing offers higher resolution, and new 2D and high-performance 3D Noise Reduction (for videos) optimize noise reduction. The result is natural, 3D-like images with minimal noise even at high sensitivity. High-precision Dual 3D Color Control achieves improved color reproduction (brightness, saturation, and hue), resulting in more faithful and richer color expression.

New 25.2MP sensor
The LUMIX GH6 features the first Micro Four Thirds™ system standard 25.2-megapixel Live MOS sensor. With no low-pass filter, its design allows for both more pixels and higher resolution, for ultra-realistic detail. Its higher readout speed delivers C4K/4K 120p video recording and 75-frames-per-second burst shooting using the electronic shutter while also minimizing rolling shutter distortion.
･The Micro Four Thirds™ name and logos are trademarks or registered trademarks of Olympus Corporation in Japan, the United States, the European Union, and other countries and regions.

Delivery Content
• Lumix DC-GH6 Body
• Battery DMW-BLK22 (2200mAh)
• Charger (with USB AC Adapter)
• USB Connection Cable
• BNC Conversion Cable
• Strain relief (cable holder)
• Shoulder Strap GH6
• Body Cap

Technical Data

AF/Exposure

Contrast AF + DFD, 315-area
EV -4 to 18
AFS TBD
Face/Eye/Head/Body/Animal Recognition

Shutter

Mechanical: 1/8000-60, X=1/250
Electronic: 1/32,000-60
Durability: 200k

Burst Shooting

Mechanical: AFS 14 fps, AFC 8 fps
Electronic: AFS 75 fps, AFC 7 fps

Monitor

LVF: 3.68MP OLED, 0.76x KB
LCD: 1.84MP Touchscreen 3.0”, Tilt & Free-Angle

IN/OUT

HDMI

Typ-A (Supports 4K 120p via HDMI2.1)

USB / Charge / Supply

USB3.2 Typ-C (PD) / Yes / Yes

Card Slot

Slot 1: CFexpress Typ B
Slot 2: SD UHS-II U3 V90

Mic / Headphone

Φ3.5mm / Φ3.5mm

XLR Audio Input

DMW-XLR1 (sold separately)

Remote Socket

Φ2.5mm

TC IN/OUT

Yes

Other Features

Tally Lamp

Yes (Front / Rear)

Wi-Fi / Bluetooth / Tether

Wi-Fi 5GHz / Bluetooth v5.0 / LUMIX Tether

Cooling Fan

Yes

Battery

Bundled Battery Pack

DMW-BLK22 (2200mAh)

Battery Life

LCD 380 pic / LVF 380 pic (*3)

Physical Specifications

Weatherproof (*1)

Dust / Splash / Freeze Resistant

Dimensions / Weight (*2)

138.4 x 100.3 x 99.6 mm / 823g

Camera Specifications

Image Sensor

25.2MP MFT

High Resolution Mode

100M with Handheld Shot Mode

Body I.S.

5-axis / 7.5-stop

Log Recording

V-Log / 13+ stops (*4), 12+ stops (*5)

Codec

MOV / MP4
Apple ProRes 422 HQ / Apple ProRes 422

Recording Time Limit

Unlimited (*6)

5.7K (Apple ProRes 422 HQ)

29.97p / 25.00p / 24.00p / 23.98p

5.7K (4:2:0 10-Bit)

59.94p / 50.00p / 29.97p / 25.00p / 24.00p / 23.98p

C4K (4:2:2 10-Bit, 4:2:0 10-Bit)

59.94p / 50.00p / 29.97p / 25.00p / 24.00p / 23.98p

4K (4:2:2 10-Bit, 4:2:0 10-Bit)

59.94p / 50.00p / 29.97p / 25.00p / 24.00p / 23.98p

FHD (4:2:2 10-Bit)

59.94p / 59.94i / 50.00p / 50.00i / 29.97p / 25.00p / 24.00p / 23.98p

Audio Format

2ch

MP4: AAC (48kHz/16-Bit)
MOV: LPCM (48kHz/24-Bit, 96kHz/24-Bit*7)

4ch

MOV: LPCM (48kHz/24-Bit*7, 96kHz/24bit*7)

Notes
*1 Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
*2 Body, Battery, Card.
*3 When using SD card.
*4 Dynamic Range Boost mode: ON. From ISO2000 only at 60fps or less.
*5 Dynamic Range Boost mode: OFF.
*6 Recommended ambient temperature is up to 35℃ (TBD).
*7 When using DMW-XLR1 (sold separately)

Panasonic's LUMIX GH6 is the latest flagship model of the LUMIX G Series digital mirrorless camera based on the Micro Four Thirds system standard. By increasing the effective pixel count by more than 20%, the new 25.2-megapixel Live MOS Sensor boasts high-resolution, high-speed signal readout and wide dynamic range. The new Venus Engine is equipped with advanced image processing technologies to render high resolution images with natural noise texture and rich color reproduction, which is a hallmark of LUMIX cameras. The LUMIX GH6 contains V-Log/V-Gamut -- a first for LUMIX G Micro Four Thirds cameras -- and provides 12+ stops and even 13+ stops of wide dynamic range using Dynamic Range Boost mode.

The new LUMIX GH6 has again evolved to achieve 4:2:2 10-bit C4K 60p unlimited video recording time3, 4:2:0 10-bit 4K120p, 4:2:2 10bit FHD 240p HFR (High Frame Rate) and FHD maximum 300fps VFR (Variable Frame Rate) to reproduce dynamic motion of the subject. In addition to 4:2:0 10-bit 5.7K 60p, 4:2:0 10-bit 5.8K 30p (4.4K 60p) anamorphic 4:3 video can be recorded utilizing the full area of the sensor. It is possible to display de-squeezed footage on the monitor in real-time. 5.7K 30p video recording is available in Apple ProRes 422 HQ for the first time in LUMIX cameras, which enables non-linear editing without transcoding. Extended recording time is made possible with LUMIX’s heat management technology.

Boasting 7.5 stops of powerful image stabilization with its Dual I.S.2 for agile handheld shooting, the LUMIX GH6 has adopted a new super high-precision 5-axis gyro sensor with a new algorithm to achieve 7.5 stops of Body I.S.4 and Dual I.S.2.5 It also offers a wide variety of recording formats, resolutions and framerates to choose from according to the purpose.

With expertise drawn from firsthand opinions, the LUMIX GH6 has been designed to recognize high quality video expression and workflow efficiency from setup to delivery in addition to excellent depiction performance and mobility. Together with a wide array of lens options, Panasonic is committed to leading the industry with creators who are seeking for a new way to go beyond the limitations of creativity.

State-of-the-art technologies enhance video quality even higher
Panasonic has developed a new 25.2-megapixel Live MOS Sensor without LPF (Low-pass Filter) that boasts high resolution, high-speed signal readout that reduces rolling shutter problem and achieves wide dynamic range. The new Venus Engine delivers approximately twice the processing power1, enabling high-speed processing of the new sensor's higher pixel counts, higher-resolution and higher-bit-rate video. It has evolved with three key technologies: New Intelligent Detail Processing, New 2D Noise Reduction and High Precision 3D Noise Reduction for video. The new Intelligent Detail Processing detects the edges and flat and detailed parts in a frame more accurately, resulting in highly realistic images. The new 2D Noise Reduction suppresses chromatic noise and improves the texture of luminance noise to make photo clear and natural even when shot at high sensitivity. With the High Precision 3D Noise Reduction for video, the detection capability of still and moving parts has been advanced, which makes it possible to optimize noise reduction while minimizing afterimages. As a result, the image quality of video with dynamic motion is enhanced. In addition, high-precision Dual 3D Color Control enhances color reproduction by brightness level, saturation level, and hue level for rich, faithful color expression.

The combination of the new advanced sensor with the enhanced saturation performance and engine makes it possible to render clearer images even in 25.2-megapixel high resolution and lower minimum ISO sensitivity at ISO 100 [Photo: ISO 50(Extended) - 25600 / Video: ISO 50(Extended) -12800].

Dynamic range measures the luminance range that a digital camera can capture. The LUMIX GH6 provides 12+ stops of wide dynamic range for pre-installed V-Log recording capability. Even 13+ stops can be achieved using Dynamic Range Boost mode.2 With the new Dynamic Range Boost mode, saturation-priority image generated from low ISO circuit and low noise image generated from high ISO circuit are synthesized at each pixel. The composite image achieves both low noise and high saturation, resulting in a clear and smooth HDR video with rich gradation.

For agile handheld shooting, the LUMIX GH6 has adopted a new super high-precision 5-axis gyro sensor with a new algorithm to achieve 7.5 stops of Body I.S.3 and Dual I.S.2.4 Thanks to this powerful image stabilization, even 100-megapixel high resolution images can be shot using the High-Resolution mode without a tripod. In High-Resolution mode, eight consecutive images are automatically shot while shifting the sensor using the Body I.S. (Image Stabilizer) mechanism and synthesized into a 100-megapixel equivalent (11552 x 8672-pixel) image that faithfully reproduces precise details to be saved as beautiful, highly realistic RAW and JPEG images. With its high mobility achieved by the compact, lightweight design and powerful Body I.S., the LUMIX GH6 makes previously impossible shooting, such as handheld ultra-telephoto shooting, possible. The 5-axis Dual I.S. 2 also works for video recording, including 4K video to record natural, comfortable-to-see video footage. It applies appropriate compensation according to the type of movement by precisely judging the cause – whether it was generated by panning, tilting or hand-shake. The B.I.S. compensates for camera movement even when an interchangeable lens without O.I.S. (e.g., a cine lens) is used.

Professional-quality video performance for unlimited expression
The LUMIX GH Series has created an epoch-making industrial sensation by achieving outstanding video recording performance with advanced features that meet professional quality levels and standards. The LUMIX GH6 again evolves to achieve 4:2:2 10-bit C4K 60p unlimited video recording time.1 4:2:0 10-bit 4K120p (Equivalent to 5x slow motion2) and 4:2:2 10-bit FHD 240p HFR (High Frame Rate) video recording with audio also available to enable impressive expression such as speed ramping. FHD maximum 300fps (Equivalent to 12.5x slow motion2) and VFR (Variable Frame Rate) reproduce the dynamic motion of the subject.

In addition to 4:2:0 10-bit 5.7K 60p, 4:2:0 10-bit 5.8K 30p (4.4K 60p) anamorphic 4:3 video can be recorded utilizing the full area of the sensor. It is possible to display de-squeezed footage on the monitor in real time. 5.7K 30p internal video recording is available in ProRes 422 HQ and ProRes 422 for the first time in the LUMIX series using the CFexpress Type B card, which enables non-linear editing without transcoding. DCI4K, FHD ProRes 422 HQ and ProRes 422 will be supported with a future firmware update.

The LUMIX GH6 is capable of 4:2:2 10-bit C4K 60p internal recording and simultaneous output in 4:2:2 10-bit C4K 60p over HDMI. Since it is HDMI 2.1 compliant, it will support C4K 120p HDMI video output with a future firmware update. Moreover, capability of C4K 120p RAW output to Atomos Ninja V+ monitor recorder over HDMI 2.0, is under development, which also will be available with a future firmware update.

The LUMIX GH6 contains V-Log/V-Gamut capture to deliver a high dynamic range and broad colors. V-Log renders a very flat image while maintaining all the color information within the image. This means that there is a greater level of play when the images are put through post-production processes. The Live MOS sensor of the LUMIX GH6 achieves a wide color gamut known as V-Gamut, which is the GH6’s optimum color space and provides a color space that is wider than BT.2020. V-Log has log curve characteristics that are somewhat reminiscent of negative film and V-Gamut delivers a color space even larger than film.

The LUMIX GH6 offers the renowned colorimetry of the VariCam line of cinema cameras and uses their V-LOG picture profile and wider V-Gamut. For monitoring your work and to see an image that is no longer in LOG, the GH6 includes the V709 LUT (Look Up Table) with Rec.709 standard in the camera by default, this LUT can be output over HDMI or to the cameras monitors or both. It is possible to install your own LUT’s into the GH6 and access them from the V-Log View Assist menu. For users of the Varicam and EVA1 the GH6 can support LUT’s in their .vlt format, and for users of other camera systems we also support the .cube format.

The LUMIX GH6 offers a host of practical features. There are a variety of settings in Photo Style including different Cinelike gamma presets. “Cinelike D2” and “Cinelike V2” have similar gamma setting characteristics for film production. In response to requests from professional users, video assist functions such as Waveform Monitor, Zebra Pattern, Luminance Spot Meter, Frame Marker, Anamorphic Desqueeze Display, Red REC Frame Indicator and Tally lamps are available. The Safety Zone Marker, a new feature on the LUMIX GH6, shows a guide of 95%, 90% or 80% recording area to secure safety zone for the composition and for the subtitles. Center Marker now allows you to choose the type of the marker. In Color Temperature Setting, the kelvin values can now be displayed on the recording screen.

By using both an XLR microphone connected via the XLR Microphone Adaptor DMW-XLR1 (Ch1 Ch2) and built-in microphone (Ch3, Ch4), 48/96kHz 24-bit high-res audio can be recorded.3 Users can combine several types of external microphones that fit the recording situation such as outdoor interviews where the voice of the speakers and ambient sound need to be recorded. The channel to use for the headphone can be switched during video recording and audio menus can be directly accessed with the Fn1 button on the camera top for easy sound level check during 4-channel audio recording. For the external microphone, a Φ3.5mm stereo jack is provided.

4K 60p Time Lapse videos can also be produced inside the camera. With the Exposure Leveling function, the exposure is automatically adjusted to prevent large changes in brightness between adjacent frames to produce equable time lapse footage.

USB host capability will be added with a future firmware update, making it possible to write the data directly to the SSD.

Agile mobility and smart operation for professional use
With the incorporation of the new 25.2-megapixel Live MOS Sensor and new Venus Engine, the auto focus performance of the LUMIX GH6 has been improved. With higher speed signal processing by the Venus Engine and an improved AF algorithm, subject detection performance has been dramatically enhanced to achieve higher precision AF.

To support high precision focusing, the LUMIX GH6 provides practical options for manual focusing. While focus is shifted by a variable amount according to the rotation speed of the focus ring for non-linear setting, it is shifted with a designated amount according to the rotational quantum of the focus ring for linear setting. Sensitivity (amount of focus shift per rotational quantum) can be selected from 90 to 360 degrees by 30-degrees to enable intended focus operation. The MF Assist, which enables the focus point to be enlarged, is now available photo shooting and video recording.1

The LUMIX GH6 is capable of high-speed burst shooting at 14 (AFS) / 8 (AFC) fps with a mechanical shutter and 75 fps with an electronic shutter.

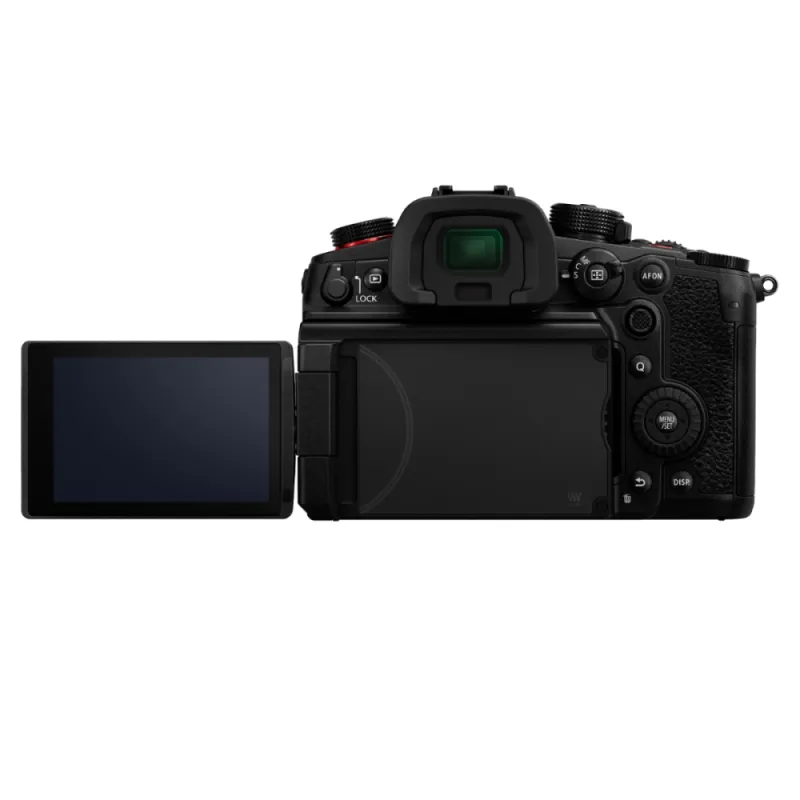

The LUMIX GH6 adopts the 3.0-inch free-angle touch-control monitor in 3:2 aspect with 1,840K-dot high resolution. It does not cause interference even when both the HDMI cable and USB cable are connected by adjusting the tilt/rotation angle of the monitor. A large, 3,680K-dot OLED (Organic Light-Emitting Diode) LVF (Live View Finder) features a high magnification ratio of approx. 1.52x / 0.76x (35mm camera equivalent).

Reliable quality and performance for professional use and connectivity
Overheating is a fatal issue to continuous video recording especially when the resolution and the frame rates are increased. However, the LUMIX GH6 achieves unlimited video recording time1 in C4K 60p 4:2:2 10-bit by optimizing the heat dissipating path with a forced-cooling mechanism and allows video recording of VFR/HFR, ProRes and high-resolution footage exceeding 4K for an extended time.

To ensure the GH6 can withstand heavy field use, it is composed of a magnesium alloy full die-cast front / rear frame, splash-resistant2, dust-resistant, and freeze-resistant down to -10 degrees Celsius/14 degrees Fahrenheit. The shutter unit also is durable for approx. 200,000 cycles. The Rec button is located on both the top and front of the camera, which makes it easy to start and stop recording even when shooting at a low angle or with a shoulder rig.

The LUMIX GH6 is equipped with double card slots. The CFexpress card (Type B) supports internal recording of high bitrate video at 800Mbps or more including 5.7K 30p ProRes 422 HQ and C4K 60p ALL-I. The SD Memory Card UHS II V90 supports internal recording of video at 600Mbps or less. It also is possible to choose the recording method from Relay Recording, Backup Recording, Allocation Recording using both the SD Memory Card and CFexpress Card.

For the terminal, HDMI Type A is provided. Plus, a cable lock holder for the HDMI/USB cable is bundled to prevent issues such as unplugging on location. The LUMIX GH6 supports USB 3.2 Gen 2 for high-speed writing and readout. The 2200mAh high-capacity battery can be recharged either via AC or USB. It also complies with USB PD (Power Delivery) when the corresponding Battery Charger DMW-BTC15 (sold separately) is used. The LUMIX GH6 is compatible with Time Code IN/OUT synchronization through the flash synchro terminal and bundled BNC converter cable with BNC cable. This makes the non-linear editing of footage shot with multiple cameras easy.

Wi-Fi 5 GHz (IEEE802.11ac)3 is effective in addition to 2.4 GHz (IEEE802.11b/g/n). This provides secure and stable connection with a smartphone, tablet and other devices on location for smooth remote control. The transmission speed of photo/video data is increased by using the 5 GHz band. Compatibility with Bluetooth 5.0 (called BLE: Bluetooth Low Energy) enables constant connection with a smartphone or tablet with minimum power consumption. The settings of a LUMIX GH6 camera can be copied and transmitted wirelessly to other GH6 cameras when using multiple GH6 cameras. The LUMIX Sync application for iOS/Android devices allows remote control of the camera using a smartphone or a tablet via easy wireless connection. In addition to wireless control via a Remote Shutter DMW-RS2 (sold separately), application software LUMIX Tether enables tethered shooting via USB. Users can control the camera by connecting it to a PC via USB. It lets them view the image on a large PC screen while shooting.

A wide variety of LUMIX G lenses – Exclusively designed for Micro Four Thirds camera
The Panasonic LUMIX G Series boasts a total lineup of 30 Micro Four Thirds lenses to choose from according to the purpose. Above these, the LEICA DG VARIO-SUMMILUX 10-25mm / F1.7 ASPH. (X-H1025) and the LEICA DG VARIO-SUMMILUX 25-50mm / F1.7 ASPH. (H-X2550) zoom lenses features full-range F1.7 large aperture and are favored by professional film creators as well as other single-focal- length F1.7 or F2.8 lenses. In addition, the LUMIX GH6 memorizes the name and its focal length of analog lenses such as anamorphic lenses or old lenses to provide suitable setting of camera’s in-body image stabilizer automatically when those lenses are used.

Considering use with the LUMIX GH6, Panasonic has reviewed and updated the firmware of the lenses. It is possible to control AF operation by pressing the shutter button halfway, or by pressing the AF-ON button, when [200.00p] is set in high frame rate video mode when compatible lenses are used.
