- trinocular incident/transmitted light microscope
- 20 W halogen 230 volt mains operation
- Köhler illumination with field diaphragm
- 1.25 abbe-condenser with iris diaphragm
- adjustable eye relief
- height adjustable object plate
- polarizer/analyzer attachment
- planachromatic lenses with a high work distance
- separate incident light unit with filter disk
Discover related products
Discover related products

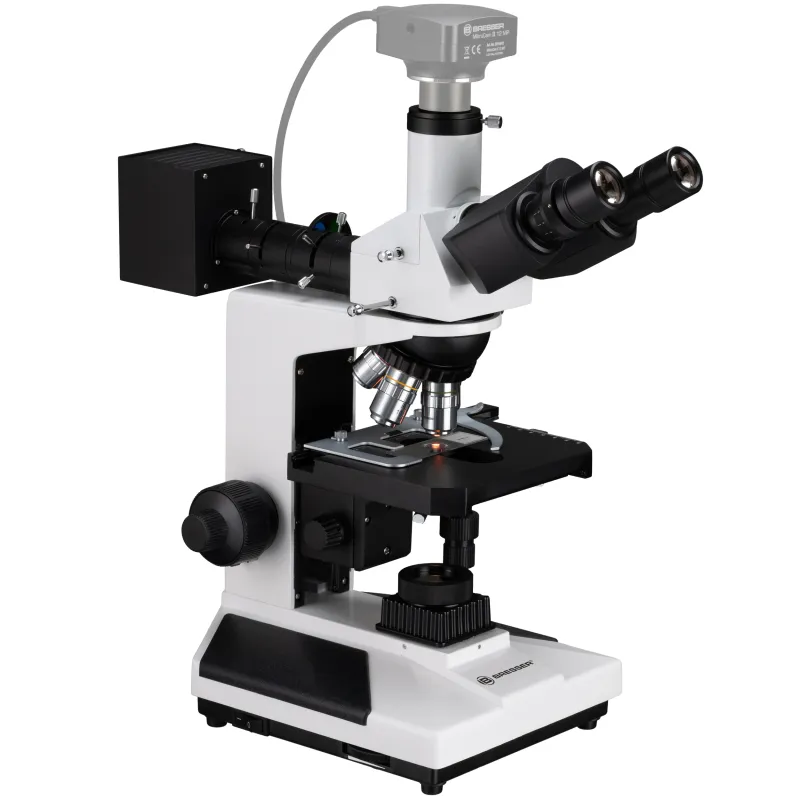

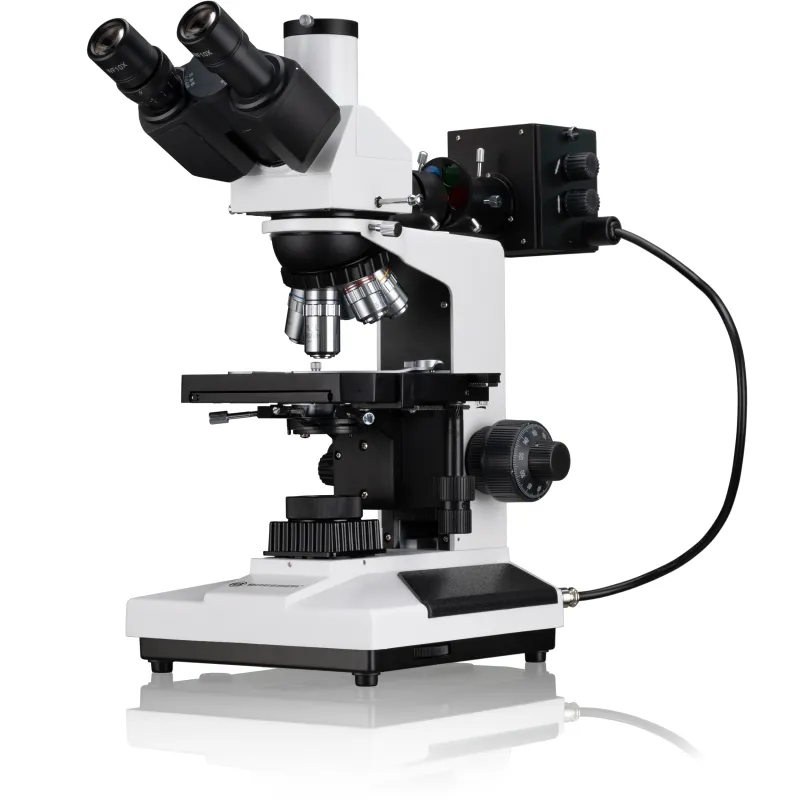

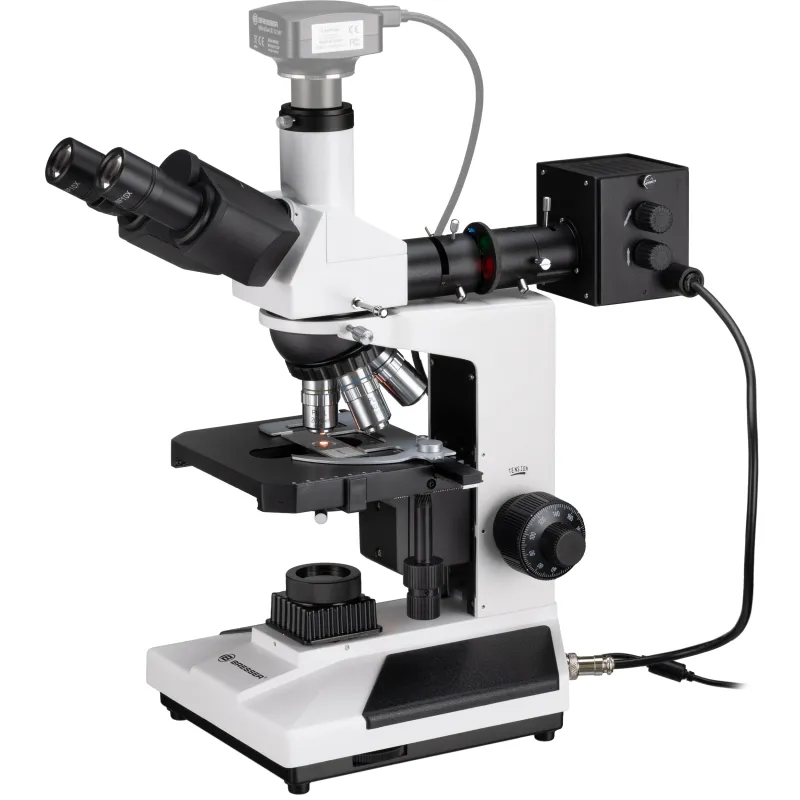

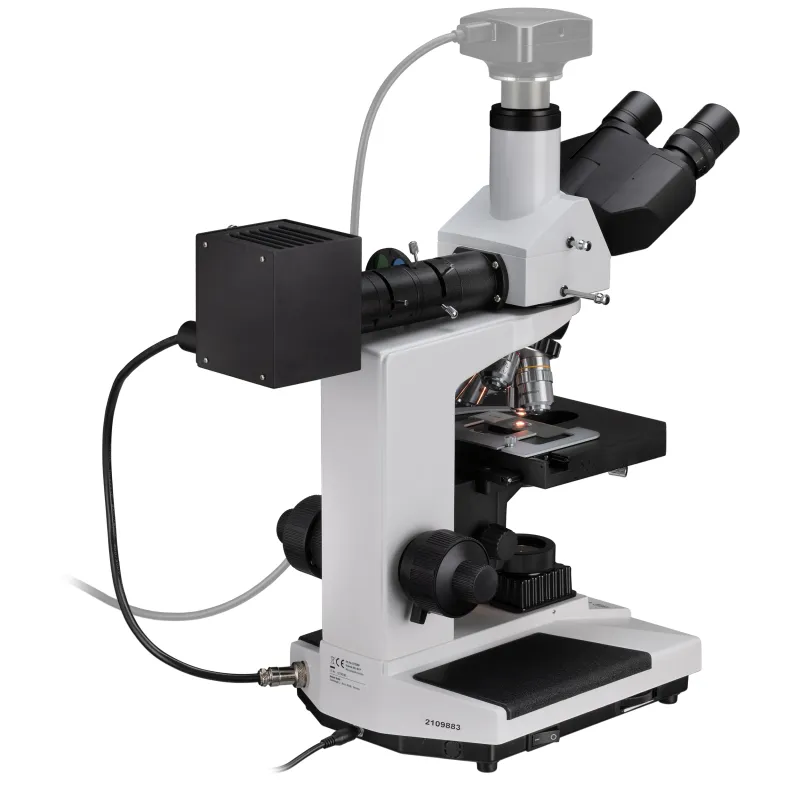

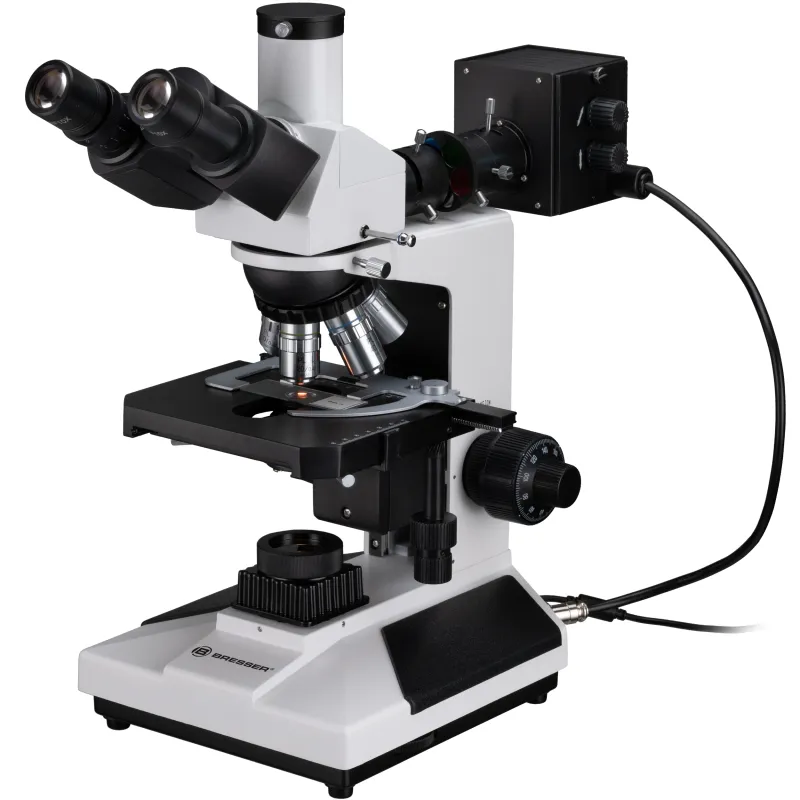

Microscope Overview
In the microscope's basis, there is a transmitted light halogen illuminator (20 W) as well as the power supply and the continuously adjustable dimmers for reflected light and transmitted light. The trinocular head attachment works with both illumination modes. It also allows photography and binocular visual observation. The inclination of the eyepiece tubes is 30 degrees. With the polarization head attachment, the instrument is suitable for the internal structure of materials and for condition monitoring of different mechanical apparatus in college and factory.
The reflected light halogen illumination (20W), which goes through the objective onto the object, can be modified for special purposes with a color filter wheel and the polarizer/analyzer combination. The Science ADL 601P is an instrument with excellent value for money. It also has other features that are typical for high-quality microscopes:
- Fourfold objective nosepiece
- Lengthwise and cross moveable stage
- Coaxial focusing knobs (concerning fine drive 200 m / full turn)
- Adjustment of eye relief
- Diopter adjustment
- Phototube
Optional available general accessories include:
- Wide field eyepieces (WF10x, WF16x)
- Dividing eyepiece (WF10x)
- Different planachromatic DIN objectives (e.g. 4x, 5x, 10x, 20x, 40x retractable, 60x retractable, 100x-oil retractable)
- Abbe condenser (numerical aperture 1.25; with iris diaphragm and auxiliary lens)
- Dark field condensers (dry and oil)
- Immersion oil
- Phase contrast set
- Field diaphragm (in order to obtain Köhler illumination)
- Filters (blue, green, yellow, ground glass, polarization)
Features
- Type: Biological microscope
- View: Binocular
- Application range: Biology, Gemology, Mineralogy, Botany
- Illumination: Halogen
- Level: Intermediate, Expert
- Warranty: 2 years
- 1.25 Abbe-condenser with iris diaphragm and filter holder
- Incl. adjustable mechanical stage
- Integr. dimmer
- Adjustable eye relief
- Diopter adjustment
Specifications
- Comfortable binocular view, 30 inclined
- Transmitted 6V/20W, adjustable
- Magnifications: 40x-600x
- Eyepieces: 2x WF10x
- Eyepiece diameter: 23.2 mm
- Objectives: PL-5x, PLL-10x, PLL-40x, PLL-60x
- Power supply: 220/240V
Included Accessories
- 4 DIN-objectives
- 2x 10x eyepieces
- 1.25 Abbe-condenser with iris diaphragm and filter holder
- Polariser-/Analyser-Attachment
- Additional Halogen-Incident-Illumination for Polarisation
