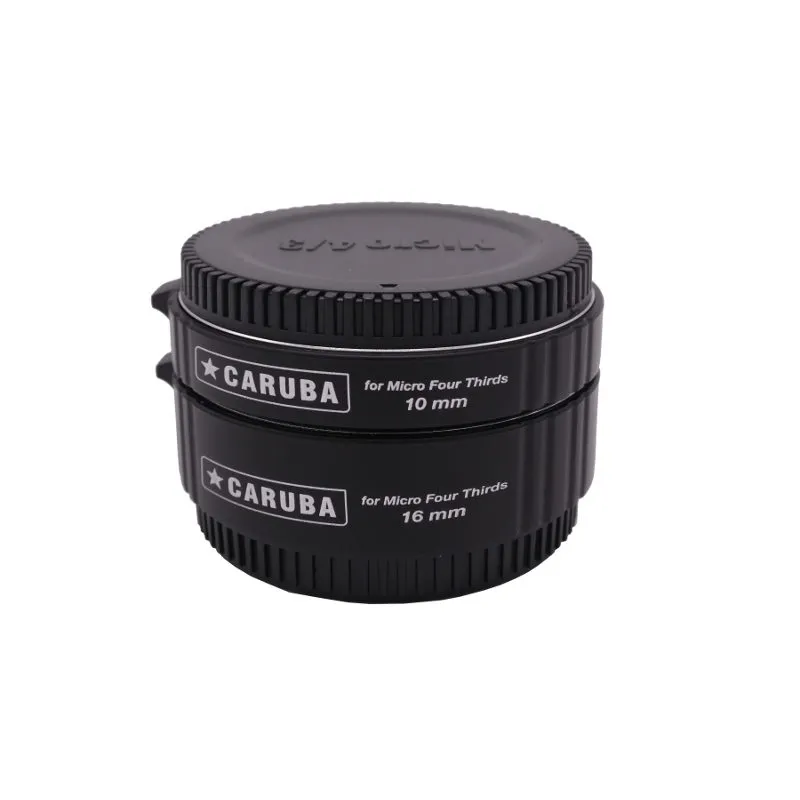

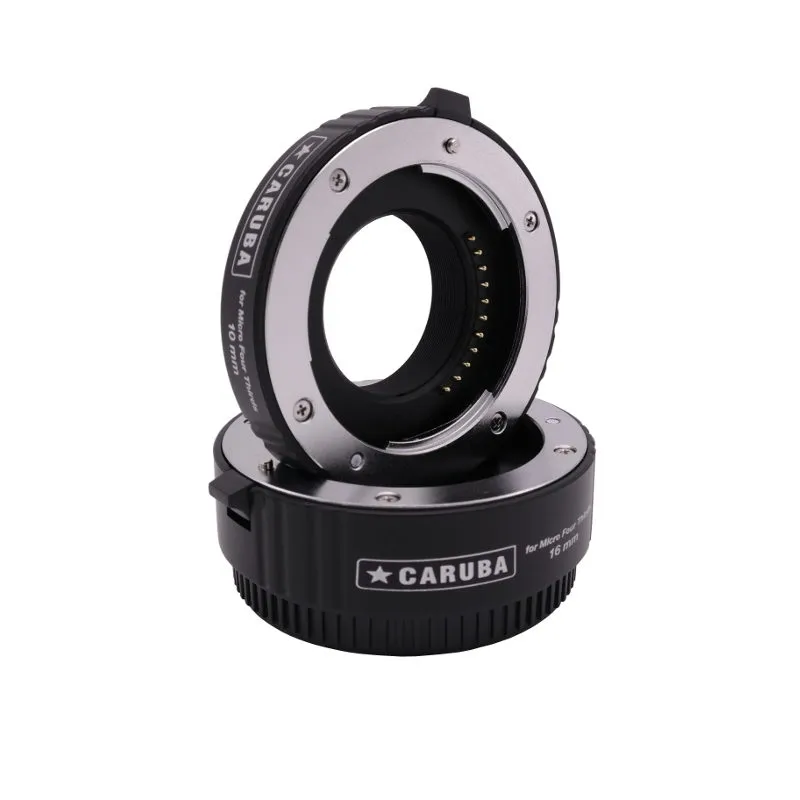

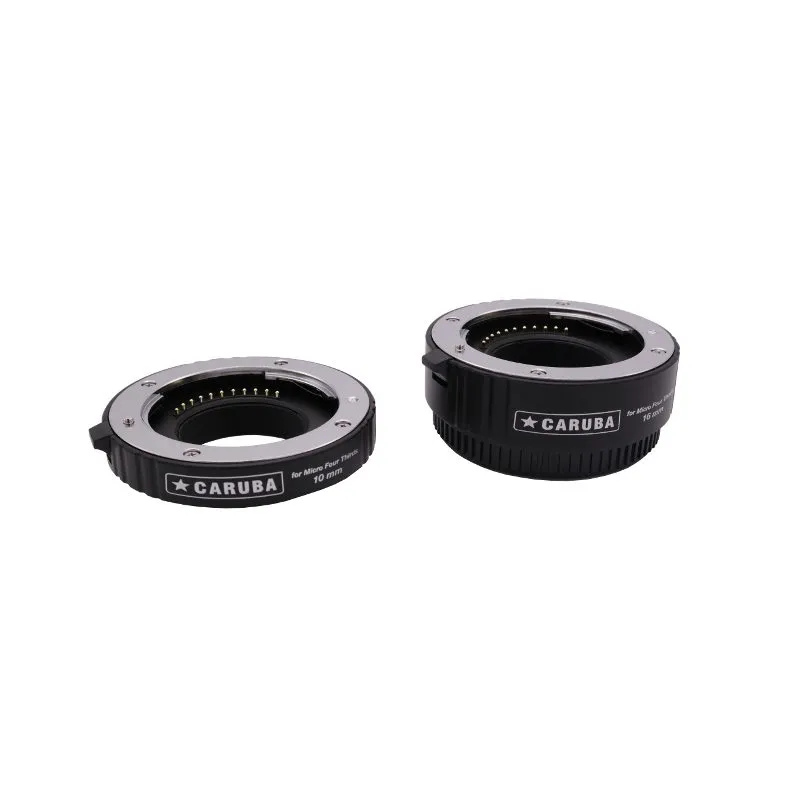

Caruba Extension Tube Set - Olympus/Panasonic MFT Chrome (Version II)
The Caruba Extension Tube set for Olympus or Panasonic consists of two extension tubes that can be used separately, or combined. The extension tubes have no optical elements, which makes it possible to photograph subjects larger and from a closer distance, without negatively influencing the quality of the image. The extension tubes have a chrome mount and are compatible with Micro Four Thirds lenses. Features such as auto focus and TTL light metering continue to work as usual. However, manual focusing is recommended, as focus is very tight.
Ideal for macro photography
Every lens has a minimum focusing distance. If you put an extension tube, or so called spacer ring, between the lens and the camera body, the minimum focusing distance becomes smaller. The greater the focal length of the extension tube, the closer you can get. This is perfect for macro photography or for creating special close-ups.
How does a spacer work?
A spacer ring increases the distance between the image sensor of the camera and the rear lens of the lens. This shortens the focusing distance of the lens, making it possible to focus closer on the subject. As a result, the subject is projected onto the sensor larger than it would be without a spacer ring. A spacer ring thus increases the magnification factor of a lens. This can be calculated using the following formula.
Maximum magnification with spacer ring = lens magnification factor + (mm spacer ring / focal length)
Examples
For example, you have an 85mm lens with a magnification factor of 0.13. With the 12mm ring the magnification of the lens becomes as follows:
maximum magnification with 12mm ring = 0.13 + (12 / 85) = 0.13 + 0.14 = 0.22
With the 20mm spacer ring, the magnification factor of the lens becomes as follows:
Maximum magnification with 20mm ring = 0.13 + (20 / 85) = 0.13 + 0.24 = 0.37
With the 36mm spacer ring, the magnification ratio of the lens is as follows:
maximum magnification with 36mm ring = 0.13 + (36 / 85) = 0.13 + 0.42 = 0.55
You can also combine the spacer rings, with all three the magnification factor of the lens becomes as follows:
maximum magnification with 68mm ring = 0.13 + (68 / 85) = 0.13 + 0.80 = 0.93
Please note that when using all 3 stacked spacer rings there is a loss of light of approximately 2 stops!
Characteristics
- Set of two spacer rings
- Perfect for macro photography and close-ups
- Get closer to your subject and capture it larger
- Reduce the minimum focus distance of your lens
- Auto focus and TTL light metering function
- No change in the quality of your images
- Compatible with Micro Four Thirds lenses
- Chrome mount
- 3 Year Warranty

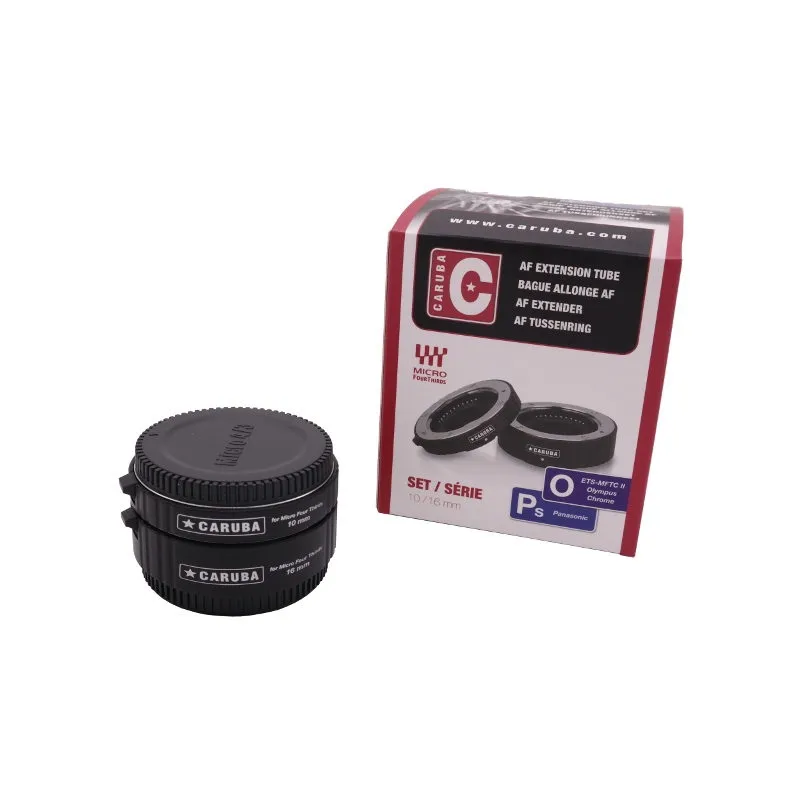

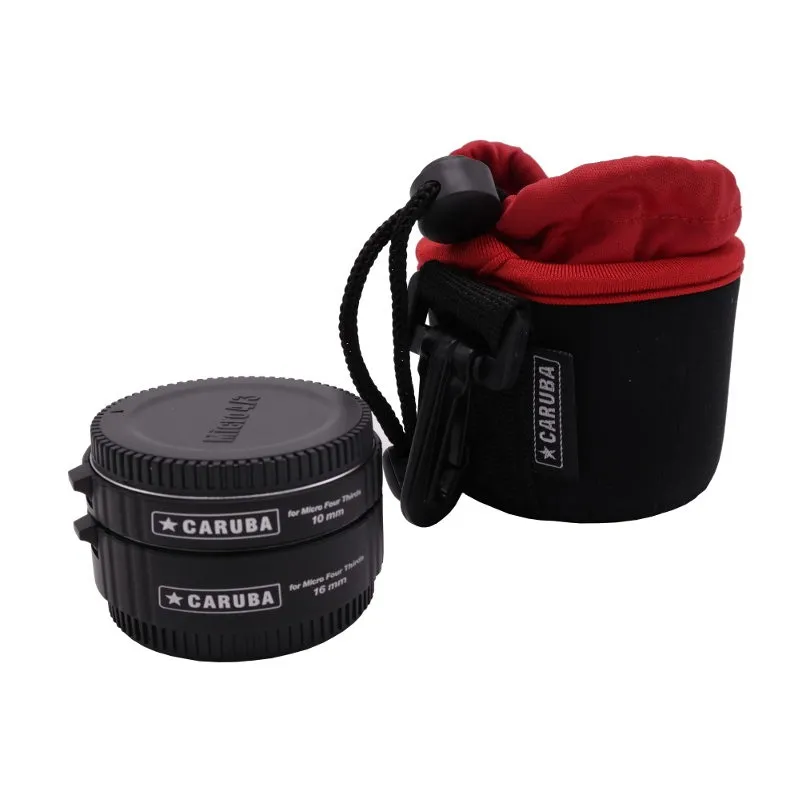

In the box
- 1 x Extension tube 10mm
- 1 x Extension tube 16mm
- 1 x Lens cap
- 1 x Neopreen pouch
| Type of Product | Macro Accessories |
| Compatible | universāla |
| Macro accessory | makro gredzeni |
