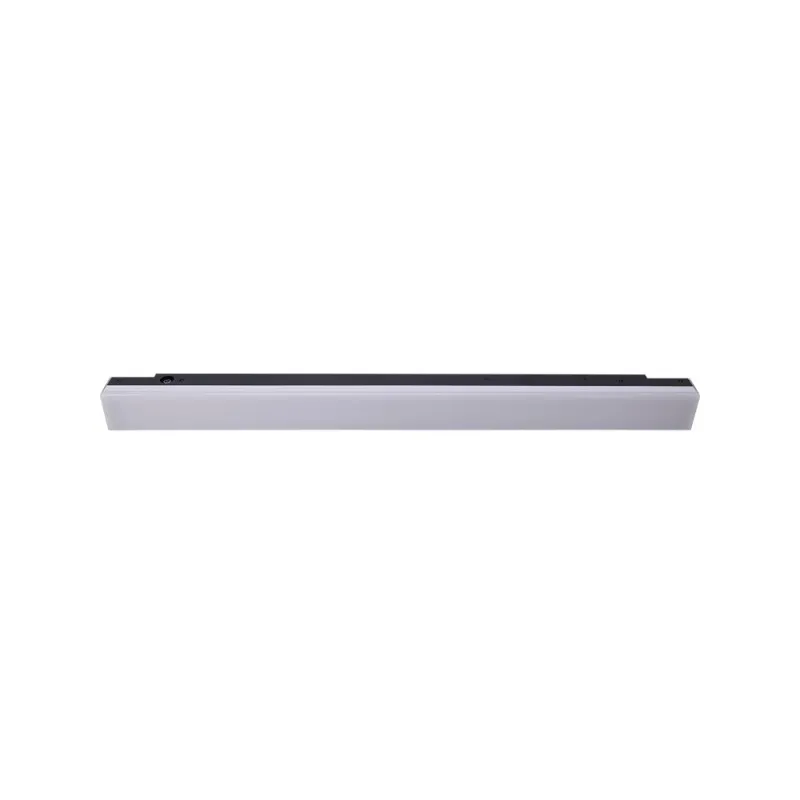

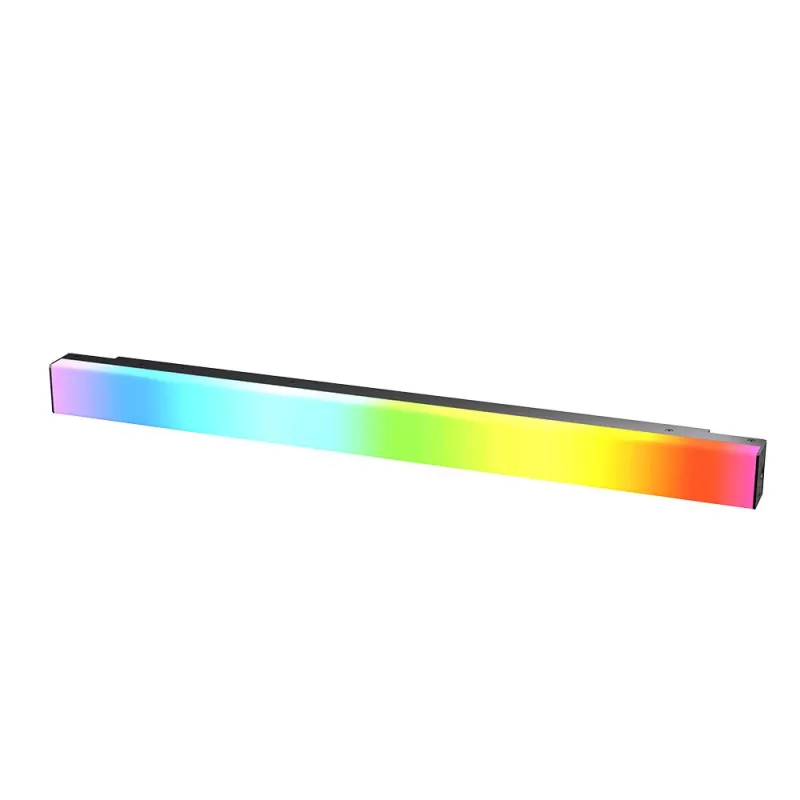

Aputure INFINIBAR PB6 2-Foot (60cm) 14W RGBWW Full Color LED Pixel Bar

Aputure Infinibar PB6 Overview

The Aputure Infinibar PB6 is an innovative 60 cm long RGBWW LED panel designed with filmmakers, set designers, and light designers in mind. This innovative design opens up completely new possibilities for creating light installations by combining multiple Infinibar panels in a wide variety of configurations. Control over the expanded light setup is provided by the Sidus Link app.

Main Product Features

• 60 cm long LED panel
• Innovative connection system of Aputure Infinibar series lamps
• Created with filmmakers, photographers, set designers, and light designers in mind
• Possibility to connect lamps at different angles on flat surfaces or create three-dimensional light structures
• High CRI, TLCI, CQS, and SSI ratios for excellent color reproduction
• Wide color temperature adjustment range of 2000 K - 10000 K
• Green-magenta color correction option (G/M)
• Equipped with 48 sections of smart pixel LEDs
• 9 special FX effects (including police car, paparazzi, campfire, TV)
• 7 transition effects (Pixel FX) between individual diode sections (including penetration, fire, rainbow)
• Built-in 4000 mAh battery for up to 100 minutes of operation at full power
• Fast charging (about 2h)
• Remote control via the advanced Sidus Link mobile app
• Sidus Mesh integration allowing control of various Aputure lights with your smartphone or tablet
• Support for LumenRadio CRMX wireless control standard
• Compatible with DMX standard (USB-C / DMX cable must be purchased separately)
• Includes 2 strong neodymium magnets for installation on metal surfaces

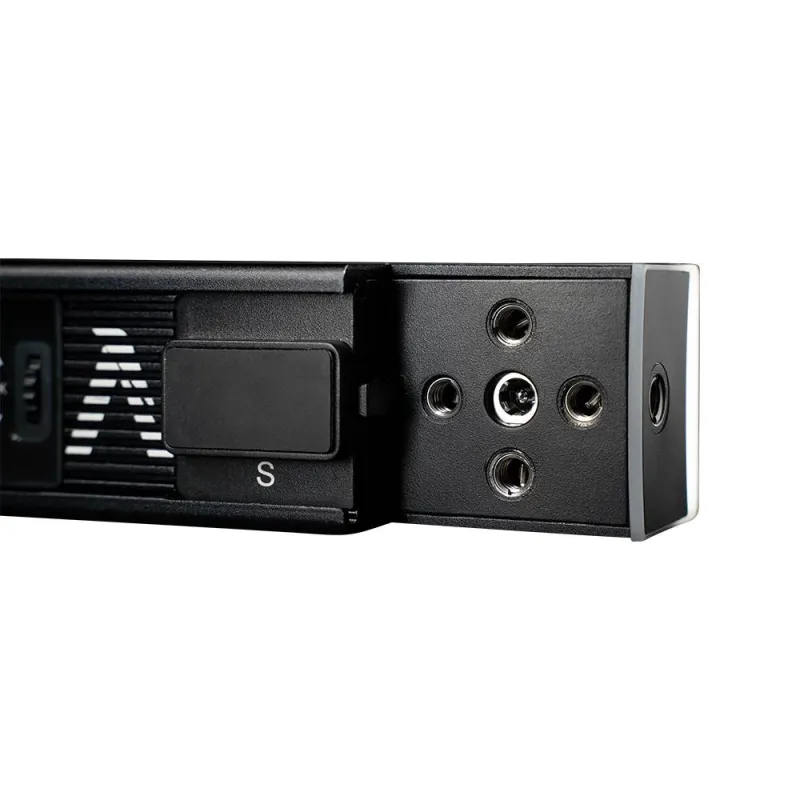

• Equipped with female mounting threads 3/8" and 1/4"
• Includes Infinibar Clamp, 48W power supply, power cable (1.5m), allen wrench, mounting adapter for connecting to other lamps, and carrying bag

Innovative Design

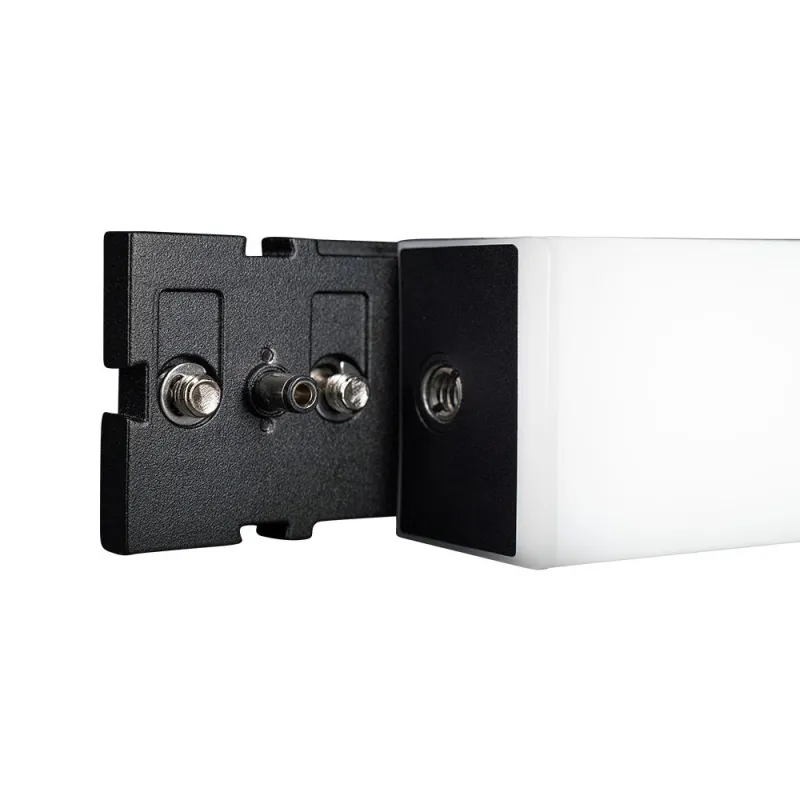

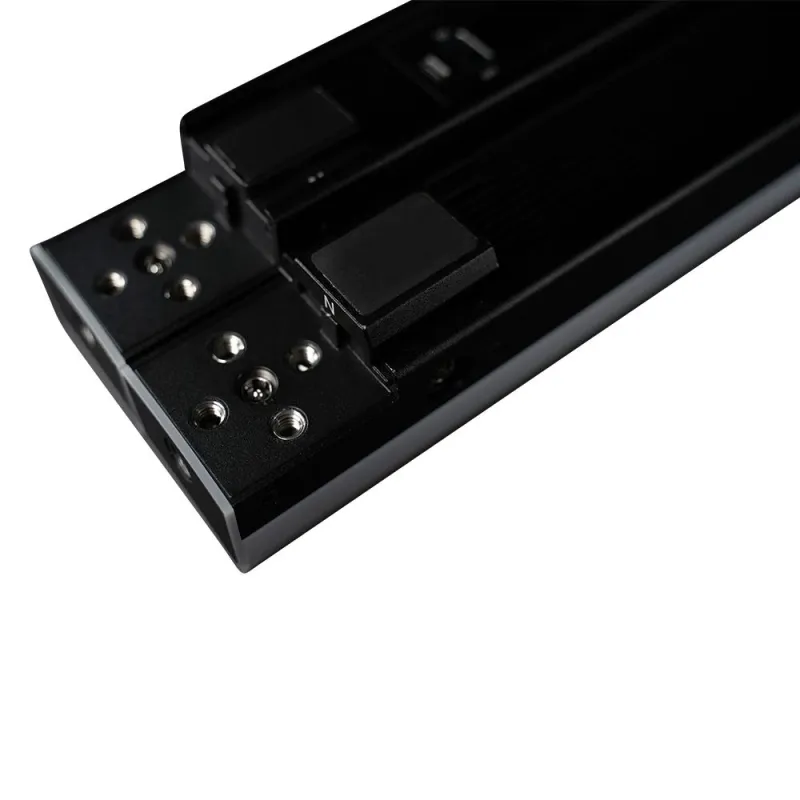

With its rectangular cross-section, elongated design, and use of a special mounting system, the Infinibar series lamps can be combined in hundreds of different ways. The revolutionary design opens up completely new possibilities for stage designers and video creators to create scenes. The Aputure Infinibar PB6 LED lamp will be perfect as one of the light sources, but also as an element of stage design. Special mounting adapters will allow you to connect the panels at different angles. When aligned in a straight line, you will create a unified structure with no visible gaps between the luminous modules.

Excellent Light Quality

Thanks to its state-of-the-art RGBWW LED chip, the Aputure Infinibar PB6 LED lamp impresses with unparalleled color quality. The 60 cm long panel allows you to conveniently control the color of light within the HSI and RGB space. There is also a green-magenta (G/M) correction option. Precise color reproduction is confirmed by high CRI (96+), TLCI (98+), SSI Tungsten (85), and SSI D56 (74) ratings.

Light Installations

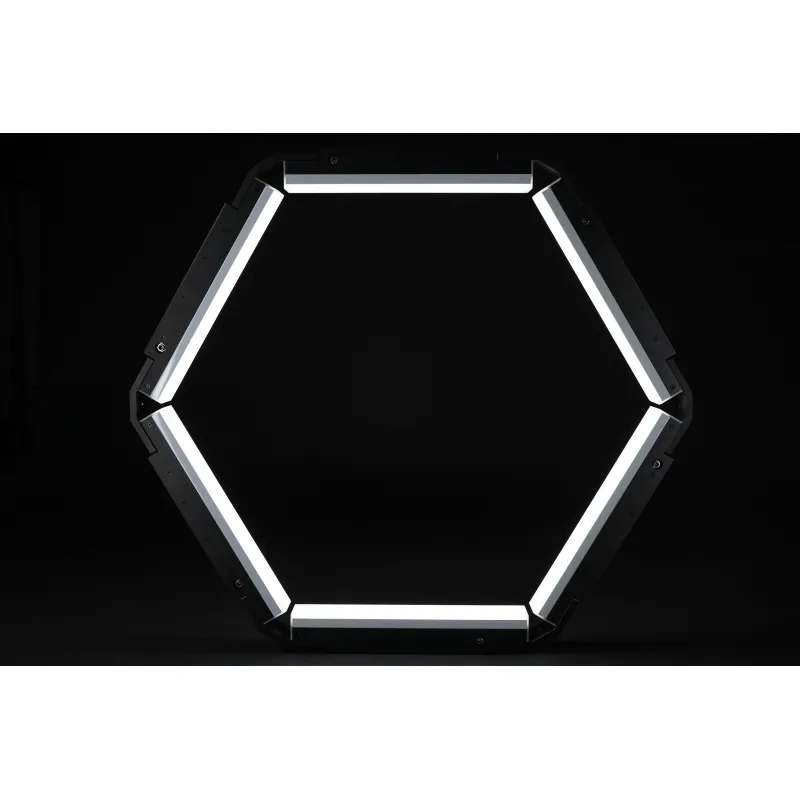

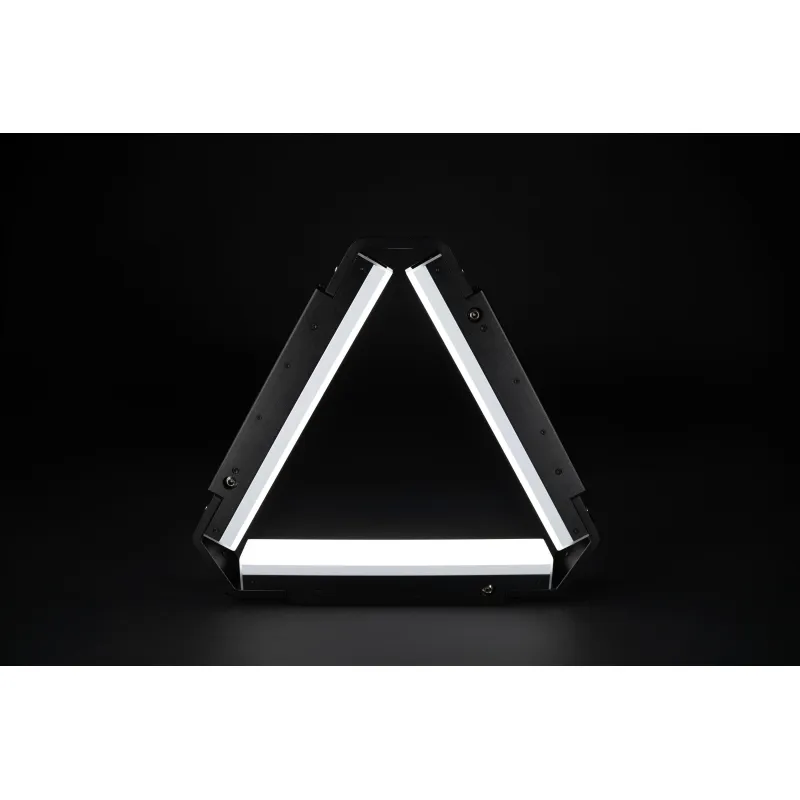

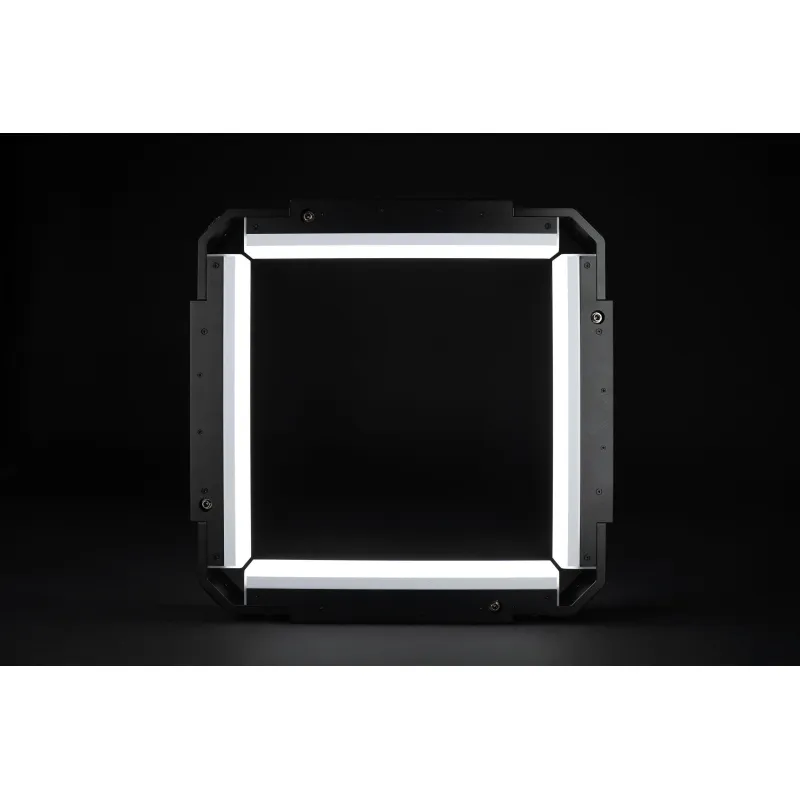

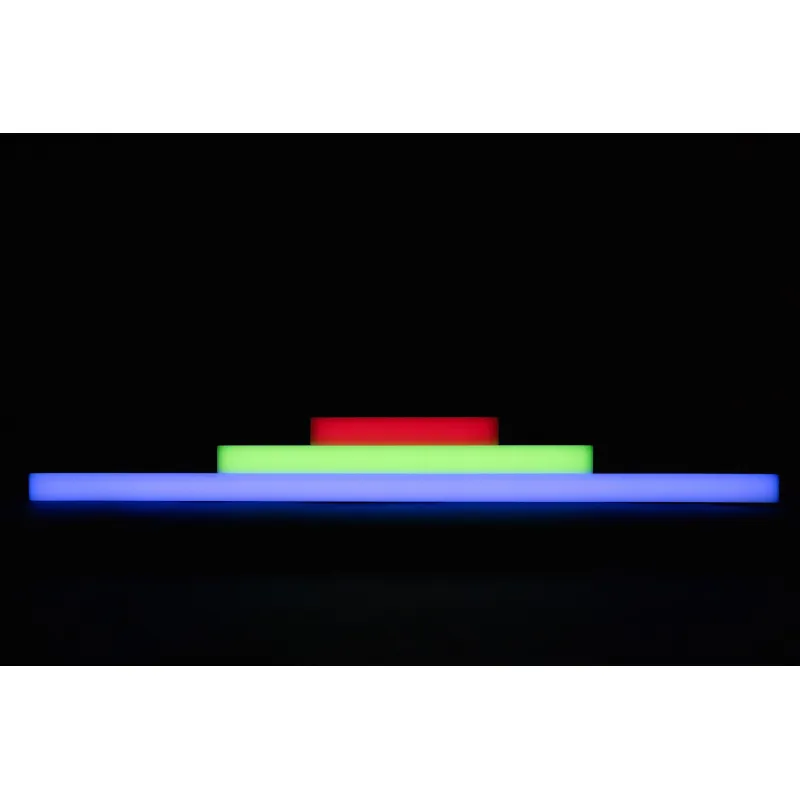

The Aputure Infinibar system will open up unique possibilities for you to create an atmosphere with colored light. You can connect elongated panels together on flat surfaces or create three-dimensional constructions. Long lines, triangles, hexagons, stars - Infinibar lamps are like blocks that you can arrange in hundreds of different ways. Included with each Infinibar lamp is one mounting adapter that allows you to connect two panels together.

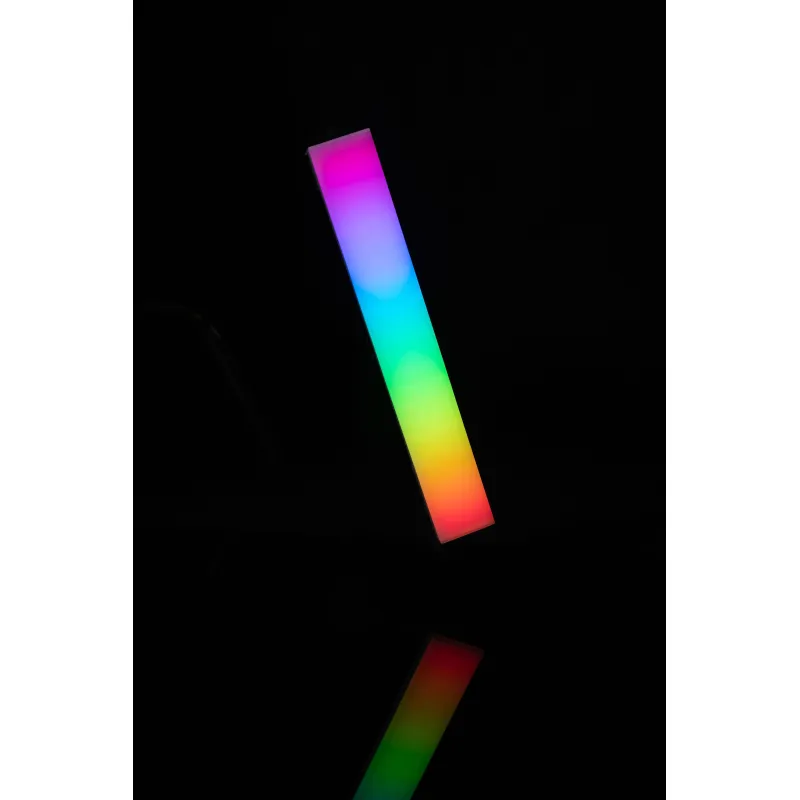

Pixel FX Color Transitions

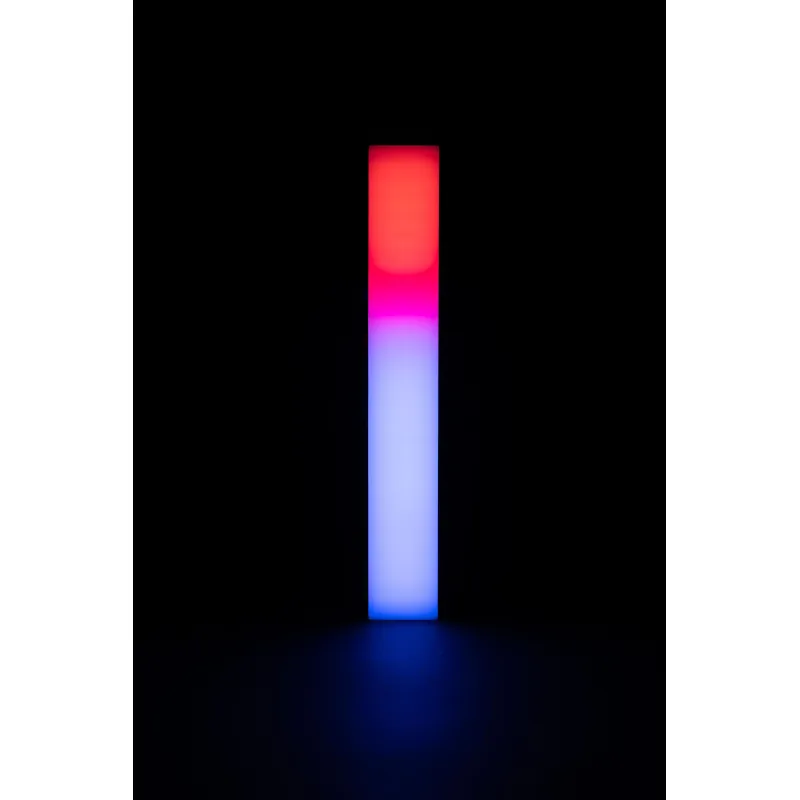

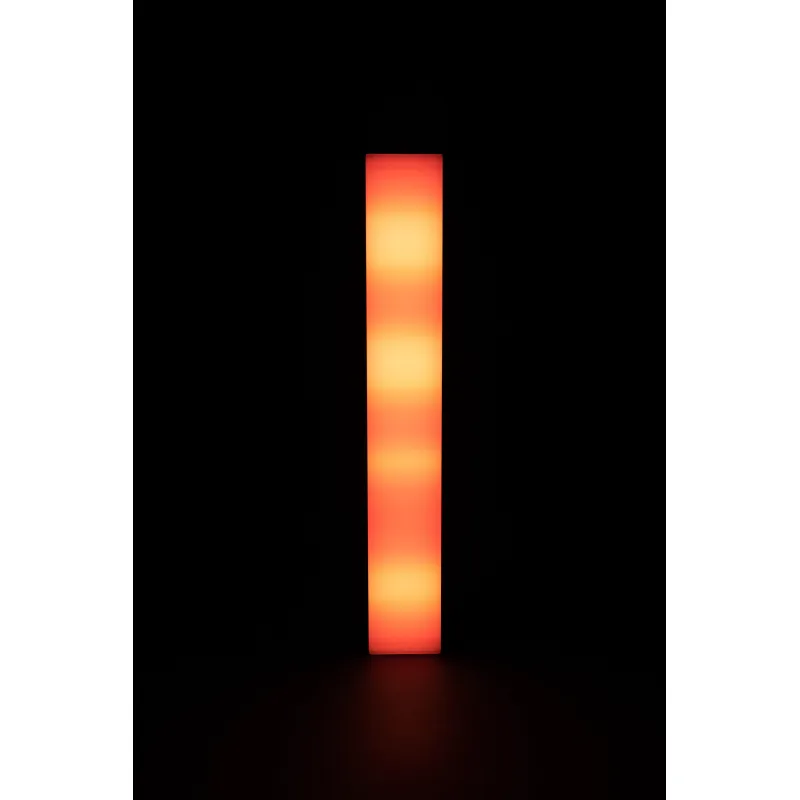

The Aputure Infinibar PB6 lamp offers 48 sections of RGB smart pixel LEDs, allowing adjacent LEDs to shine in different colors. The device also offers 7 built-in Pixel FX transition effects. Unique light animations, such as penetration, rainbow, fire, or color cycles, will allow you to show even more creativity when working on videos. If you use multiple Infinibar panels, reach for the Sidus Link app to control as many as 1,024 smart pixel sections, i.e., designs with a total length of almost 13 meters!

Remote Control

You can control the Infinibar PB6 lamp with your smartphone or tablet. Remote control is provided by the powerful Sidus Link mobile app, which has been accompanying users of equipment from Aputure for years. It is available on Google Play and the App Store at no extra charge. Thanks to the app, the lamp can become part of a larger ecosystem of light sources, allowing you to program advanced combinations of transitions and personalize settings for each group of LEDs.

Additional Light Control Options

In addition to intuitive operation via the Sidus Link app, the Aputure Infinibar PB6 panel also offers support for the popular LumenRadio CRMX wireless control standard. This allows professionals, filmmakers, and lighting technicians to remotely control lamps and individual smart pixel zones. The lamp is also compatible with the DMX standard, but a USB-C / DMX adapter must be purchased separately.

Adjustable Color Temperature

The Aputure Infinibar PB6 LED lamp allows you to adjust the color temperature of the light from 2000 K to 10000 K. Such parameters will produce light that can be warmer than that emitted by tungsten lamps and cooler than typical daylight (D55). Flexibility in the choice of color temperature will certainly facilitate your work on set and allow you to instantly adjust the parameters of the device to changing lighting conditions.

Multiple Mounting Methods

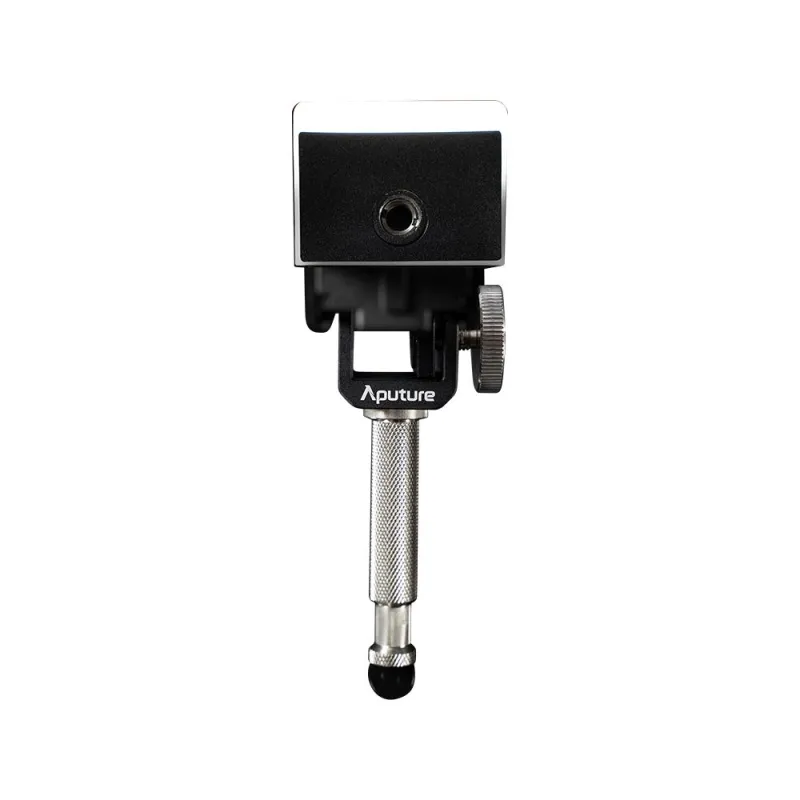

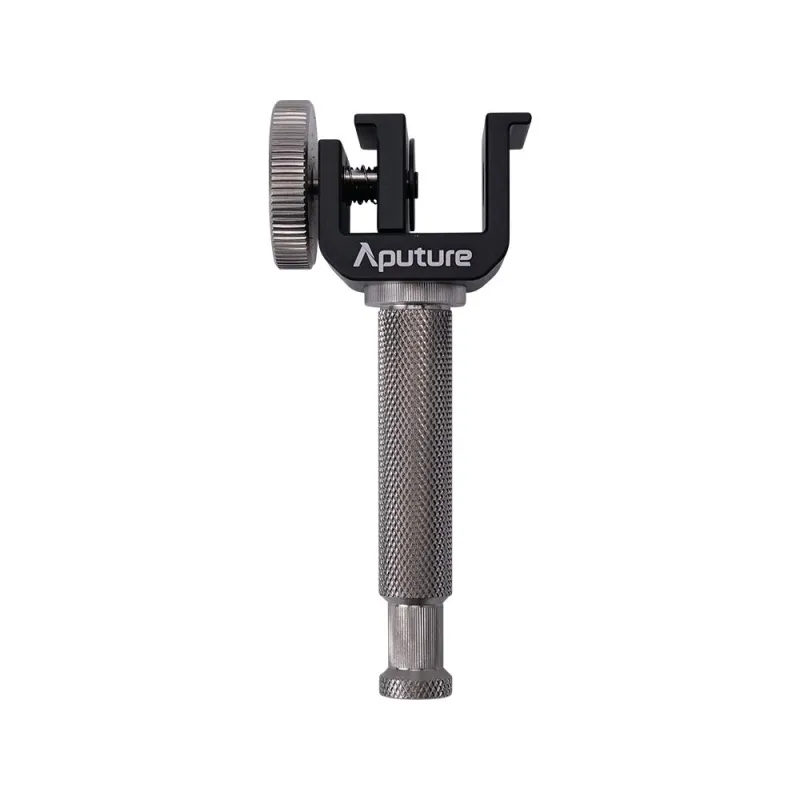

The Aputure Infinibar PB6 LED lamp will work great as part of a large lighting setup, as well as a set piece in music videos or commercials. Thanks to 2 powerful neodymium magnets, you can easily connect it to metal surfaces. You will also find an Infinibar Clamp, equipped with a Baby Pin and 1/4" thread. It takes just a few seconds to insert the accessory into the special mounting rail and connect it to your tripod or clamp.

Specifications

• Model: Aputure Infinibar PB6
• Light color temperature: 2000 K - 10000 K
• CRI: 96+
• TLCI: 98+
• CQS: 96
• TM-30 RF: 94 (averaged value)
• TM-30 RG: 103 (averaged value)
• SSI (Tungsten): 85
• SSI (D56): 74
• Angle of illumination: 120°
• Luminous flux: 1110 lm
• Maximum output power: 14 W
• Maximum power consumption lamp: 18 W
• Power supply: 20 W
• Operating voltage and current lamp: 24 V, 0.9 A
• Power supply: 100 - 240 V, 50 / 60 Hz, 1.5 A
• Battery: 7.4 V, 4000 mAh (29.6 Wh)
• Operating time: about 100 minutes (using full power)
• Charging time: approx. 120 minutes (24 V/ 1 A)
• Number of sections (pixel mapping): 48
• Allowed operating temperature: -10°C - 45°C
• Controls: lamp control panel, Sidus Link application, DMX / RDM, LumenRadio CRMX
• Maximum remote control range LumenRadio: 100 m
• Tightness class: IP20
• Display: OLED
• Software update capability: Sidus Link app
• USB-C cooling: passive
• Mounting points: Infinibar Rail, magnets, 3/8" threads, 1/4"
• LED life expectancy: 50000 h
• Estimated LED color change: 2 (after 6000 h)
• Certifications: CE, FCC, KC, NCC, ROHS, RCM, ICES, UKCA, PSE
• Dimensions lamp: 60.4 x 4.5 x 4.3 cm
• Power supply: 12 x 5.3 x 3.2 cm
• Infinibar Clamp: 12.2 x 5.5 x 4 cm
• Transport bag: 68.2 x 12.5 x 12.5 cm
• Weight lamp: 1 kg
• Power supply: 0.49 kg
• Infinibar Clamp: 0.27 kg
• Whole set: 1.89 kg

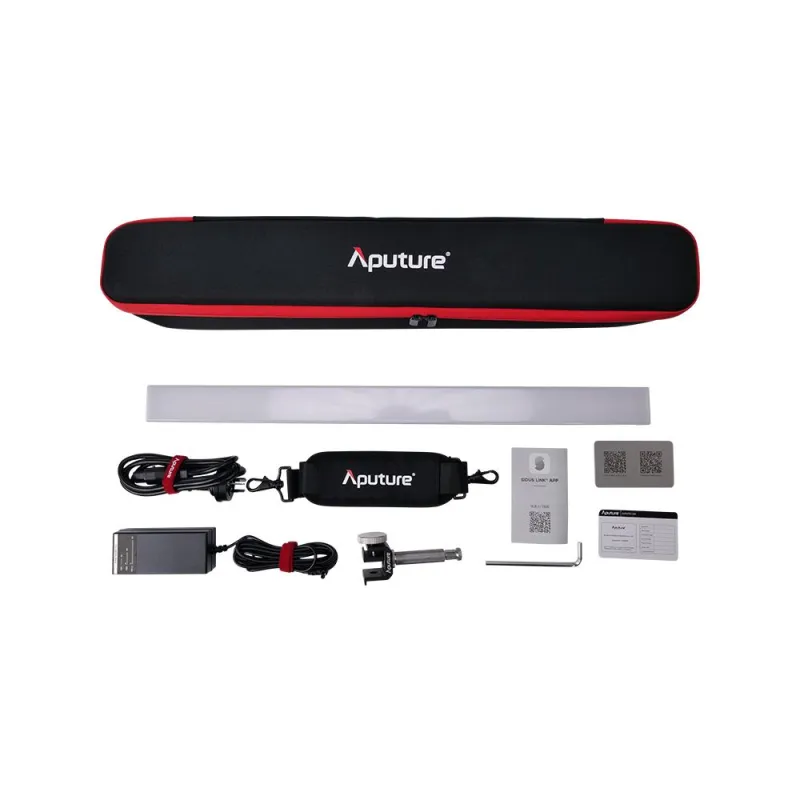

Content of the Set

• Aputure Infinibar PB6 LED lamp
• Infinibar Clamp

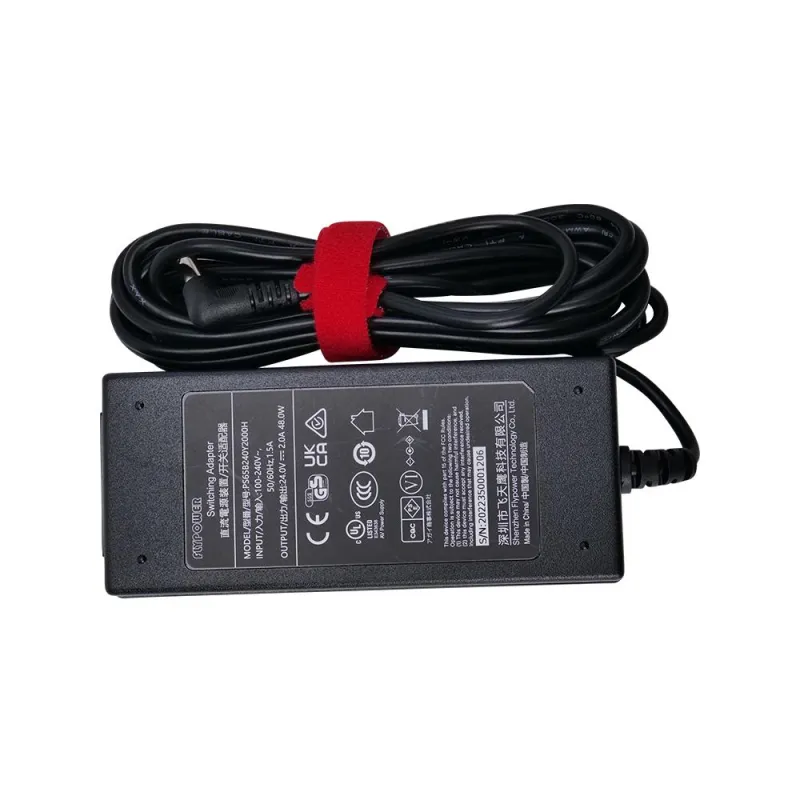

• 48 watt power supply
• Power cable (1.5 m)

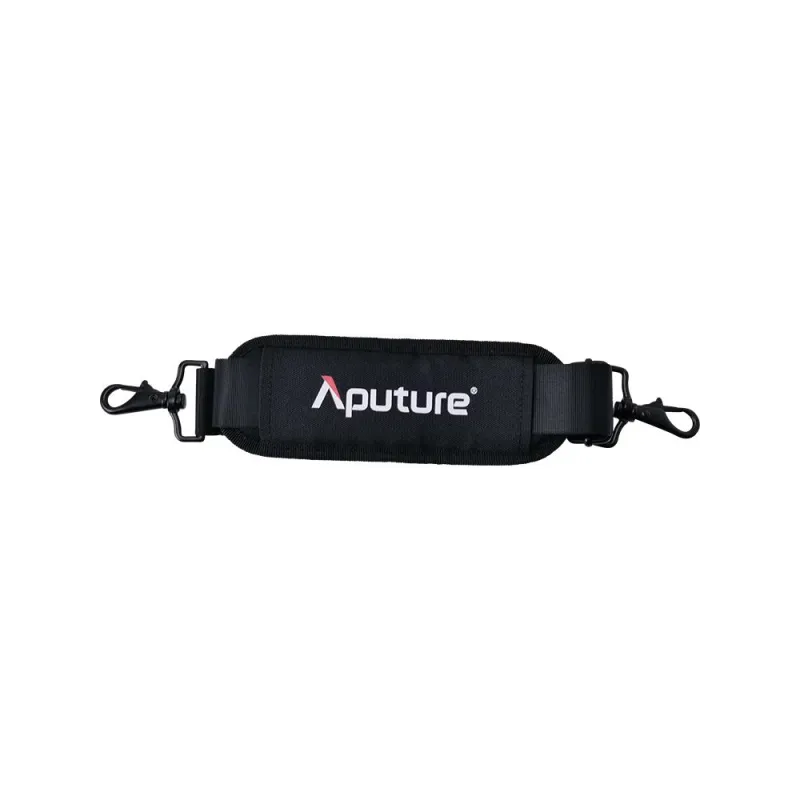

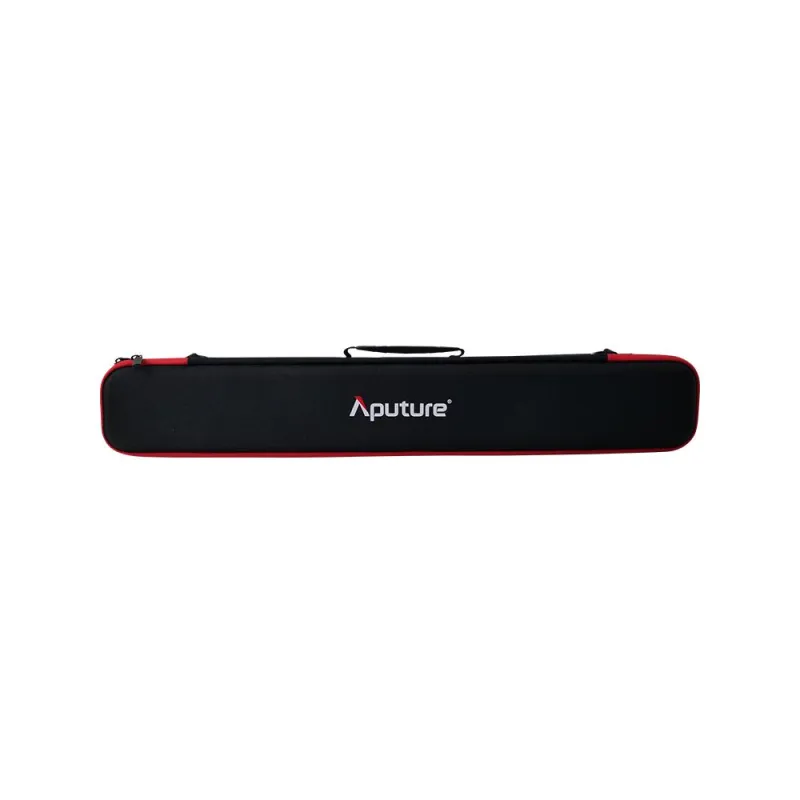

• Transport bag
• Allen wrench
• 2 magnetic mounts

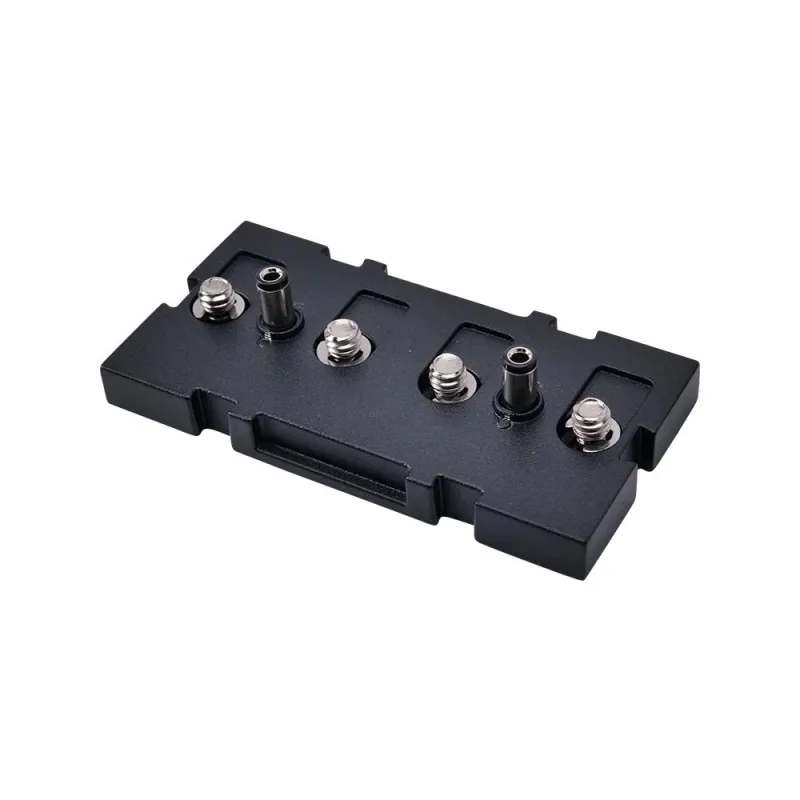

• Mounting adapter

Photometry

• CCT 0.5 m 1 m
• 2000 K: 635 lx, 200 lx
• 2700 K: 935 lx, 282 lx
• 3200 K: 940 lx, 288 lx
• 4300 K: 978 lx, 301 lx
• 5600 K: 1026 lx, 317 lx
• 6500 K: 1048 lx, 328 lx
• 7500 K: 1046 lx, 328 lx
• 10000 K: 960 lx, 288 lx
• Red: 189 lx, 78 lx
• Green: 608 lx, 188 lx
• Blue: 97 lx, 38 lx
