Amaran F22x EU LED Flexible Lights 60x60cm 240W Bi-Color w softbox & grid

Key Features

• Panel Surface Area 2 x 2
• Color Temperature from 2500-7500K
• CRI 95, TLCI 98, CQS 96
• 200W Output
• 0-100 Dimming, DMX Control
• Multi-Voltage AC, Optional Battery Power
• V-Mount Battery Compatible
• Softbox Frame with Two Diffusers & Grid
• 9.8' Head Extension Cable
• Carrying Case

Product Overview

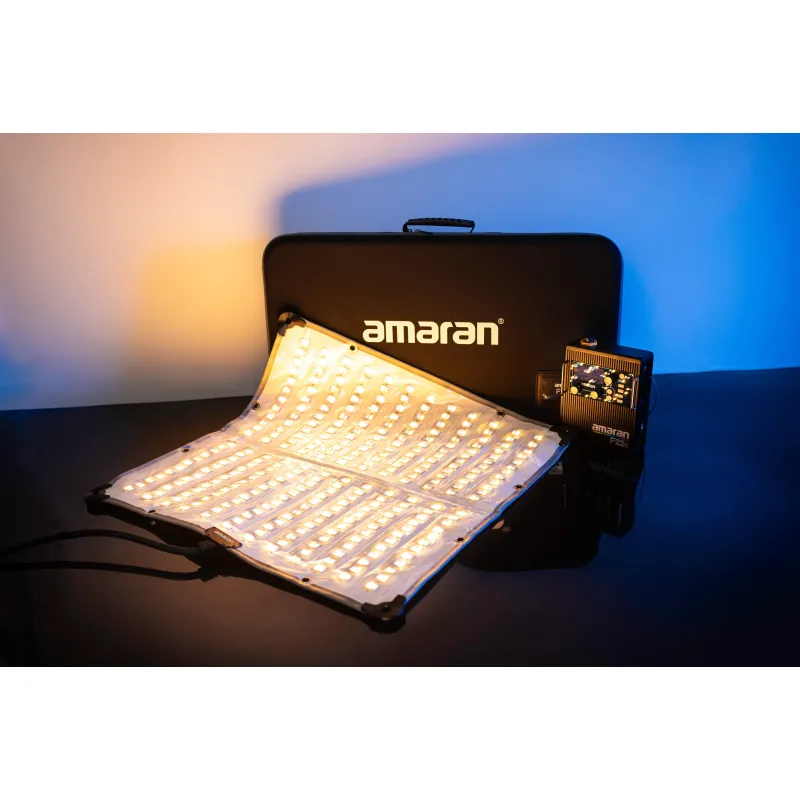

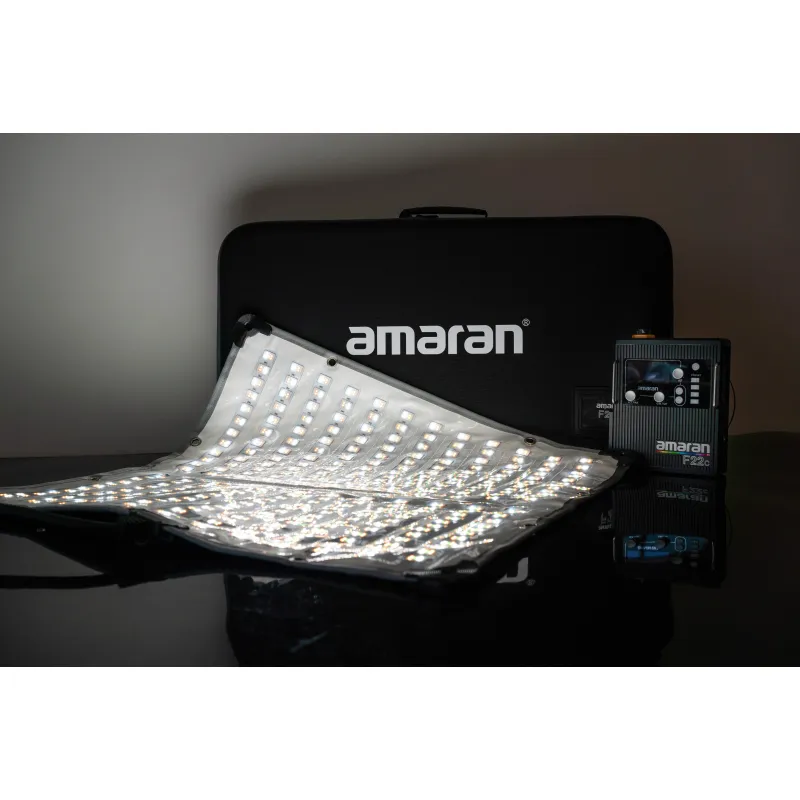

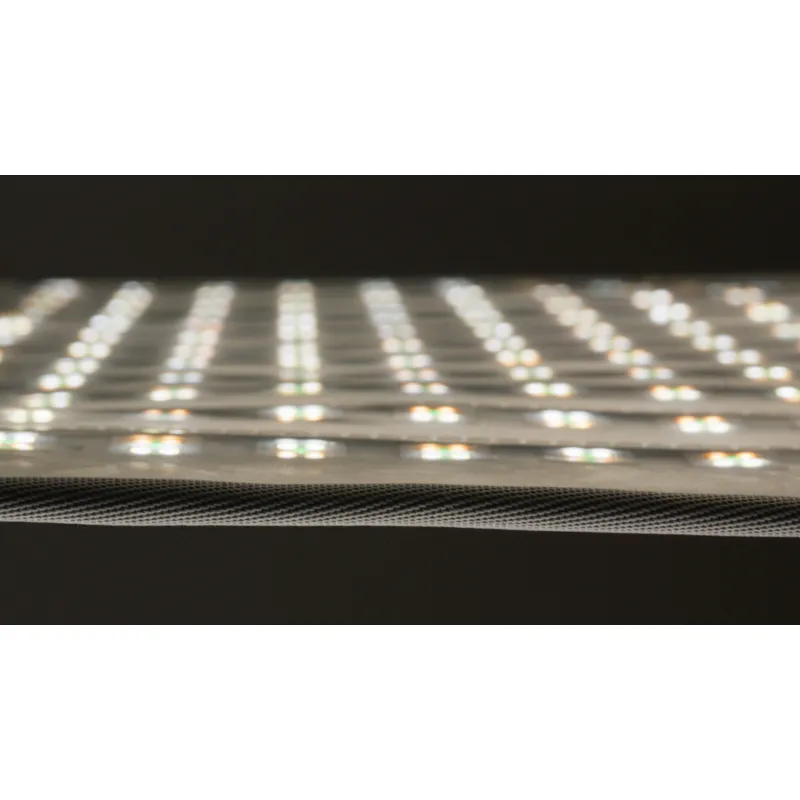

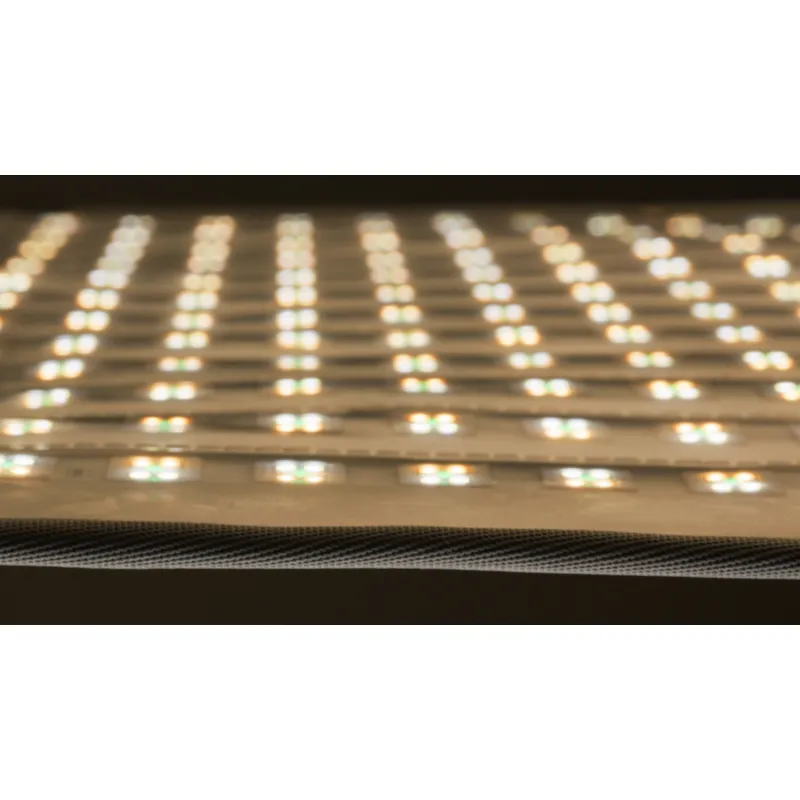

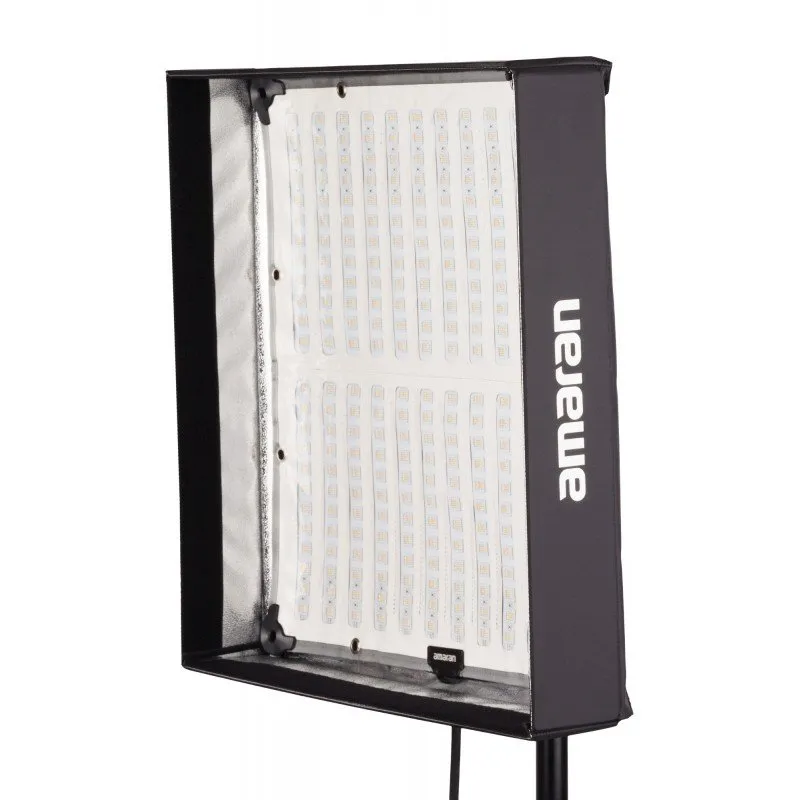

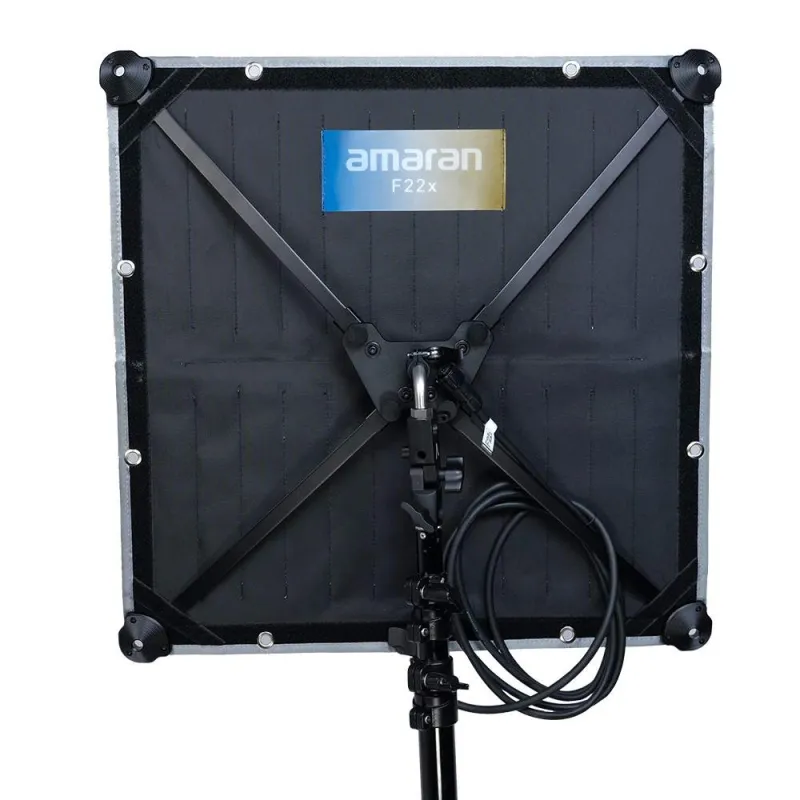

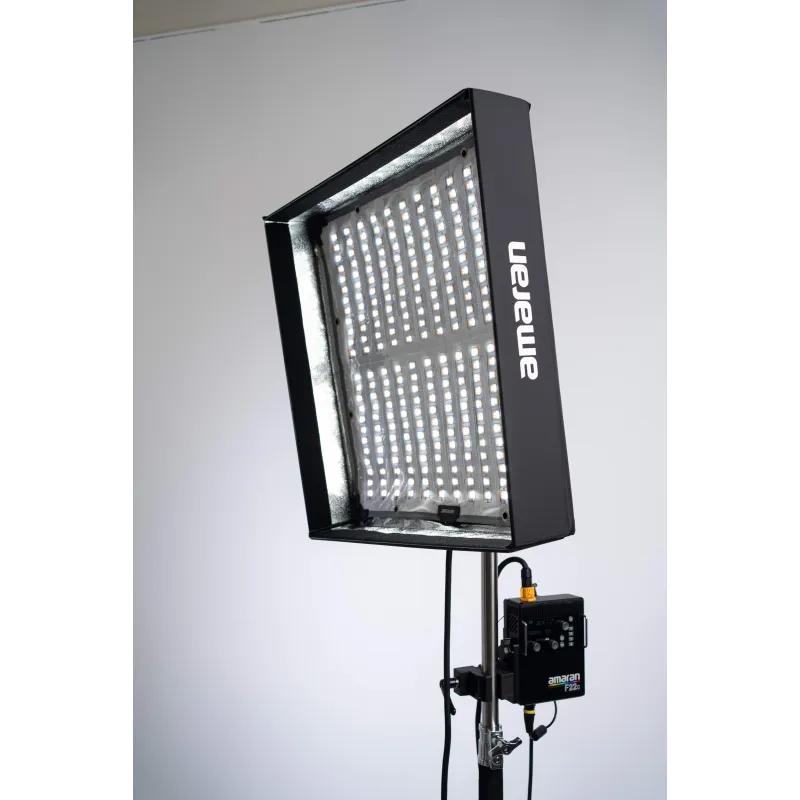

The F22x Bi-Color LED Mat from amaran is a powerful, versatile, and flexible bi-color LED mat that measures 2 x 2. It offers outstanding light output and color rendering suitable for a variety of users, from filmmakers to videographers, content creators, and still photographers. Providing 200W of power, this ultralight fixture's high-output bi-color chipset can be tuned from 2500K to 7500K and features nine customizable lighting FX. It has stellar CRI and TLCI scores of 95+ and 98+, and stepless dimming from 0 to 100. An included folding X-frame stretches the mat to a rigid panel that can be attached directly to a C-stand grip head using the straight Baby Pin adapter or onto any standard light stand with the included right angle Baby Pin and tilting stand mount. The included foldable softbox has two strengths of diffusion and a fabric grid that uses an integrated hook-and-loop fabric to instantly turn this flexible mat into an ultrathin soft light that will add beautifully controlled soft light to a scene.

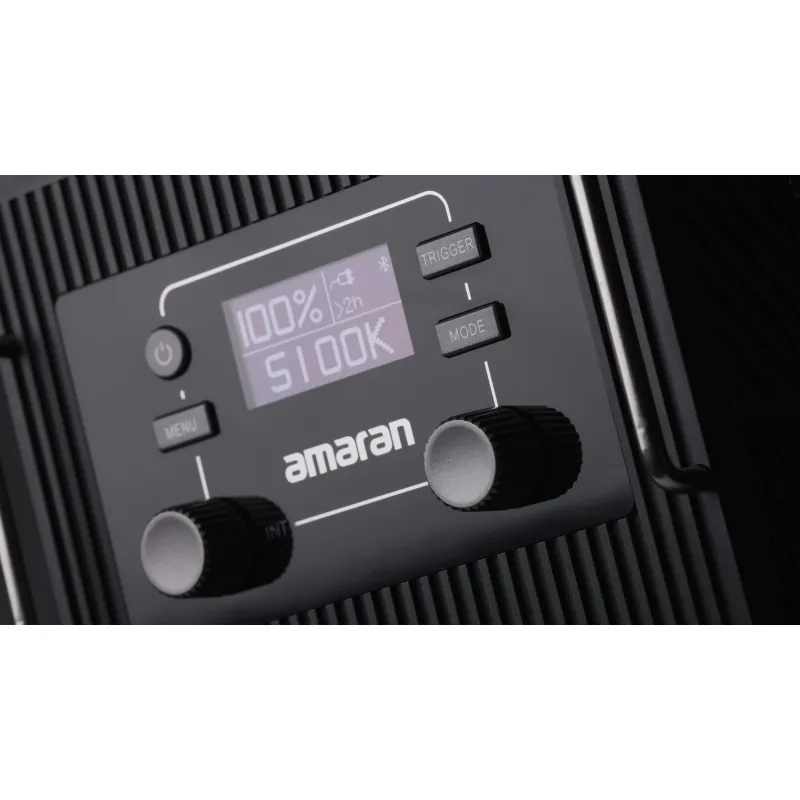

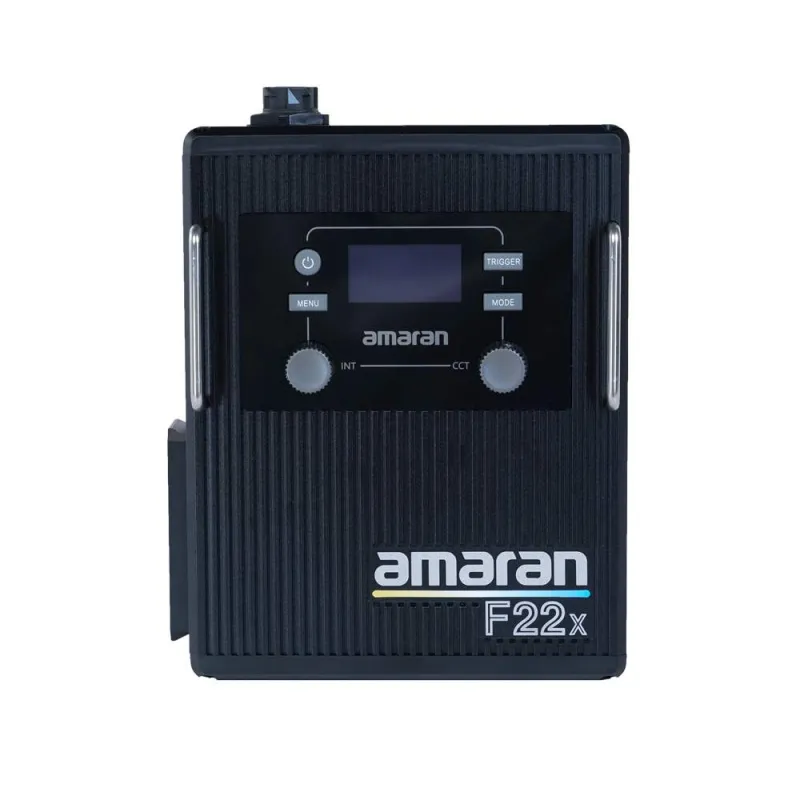

The control box is a multi-voltage AC power supply that also features a V-Mount battery plate for use with compatible 14.4V, 26V, or 28.8V batteries. Full output can be achieved when using the AC power supply; using batteries allows the F22x to be used at either half-power or full-power, depending on battery strength.

The free Sidus Link app makes it possible to utilize tools unique to the Aputure and amaran ecosystems, such as Source Match, Color Picker, and Custom FX. The F22x can also be controlled using DMX with a separately available USB-C to 5-Pin DMX512 in & out adapter cable, adding professional-level control to an individual unit or groups of lights. The amaran F22x is ideal for videographers who need a versatile and literally flexible lighting solution. The bi-color flexible panel gives users unmatched strength and control over a wide, expanded CCT range to match a variety of white light environments.

In the Box

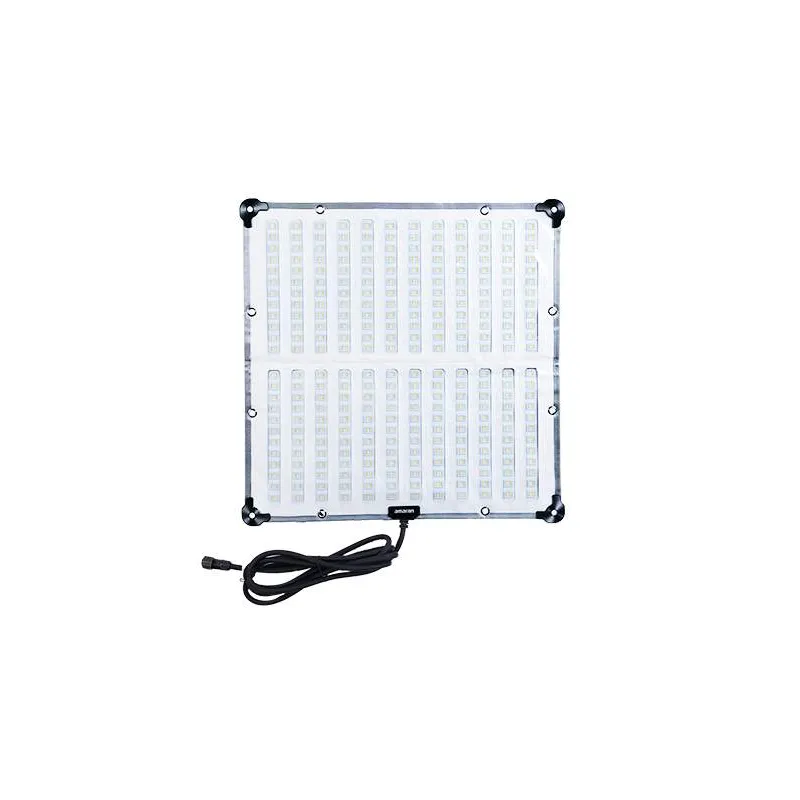

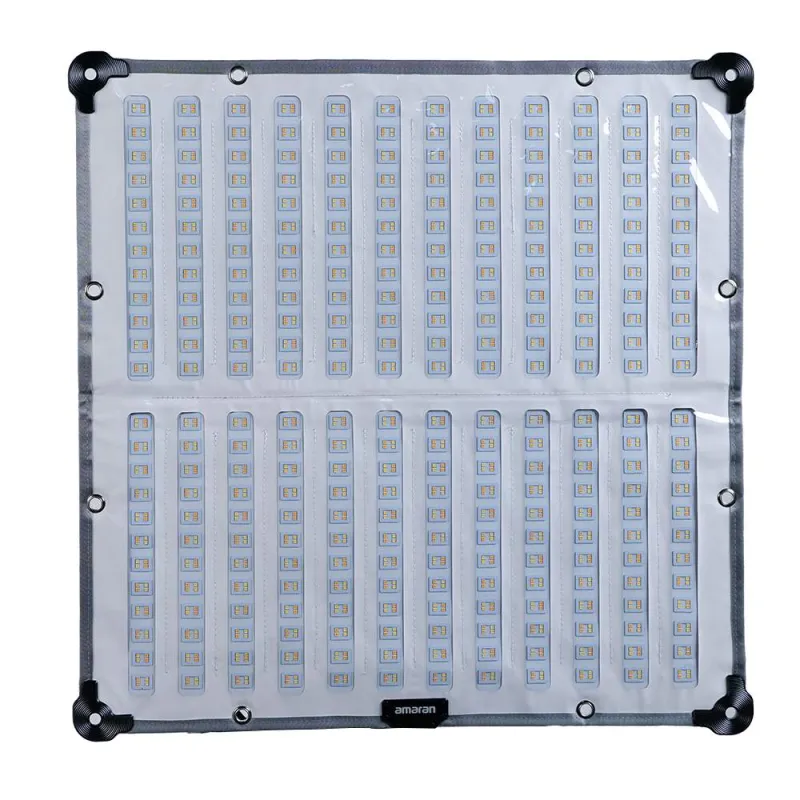

• amaran F22x Bi-Color LED Mat (V-Mount, 2 x 2)

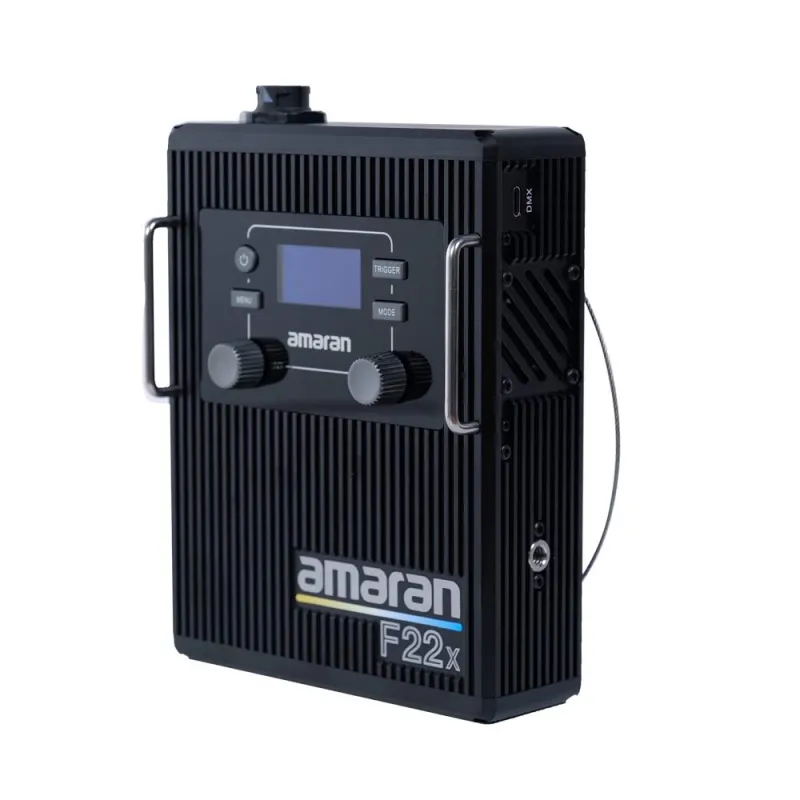

• F22x Control Box with V-Mount Plate

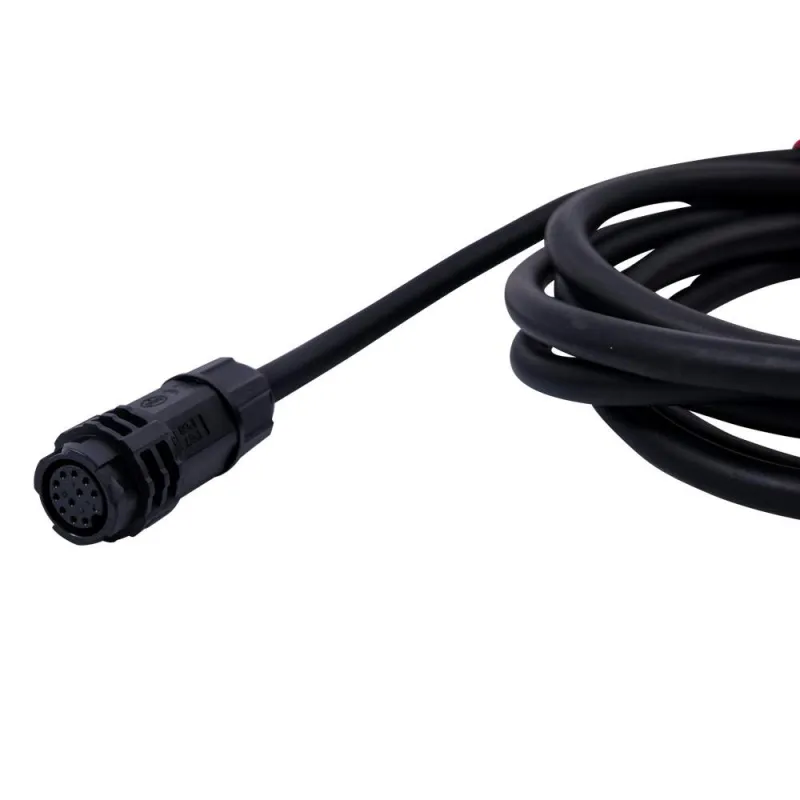

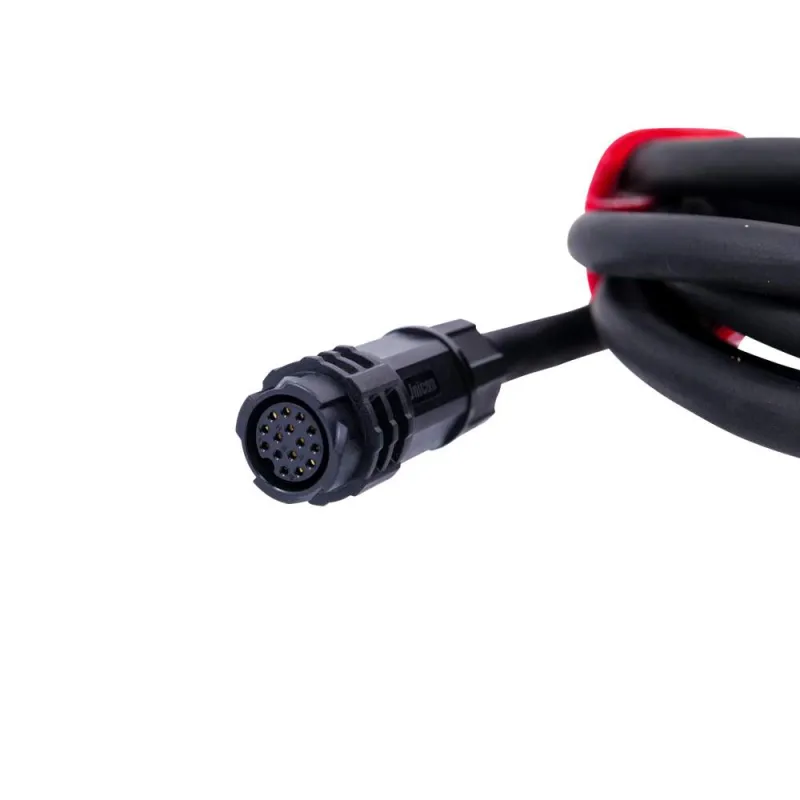

• F22 9.8' Head Extension Cable
• F22 Support Bracket
• Flex Light Right Angle Baby Pin Adapter
• Flex Light Straight Baby Pin Adapter

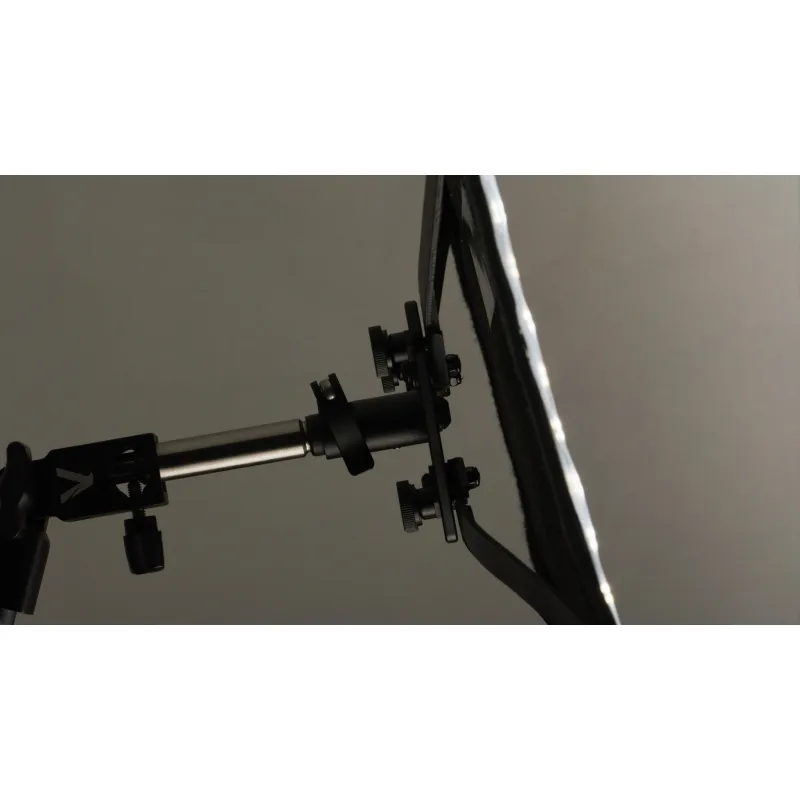

• Tilting Stand Mount

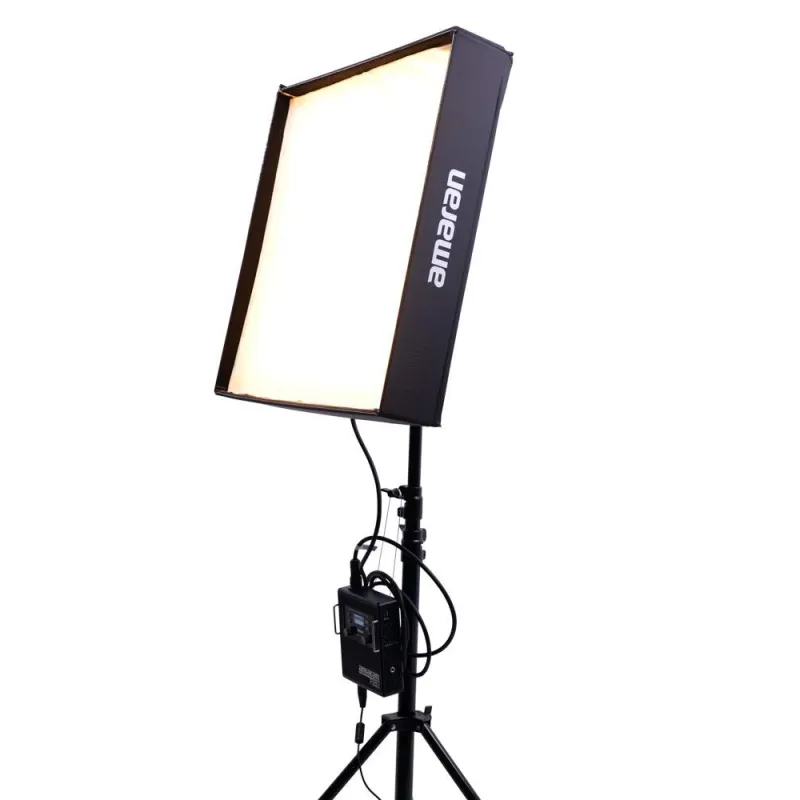

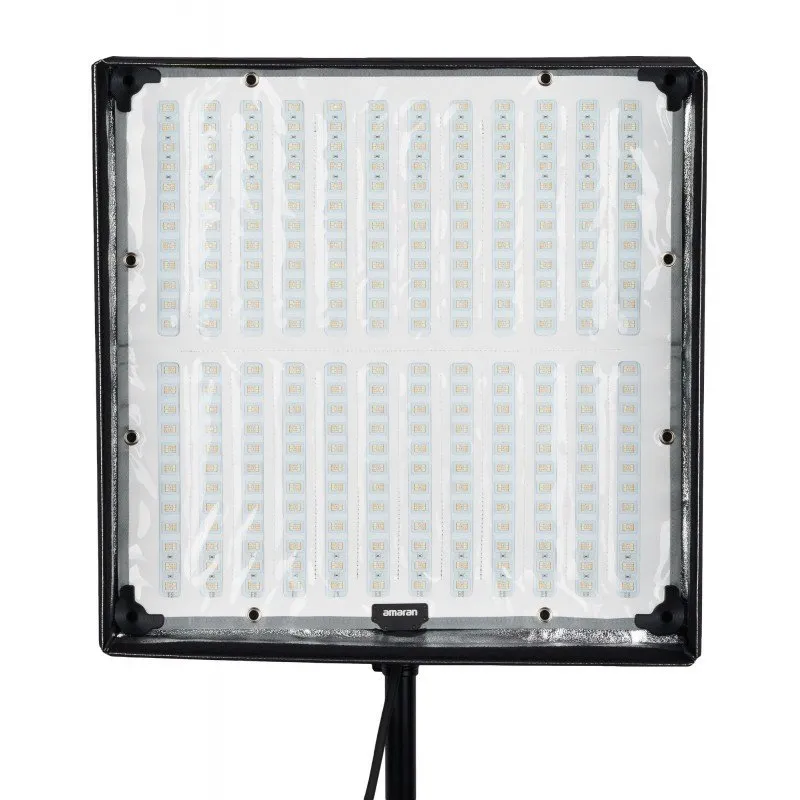

• F22 Softbox Frame
• F22 Diffusion Cloth 1 (1/2 Grid Cloth)
• F22 Diffusion Cloth 2 (2.5 Stop)

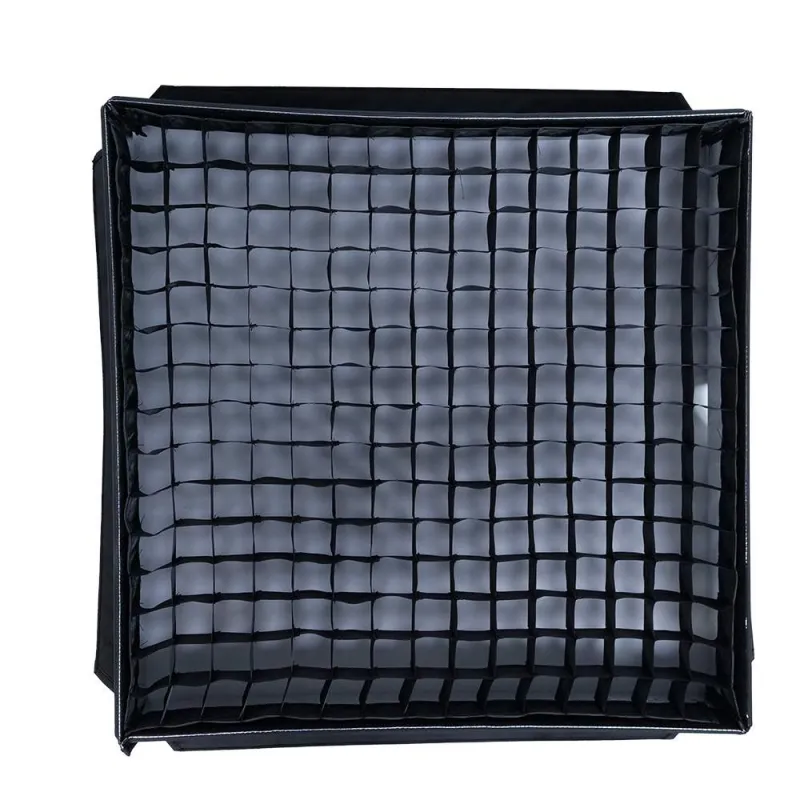

• F22 Light Control Grid
• Multi-Voltage AC Power Supply
• AC Power Cable

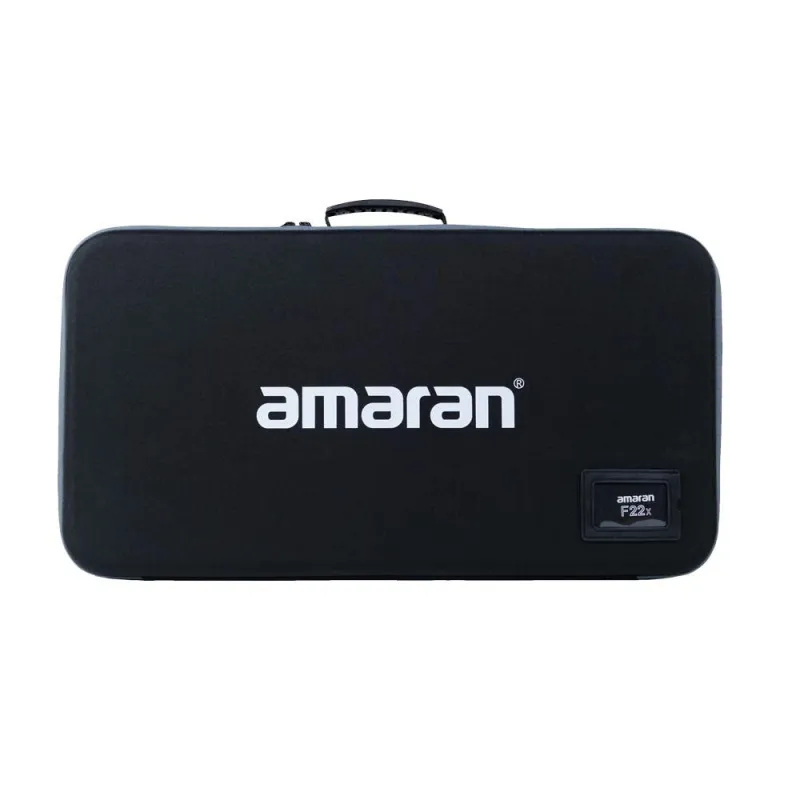

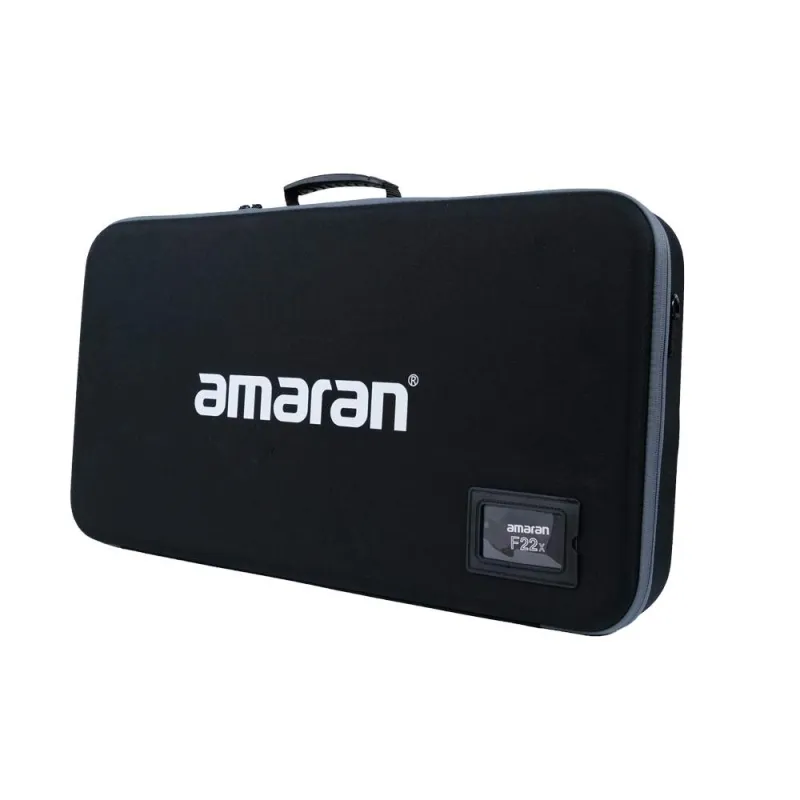

• Carrying Case

Specifications

• Model: Amaran F22x V-mount
• TLCI: 98
• CQS: 96
• TM-30 RF: 94 (averaged value)
• TM-30 RG: 104 (averaged value)
• SSI (Tungsten): 81
• SSI (D56): 72
• Angle of illumination:
  • 180°
  • 45° (with grid)
• Maximum power output: 200 W
• Maximum power consumption: 240 W
• Operating current: 5 A
• Power supply:
  • Network (AC) 48 V DC
  • D-Tap battery 12 V - 28.8 V DC
• Compatible batteries:
  • 16.8 V
  • 26 V
  • 28.8 V (full power output)
• Power cables:
  • DC with clamping lock (3 m)
  • AC IEC C13 AC with attachment lock (4 m)
• Allowed operating temperature: -10°C to 40°C
• Controls:
  • Lamp control panel
  • Sidus Link application
  • DMX
• Wireless connectivity: Bluetooth 5.0 (Sidus Mesh)
• Maximum remote control range: 80 m
• Software update capability via Sidus Link app
• Screen: OLED
• Cooling: Natural heat dissipation
• Mounting points: 3x 1/4 thread
• LED life expectancy: 50,000 h
• Estimated LED colour change: 2 (after 6000 h)
• Certifications: CE, FCC, cTUVus, KC, NCC, ROHS
• Dimensions:
  • Lamp: 60 x 60 x 0.5 cm
  • Controller: 19 x 15 x 7 cm
  • Transport bag: 66 x 35 x 10.5 cm
• Weight:
  • Lamp: 0.8 kg
  • Controller: 1.2 kg
  • Power pack: 0.7 kg
  • Handle: 0.66 kg

Kit Contents

• Amaran F22x LED lamp V-mount
• Control Box controller

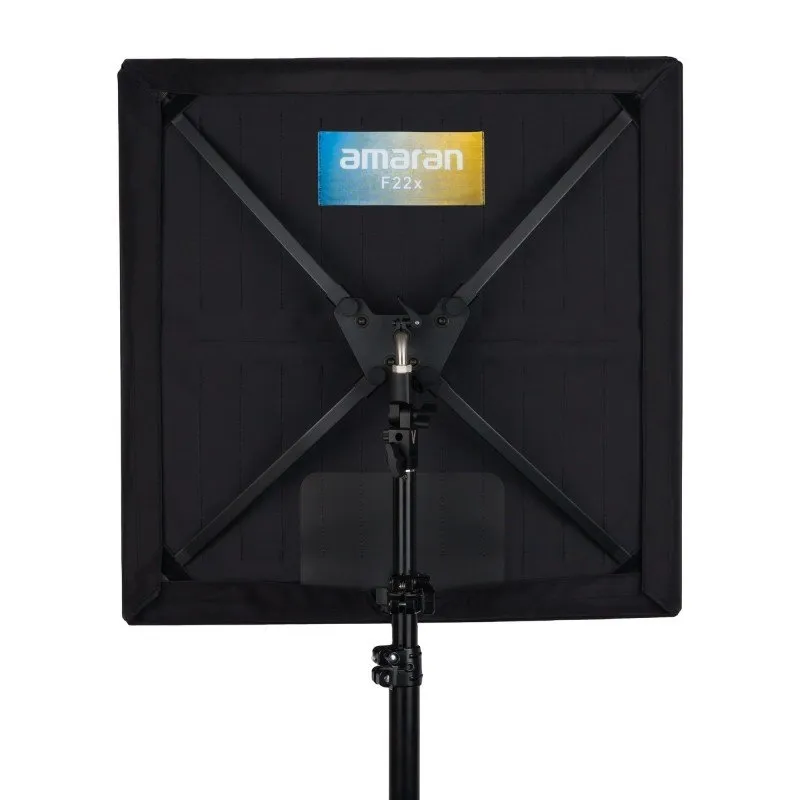

• Folding X-Frame holder
• Articulated mounting adapter
• Power supply with V-mount
• AC power cable
• Extension cable (3 m)
• Mounting pin (straight)
• L-shaped mounting stud
• Softbox
• 45 grating (honeycomb)
• 2x diffusion fabric
• Transport case

Photometry

• CCT: 2500 K, Distance: 0.5 m, No modifier: 19400 lx, Softbox (-0.5 EV): 11540 lx, Softbox (-2.5 EV): 9220 lx
• CCT: 2500 K, Distance: 1 m, No modifier: 5710 lx, Softbox (-0.5 EV): 3750 lx, Softbox (-2.5 EV): 2870 lx
• CCT: 2500 K, Distance: 3 m, No modifier: 689 lx, Softbox (-0.5 EV): 486 lx, Softbox (-2.5 EV): 349 lx
• CCT: 3200 K, Distance: 0.5 m, No modifier: 19930 lx, Softbox (-0.5 EV): 12440 lx, Softbox (-2.5 EV): 9870 lx
• CCT: 3200 K, Distance: 1 m, No modifier: 6050 lx, Softbox (-0.5 EV): 3940 lx, Softbox (-2.5 EV): 3087 lx
• CCT: 3200 K, Distance: 3 m, No modifier: 706 lx, Softbox (-0.5 EV): 512 lx, Softbox (-2.5 EV): 387 lx
• CCT: 4300 K, Distance: 0.5 m, No modifier: 21710 lx, Softbox (-0.5 EV): 13120 lx, Softbox (-2.5 EV): 10310 lx
• CCT: 4300 K, Distance: 1 m, No modifier: 6500 lx, Softbox (-0.5 EV): 4210 lx, Softbox (-2.5 EV): 3220 lx
• CCT: 4300 K, Distance: 3 m, No modifier: 770 lx, Softbox (-0.5 EV): 543 lx, Softbox (-2.5 EV): 393 lx
• CCT: 5600 K, Distance: 0.5 m, No modifier: 23270 lx, Softbox (-0.5 EV): 14040 lx, Softbox (-2.5 EV): 10950 lx
• CCT: 5600 K, Distance: 1 m, No modifier: 6960 lx, Softbox (-0.5 EV): 4510 lx, Softbox (-2.5 EV): 3450 lx
• CCT: 5600 K, Distance: 3 m, No modifier: 824 lx, Softbox (-0.5 EV): 582 lx, Softbox (-2.5 EV): 422 lx
• CCT: 6500 K, Distance: 0.5 m, No modifier: 24470 lx, Softbox (-0.5 EV): 14770 lx, Softbox (-2.5 EV): 11350 lx
• CCT: 6500 K, Distance: 1 m, No modifier: 7200 lx, Softbox (-0.5 EV): 4690 lx, Softbox (-2.5 EV): 3230 lx
• CCT: 6500 K, Distance: 3 m, No modifier: 836 lx, Softbox (-0.5 EV): 619 lx, Softbox (-2.5 EV): 462 lx
• CCT: 7500 K, Distance: 0.5 m, No modifier: 25030 lx, Softbox (-0.5 EV): 15120 lx, Softbox (-2.5 EV): 11800 lx
• CCT: 7500 K, Distance: 1 m, No modifier: 7510 lx, Softbox (-0.5 EV): 4860 lx, Softbox (-2.5 EV): 3720 lx
• CCT: 7500 K, Distance: 3 m, No modifier: 886 lx, Softbox (-0.5 EV): 626 lx, Softbox (-2.5 EV): 455 lx
