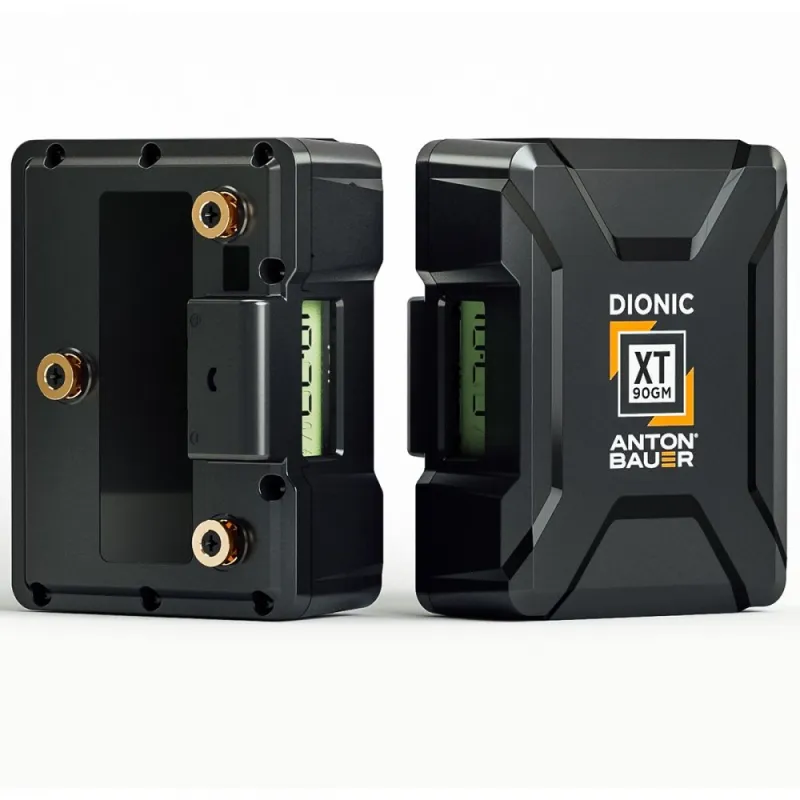

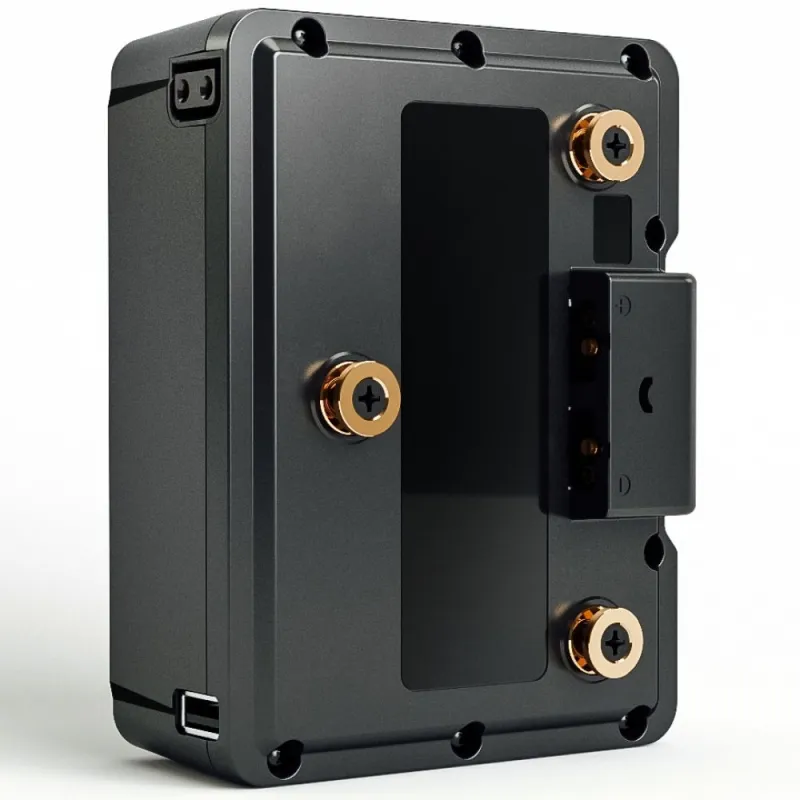

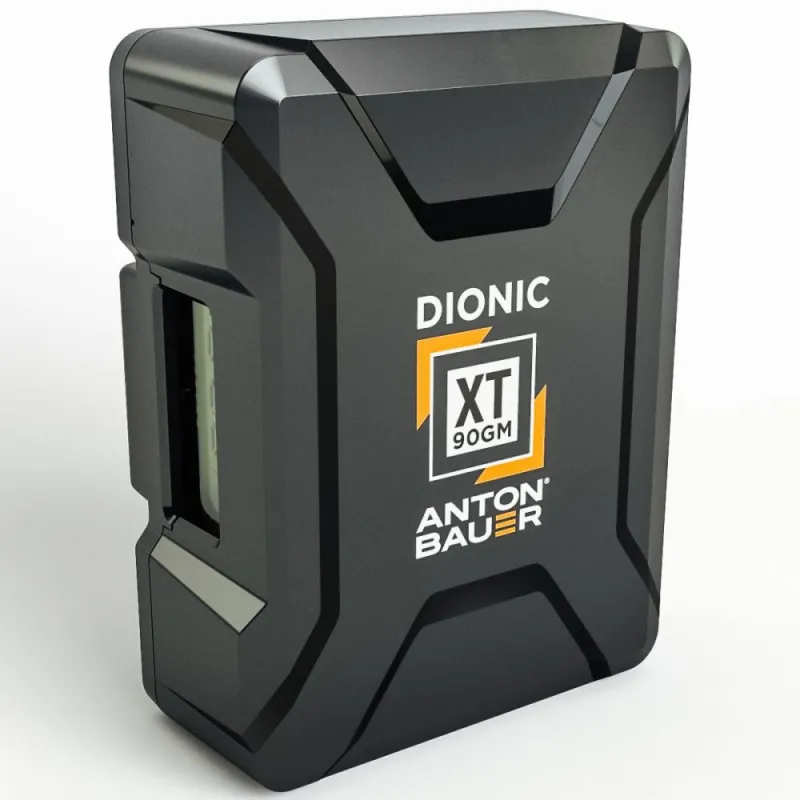

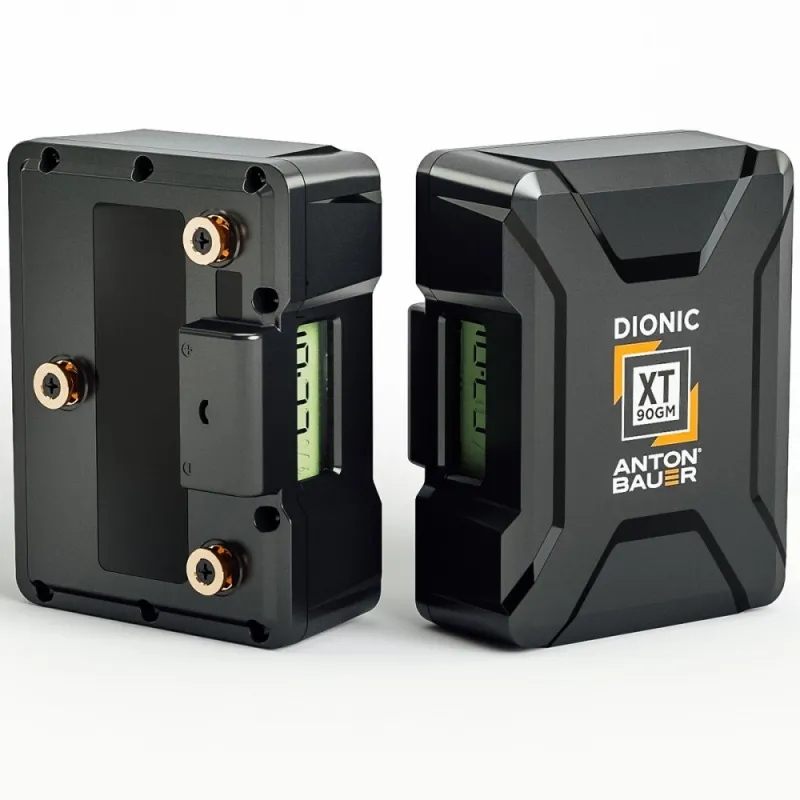

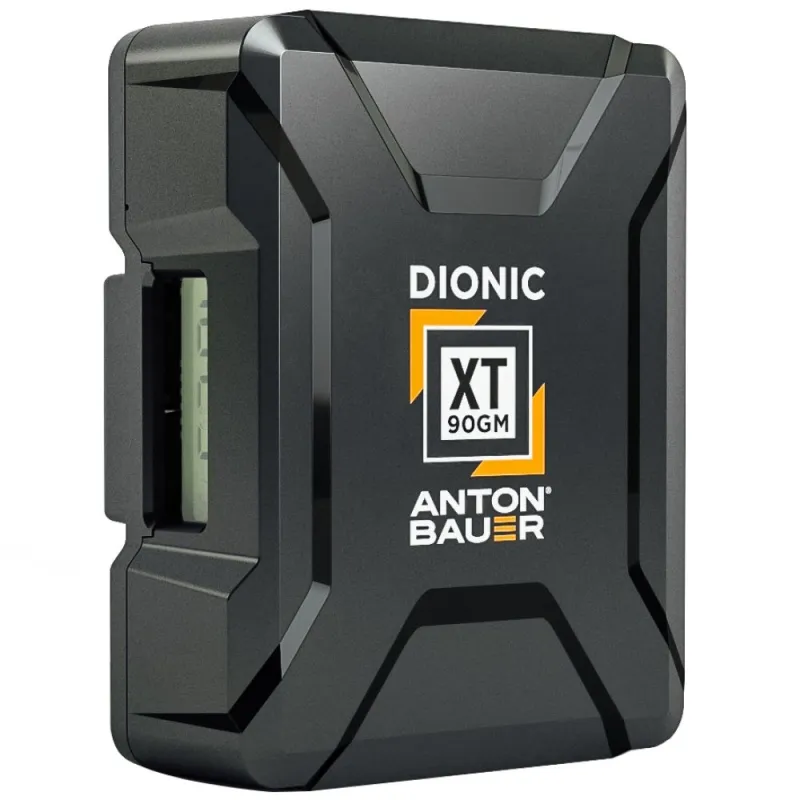

Anton Bauer Dionic XT150 Gold Mount Battery
The Dionic XT battery series is a powerful and durable Li-ion solution in a compact, robust design to complement cine-style cameras like the ALEXA MINI, RED WEAPON and Blackmagic URSA Mini.
Intelligent Innovation
Using Anton/Bauer’s award winning mobile power excellence, the Dionic XT technology provides uniform performance throughout its long life. The intelligent on board battery management system enables you to manage your fleet efficiently
Lifetime Value
The Dionic XT delivers powerful performance in a range of environments. Engineered to be recharged more times extending it cycle life compared to the other battery systems. Offering the best ROI and lowest management overhead
Versatile Solutions
Gold Mount and Gold Mount Dionic XTs are certified as transportable by air for those long distance jobs. They are also cross compatible with multiple brand chargers and superior in powerering accessories such as portable LED lighting
Reliable, Compact and Powerful
You can count on Dionic XT to power the most mission critical equipment with consistently high performance. Save valuable travel space with these reliable smaller form batteries. Dionic XT raises the bar on performance and reliability.
Features:
● Next generation Li-ion cell technology for optimal longevity and performance
● Higher current delivering up to 12A of sustained power
● A new robust case design to complement cine-style cameras
● Form factor designed to fit existing flight cases
● P-Tap and USB power outputs on side of battery
Mounting: | Gold mount |
Capacity: | 156 WH |
Amperage: | 12A |

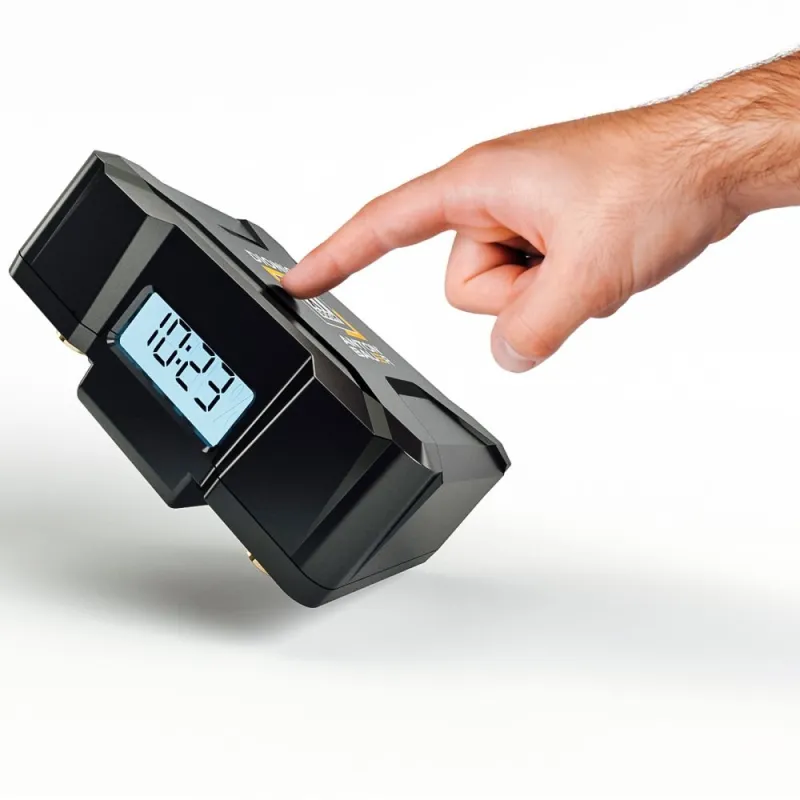

Display: | Multi mode, back-lit LCD |
Diagnostics: | On-Board & Charger |
Connections: | 1 x P-Tap, 1 x USB |
Estimated life (cycles): | >1000 |
Weight: | 1.1 kg |
Dimensions: | 51 x 130 x 95 mm |
Charger Compatability: | All |
Operating temperature range | Charge 0°C to +45°C (-32°F to +113°F) |
Discharge -20°C to +60°C (-4°F to 140°F) | |
Maximum Discharge Rate: | 173W or 12A |
Output Voltage: | Nominal 14.4V Operating 10.0~16.8V |
