smallHD Cine 7 Zoll IPS LCD-Bildschirm Sony VENICE Kit

smallHD Cine 7 Zoll IPS LCD-Bildschirm Sony VENICE Kit

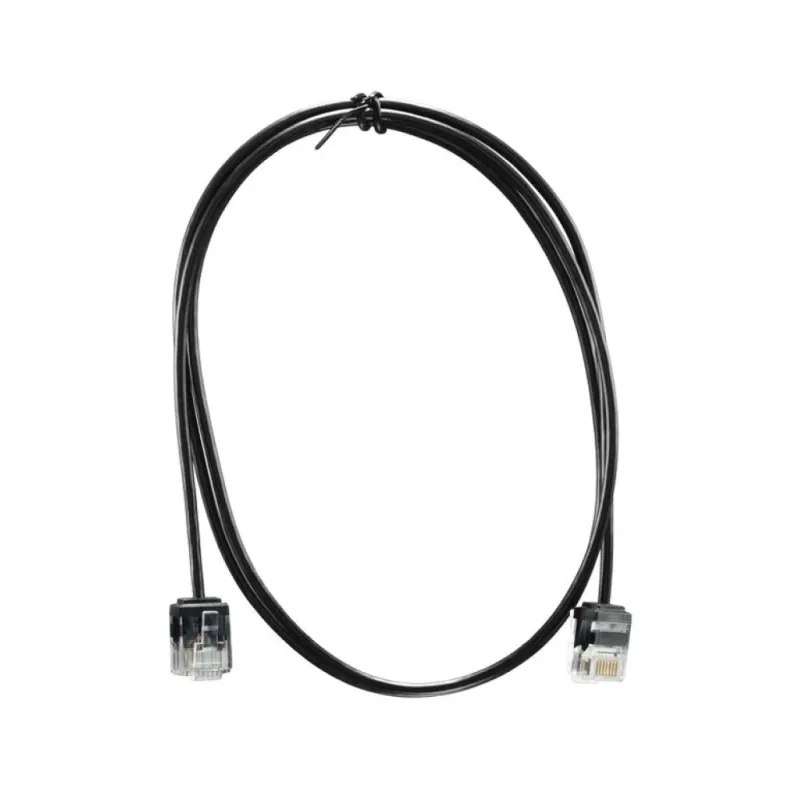

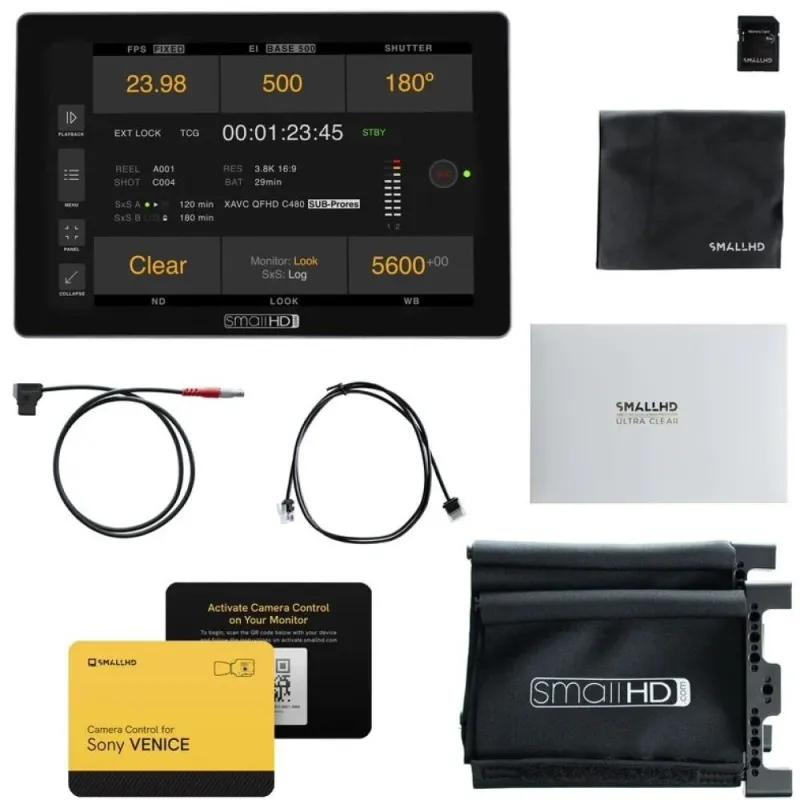

This kit comes with a Cine 7 Monitor, Sony VENICE and VENICE 2 Camera Control Software License, and Control Cable (Ethernet). Unlock access to Sony VENICE and VENICE 2 with this software license for Cine 7 monitors. Tap into the internal camera settings with intuitive touchscreen configuration tools.

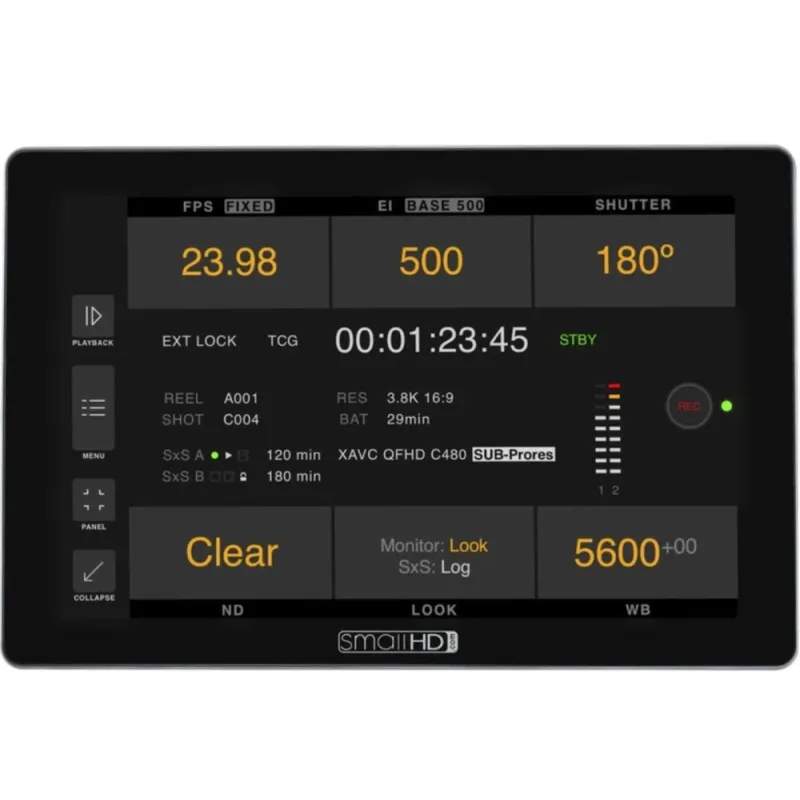

Camera Control Access
Start/Stop Record, ND Filter Selection, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Partial LUT Configuration, Clip Playback

Non-Interactive Camera Information
Timecode, Media Status, FPS, Resolution, Battery Info, Recording Format

The Industry Standard 7”
Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, as well as Teradek RT and Bolt integration.

Technical Specifications

SKU

MON-CINE7-VENICE

Product ID

5101597655173

Item Weight (kg)

0.5

Package Weight (kg)

0.9

Height (cm)

11.86

Width (cm)

3.35

Length/Depth (cm)

18

Compliance

FCC, IC, CE, RoHS

Operating Temperature

30F to 100F

Storage Temperature

0F to 120F

Mount Points

Four ¼-20 Mount Points (Left, Right, Bottom, and Back)

Construction

Anodized aluminum chassis

Panel Type

IPS LCD

Diagonal Size

7.02

Resolution

1920x1200

Pixel Density

322 ppi

Aspect Ratio

16:9

Active Area

5.95 x 3.72

Max Brightness

1800 NITs

Contrast

1000:1

Gamut

100% DCI-P3 Coverage

Color Depth

10-bit Processing (8-bit panel)

Viewing Angle

160

Backlight Type

LED

Adjustable Backlight

Yes

Input Signal
3G-SDI Input Types

YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Input Types

YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types

YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types

YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Input Types

HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal
3G-SDI Output Types

YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Output Types

YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Output Types

YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types

YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

Audio Output Types

HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type
SDI

1x BNC 3G input and 1x BNC 3G selectable input/output

HDMI

1 input and 1 output: HDMI Type-D Receptacles (full size)

Audio

1x 3.5mm 3-pin Stereo Headphone Jack

Power In

2-pin Locking

USB

1x USB 2.0 Micro-B receptacle

Controls
Primary

Touch Screen

Record Capture

Image Capture Tool

Power
Connector

LEMO

Voltage

DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max

Power Supply

Recommend DC 12~15V at ~2.5 amp or greater

Battery Types

L-Series (included), V Mount, Gold Mount

Overload Protection

DC input: Reverse polarity

Battery Chemistry

Li-ion

Battery Charging Time

Monitor does not support the charging of batteries

Software
Pixel Zoom

1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

Frame Guides

Preset Aspect Ratios & Customizable

DSLR Scale

Canon 5DMkii & Canon 7D

Custom Scale

Yes (Underscan Only)

Anamorphic De-Squeeze

0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

Image Rotate

Automatic or Manual Control

Image Flip

Automatic or Manual Control

Cross Conversion

Yes: HDMI → SDI & SDI → HDMI

Focus Assist

User Adjustable Color Style and Intensity

Peaking

User Adjustable Intensity

False Color

Rainbow, Arri Style, Custom with up to 10 nodes

Zebra

Dual - User Configurable

Waveform

Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

Vectorscope

Yes

RGB Parade

Fully User Customizable

Histogram

Luma & RGB Style

Image Capture

Yes

Custom LUTS

Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

LUT Downstream

Available on SDI or HDMI Out. Applied on Output Preview Page.

LUT Import

via SD Card or USB Storage Device

Overlay

With Opacity Slider and Blink Setting

Audio Meters

HDMI & SDI up to 8 channel
