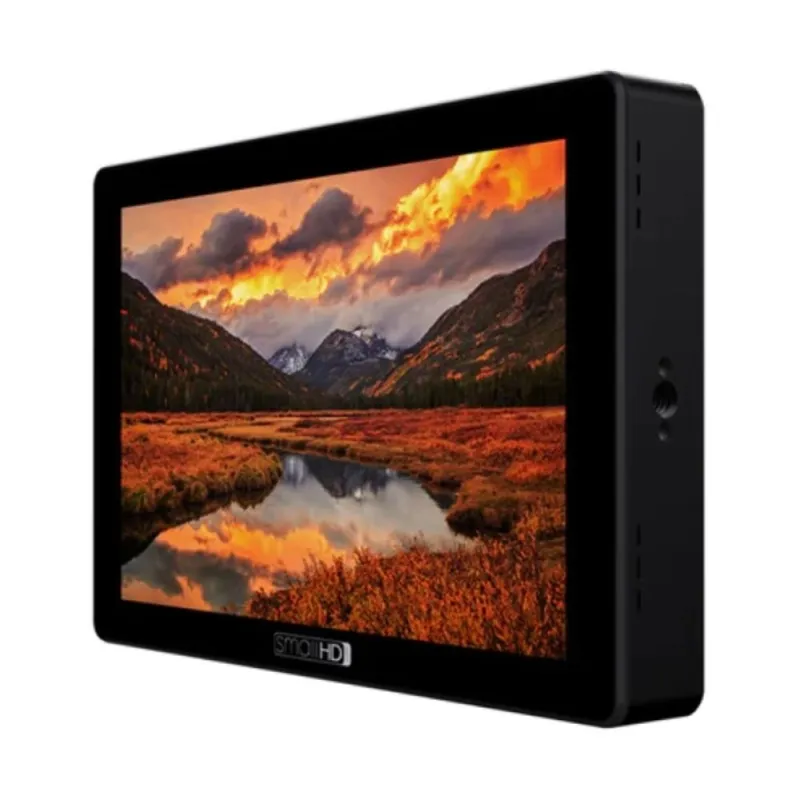

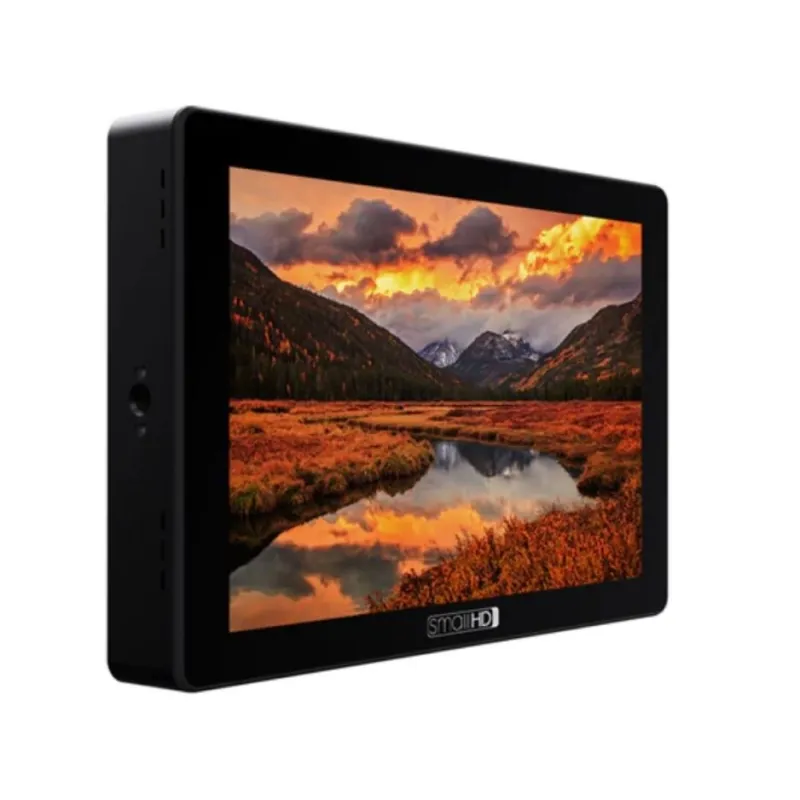

Cine 7 is the ultimate 7” on-camera HD monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and 4K and HDR compatibility. View your production in full sunlight thanks to 1800 nits of brightness and save your favorite tools, functions, and setting pages in one tap with PageOS 4.

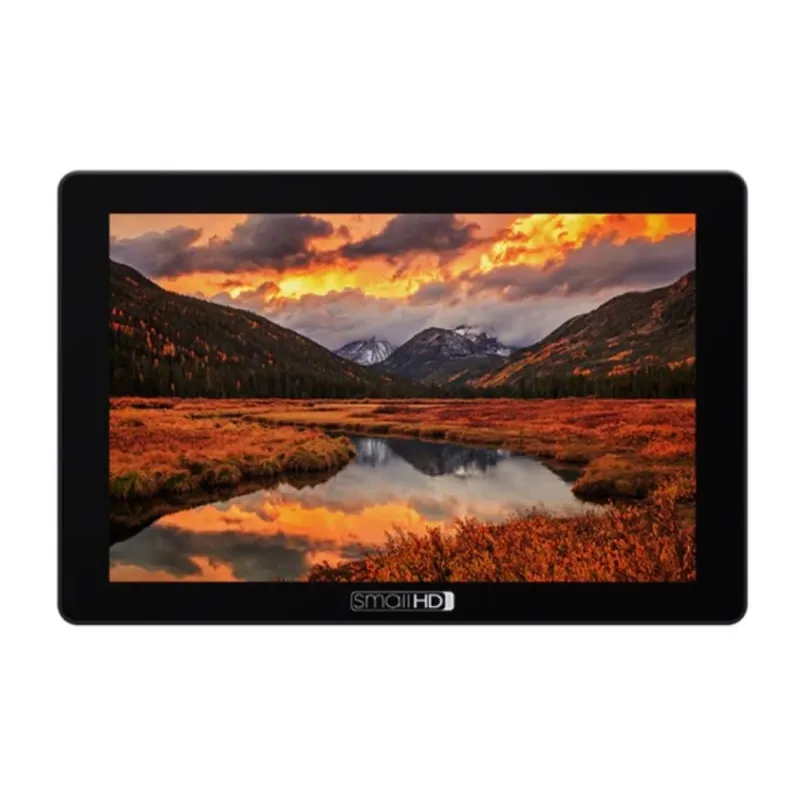

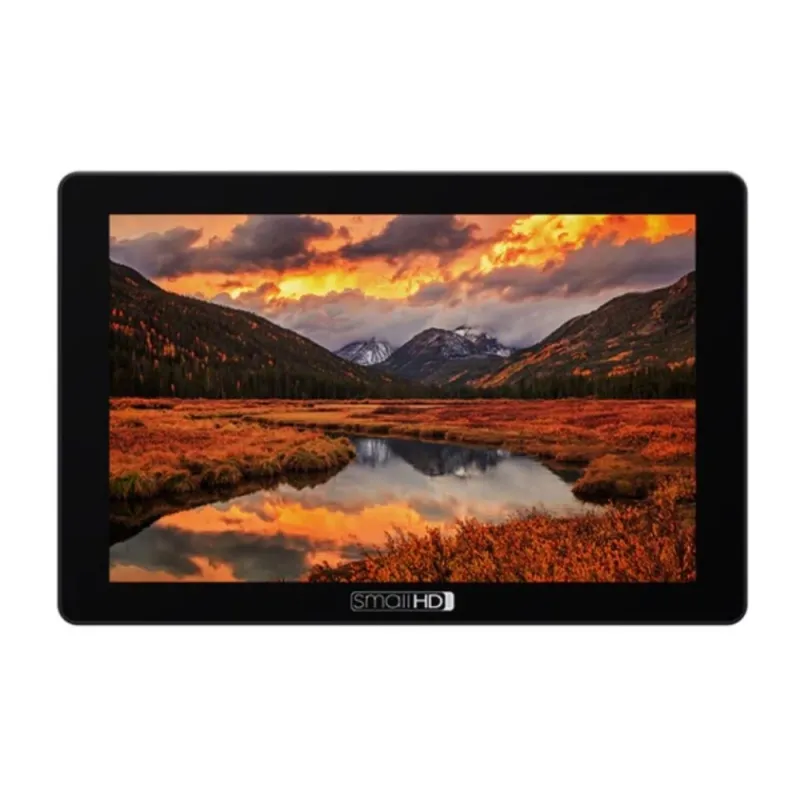

The Full HD 7-inch IPS LCD display with 1920x1200 resolution ensures a clear look at your production, while 10-bit color processing in 100% DCI-P3 offers color accuracy. This guarantees the image on screen reflects what’s being captured by the camera. No matter the time of day, environment, or sunlight, you’ll get a clear, glare-free view of your monitor thanks to 1800 nits of brightness.

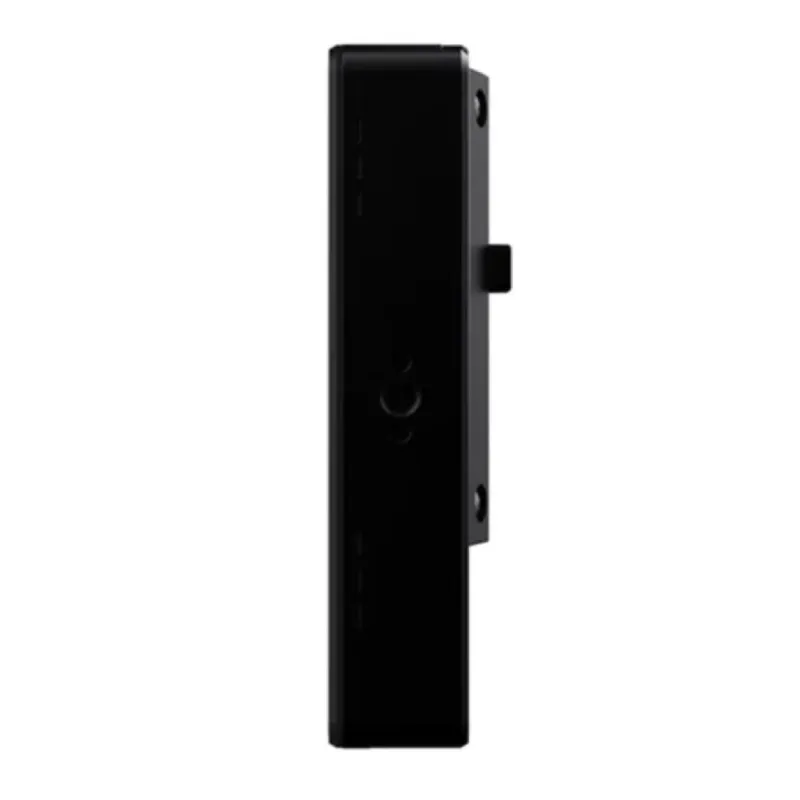

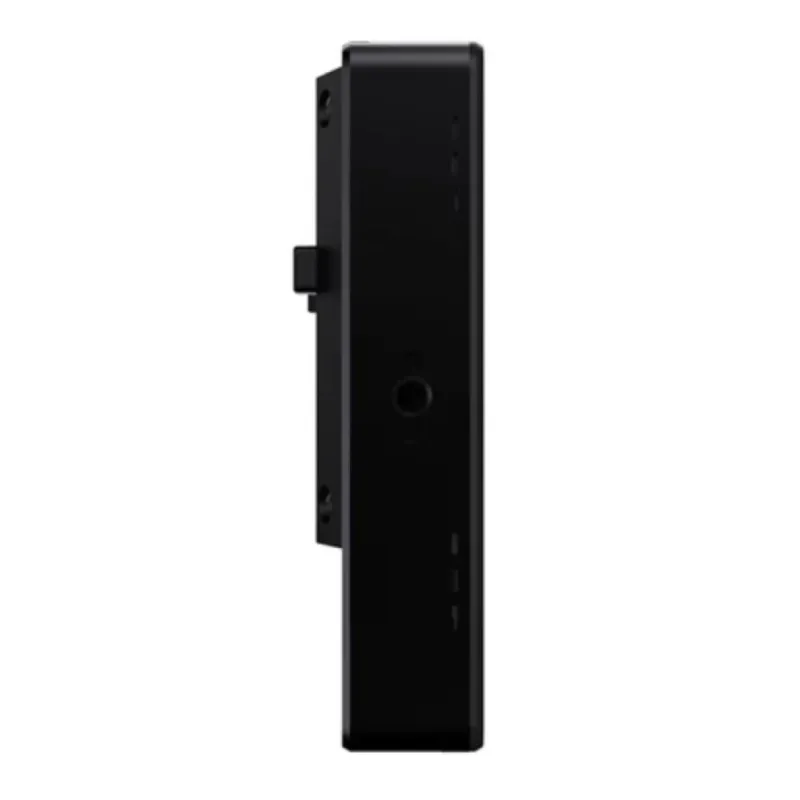

The Cine 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.

With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

Camera Control for ARRI (Software Only)

This Software License is a digital download that allows you to unlock access to camera control for ARRI cameras via a software activation code. Quickly access essential ARRI camera settings with intuitive, user friendly controls on the Cine 7.

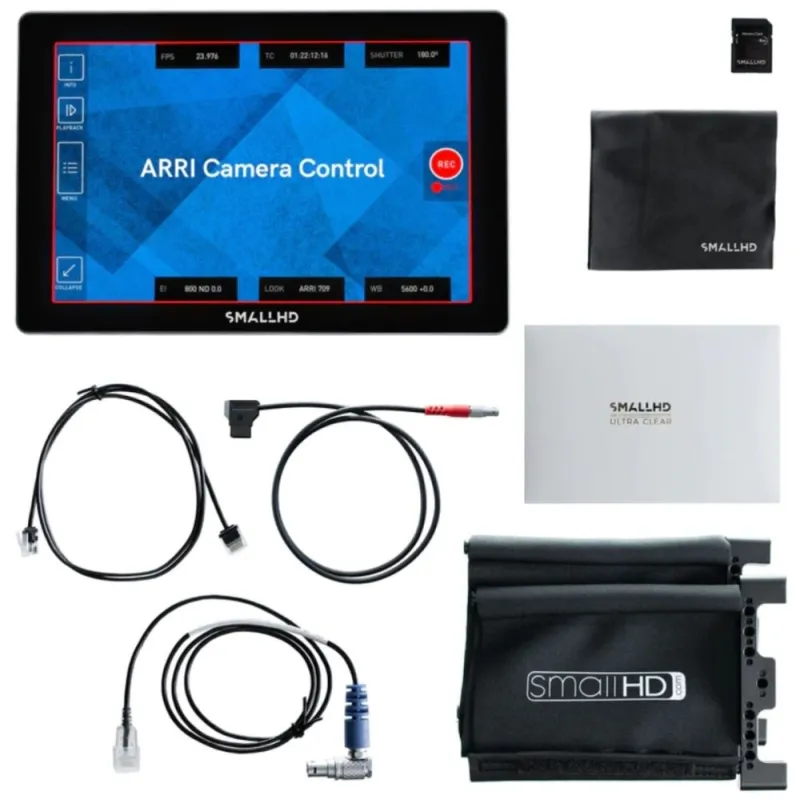

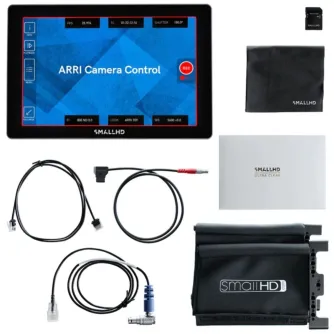

Included Cables

The Cine 7 ARRI Kit includes the 36-inch Slim Ethernet Cable, which features two RJ45 connectors at each end. Also included is the D-Tap to 2pin Power Cable, which is wired in an ARRI standard configuration with a 36 inch cable length. Lastly is the ARRI Alexa Camera Control Cable, a cable that connects to the ALEXA camera with its right-angle LEMO-type 10-pin connector, and the ethernet end plugs into the monitor.

SmallHD Cleaning Cloth

SmallHD Cleaning Cloth, made from a non-abrasive material, is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7 and is easily stored in a bag or pocket when not in use.

Smart 7 Sunhood

Block out the sun with this rugged and easy to attach sunhood. Quickly convert from 3-sided to 4-sided with easy to access snaps. Also includes mounting brackets with ¼ 20 mounting points to mount accessories to your monitor.

UltraClear Screen Protector Smart 7

Add scratch resistance and polarization to your Cine 7 monitor with this clear stick-on screen protector.

8GB SD Card

Store your 3D LUTS and captured images.

Technical Specifications

SKU

MON-CINE7-ARRI

Product ID

5039201583237

Environmental
Item Weight (oz)

20

Package Weight (oz)

32

Height (in)

4.67

Width (in)

1.32

Length/Depth (in)

7.09

Compliance

FCC, IC, CE, RoHS

Operating Temperature

30F to 100F

Storage Temperature

0F to 120F

Mount Points

Four ¼-20 Mount Points (Left, Right, Bottom, and Back)

Construction

Anodized aluminum chassis

Display
Panel Type

IPS LCD

Diagonal Size

7.02

Resolution

1920x1200

Pixel Density

322 ppi

Aspect Ratio

16:9

Active Area

5.95 x 3.72

Max Brightness

1800 NITs

Contrast

1000:1

Gamut

100% DCI-P3 Coverage

Color Depth

10-bit Processing (8-bit panel)

Viewing Angle

160

Backlight Type

LED

Adjustable Backlight

Yes

Input Signal
3G-SDI Input Types

YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Input Types

YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types

YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types

YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Input Types

HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal
3G-SDI Output Types

YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Output Types

YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Output Types

YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types

YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

Audio Output Types

HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type
SDI

1x BNC 3G input and 1x BNC 3G selectable input/output

HDMI

1 input and 1 output: HDMI Type-D Receptacles (full size)

Audio

1x 3.5mm 3-pin Stereo Headphone Jack

Power In

2-pin Locking

USB

1x USB 2.0 Micro-B receptacle

Controls
Primary

Touch Screen

Record Capture

Image Capture Tool

Power
Connector

LEMO

Voltage

DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max

Power Supply

Recommend DC 12~15V at ~2.5 amp or greater

Battery Types

L-Series (included), V Mount, Gold Mount

Overload Protection

DC input: Reverse polarity

Battery Chemistry

Li-ion

Battery Charging Time

Monitor does not support the charging of batteries

Software
Pixel Zoom

1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

Frame Guides

Preset Aspect Ratios & Customizable

DSLR Scale

Canon 5DMkii & Canon 7D

Custom Scale

Yes (Underscan Only)

Anamorphic De-Squeeze

0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

Image Rotate

Automatic or Manual Control

Image Flip

Automatic or Manual Control

Cross Conversion

Yes: HDMI → SDI & SDI → HDMI

Focus Assist

User Adjustable Color Style and Intensity

Peaking

User Adjustable Intensity

False Color

Rainbow, Arri Style, Custom with up to 10 nodes

Zebra

Dual - User Configurable

Waveform

Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

Vectorscope

Yes

RGB Parade

Fully User Customizable

Histogram

Luma & RGB Style

Image Capture

Yes

Custom LUTS

Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

LUT Downstream

Available on SDI or HDMI Out. Applied on Output Preview Page.

LUT Import

via SD Card or USB Storage Device

Overlay

With Opacity Slider and Blink Setting

Audio Meters

HDMI & SDI up to 8 channel
