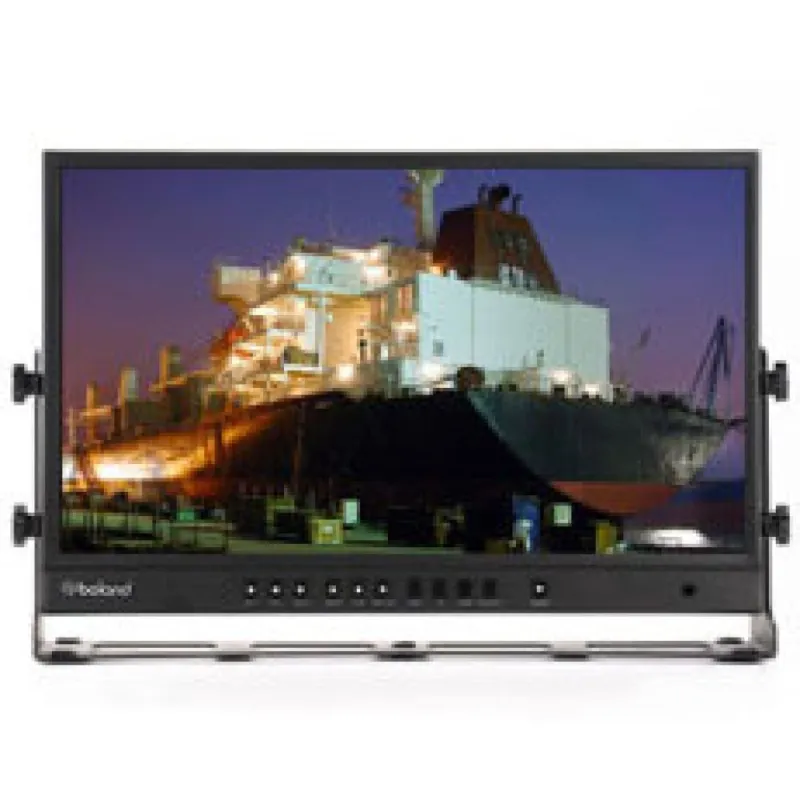

Boland LVB21 LED Broadcast Monitor 21 inch (LVB21)
Boland Communications, established in 1979 and headquartered in Lake Forest, California, USA provides premium quality LCD and LED monitors available in world wide formats. Boland Broadcast Monitors stand for amazing images with enhanced Ultra Pixel picture quality in varying light and viewing conditions.
Boland LVB21 LED Broadcast Monitor 21 inch Features
21 HD & SD SDI Digital, Analog, HD HDMI/DVI (+HDCP)
High & Standard Definition Video LCD Monitors 1080/720/576/480(@60/59.94/50)
3G includes 2x3G HD/SD SDI-Digital input/ HD HDMI/DVI (+HDCP)
HDMI/DVI inputs accepts up to 1080p HD
Modes: EGA to UXGA, NTSC/PAL/SECAM/NTSC4.43/PAL-M
Analog Inputs are Composite, Y/C, Component, RGB(SOG), DVI I(Analog PC)
Aspect Ratio: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1:
Marker Display
UMD Support
Specifications
Active Area (Diagonal): 21.5
Color Temperature User, VAR, 11000K, 9300K, 6500K, 5400K, 3200K
Modes
High & Standard Definition Video Modes: 1920x1080p(50/60/30psf/25psf/24psf/30/25/24),1920x1080i(50/60), 1280x720p(50/59.94/60), 480i(59.94),576i(50)
Digital, VESA VGA, DVI/HDMI
*24psf/23.98psf signal format is not supported in UNDERSCAN Mode
PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA
Standard Definition Video Modes: NTSC/PAL/SECAM/NTSC4.43/PAL-M
Scanning Modes: Under/Over/Zero/Pixel to Pixel Scanning
Inputs
Digital Video Inputs: 3G HD SDI (@50/59.94/60), HD HDMI/DVI (+HDCP)
Digital Video Inputs: Digital Visual Interface, VESA & SMPTE Rates
Analog Video Inputs: Composite, Y/C, Component, RGB(SOG), DVI I(Analog PC)
Aspect Ratios: Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
Picture-in-Picture : Analog (Composite1, 2, 3, Y.Pb.Pr, GBR, PC),SDI 1 inputs + SDI 2, Digital (DVI, HDMI) input PIP
Picture-by-Picture: Side by Side split screen display
Pixel (RGB Trio) Arrangement: 1920 H x 1080 V Pixels RGB strip arrangement(2,073,600 Pixes, 16:9)
Pixel (RGB Trio) Pitch, Depth: 0.08265 x 0.24795mm
Brightness, typical, 0: 250 cd/m2
Contrast Ratio, 0 1000:1
Color Processor: 10 bit color Processor
Viewing Angle Horizontal: 178(Typ),Vertical 178(Typ), 1000:1
Response Time: 5 MS
Controls
User Controls: STANDBY, SDI 1, SID 2, ANALOG, MARKER, FUNCTION, MENU, UP, DOWN, SEL/INPUT
Remote Controls: IR, TCP/IP, RS-422, RS-232
Backlight
Light Source (standard): LED backlight system
LED Life: 12,000 Hrs
Connectors
Video Connectors: BNC x 2 SDI 2 Channel Input, BNC x 3 Composite, YC(S-Video), Component(YPbPr/RGB) Input
HDMI/DVI Connectors: DVI-I x 1 DVI & Analog RGB Input, HDMI x 1 HDMI Input
Power
DC Power: 12 VDC 10%, 40 watts
DC Connector: XLR-4M (pin 1=Gnd, pin 4=+volts)
AC Power (detached power supply included): 90-264 VAC, 50/60 Hz
AC Power Connector: IEC 320-C14 3 pin Male
Display
Cabinet Dimensions: 20.197 x 12.551 x 2.165
Weight: 20.7 lbs
Mounting / Rack Mounting: VESA (100 x 100)
Operating (full spec): 0 ~ +50C, no condensation, 0 ~ 10,000 feet (3,048m)
Storage: -20 ~ +60C, no condensation, 0 ~ 40,000 feet (12,192m)
Available Options:
