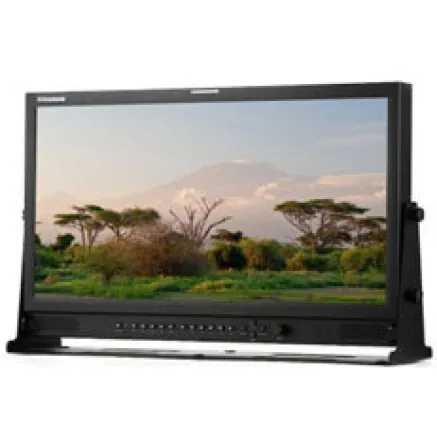

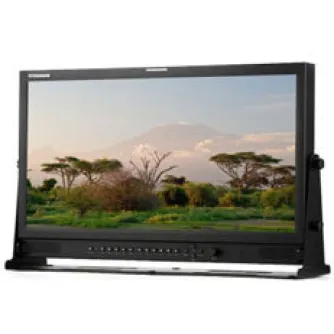

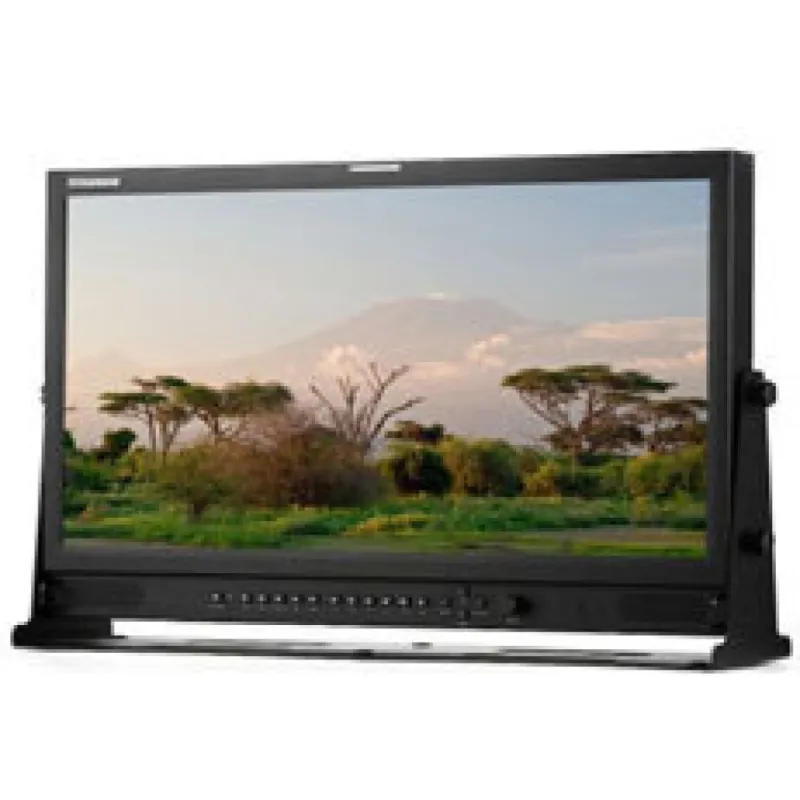

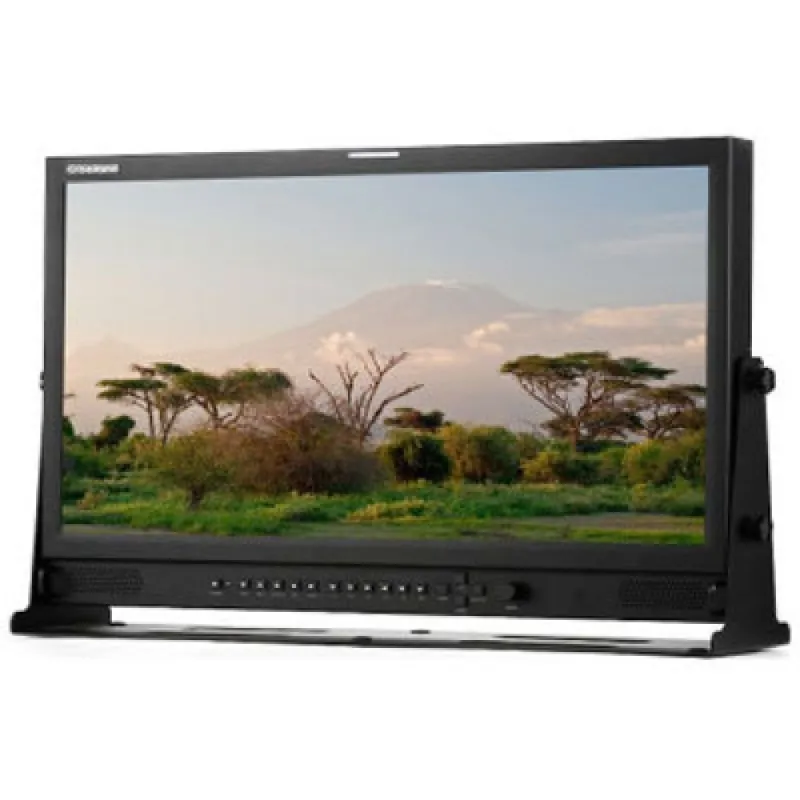

Boland PVB15 LED Broadcast Monitor 15 inch (PVB15)
Boland Communications, established in 1979 and headquartered in Lake Forest, California, USA provides premium quality LCD and LED monitors available in world wide formats. Boland Broadcast Monitors stand for amazing images with enhanced Ultra Pixel picture quality in varying light and viewing conditions.
Boland PVB15 LED Broadcast Monitor 15 inch Features
15 3GHD & SD SDI Digital, Analog, HD HDMI/DVI (+HDCP)
High & Standard Definition Video LCD Monitors 1080/720/576/480
3G includes 2x3G HD/SD SDI-Digital input/ HD HDMI/DVI (+HDCP)
Dual Link Mode & 1080p 60 compatible
HDMI/DVI inputs accepts up to 1080p HD
Modes: EGA to UXGA, NTSC/PAL/SECAM/NTSC4.43/PAL-M
Analog Inputs are Composite, Y/C, Component, RGB(SOG), DVI I(Analog PC)
Aspect Ratio: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1:
Waveform & Vector Scope Display (SDI Only). Marker Display.
Audio Level Meter.(16ch, Level meter position, Level meter scale)
UMD/IMD Support
Closed caption (CEA608 & 708, SDI Only)
4:4:4
Color Temperature User, VAR, 11000K, 9300K, 6500K, 5400K, 3200K
Specifications
Active Area (Diagonal): 15.3
Modes
High & Standard Definition Video Modes: 2048x1080p(24/25),1920x1080p(50/60/30psf/25psf/24psf/30/25/24),1920x1035i(60/59.94),1920x1080i(50/59.94/60),
1280x720p(24/25/30/50/59.94/60),480i(59.94),576i(50) Digital, VESA VGA, DVI/HDMI
PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA
Standard Definition Video Modes: NTSC/PAL/SECAM/NTSC4.43/PAL-M
Scanning Modes: Under/Over/Zero/Pixel to Pixel Scanning
Inputs
Digital Video Inputs: 3G HD SDI (SMPTE 259M/292/296), HD HDMI/DVI (+HDCP)
Digital Video Inputs: Digital Visual Interface, Dual Link, VESA & SMPTE Rates.
Analog Video Inputs: Composite, Y/C, Component, RGB (SOG), DVI I (Analog PC)
Aspect Ratios: Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
Picture-in-Picture: Analog (Composite1, 2, 3, YPbPr, GBR, PC) inputs + Digital (DVI, HDMI) + SDI (SDI1, SDI2) inputs & SDI1 + SDI2 input PIP
Picture-by-Picture: Side by Side split screen display
Pixel (RGB Trio) Arrangement: 1280 H x 766 V Pixels RGB strip arrangement (16:9)
Brightness, typical: 450 cd/m2
Contrast Ratio: 1000:1
Color Processor: 10 bit color Processor
Viewing Angle: Horizontal: 176 (Typ), Vertical 176 (Typ)
Response Time: 12 MS
Controls
User Controls: ST-BY, SDI1~2, ANALOG, SCAN, MARKER, H/V DELAY, AUDIO, WF/VECTOP, F1 ~4, MENU, SEL/INPUT, UP, DOWN, ADJUST
Remote Controls: IR, TCP/IP
Backlight
Light Source (standard): Color Match Flourescent Lamps
Lamp Life 50,000 Hrs
Connectors
Video Connectors: BNC x 2 SDI 2 Channel Input, BNC x 3 Composite, YC (S-Video), Component (YPbPr/RGB) Input, Dual Link
HDMI/DVI Connectors: DVI-I x 1 DVI & Analog RGB Input, HDMI x 1 HDMI Input
AUDIO Connectors: Phone Jack x 1 Audio Input
Power
DC Power: 12 VDC 10%, 40 watts
DC Connector: XLR-4M (pin 1=Gnd, pin 4=+volts)
AC Power (detached power supply included): 90-264 VAC, 50/60 Hz
AC Power Connector: IEC 320-C14 3 pin Male
Display
Window (Display Area):
Cabinet Dimensions:
Weight:
Mounting / Rack Mounting: VESA 100100.mm ; 6 RU
Operating (full spec): 0 ~ +50C, no condensation, 0 ~ 10,000 feet (3,048m)
Storage: -20 ~ +60C, no condensation, 0 ~ 40,000 feet (12,192m)
For further technical data go to download section.
