The FEELWORLD WPC215 is a 21.5-inch director monitor designed to meet the demands of outdoor filmmaking with its rugged build, high brightness, accurate color reproduction, and versatile features. Whether youre a professional filmmaker or an enthusiast, this monitor is your ideal outdoor filming companion.

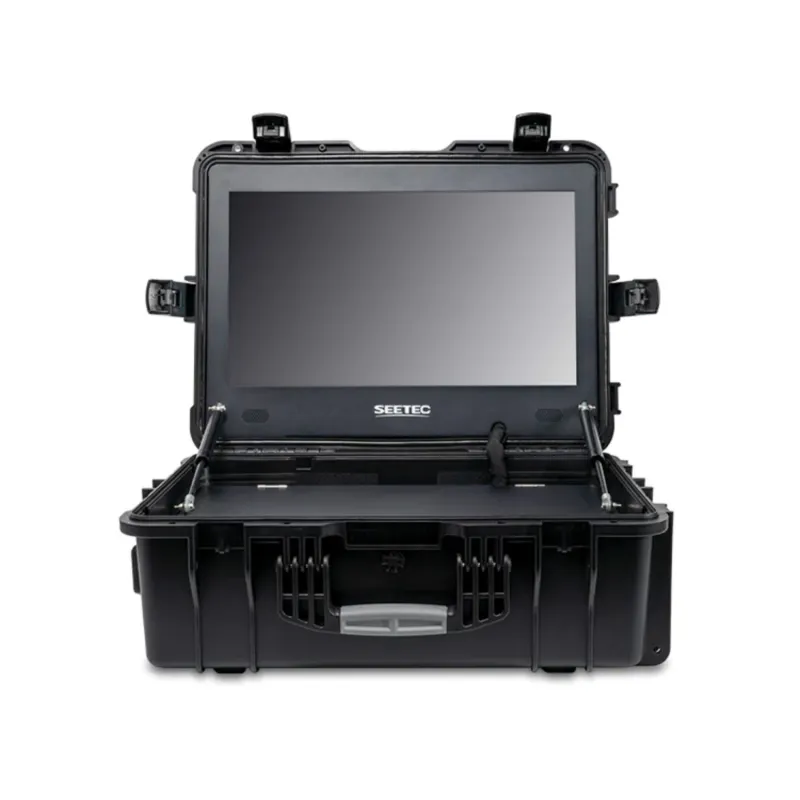

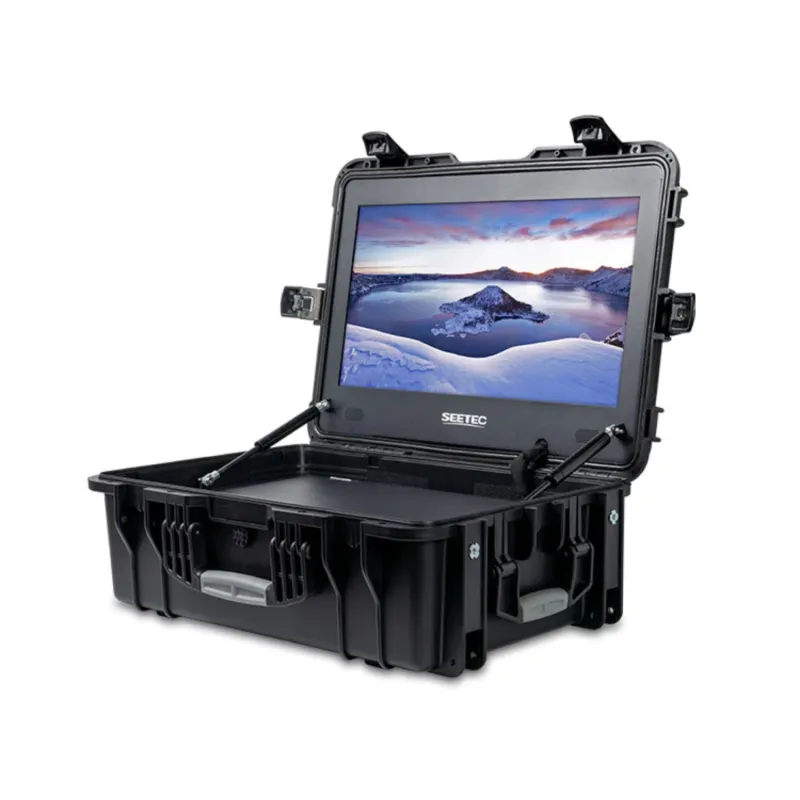

21.5-inch High Bright Portable Director Monitor
Monitor is an indispensable equipment for locating filming. The environment is harsh of outdoor, and the equipment moves frequently. If there is a monitor with portable, waterproof, dust-proof and high temperature resistance, it will be perfect. FEELWORLD WPC215 can be done! The important is that the panel integrated with the PP alloy protective case. For various harsh filming environments, WPC215 can easily handle it.
Full HD IPS Panel
Viewing clearly and capture every detail with confidence
With extremely high resolution IPS panel, provides excellent detailscovers 72% NTSC color space, accurately reflect the original colors.
Professional Calman Software Calibration, True Color Presentation
Each monitor is calibrated by Calman software at the factory to ensure color accuracy and good reproduction.
1000nits, Daylight Viewable
Backed by 1000nits of brightness, WPC215 isnt afraid to get a little sun. Easily adjust the monitor brightness to fit your filming environment,especially suitable for outdoor filming in crew.
New UI Menu Interface
New UI menu, take the software functions are iconized, and the values at a glance. It is more convenient and quickly to operate the function.
Load Custom 3D LUTsPreview Filming Look in Field Shooting
Supports upload 32 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash driver (up to load 32).
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode . WPC215 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

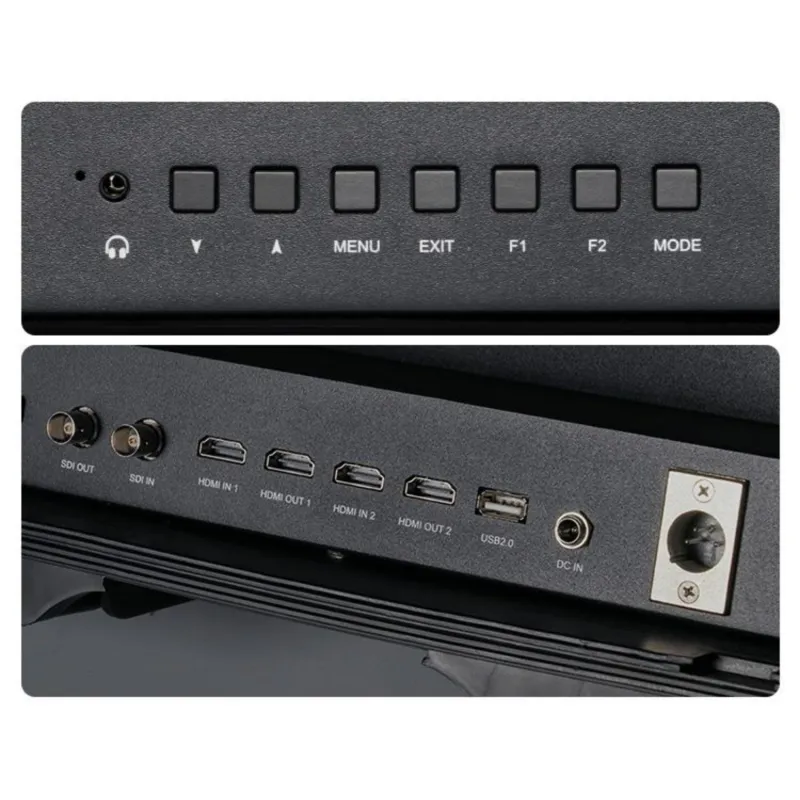

Flexible and Intuitive Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment.WPC215 is equipped with multi operation buttons,can switch between one-button sources, custom shortcuts, and quickly adjust brightness,contrast,volume ,etc.to make shooting easier.
Dual HDMI + SDI Input and Output, Meet More Selection
The monitor equipped with SDI and 4K HDMI input and output, compatible with film camera, DSLR camera, mirrorless camera.And loop-out to other device via output port,realize multi person simultaneous monitoring.For audio, WPC215 provides two speakers and one 3.5mm earphone jack.

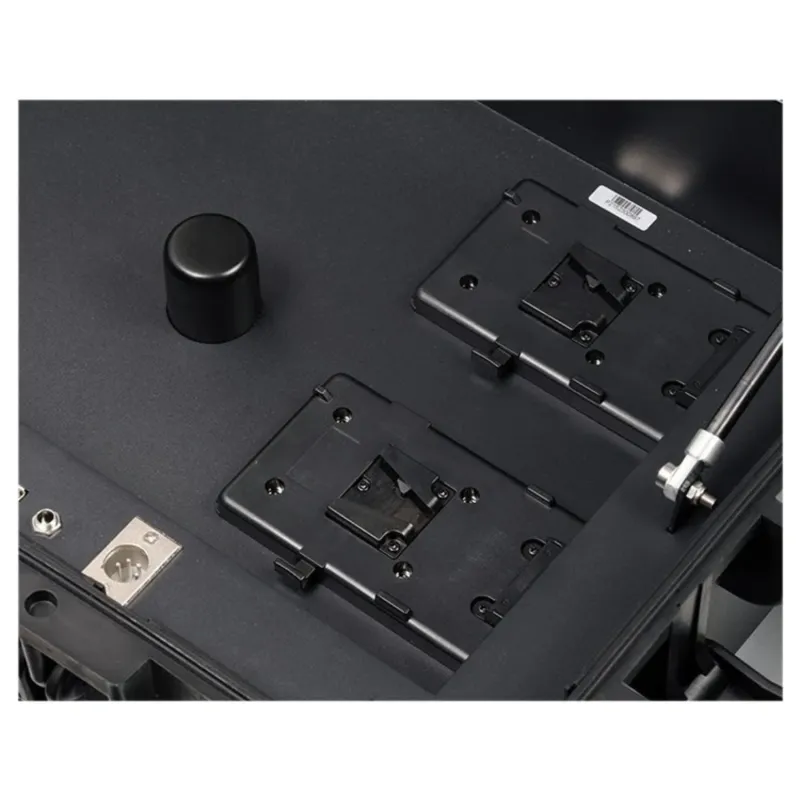

Multiple Power SupplyLong-lasting Power Shooting
The monitor offers 12V DC power interface, XLR connectorcan be use 4A power adapter) and 2 V-mount battery plates for options. Provide strong power for outdoor filming.
Note: the battery not including

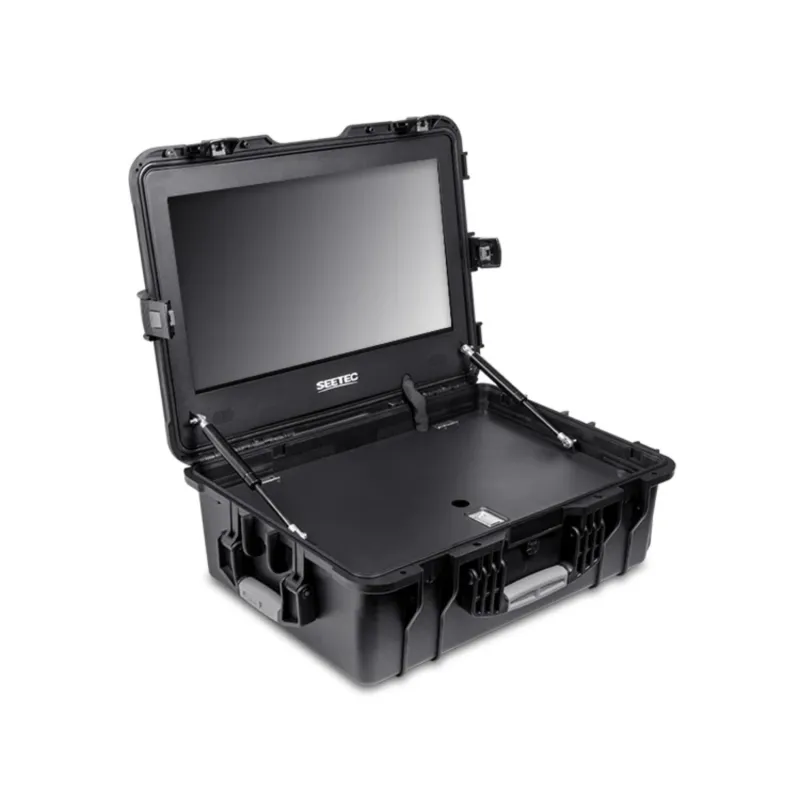

Reserved Storage Space
There is a portion of space on the left side of suitcase inside, can put the accessories or other equipment. And with a metal cover for protection.
Multi Languages SupportSatisfy Different Needs
WPC215 built-in up to 11 languages, meet the different needed.
Multiple Mounting PointsMake Filming More Possibilities
There are two 1/4 threads both on the right side and top of suitcase, which can be installed with wireless video transmission or other equipment. In addition, the bottom of case built-in metal bracket, you can easy install the monitor on the tripod or light stand.
Key Features:
* 21.5-inch 1920x1080 full HD large screen

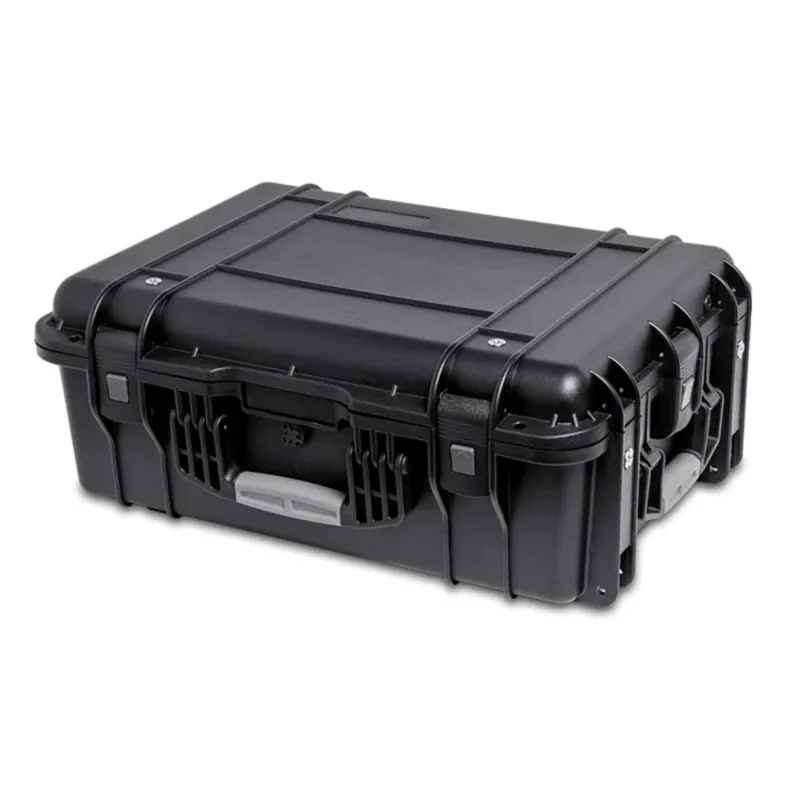

* Portable waterproof case, easily cope with various harsh shooting environments
* 1000nits high brightness, ideal choice outdoor shooting
* Flexible and intuitive button operation, easy to use
* Custom 3D-LUT, preview film look
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
* 3G-SDI,HDMI support up to 4K@30Hz
* With multiple 1/4 screw thread, can be mount wireless transmission and other device.
* The bottom of case built-in metal bracket, can mount the monitor on the tripod.
* Stereo Earphone output
* All waves (waveform, vector, histogram and embedded audio)
* Waveform (RGBYUVY)
* Vector
* Histogram(RGB1RGB2Y)
*Focus Assist ( Red, Green, Blue three colors optional highlight over parts of the image in focus)
*Embedded Audio
*Over Exposure (10~100)
* Check Field (Red, Green, Blue, Gray)
*False Color
*Nine Grid
*Safety Marker ( 80%, 85%, 90%, 93%, 96%, 2.35:1)
*Center Marker
*Ratio Marker(4:313:914:915:916:91.85:12.35:1)
*Scan Mode (Under Scan, Over Scan)
*Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
*Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
*Image Flip (H Flip, V Flip, H_V Flip)
*Zoom Mode(2X4X9X16XUser)
*Freeze
*Pixel to Pixel
*3D-LUT
*Colortemp (5600K, 6500K, 9300K, User)
Model | WPC215 |
Screen Size | 21.5 IPS |
Color Depth | 16.7M |
Resolution | 19201080 pixels |
Pixel pitch | 0.24795(W) x 0.24795(H) mm |
Aspect Ratio | 16:9 |
Brightness | 1000cd/m |
Contrast Ratio | 1000:1 |
Backlight | LED |
Viewing Angle | 89/89(L/R) 89/89(U/D) |
1XSDI | 3G-SDI |
2 XHDMI | HDMI-A (up to 4K@30) |
1 X USB | USB (upgrade and LUT import) |
1 X SDI | 3G-SDI |
1 X HDMI | HDMI-A (up to 4K@30) |
Audio | Stereo Headphone, Speaker |
720p (60/59.94/50/30/29/25/24/23.98) |
1080i (60/59.94/50) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
480i/576i/480p/576p |
720p (60/59.94/50/30/29.97/25/24/23.98) |
1080i (60/59.94/50) |
1080p (60/59.94/50/30/29.97/25/24/23.98) |
4KUHD 38402160p (30/29.97/25/24/23.98 Hz)| 40962160p (24Hz) |
Input Voltage | DC 12V |
Power Consumption | 38W |
WorkingTemperature | 0C~50C |
Storage Temperature | -20C~60C |
Unit Size | 596*440*240mm |
Unit Weight | about14.8kg |
Outer Carton Qty | 1 |
Outer Carton Size | (mm) |
Gross Weight | kgs |
*Built-in Multi camera Delog LUTs |
* User 3DLUTs upload via USB (up to 32) |
* All waves(RGBYUVY) |
* Vector |
* Histogram (RGB1RGB2Y) |
* Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |
* False Colors |
* Over Exposure (10-100) |
* Under Scan, Over Scan |
* Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User) |
* Pixel to Pixel |
*Center Marker |
* Safety Marker (80%, 85%, 90%, 93%, 96%, 2.35:1) |
* Ratio Marker ( 4:313:914:915:916:91.85:12.35:1) |
*Image Freeze |
* Selectable Color Temperature Presets |
Standard Accessories:
1 Power Adapter
1 SDI Cable
1 Mini HDMI Cable
2 V-mount Battery Plate (default to mount on device)
1 User Manual Manual
