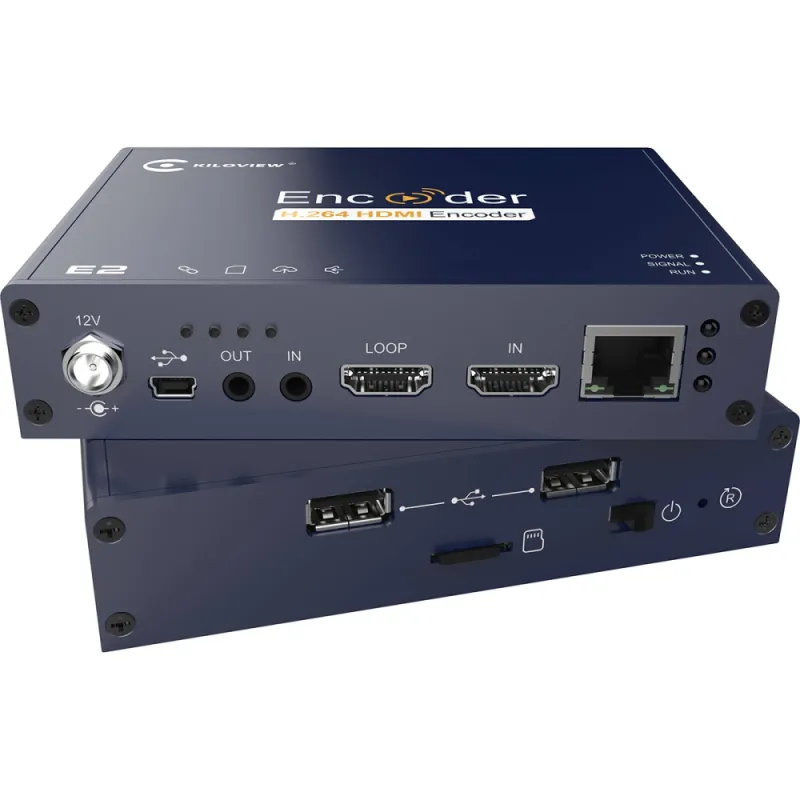

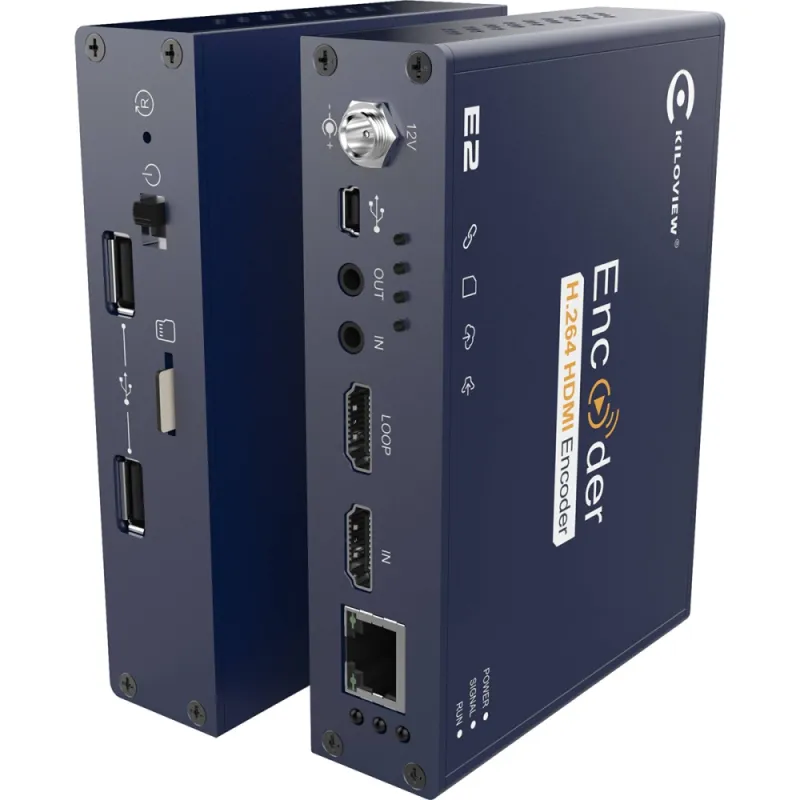

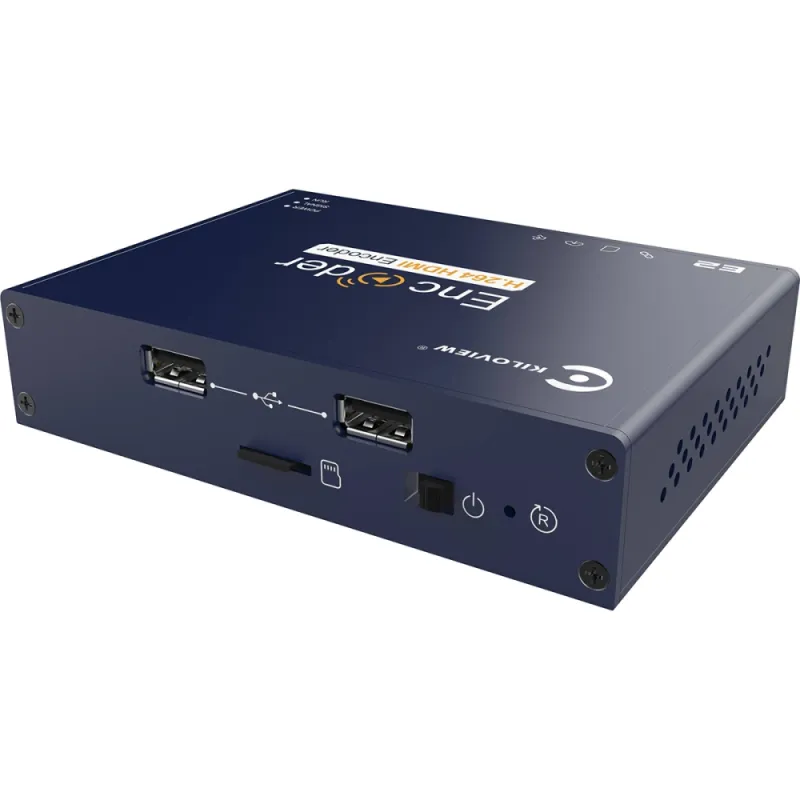

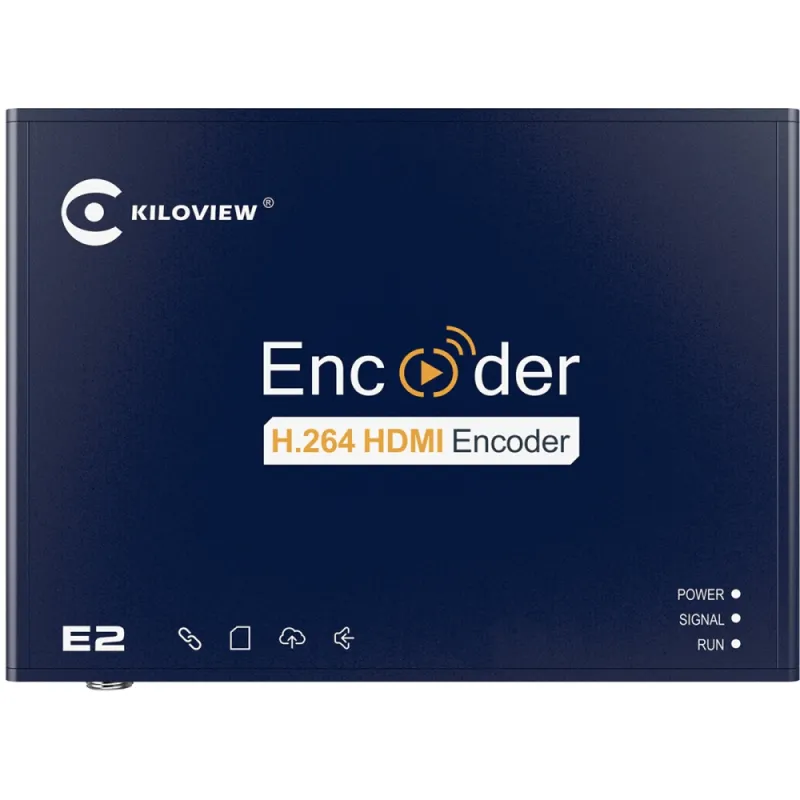

Kiloview HD HDMI Wired IP Videoencoder (E2/IP)

Kiloview HD HDMI Wired IP Videoencoder (E2/IP)

Stable Video Encoder for Live Streaming

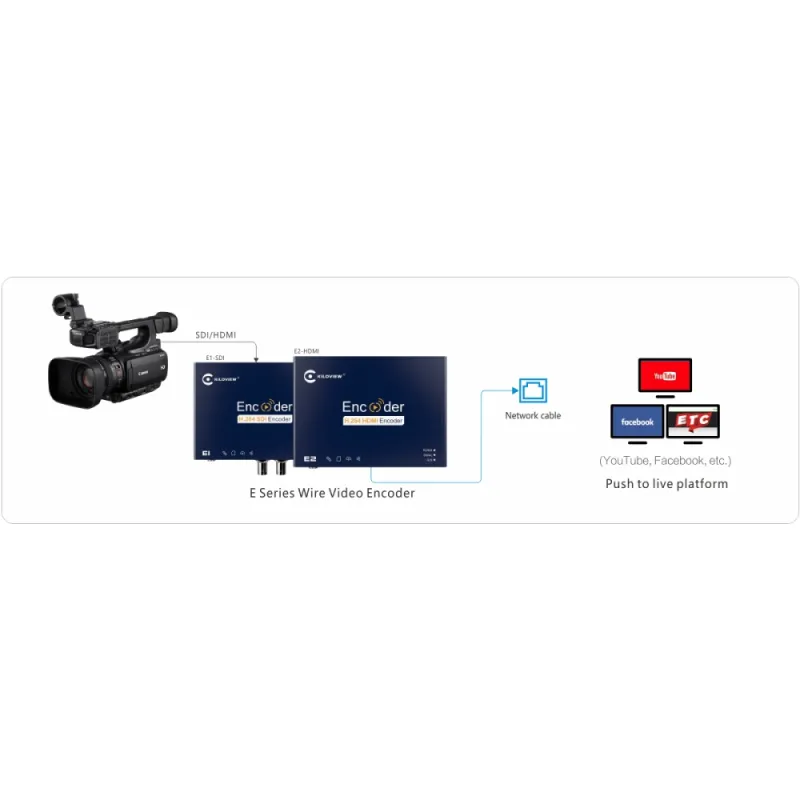

Kiloview E series wired hardware video encoder converts SDI/HDMI base-band video to H.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN. They support the most common protocols including SRT, RTMP, RTMPS, RTP, HLS, UDP, RTSP, Onvif, and are widely applied to professional live production, streaming, broadcasting, etc.

• Stream Directly to YouTube
• HDMI to H.264 video encoding
• Real-time Live Streaming
• SRT supported
• Embedded Audio
• SDK/API Development
• Real-time Loop
• Web-Based Interface
• 7×24h Operation

Real HD 1080p60 Video Supported
It supports real HD video input with resolution up to 1920×1080P@60fps to ensure that the image quality is perfect.

Low Latency, High-Quality Streaming
E series adopt standard H.264 coding algorithm, so they ensure high-quality image and smooth live streaming. They provide you superior video with low-latency, low bitrate and low bandwidth.

• Encoding delay ≤ 67ms
• Adjustable bitrate 64kbps40Mbps
• Low bandwidth 1.5Mbps@1080p

It’s a recorder and an interphone!
Recording prepares for future. Kiloview E series provides simultaneous recording while you are doing live streaming to many media destinations. And redundant recording is realized with Micro SD/TF/USB/NAS with recording files in the format of .ts, .mp4, .mov,.mkv, avi.

It also supports SDI/HDMI embedded and 3.5mm analog audio coding, so you can use KILOVIEW voice intercom software to realize real-time voice intercom.

All IP Video Protocols Supported
E series supports full range of protocols including RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It also supports ONVIF 1.1/2.0 for easy Access To Security Protection System / NVR System

Encoding & Streaming to Multiple Platforms
You can set dual stream output (main stream and sub stream) in the built-in web console. Each stream can be used to up to 8 platforms with the same or different protocols, altogether it can simultaneously live stream to up to 16 platforms. Main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz.

Application
TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports.

In the Box
1× HD HDMI Wired IP Videoencoder (E2/IP)

Specifications
please see the download area above or click here
