AJA 12G-AMA 12G-SDI, 4-Channel Balanced Audio Embedder/Disembedder with Fiber Options

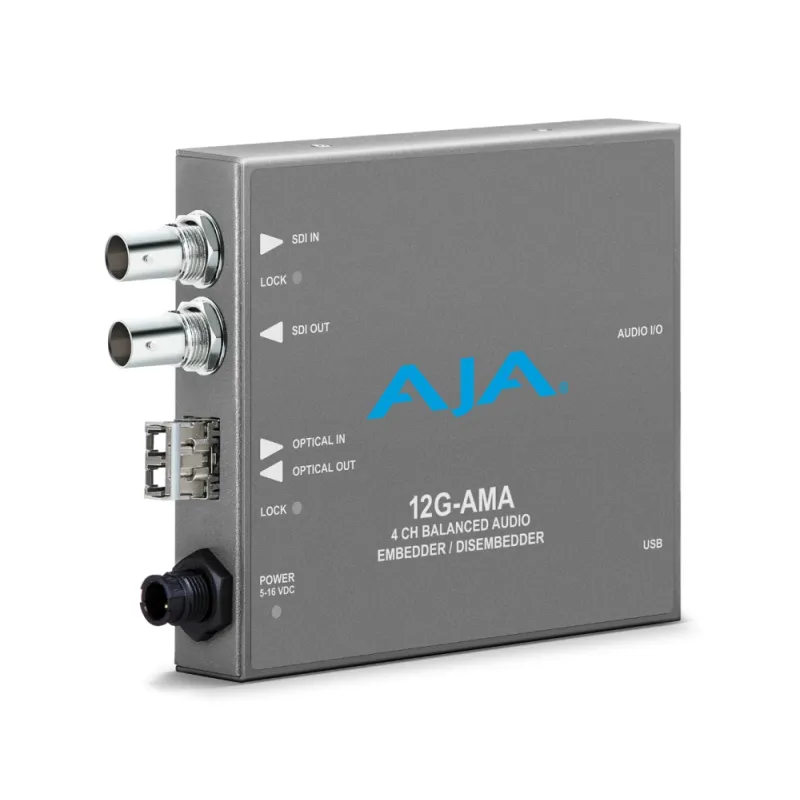

The 12G-AMA is a 4-channel analog audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and  ST options. Audio disembedding is always functional, providing four analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input analog audio from the breakout cable.

Analog audio levels are selectable. The 12G-AMA automatically detects and configures the input video standard.

Features:
  • 12G-SDI Input and Output up to 4K/UltraHD
  • 4-channel balanced audio Embedder/Disembedder with LC and ST Fiber model options.
  • Audio Disembedding is always functional with four Analog outputs
  • Audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input analog audio
  • Selectable Analog audio levels
  • Automatically detects and configures the input video standard
  • Small form factor allows for a wide variety of installation locations
  • Supplied XLR breakout cable offers 4-channels In and 4-channels Out for a total of eight XLR connectors
  • USB connectivity via AJA Mini-Config software
  • Dipswitch configuration
  • +5-16 VDC Power

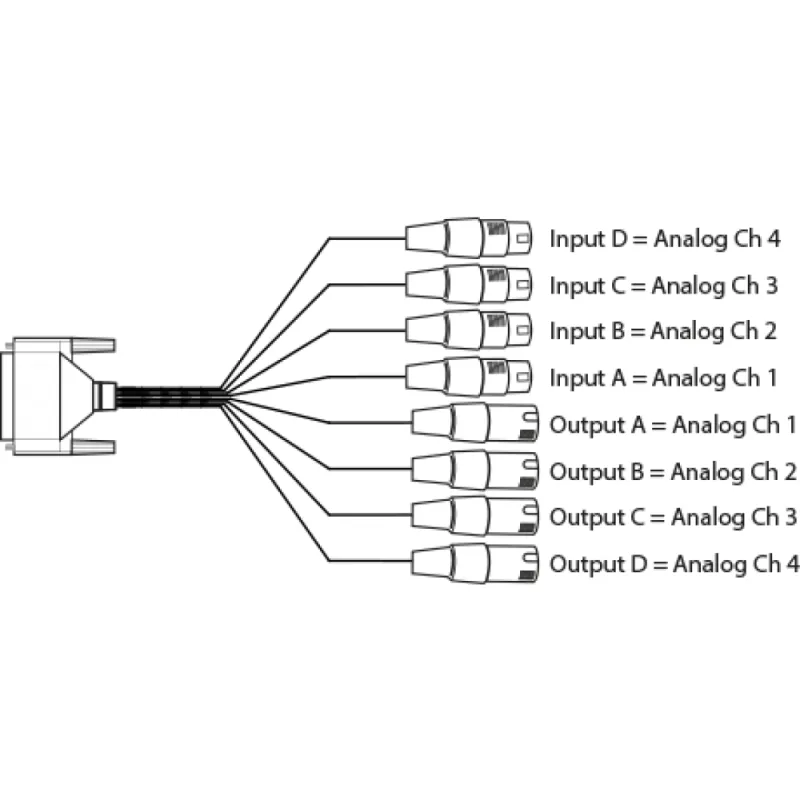

Supplied Breakout Cabel
Additional connections on included breakout cable.

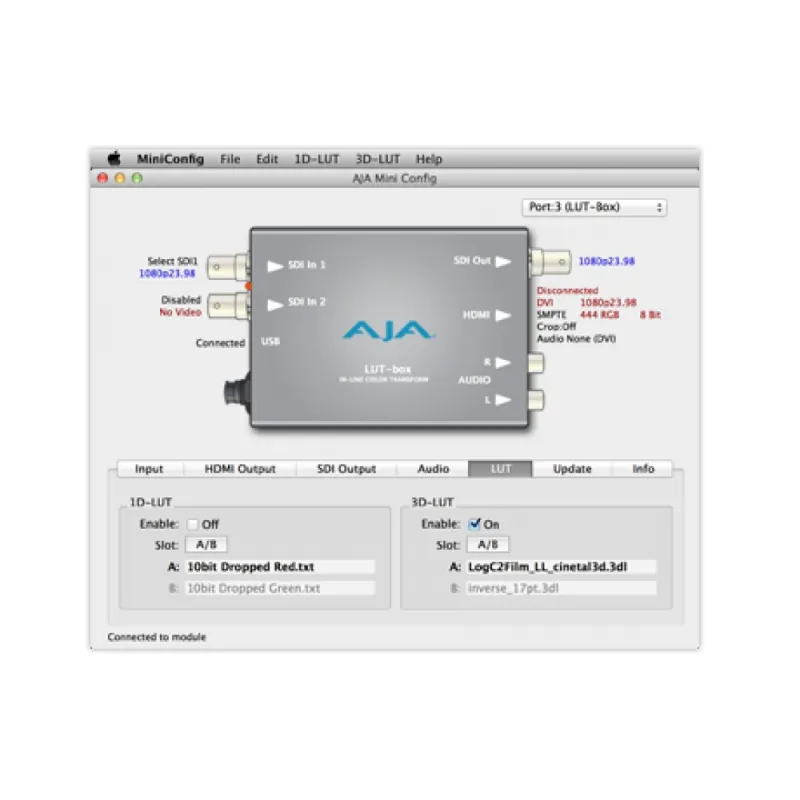

USB and Mini-Config Support
AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

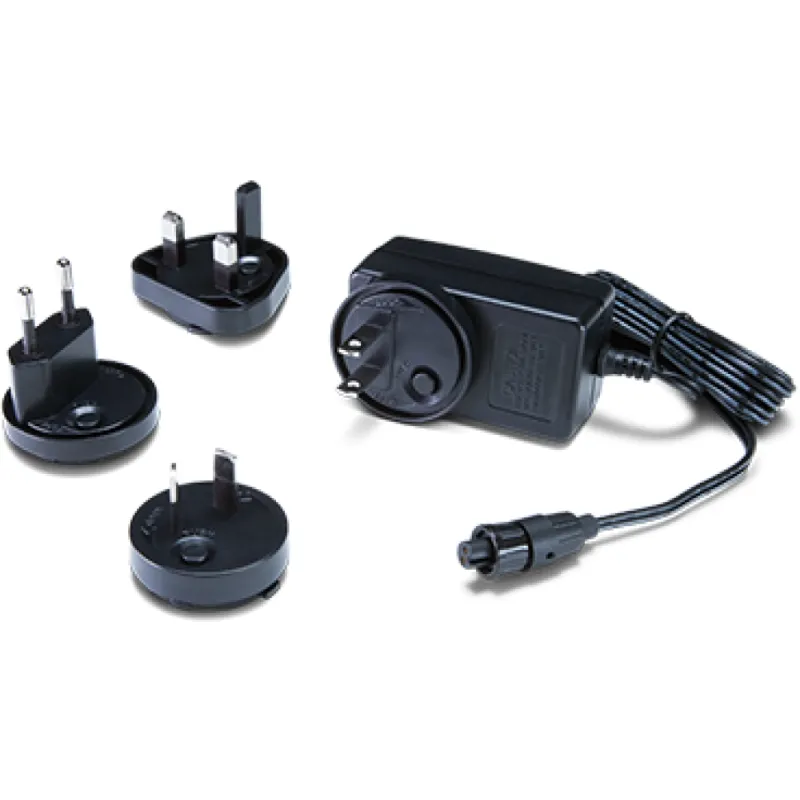

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS.
The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.kandao
