New product

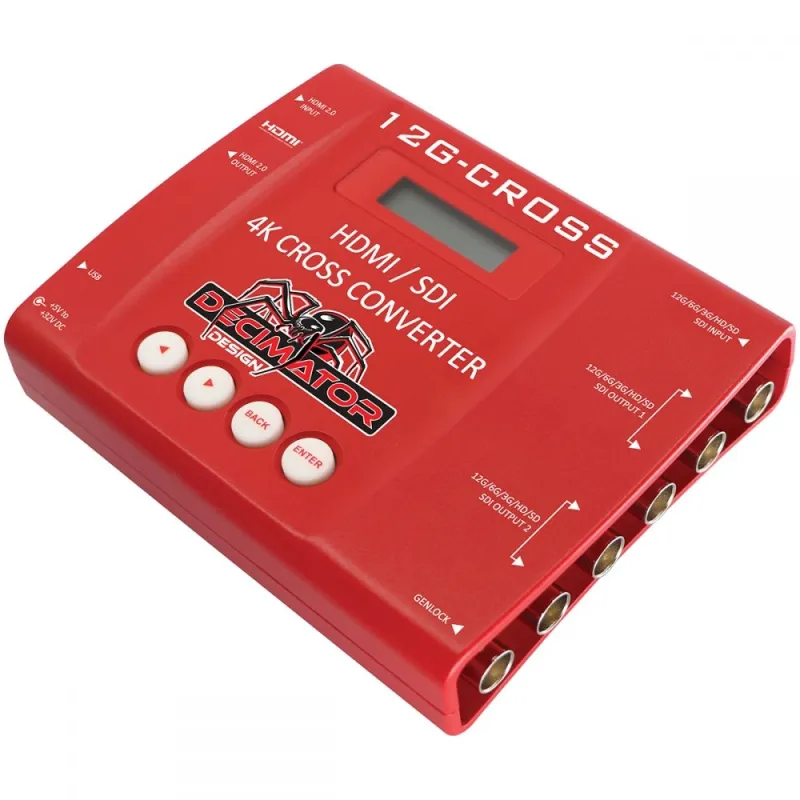

Decimator 12G-CROSS
The 12G-CROSS is a small (4.2" x 5.1" x 1.2") low power portable converter encased in a solid robust aluminium case and does not contain a noisy fan. Allowing it to be used in almost any environment.
The 12G-CROSS is a truly portable product that incorporates an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.
Features:
• Allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine.
• The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input.
• The 4K scaling engine can scale and/or frame rate convert between any of the following 57 formats:
• (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI
• (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or • 6G-SDI
• (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (Level A or B)
• 1920 x 1080i60/59.94/50 via HDMI or HD-SDI
• (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
• (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
• 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
• 1280 x 720p24/23.98 via HD-SDI
• 720 x 480p59.94 or 720 x 576p50 via HDMI
• 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI
• That is an amazing 3249 possible format conversions!
• The audio pairs in the SDI and HDMI outputs can be rearranged as required.
• Includes 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier.
Delivery Contents:
• Decimator 12G-CROSS
• USB port for control and firmware updates
• Metal Thread Locking DC Power Socket
• Power Supply and USB Cable
Type of Product | Blackmagic Design |
Accessories for video cameras | pārveidotāji |
