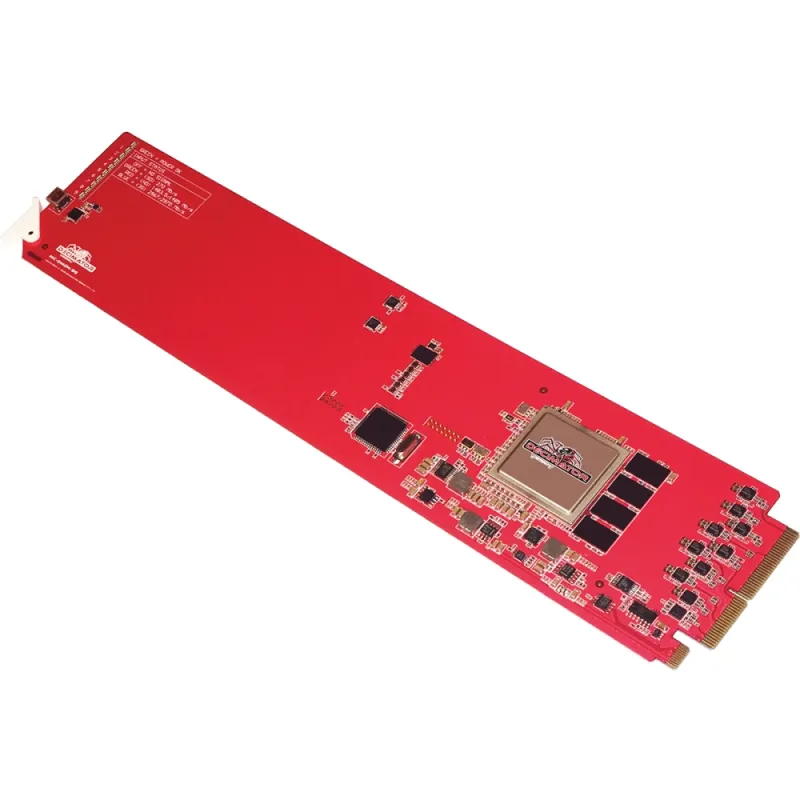

Decimator Design MC-DMON-9S 9 Channel MultiViewer
1 to 9 Channel 3G-/HD-/SD-SDI MultiViewer with Custom Layouts.
Features:
Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
Low cost miniature (3G/HD/SD)-SDI 1 to 9 channel Multi-Viewer or 9 to 1 input multiplexer
Custom Layouts with various standard layouts
16 Character UMD overlay per window with individual enables, custom positioning and size
16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
Format Status overlay per window with individual enables, custom positioning and size
Safe Action and Safe Title overlay per window with individual enables and adjustment
Centre Cross overlay per window with individual enable
Audio ID overlay
Load and restore Custom Layouts
Fast switching between inputs using Full-Screen scaling
Selectable output format in both Full-Screen and Multi-Viewer mode
Low latency buffering for each input allowing non-synchronous inputs
9 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
1 x (3G/HD/SD)-SDI output
Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
Variable aspect ratios per window
Pass-Through mode allowing any of the 9 inputs to be selected and routed to the (3G/HD/SD)-SDI output
USB port for control and firmware updates
openGear DashBoard for control
