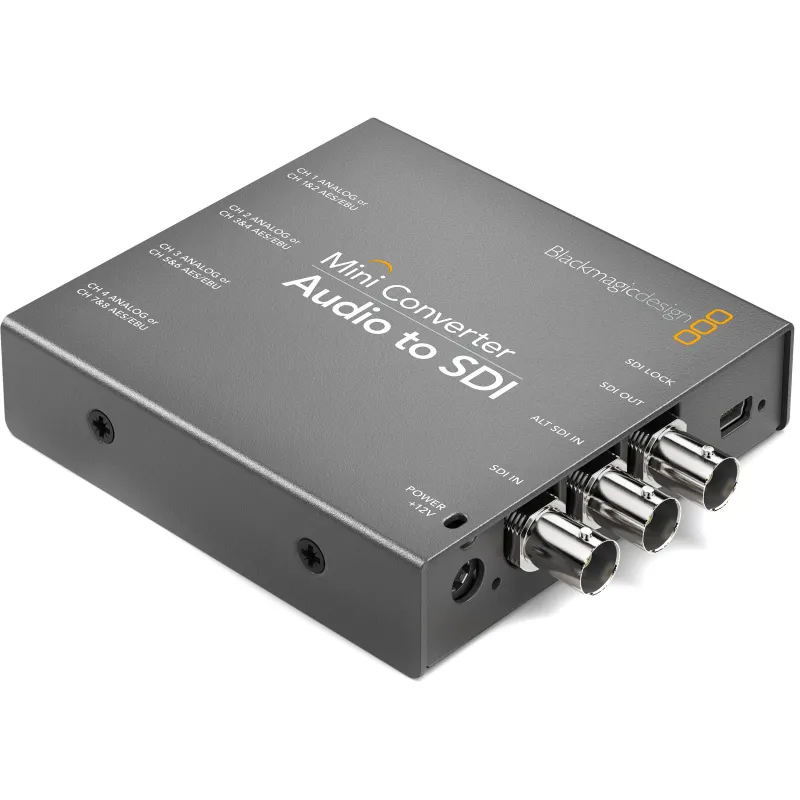

Blackmagic Design Mini Converter Audio to SDI (BM-CONVMCAUDS)

It provides all the prerequisites to 4 analog audio tracks or 8 AES / EBU audio tracks embedded in an SDI video cable. Use this solution to integrate audio from devices such as mixers and analog decks in your SDI signal, so you can use with SDI routers and decks can, or to connect additional audio channels to video converters.

SDI Video Input
Switchable between SD, HD and 3 Gb/s SDI.
SDI Video Outputs
Automatically matches the SD, HD and 3 Gb/s SDI video input.
Analog Video
None
Analog Audio
4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio
4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
SDI Redundant Input
Automatically switches over if main SDI input is lost.
Multi Rate Support
Auto detection of HD or standard definition SDI inputs.
Updates and Configuration
Via USB 2.0 high speed. (480 Mb/s)
Reclocking
Yes
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
SDI Format Support
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
Analog Format Support
None
Analog Color Space
None
Analog Color Precision
None
Software Control
Mac OS X and Windows software upgrade via USB.
Internal Software Upgrade
Via included updater application.

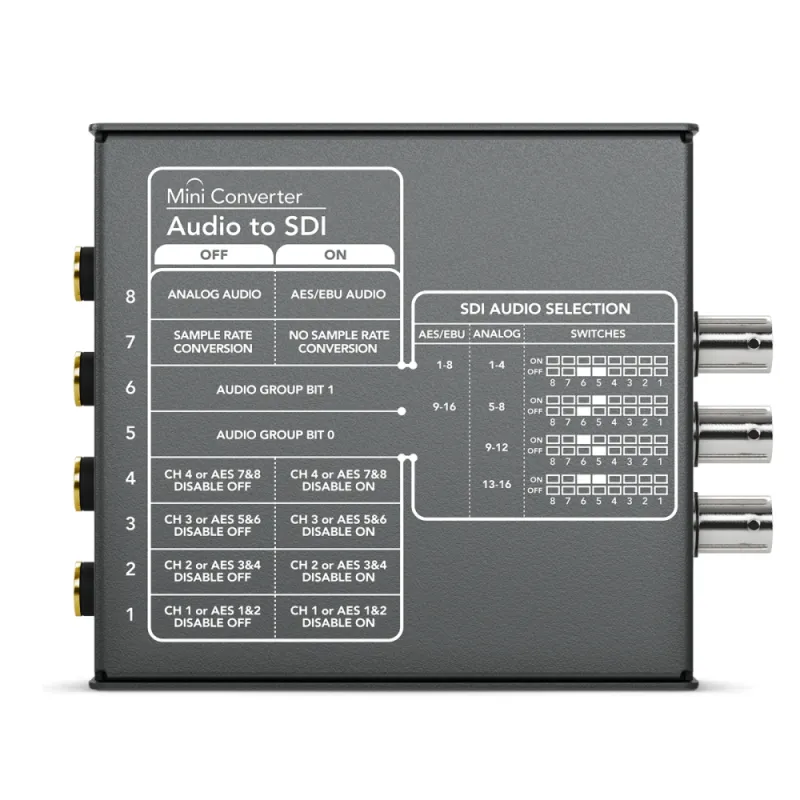

Settings Control
Mini Switches or USB software.
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
8.40 Watts
Operational Voltage Range
12V
