Ethernet
2 x 10/100/1000 BaseT with loop
output for additional control panels or computers
New product

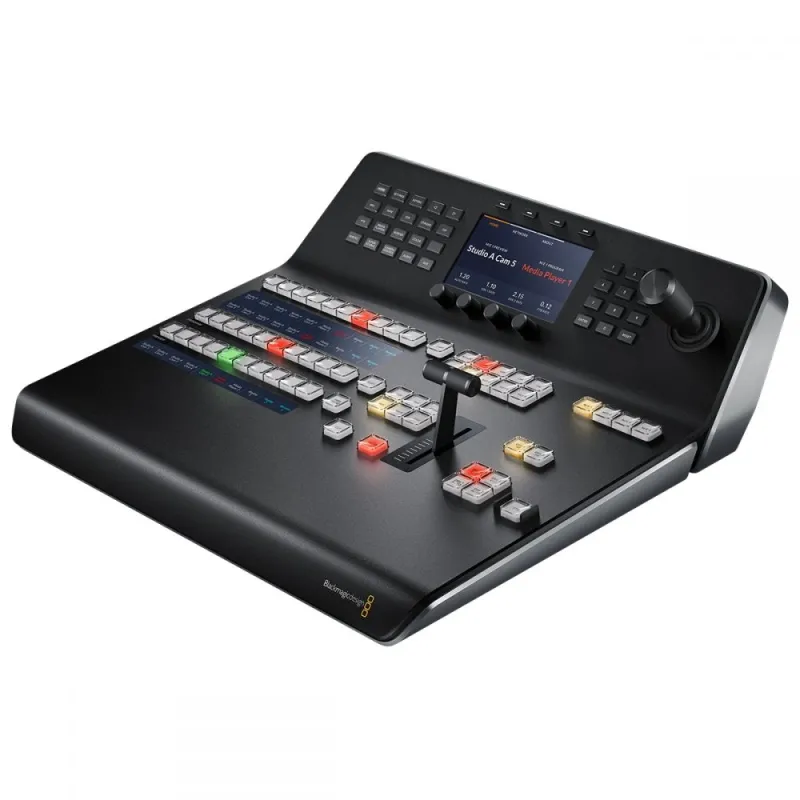

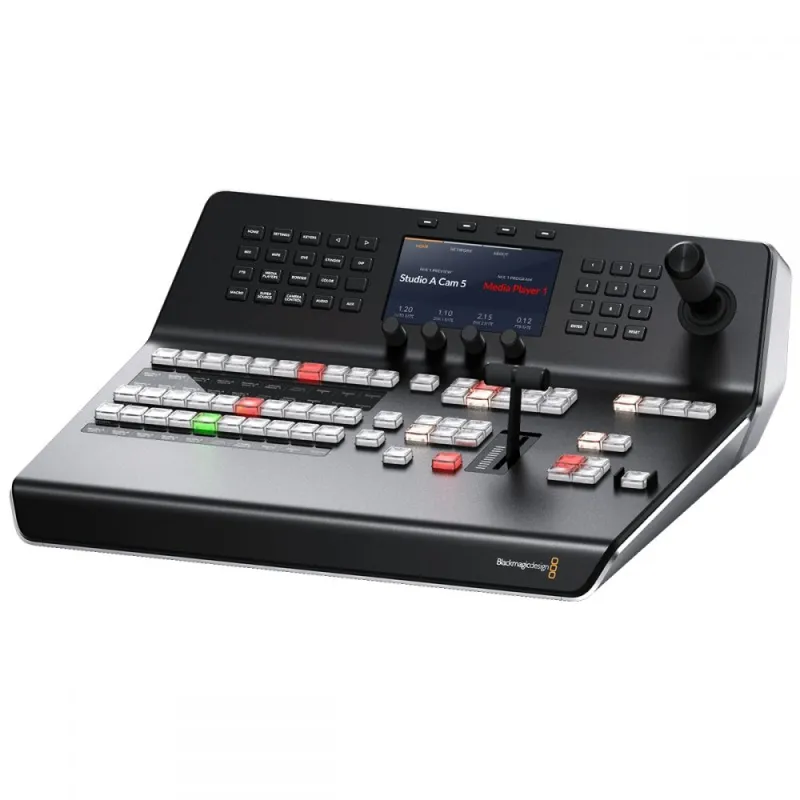

The all new ATEM 1 M/E Advanced Panel is a new elegantly designed compact hardware control panel designed to work with all ATEM switchers. The ATEM 1 M/E Advanced Panel features the latest broadcast technology, smooth professional buttons, knobs, T-Bar fader and joystick, a built in LCD and more.
The ATEM 1 M/E Advanced Panel is designed to give customers a new elegantly designed control panel that ensures precise control over their ATEM live production switcher when producing complex live television programs with multiple cameras and sources. The compact size fits in a standard equipment rack, making it perfect for use in fly away kits, outside broadcast trucks, and at live events with limited space.
The ATEM 1 M/E Advanced Panel features newly designed buttons and LCD based labels that help improve clarity and reduce incorrect key presses. The buttons have customizable color backlighting to indicate status and activity. In addition, dynamic displays are placed above and below the buttons. These provide customizable text, multi language support, and the custom label colors. The combination of button colorization and customizable text labels help customers quickly identify important keys while working on high pressure, fast paced live switched programs.
The layout of the panel has been designed with the help of professional broadcasters. The ATEM 1 M/E Advanced Panel has a new custom design T-Bar fader and buttons that are logically grouped in a familiar broadcast layout, so customers with experience using older panels can get up and running quickly. Dedicated groups of buttons are spaced apart so controls for things such as transitions, macros and keyers can be quickly located and used without the risk of accidentally hitting the wrong button. The ATEM 1 M/E Advanced Panel features a shift button that doubles the number of inputs that can be controlled from 10 to 20.
The new M/E selection buttons allow control of up to 4 independent M/Es on a single panel so customers quickly switch between and control up to 4 mix effect rows, effectively enabling total control of a 4 M/E switcher from a 1 M/E hardware panel. This makes it possible to use the ATEM 1 M/E Advanced Panel with the new ATEM 4 M/E Broadcast Studio 4K.

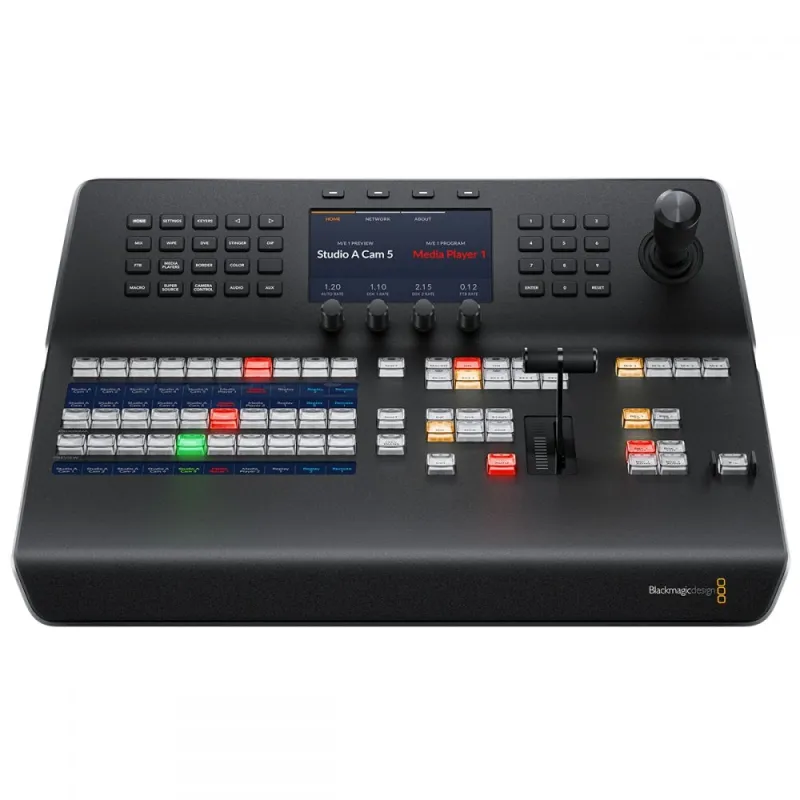

The upper section of the ATEM 1 M/E Advanced Panel features a large 5 inch LCD with 4 soft buttons and 4 soft knobs, along with a set of dedicated function buttons on the left, and a numeric keypad and professional joystick on the right. The color screen gives customers large clear labels of what’s currently on the preview and program busses. Plus, the screen automatically changes based on the current function and provides controls for quickly adjusting things such as transition rates, effects, graphics and more.
ATEM 1 M/E Advanced Panel

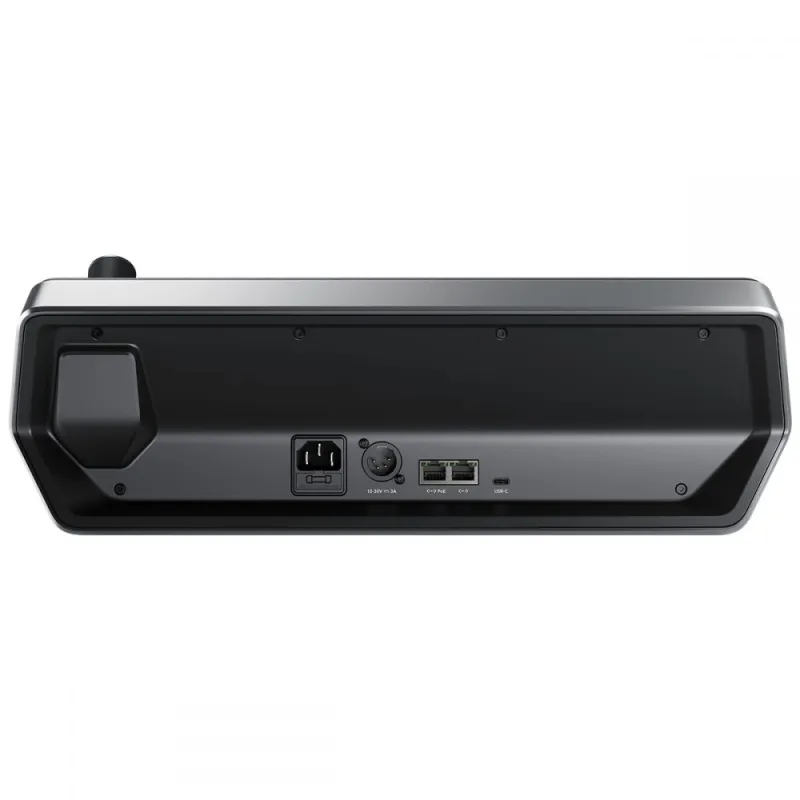

2 x 10/100/1000 BaseT with loop
output for additional control panels or computers
1 x USB-C for firmware updates
10
20
Tri-Color LED
3 rows 24 character LCD
BKG, Key 1 - Key 4.
4
None
Auto, Cut, Tie/Preview.
1
Via main menu
3
20 buttons
10
None
1
1
1
1
1
ATEM Software Control Panel.
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 and 10.
1 x Internal 100 - 240V AC.
Yes
45W
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
Up to 95%
Warranty
12 Month Limited Manufacturer's Warranty.
