SDI Program Inputs
1 x 10-bit SD/HD/Ultra HD 4K auto switching
program input from switcher, including tally information with 16 channel embedded audio.
New product

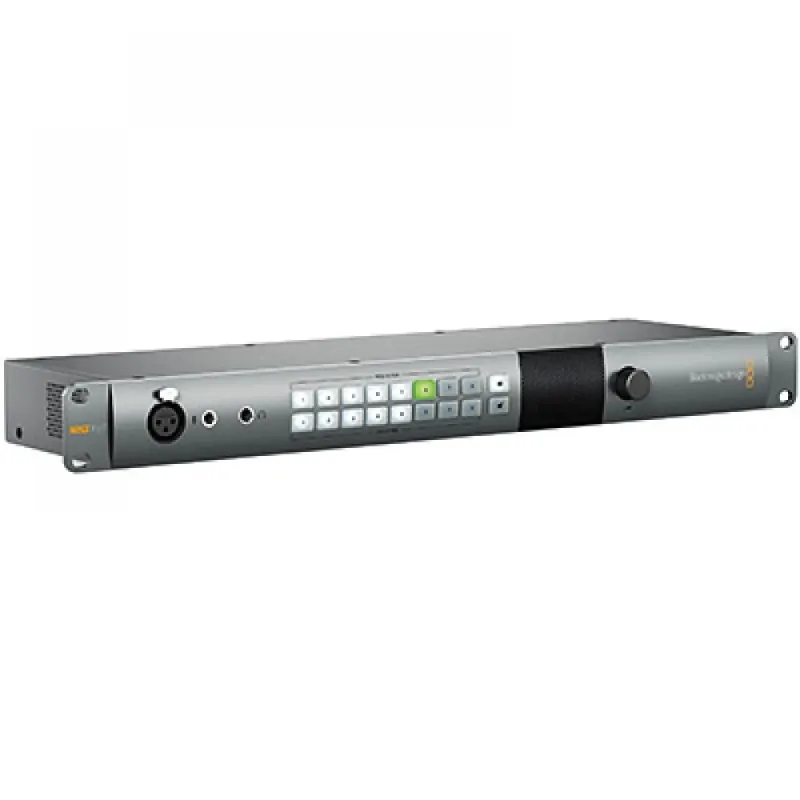

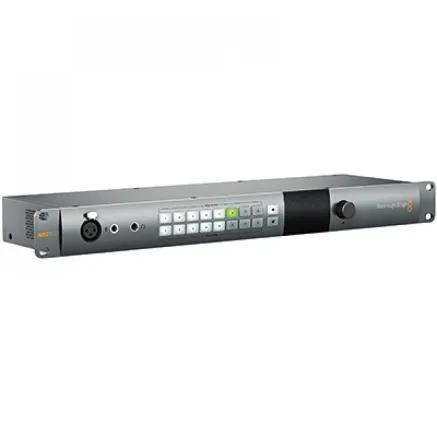

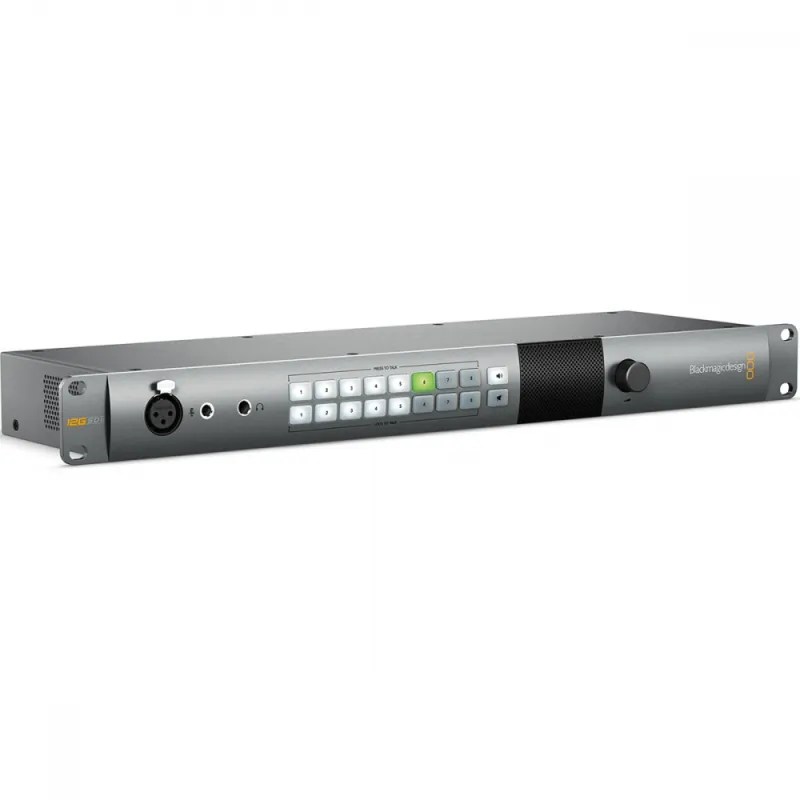

Blackmagic Design ATEM Talkback Converter 4K is a new solution for providing talkback for 8 remote cameras with advanced 12G-SDI for all video formats up to 2160p60. ATEM Talkback Converter makes it easy to communicate with multiple cameras allowing high end collaborative workflows for live production.
The ATEM Talkback Converter features advanced 12G-SDI connections and provides full bi-directional video, talkback and tally signals between the switcher and cameras such as the Blackmagic Studio Camera. The 12G-SDI connections are multi rate so they work with everything from regular HD all the way up to the latest high frame rate Ultra HD 2160p60 format.
Talkback and tally, along with video, are sent to each camera over the SDI program return. The ATEM Talkback Converter takes advantage of the 16 channel SDI audio standard and embeds the talkback into rarely used channels 15 and 16. That means customers don’t need any extra cables to add talkback and tally to their production.
Cameras can be connected via regular BNC cables, or the customer can use optional optical fiber modules that allow for placing cameras at massive distances, even miles away from the switcher without any loss of signal quality. The optional fiber optic modules are standard SMPTE SFP type and can be installed by the customer for any cameras that need the extra distance. Optic fibre cables can be custom made by electricians or can be purchased from electrical wholesalers at low cost, making optical fiber a simple and reliable way to connect cameras.
ATEM Talkback Converter 4K is the perfect solution to ensure all the production staff and camera operators stay in touch with each other and work as a unified team during live production. Live event program production usually requires cameras to be spread widely throughout large venues, sporting arenas, concert halls, or even outdoors. The ATEM Talkback Converter 4K provides talkback for up to 8 cameras, so the entire crew can stay in touch and take direction during live productions. That means directors can create better programs because they can communicate with camera operators and make sure that getting the right shot is never left to chance.

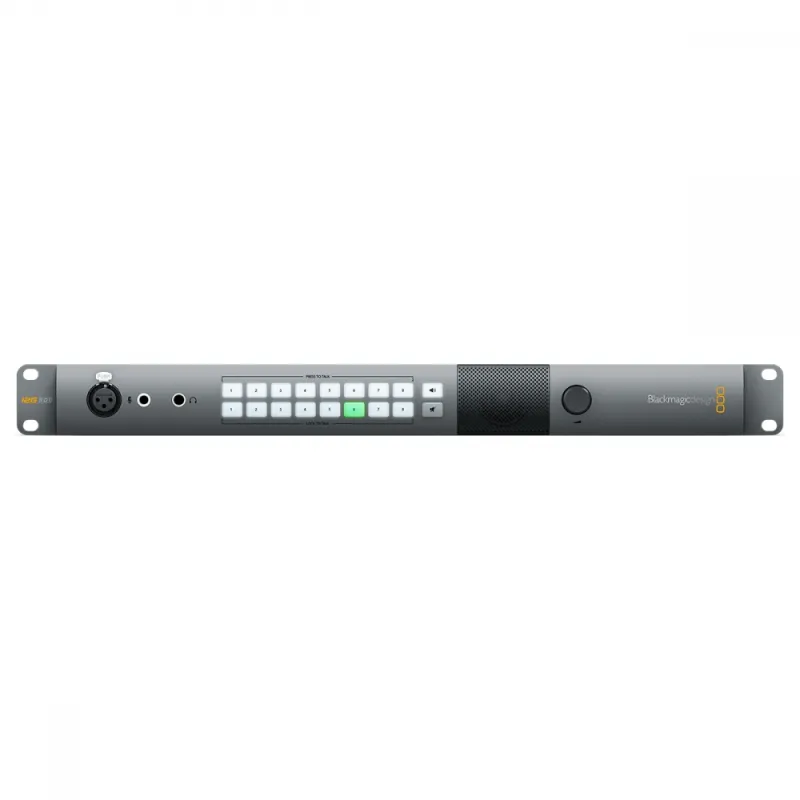

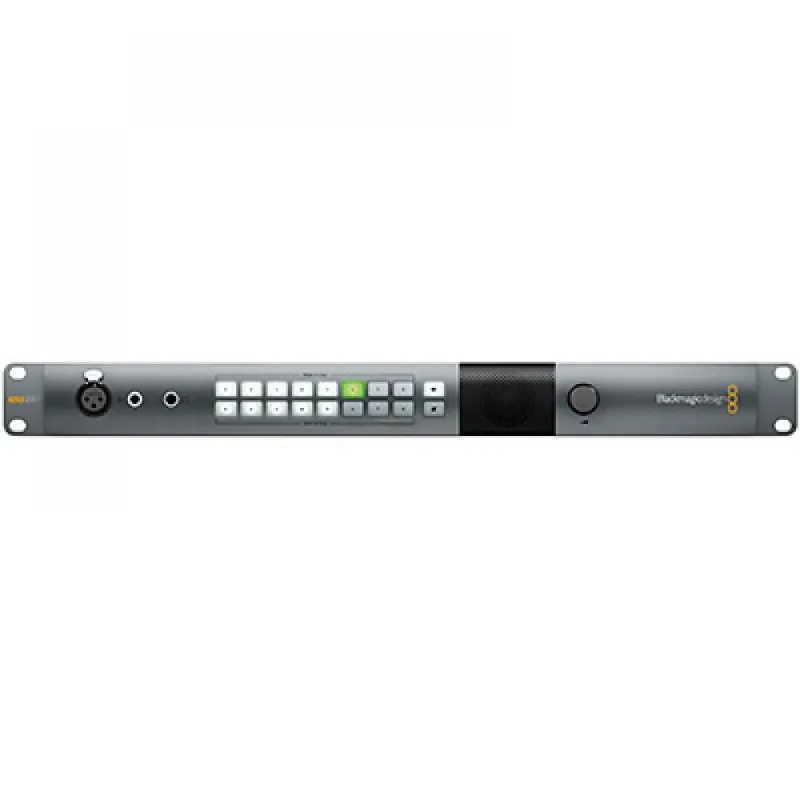

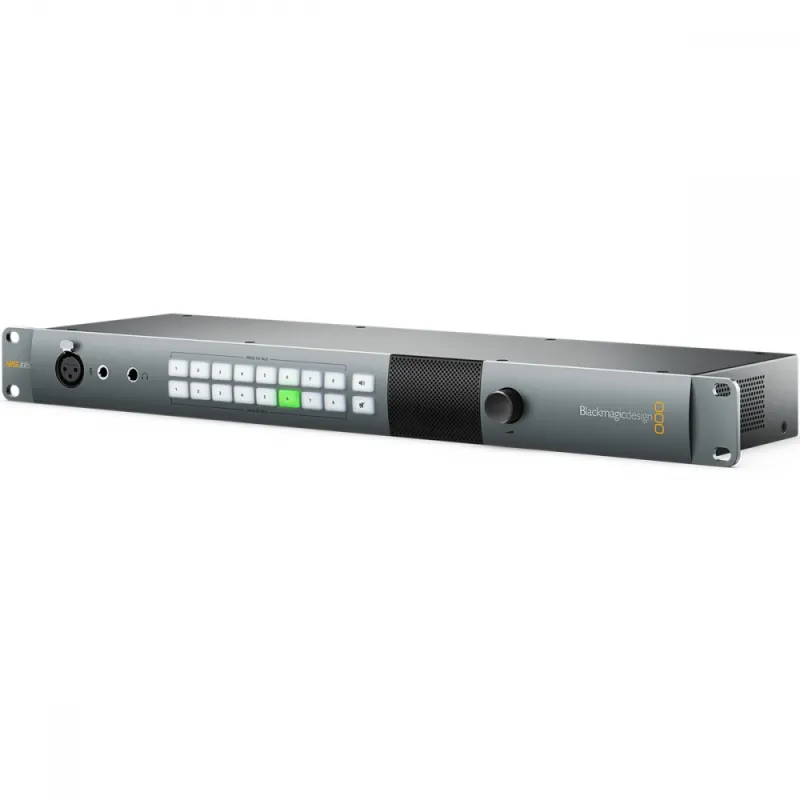

The ATEM Talkback Converter 4K includes a speaker for listening to camera operators and also includes a connection for a general aviation headsets so customers get higher quality talkback headsets with better noise canceling at a much lower cost than traditional broadcast talkback headsets. Aviation headsets range from single ear models for use in controlled, quiet studio environments all the way to full size, noise canceling headsets for use in the loudest concert and sporting venues.
For productions with more than 8 cameras, multiple ATEM Talkback Converters can be connected together so the director can be in communication with a virtually unlimited number of camera operators. The ATEM Talkback Converter is designed to work seamlessly with Blackmagic Studio Cameras.

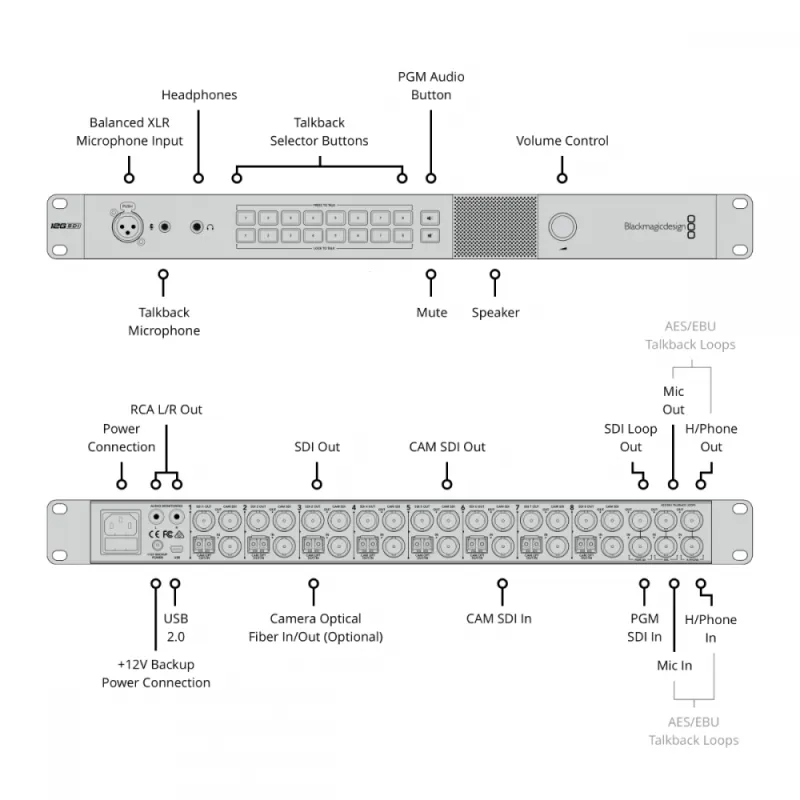

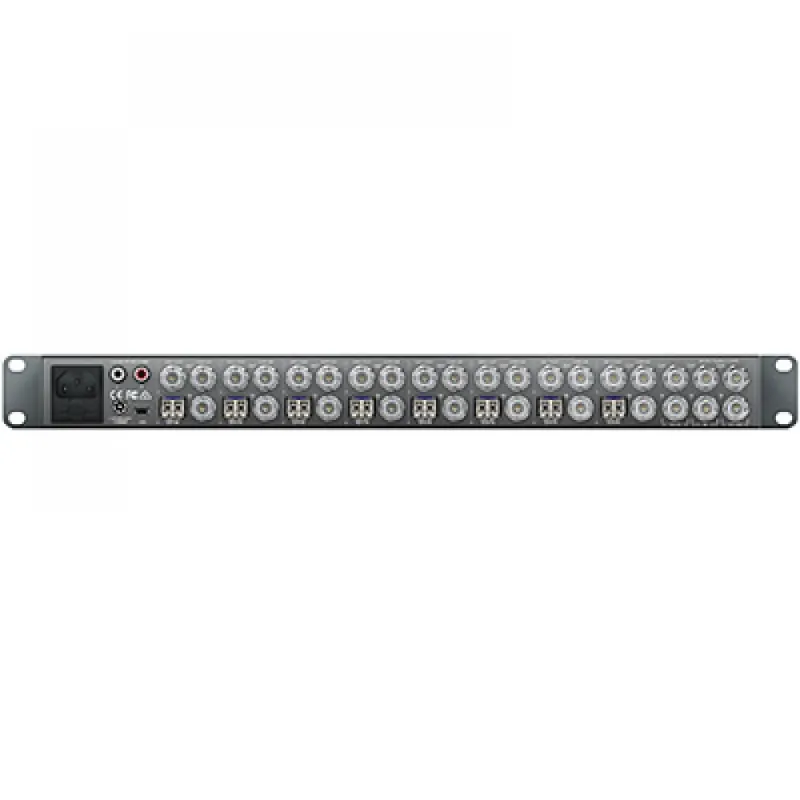

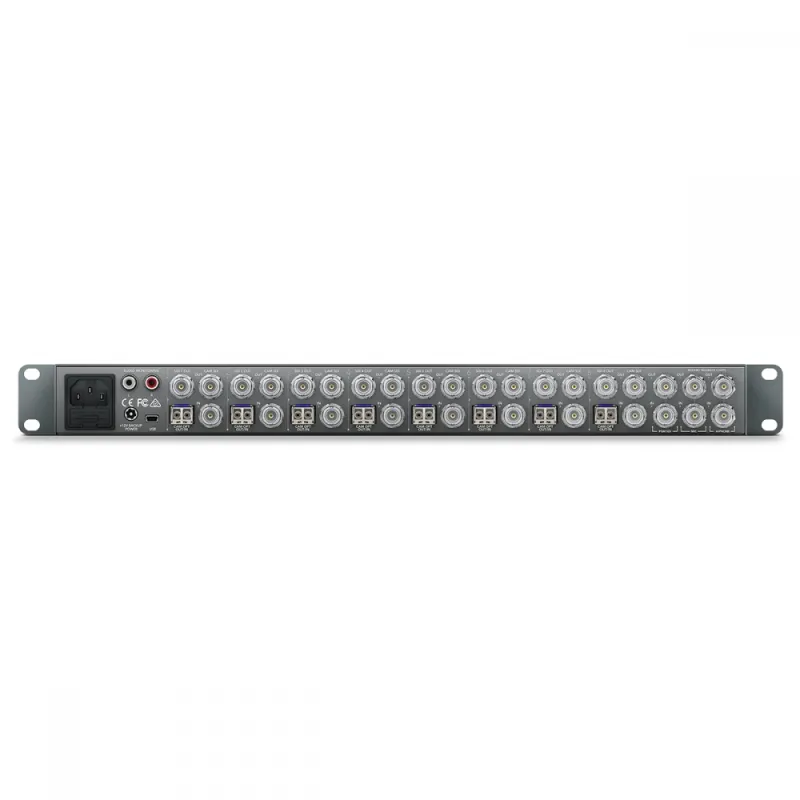

ATEM Talkback Converter 4K Key Features
1 x 10-bit SD/HD/Ultra HD 4K auto switching
program input from switcher, including tally information with 16 channel embedded audio.
1 x 10-bit SD/HD/Ultra HD 4K auto switching
program loop thru output connects to another
ATEM Talkback Converter 4K.
Aviation Headsets with 0.25" TRS headset
connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector.
1 x stereo RCA monitoring output.
8 x 10-bit SD/HD/Ultra HD 4K auto
switching 16 channel embedded audio.
8 x 10-bit SD/HD/Ultra HD 4K auto
switching 16 channel embedded audio.
8 x 10-bit SD/HD/Ultra HD 4K auto
switching 16 channel embedded audio.
8 x single mode SD/HD/Ultra HD 4K auto
switching camera inputs with LC connector.
8 x single mode SD/HD/Ultra HD 4K auto
switching camera outputs with LC connector.
8 x single mode camera audio inputs with
LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.
8 x single mode camera audio outputs with
LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.
1 x mini-B type USB connector for firmware updates.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
2160p23.98, 2160p24, 2160p25, 2160p29.97,
2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p,
4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 60p
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B, SMPTE 425M.
Television standard sample rate of 48Khz,
24-bit A/D conversion.
4:2:2, 4:4:4
10-bit
REC 601, REC 709.
SDI switches between SD, HD and Ultra HD 4K.
Via included updater application.
Mac 10.11 El Capitan,
Mac 10.12 Sierra or later.
Windows 8.1 and 10.
100 - 240V AC input with redundant 12 - 31V DC input.
60 Watts

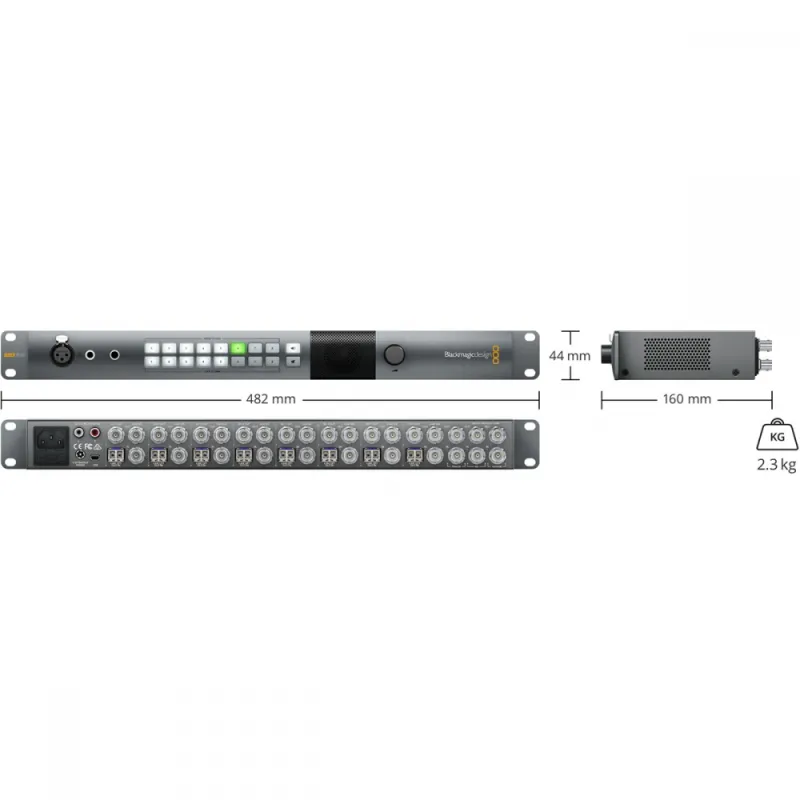

1 rack unit size. Less than 6 inches deep.
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
ATEM Talkback Converter 4K
SD card with software and manual
3 Year Limited Manufacturer's Warranty.
Excluding connectors, cables, cooling fans, fiber optic modules, fuses and keyboards which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase.
