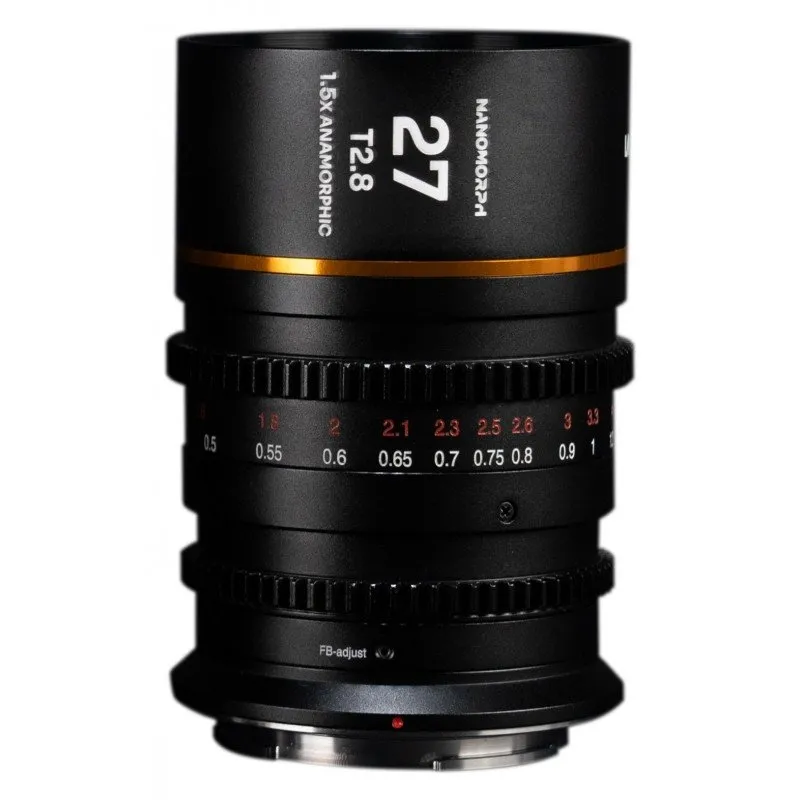

Venus Optics Laowa Nanomorph 27mm T2.8 1.5X S35 Amber lens for Sony E

Description

The Nanomorph 27 mm T2.8 1.5X S35 is the widest representative of the innovative anamorphic film lens series from Venus Optics Laowa. The model presented here is compatible with cameras and camcorders equipped with the Sony E mount. It is the world’s smallest anamorphic lens to cover the Super 35 sensor and offers a 1.5x horizontal image compression ratio to achieve a 2.4:1 aspect ratio on the popular 16:9 sensor. The close minimum focus distance of 43cm will open up completely new possibilities for image creation, as well as allowing a greater depth of field. The lens will also allow you to create striking cross flares and artistic oval bokeh known from Hollywood productions. The Amber variant offers an amber shade of flare.

Main product features

• Innovative 27mm anamorphic lens
• Compatible with Sony E-mount cameras
• Innovative optical design patented by Venus Optics Laowa
• Created specifically with filmmakers and videographers in mind
• enables the creation of unique frames with a distinctive Hollywood look
• Relative luminosity of T/2.8
• minimum focus distance of 43 cm
• compact and ultra-lightweight (9 cm long and 313 g in weight)
• Produces striking cross flares and artistic oval bokeh
• enables a horizontal image compression ratio of 1.5 x for all focus points
• enables a 2.4:1 aspect ratio on the popular 16:9 matrix
• optical system consisting of 15 elements in 13 groups
• enables an amber tone flare
• enables mounting of filters and accessories with a diameter of 55 mm
• focus and aperture rings equipped with gears compatible with follow focus systems (0.8 MOD)

This is called the “film look”!

With the Venus Optics Laowa Nanomorph 27 mm T2.8 1.5X S35 Amber anamorphic lens, your Sony E-mount mirrorless camera will capture unique frames with a distinctive look straight out of a high-budget movie. With its help you will achieve an aspect ratio of 2.4:1 on the popular 16:9 sensor. The anamorphic lens will also allow you to achieve artistic oval bokeh and striking cross flares known from high-budget Hollywood productions.

Patented anamorphic construction

The Venus Optics Laowa Nanomorph 27mm T2.8 1.5X S35 Amber lens for Sony E offers an innovative optical system design (15 elements in 13 groups) that provides excellent image quality while maintaining a compact size and attractive price. A horizontal image compression ratio of 1.5 x for all focusing points enables the Super 35 format, so you will impress your audience with an impressive extended field of view.

Small dimensions – new possibilities

The name Nanomorph is no accident. The designers at Venus Optics Laowa have created the world’s smallest line of anamorphic lenses. No more heavy and bulky devices. The Venus Optics Laowa Nanomorph 27 mm T2.8 1.5X S35 Amber for Sony E weighs just 313 grams. Its length is 9 cm. Such parameters will not only work successfully when filming from a tripod and handheld, but also in combination with gimbals, sliders and drones.

Amber flare

The Nanomorph series lenses are available in 3 different variants: Silver (silver), Amber (amber) and Blue (blue). You will recognise them by the colour of the distinctive ring located on the barrel. Each variant offers a different shade of flare generated. The model presented here is the amber colour. Thanks to it, horizontal flares created in point light sources will gain a striking warm shade.

Get closer!

Limitations due to the specific optical design mean that the focusing distance of popular anamorphic lenses can sometimes be longer than that of traditional ones. The Nanomorph series also excels in this field. The unique lenses from Venus Optics Laowa offer some of the shortest minimum focusing distances in the world of anamorphic optics! The Nanomorph 27 mm T2.8 1.5X S35 Amber for Sony E only needs 43 cm to catch focus. Larger zooms mean less depth of field and even more beautiful bokeh!

The ideal choice for filmmakers

The Venus Optics Laowa Nanomorph 27 mm T2.8 1.5X S35 Amber lens for the Sony E was developed specifically with video makers in mind. The focus and aperture rings are equipped with 0.8 MOD gears, which are compatible with popular follow focus systems. Their unified position on each lens in the Nanomorph series will enable quick glass changes without the need to readjust settings. The included 0.9mm allen spanner will also allow you to conveniently tune the Back Focus (BF) for optimum scale compatibility when working with different cameras or camcorders.

Specification

• model: Venus Optics Laowa Nanomorph 27 mm T2.8 1.5X S35 Amber for Sony E
• mount: Sony E
• focal length: 27 mm
• image coverage: Super 35
• horizontal image compression ratio: 1.5 x
• minimum aperture: T/2.8
• maximum aperture: T/16
• optical construction: 15 elements in 13 groups
• Angle of view (AoV):
  • horizontal: 70.8º
  • vertical: 33º
• number of aperture blades: 13
• minimum focusing distance: 43 cm
• imaging field: 25.6 x 16 mm
• front lens diameter: Ø58 mm
• filter mount: 55 mm
• variant of flare generated: amber
• dimensions: Ø60 x 90 mm
• weight: 313 g

Kit contents

• Venus Optics Laowa Nanomorph 27 mm T2.8 1.5X S35 Amber lens for Sony E
• decal for the front of the lens
• decal for the back of the lens
• Allen wrench
