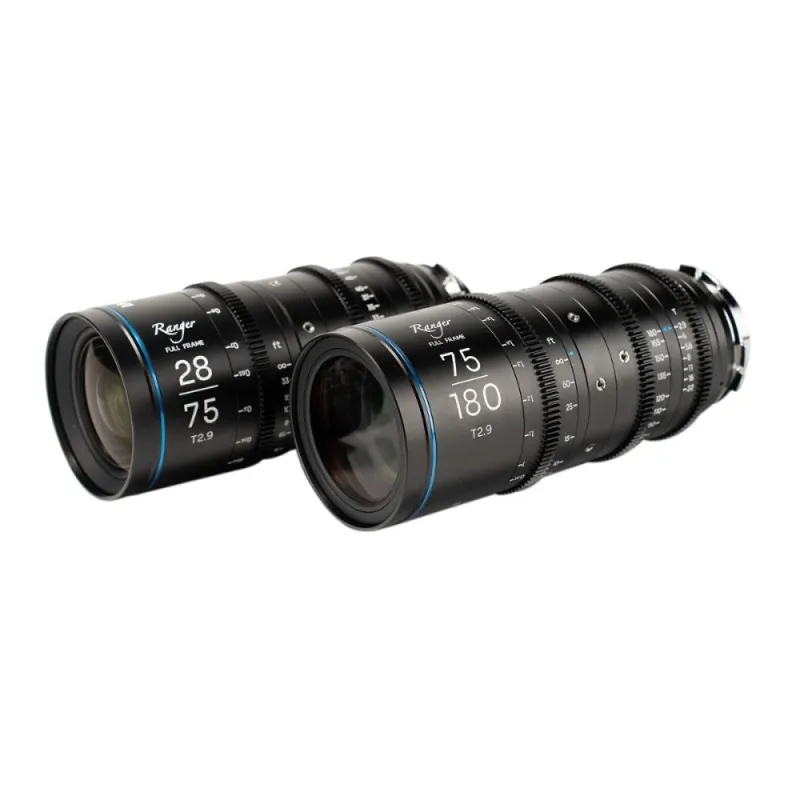

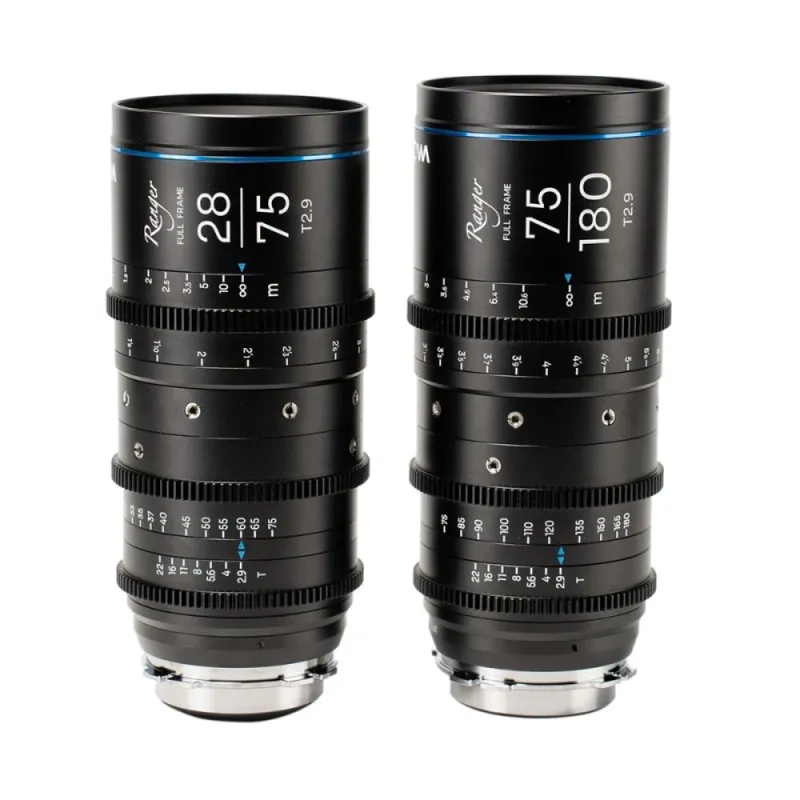

LAOWA Ranger Lenses 28-75mm/75-180mm T2.9 PL/EF
The LAOWA Ranger 28-75mm T2.9 FF Cine and the LAOWA Ranger 75-180mm T2.9 FF Cine in a bundle combine exceptional functions and unrivaled performance. It has a wide zoom range, which is very popular among filmmakers. Weighing only around 1.4kg, such a cine zoom lens is incredibly light, allowing filmmakers to effortlessly create breathtaking shots with exquisite details. Filmmakers can enjoy the convenience of the parfocal design as it ensures precise focus control when zooming in and out. The close focus distance of 0.49m or 0.89cm enables captivating detailed shots. At the same time, the focus transition is virtually without focus breathing. The optics are housed in a professional cine housing and have an integrated flange focus adjustment system, allowing for smooth and reliable shooting. This makes them extremely user-friendly tools for producing cinematic works.
If parfocality is the essential feature of a good zoom lens, the Rangers ensure precise sharpness with their excellent parfocal design. Feel free to zoom in and out, knowing your subject will remain sharp and in focus, allowing you to create seamless, uninterrupted shots. Experience the fascinating beauty of soft bokeh thanks to the 11 aperture blades, which ensure smooth edges of the round bokeh when the aperture is wide open. Thanks to their high optical performance, the lenses deliver exceptional image quality and natural color reproduction. No matter what aperture you use, they deliver sharpness, contrast and accurate color reproduction so you can capture stunning images every time.
The Rangers are equipped with a PL connector and an interchangeable EF bayonet, making them compatible with a wide range of cameras. Additionally, additional RF/E/Z/L mirrorless interchangeable mounts are available as accessories to suit filmmakers with a wide range of cameras.
The Ranger series is an exciting, straightforward lens system with all the desirable optical performance. All Rangers have an integrated back focus adjustment system, eliminating the need for a multiple adjustment process. It is practical and easy for the filmmaker to use 77mm screw-in filters directly on the filter thread. On all Ranger lenses, the continuously variable aperture and focus rings are equipped with standardized module 0.8 toothed rings to work with follow focus. The focus scale is displayed in metric and feet.
Ranger 28-75mm T2.9 FF Cine | Ranger 75-180mm T2.9 FF Cine | |
focal length | 28-75mm | 75-180mm |
image angle | 75,4 - 32,2° | 32,2-13,7° |
Image circle | 43,2mm | 43,2mm |
Sensor type | fullformat | fullformat |
Maximum aperture | T2.9 | T2.9 |
Minimum aperture | T22 | T22 |
Image scale | 1:4,3 | 1:4,6 |
Zoom factor | 2,7X | 2,4X |
Aperture blades | 11 | 11 |
Aperture setting | manual | manual |
Aperture ring | infinte variable | infinite variable |
Optical structure | 22 units in 18 groups | 14 units in 14 Groups |
Back-to-back dimension | PL: 52mm / EF: 44mm | 52mm / EF: 44mm |
Focus rotation angle | 270° | 270° |
Aperture rotation angle | 42° | 42° |
Zoom rotation angle | 100° | 100° |
Focus scale | metric | metric |
Focusing | manual | manual |
Follow the focus tilt | 0,8mm | 0,8mm |
Close focusing limit | 49cm | 89cm |
Filter thread | 77mm | 77mm |
Case material | Metall | Metall |
Dimensions (DxL) | 80 x 179,3mm | 80 x 189,5mm |
Weight | ca. 1,4kg | ca. 1,4kg |
Connection | PL (EF) | PL (EF) |
Features:
- Full format
- 1.4kg light and compact
- Large and versatile zoom range
- Constant T2.9 aperture
- Parfocal construction
- extremely short close focusing distances
- Soft, round bokeh
- Very high optical performance
- Very low focus breathing
- Interchangeable PL/EF connector

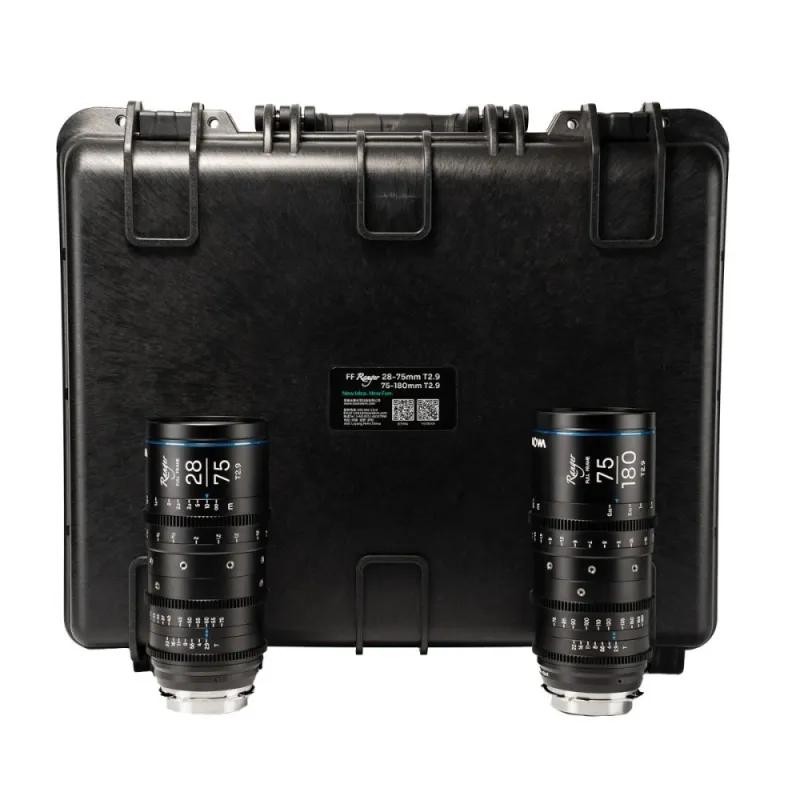

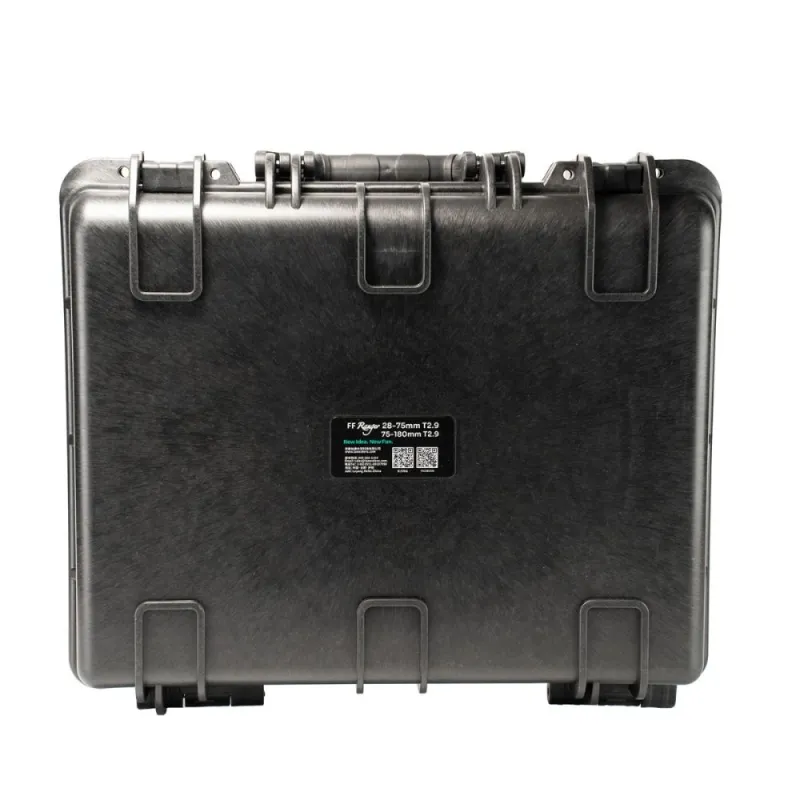

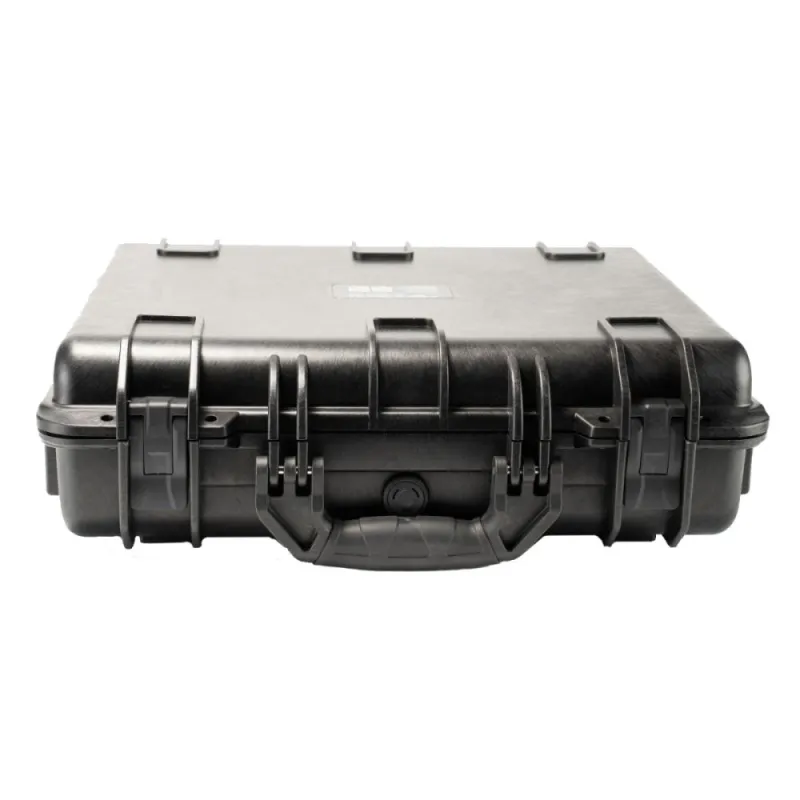

- Professional cine case
- Interchangeable bayonet as an accessory

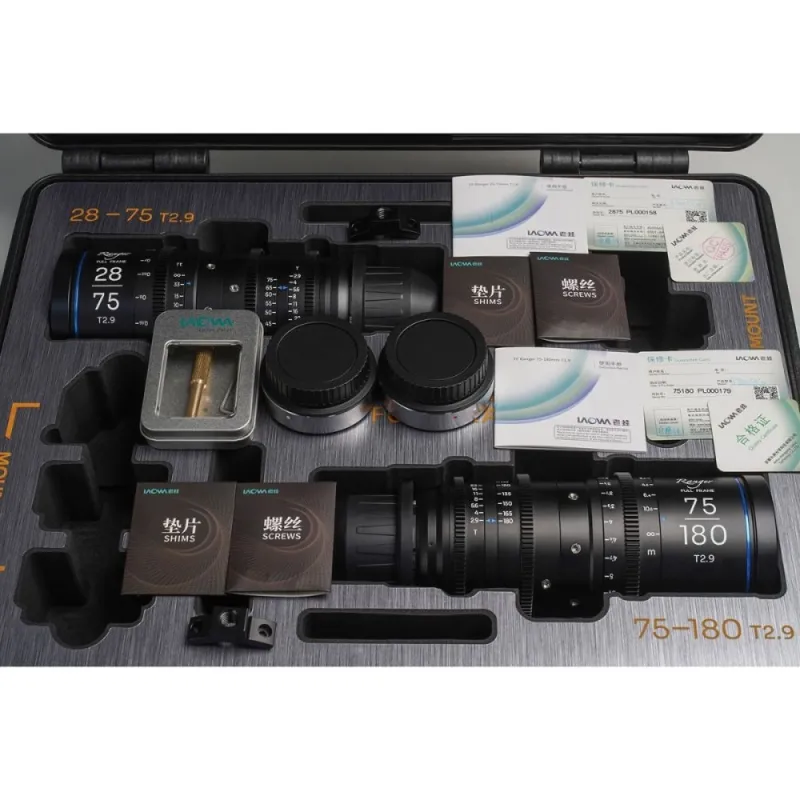

Content of delivery:
Lens mount | Arri PL/Canon EF |
Lens Design | Zoom Lenses |
Lens type | Lens Kit |
Maximum Aperture | T2.9 |
