Venus Optics Laowa Nanomorph 27mm, 35mm, 50mm S35 Silver lens kit for Arri

Description

The Laowa Nanomorph lens kit was created specifically for filmmakers and video makers. You will combine the models available in this package with dozens of cameras and camcorders equipped with Arri PL or Canon EF mounts. The kit includes 3 Nanomorph Series lenses (27mm T2.8 1.5X S35 Silver, 35mm T2.4 1.5X S35 Silver, 50mm T2.4 1.5X S35 Silver), interchangeable bayonets and a sealed carrying case. The lenses offer a horizontal image compression ratio of 1.5X, allowing for a 2.4:1 aspect ratio on a 16:9 sensor. They are the world’s smallest anamorphic lenses covering the Super 35 sensor, allowing you to create striking cross-flares and artistic oval bokeh known from Hollywood productions. The Silver variant offers a silver tone of flare, close to neutral white.

Main Product Features

• set of 3 innovative anamorphic film lenses
• compatible with cameras equipped with Arri PL mount and Canon EF mount
• interchangeable bayonets (Arri PL and Canon EF) for each lens
• included 3 Nanomorph Series lenses: 27mm T2.8 1.5X S35 Silver, 35mm T2.4 1.5X S35 Silver, 50mm T2.4 1.5X S35 Silver
• Innovative optical design patented by Venus Optics Laowa
• Created specifically with filmmakers and video makers in mind
• enable you to create unique frames with a distinctive look straight out of Hollywood productions
• the optical system of each lens consists of 15 elements in 13 groups
• enable to achieve striking cross flares and artistic oval bokeh
• high horizontal image compression ratio of 1.5 x for all focus points
• enable a 2.4:1 aspect ratio on the popular 16:9 matrix
• enable a silver flare tint, similar to neutral white
• focus and aperture rings equipped with gears compatible with follow focus systems (0.8 MOD)
• 77mm diameter threads for convenient filter mounting
• decks on the front and back of the lenses to protect the lenses
• included sealed carrying case

Unique “film look”

Venus Optics Laowa Nanomorph anamorphic lenses will make your Arri PL or Canon EF mount camera or camcorder capture unique frames with a distinctive look straight out of high-budget movies. They will give you a 2.4:1 aspect ratio on the popular 16:9 sensor. Anamorphic lenses will also allow you to achieve artistic oval bokeh and striking cross-flares known from high-budget Hollywood productions.

One lens, two mounts

Do you film with different types of cameras and camcorders? Don’t want to spend money on expensive adapters? The presented lenses will allow you to work with both devices equipped with Arri PL mount and Canon EF mount. All thanks to the interchangeable bayonets you will find in the set. All you have to do is choose the right mount and connect it to the lens with sturdy screws. The Nanomorph with your chosen mounting system will be ready to work with your camera or camcorder in a matter of moments!

Anamorphic design

Each of the lenses included in the Venus Optics Laowa Nanomorph 27mm, 35mm, 50mm S35 Silver to Arri PL/Canon EF kit lens offers an innovative optical system design (15 elements in 13 groups) that provides excellent image quality while maintaining a compact size and attractive price. The horizontal image compression ratio of 1.5 x for all focusing points enables the Super 35 format, so you’ll delight your viewers with an impressive extended field of view.

Silver flare

Nanomorph series lenses are available in 3 different variants: Silver (silver), Amber (amber) and Blue (blue). You will recognize them by the color of the distinctive ring located on the barrel. Each variant offers a different shade of flare generated. The models available in this package are silver color, close to neutral white. This is an extremely versatile solution, especially if you are working with different types of film productions. The flares will be more neutral, subtle, and less diffuse compared to those offered by the Blue and Amber credited models.

Compact dimensions

The name Nanomorph is no accident. Venus Optics Laowa designers have created the world’s smallest line of anamorphic lenses. No more heavy and bulky devices. Glasses included in the presented set are ultralight, and their length does not exceed 7.5 cm. Such parameters will successfully work not only when filming from a tripod and handheld, but also in combination with gimbals, sliders and drones.

Get closer!

Limitations due to specific optical design mean that the focus distance of popular anamorphic lenses can sometimes be longer than that of traditional ones. The Nanomorph series stands out in this field as well. The unique lenses from Venus Optics Laowa offer some of the shortest minimum focusing distances in the world of anamorphic optics! Greater zoom means less depth of field and even more beautiful bokeh!

Ideal choice for filmmakers

Venus Optics Laowa Nanomorph 27mm, 35mm, 50mm S35 Silver lens kit for Arri PL/Canon EF was created specifically for video makers. The focus and aperture rings are equipped with 0.8 MOD gears, which are compatible with popular follow focus systems. Their unified position on each lens in the Nanomorph series will allow you to change glass quickly, without having to readjust settings. The included 0.9mm Allen wrench will also allow you to conveniently tune the Back Focus (BF) for optimal scale compatibility when working with different cameras or camcorders.

Saving money

You can also buy all the lenses that are included in the Venus Optics Laowa Nanomorph 27mm, 35mm, 50mm S35 Silver for Arri PL/Canon EF kit separately. However, keep in mind that you will save a lot of money by choosing this unique package of versatile film lenses. A big advantage of the set is also a special case, in which you can fit up to 5 lenses.

Convenient and safe transport

The Venus Optics Laowa Nanomorph kit could not miss a special transport case. It is equipped with sturdy latches, as well as two holes for securing the contents with padlocks (to be purchased separately). The precision-cut compartments will accommodate all three lenses included in the kit, as well as interchangeable bayonets. Additional compartments will allow you to store more lenses from the Nanomorph series, which will soon be offered by the Venus Optics Laowa brand.

Specification

• Model: Venus Optics Laowa Nanomorph 27mm, 35mm, 50mm S35 Silver lens kit for Arri PL/Canon EF

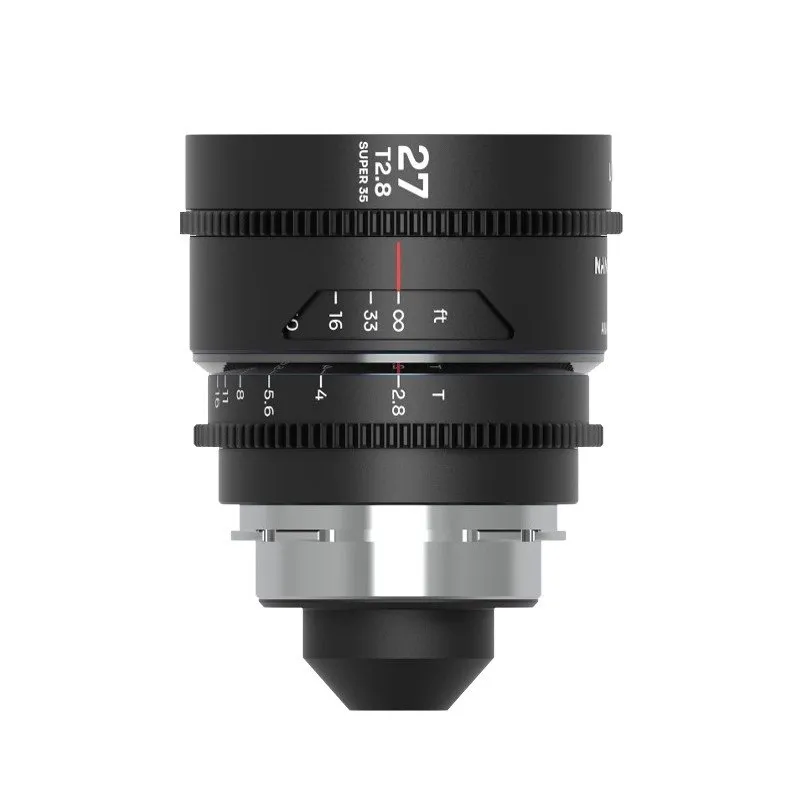

• Venus Optics Laowa Nanomorph 27 mm T2.8 1.5X S35 Silver lens for Arri PL/Canon EF
  • Mount: Arri PL / Canon EF (2 interchangeable bayonets included)
  • focal length: 27mm
  • image coverage: Super 35
  • horizontal image compression ratio: 1.5 x
  • minimum aperture: T/2.8
  • maximum aperture: T/16
  • optical design: 15 elements in 13 groups
  • angle of view (AoV):
    • horizontal: 70.8º
    • vertical: 33º
  • number of aperture blades: 13
  • minimum focusing distance: 43 cm
  • imaging field: 25.6 x 16 mm
  • front lens diameter: Ø80 mm
  • filter mount: 77 mm
  • variant of flare generated: silver
  • dimensions: Ø84 x 67 mm
  • weight: 490 g

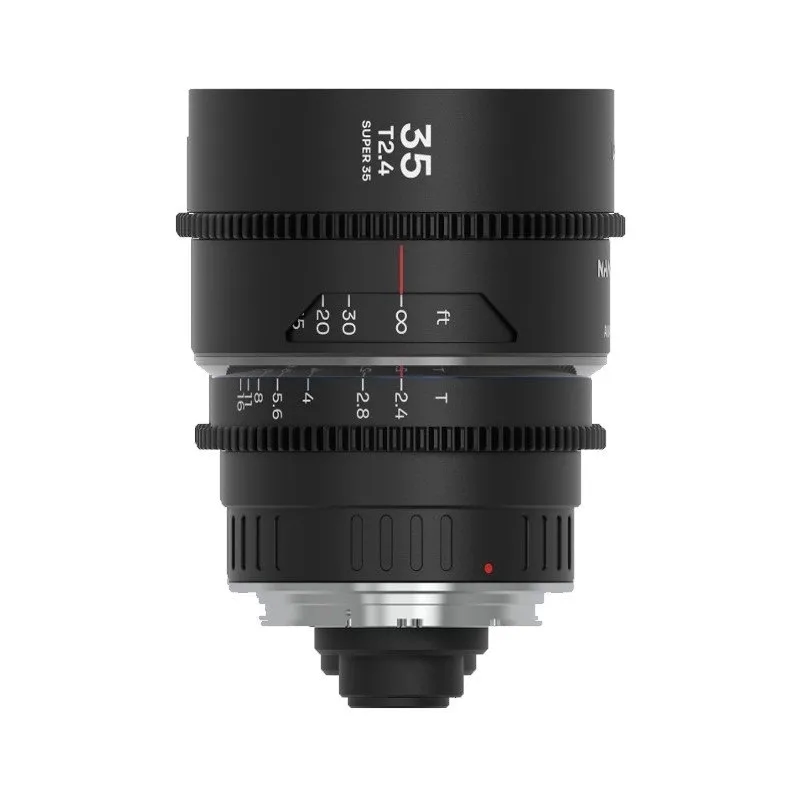

• Venus Optics Laowa Nanomorph 35mm T2.4 1.5X S35 Silver lens for Arri PL / Canon EF
  • Mount: Arri PL / Canon EF (2 interchangeable bayonets included)
  • focal length: 35mm
  • image coverage: Super 35
  • horizontal image compression ratio: 1.5 x
  • minimum aperture: T/2.4
  • maximum aperture: T/16
  • optical design: 15 elements in 13 groups
  • Angle of view (AoV):
    • horizontal: 57º
    • vertical: 25.8º
  • number of aperture blades: 13
  • minimum focusing distance: 60 cm
  • imaging field: 25.6 x 16 mm
  • front lens diameter: Ø80 mm
  • filter mount: 77 mm
  • variant of flare generated: silver
  • dimensions: Ø84 x 75 mm
  • weight: 520 g

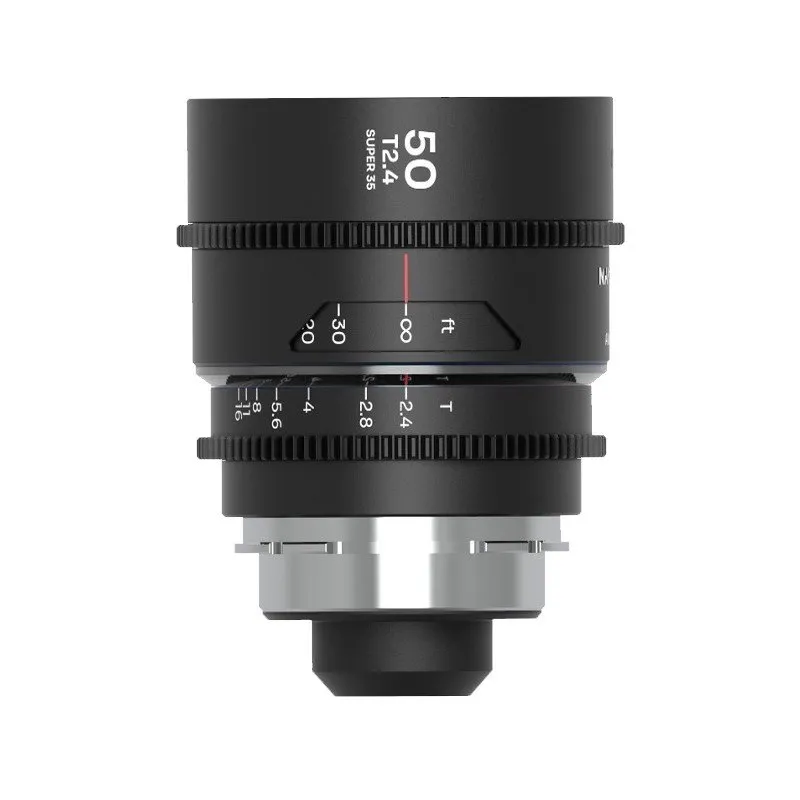

• Venus Optics Laowa Nanomorph 50 mm T2.4 1.5X S35 Silver lens for Arri PL / Canon EF
  • Mount: Arri PL / Canon EF (2 interchangeable bayonets included)
  • focal length: 50mm
  • image coverage: Super 35
  • horizontal image compression ratio: 1.5 x
  • minimum aperture: T/2.4
  • maximum aperture: T/16
  • optical design: 15 elements in 13 groups
  • Angle of view (AoV):
    • horizontal: 42º
    • vertical: 18.2º
  • number of aperture blades: 13
  • minimum focusing distance: 70 cm
  • imaging field: 25.6 x 16 mm
  • front lens diameter: Ø80 mm
  • filter mount: 77 mm
  • variant of flare generated: silver
  • dimensions: Ø84 x 75 mm
  • weight: 550 g

Set contents

• Venus Optics Laowa Nanomorph 27 mm T2.8 1.5X S35 Silver lens for Arri PL/Canon EF
• Venus Optics Laowa Nanomorph 35 mm T2.4 1.5X S35 Silver lens for Arri PL / Canon EF
• Venus Optics Laowa Nanomorph 50 mm T2.4 1.5X S35 Silver lens for Arri PL / Canon EF
• Tight carrying case with room for 5 lenses and 5 interchangeable bayonets
• a set of front and back covers for each of the 3 lenses
• set of keys
