Audio cables, adapters - Canare L-2T2S microphone cable 6,0mm, XLR (M) / XLR (F) 10m, BLK CA-2TS-M/F-BLK-10 - quick order from manufacturer

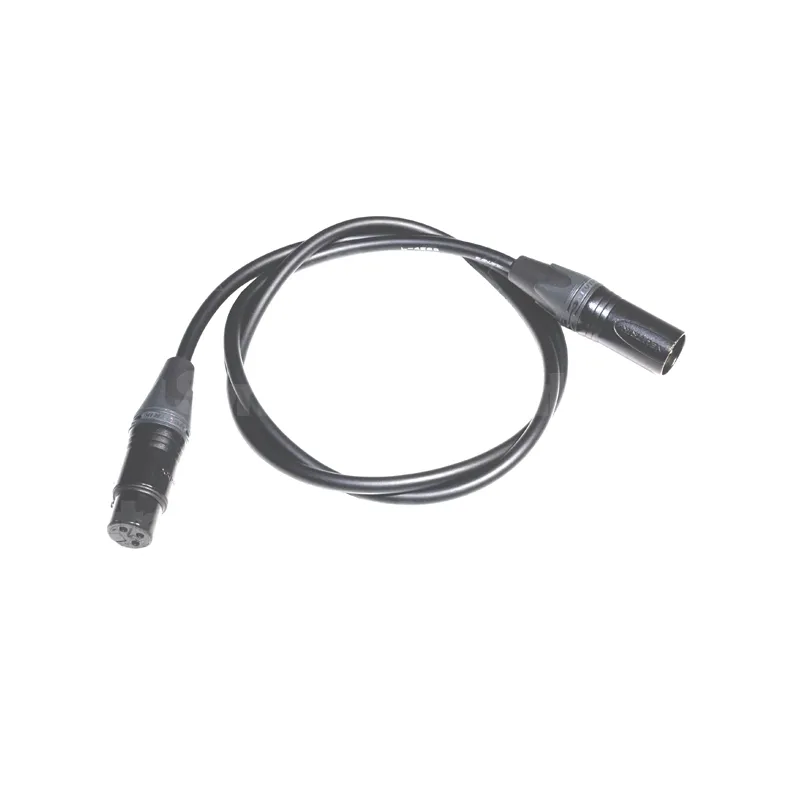

Canare L-2T2S microphone cable 6,0mm, XLR (M) / XLR (F) 10m, BLK CA-2TS-M/F-BLK-10

Rated 3.8/5 based on 1 customer reviews

3745 tax incl.

In Stock
1 Item , in store, 39 F.Sadovnikova str.

7598
CA-2TS-M/F-BLK-10
0000000000000
Canare

New product

Delivery Instore
25.11.2024
Pickup in store
Free
Delivery Postbox
26.11.2024
Postbox (Omniva, DPD, Venipak)
from 3 €
Delivery
26.11.2024
Courier (Omniva, DPD)
from 10 €
Delivery Bycicle
25.11.2024
Bike delivery (in Riga only)
from 7 €

XLR (M)/XLR (F) microphone interconnect cable. Cable made to order from high quality cable from Japanese manufacturer Canare and Neutrikconnectors .

Canare XLR-M to XLR-F

is a symmetrical microphone audio interconnect cable.

Audio cable assembled from Canare L-2T2S high quality two wire microphone cable with 6.0mmdiameter jacket .

Cable features:

  • Copper braided shielding
  • Flexible even in extremely cold weather
  • Cross-linked PE (polyethylene) insulation
  • Minimized handling noise
  • EMI (electromagnetic interference) and RFI (radio frequency interference) suppressed

Specifications:

  • Standard manufactured lengths in (m): 100/200
  • Cable weight in kg/100m: 4.6
  • Sheath diameter (overall diameter) in mm:6.0
  • AWG: 23
  • Material and thickness of outer insulation in (mm):PVC (1.00)
  • Breaking point in (C):-49
  • Number and colour of conductors:2 / 1 x blue, 1 x white
  • Number and diameter of cores per conductor in mm: 60/0,08
  • Shielding factor:>94%
  • Conductor resistance in 100m: <6.4
  • Shielding resistance in /100m: <3.1
  • Capacitance between blue and white conductors in pF/m:70
  • Capacitance between conductors and shield in pF/m:106
  • Impedance in : 88


Technical specifications of Neutrik XX-B connectors:

  • Capacitance: 4 pF
  • Contact resistance: 3 m
  • Rated voltage 1min:1.5 kVdc
  • Insulation resistance:> 10 G
  • Rated current per 1 contact:16 A
  • Rated voltage:50 V
  • Cable diameter: 3.5 - 8.0 mm
  • Force required to connect connectors: 20 N
  • Force required to disconnect connectors: 20 N
  • Lifetime:> 1000 connection cycles
  • Conductor: max. 2.5 mm, max. 14 AWG
  • Soldering
  • Cable cap:Polyurethane
  • Contact surface treatment:0.2 m Au layer on 2 m Ni
  • Contact material:Bronze (CuSn8)
  • Polyamide (PA 6.6 30% GR)
  • Lock:Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body:Zinc diecast (ZnAl4Cu1)
  • Connector body finish:black chrome
Type of ProductAudio Cable
ConnectionsXLR to XLR
ColorBlack
Lenght, m10
