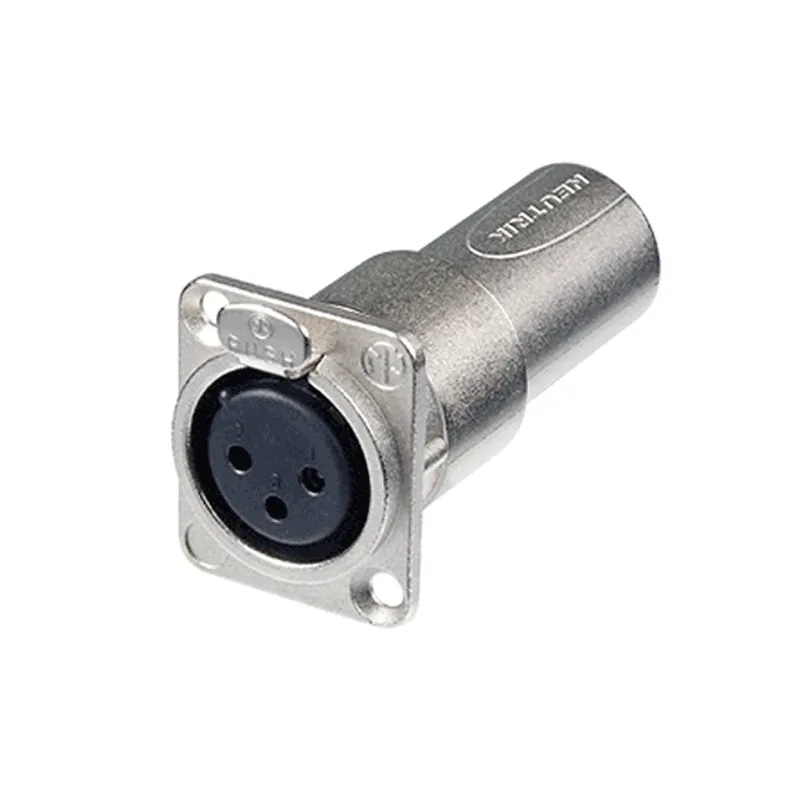

Neutrik NA3FDM XLR 3 Pole Female-Male Feedthrough Adapter

Rated 3.8/5 based on 1 customer reviews

2245 tax incl.

Delivery in 7 - 14 business days

Available from supplier: 2 Items

49068
NA3FDM
7613187002199
Neutrik

New product

Delivery Instore
30.11 - 19.12.2024
Pickup in store
Free
Delivery Postbox
01.12 - 20.12.2024
Postbox (Omniva, DPD, Venipak)
from 3 €
Delivery
01.12 - 20.12.2024
Courier (Omniva, DPD)
from 10 €
Delivery Bycicle
30.11 - 19.12.2024
Bike delivery (in Riga only)
from 7 €

Neutrik NA3FDM - XLR 3 pole female-male feedthrough adapter for panel mount



Neutrik NA3FDM - XLR 3 pole female-male feedthrough adapter for panel mount



Features & Benefits
  • 3 pole XLR feedtrugh adapter
  • D - flange chassis mount
  • Male to female and vice versa
  • Utilizes XX-components
Electrical
  • Capacitance between contacts -? 4 pF
  • Contact resistance - ? 5 m? (inner)
  • Dielectric strength - 1,5 kVdc
  • Insulation resistance - > 2 G? (initial)
  • Rated current per contact - 16 A
  • Rated voltage - < 50 V

Mechanical
Insertion force - ? 20 N
Withdrawal force - ? 20 N
Lifetime - > 1000 mating cycles
Wiresize - max. 2.5 mm?
Wiresize - max. 14 AWG
Wiring - Solder contacts
Locking device - Latch lock
Chassis shape - D

Material
Contact plating - 2 µm Ag over 2 µm Ni
Insert - Polyamide (PA 6.6 30 % GR)
Locking element - Steel Ck67
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Nickel

Environmental
Flammability - UL 94 HB
Standard compliance - IEC 61076-2-103
Protection class - IP 40
Solderability - Complies with IEC 68-2-20
Temperature range - -30 °C to +80 °C
Type of ProductCables
ConnectionsXLR to XLR
ColorBlack
