CanareL-4E6SmicrophoneStarQuad60mm,XLR(M)XLR(F)0,3mCA-4E6-MF-BLK-03

Canare L-4E6S microphone Star Quad 6.0mm, XLR (M) / XLR (F) 0,3m CA-4E6-M/F-BLK-03

Rated 4.9/5 based on 1 customer reviews

2345 tax incl.

Delivery in 7 - 14 business days

Available from supplier: 7 Items

14021
CA-4E6-M/F-BLK-03
Canare

New product

Delivery Instore
01.12 - 20.12.2024
Pickup in store
Free
Delivery Postbox
03.12 - 21.12.2024
Postbox (Omniva, DPD, Venipak)
from 3 €
Delivery
03.12 - 21.12.2024
Courier (Omniva, DPD)
from 10 €
Delivery Bycicle
01.12 - 20.12.2024
Bike delivery (in Riga only)
from 7 €

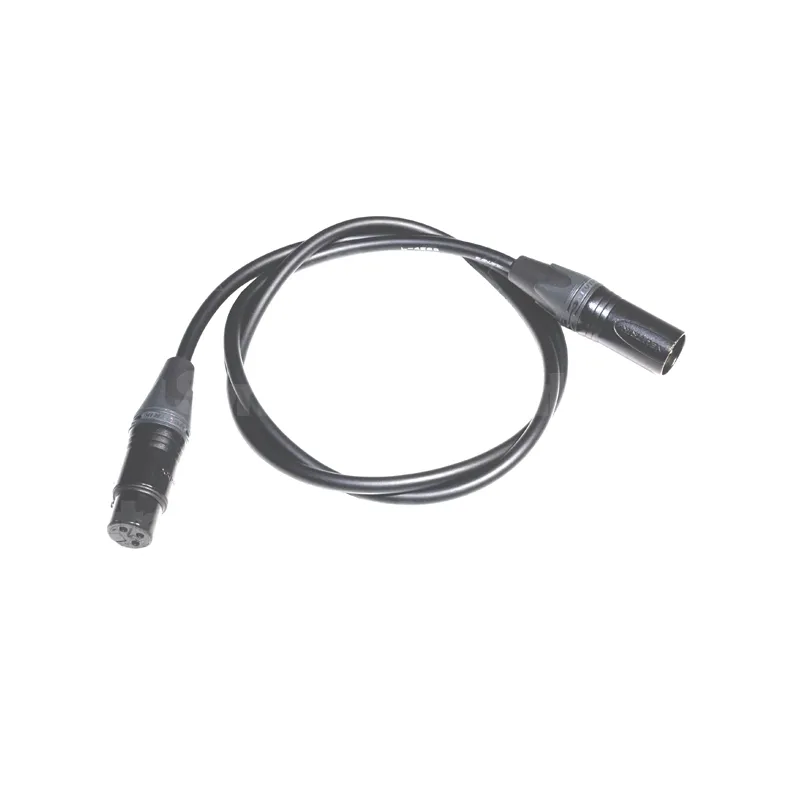

XLR (M) / XLR (F) microphone interconnect Star Quad cable made to order from high quality cable from Japanese manufacturer Canare and Neutrik connectors .

Canare L-4E6S is a symmetrical flexible Star Quad cable

Satin smooth to the touch and extra strong microphone cable with 6 mm outer diameter

Features:

  • Copper braided shielding
  • Flexible even in extremely cold weather
  • Cross-linked PE (polyethylene) insulation
  • Reduced handling noise
  • Suppressed EMI (electromagnetic interference) and RFI (radio frequency interference)

Specifications:

  • Standard manufactured lengths in (m): 100/200
  • Cable weight in kg/100m: 4.8
  • Sheath diameter (overall diameter) in mm: 6.0
  • AWG: 24
  • Material and thickness of outer insulation in (mm): PVC (1.12)
  • Breaking point in (C): -49
  • Number and colour of conductors: 4 / 2 x blue, 2 x white
  • Number and diameter of cores per conductor in mm: 40/0.08
  • Shielding factor: >95%
  • Conductor resistance in /100m: <9.8
  • Shielding resistance in /100m: <3.0
  • Capacitance between blue and white conductors in pF/m: 150
  • Capacitance between conductors and shielding in pF/m: 185
  • Impedance in : 44


Technical specifications of Neutrik XX-B connectors:

  • Capacitance: 4 pF
  • Contact resistance: 3 m
  • Rated voltage 1min: 1,5 kVdc
  • Insulation resistance: > 10 G
  • Rated current per 1 contact: 16 A
  • Rated voltage: 50 V
  • Cable diameter: 3.5 - 8.0 mm
  • Force required to connect connectors: 20 N
  • Force required to disconnect connectors: 20 N
  • Lifetime: > 1000 connection cycles
  • Conductor: max. 2.5 mm, max. 14 AWG
  • Soldering
  • Cable cap: Polyurethane
  • Contact surface treatment: 0.2 m Au layer on 2 m Ni
  • Contact material: Bronze (CuSn8)
  • Polyamide (PA 6.6 30% GR)
  • Lock: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body: Zinc diecast (ZnAl4Cu1)
  • Connector body finish: black chrome
Type of ProductCables
ConnectionsXLR to XLR
ColorBlack
