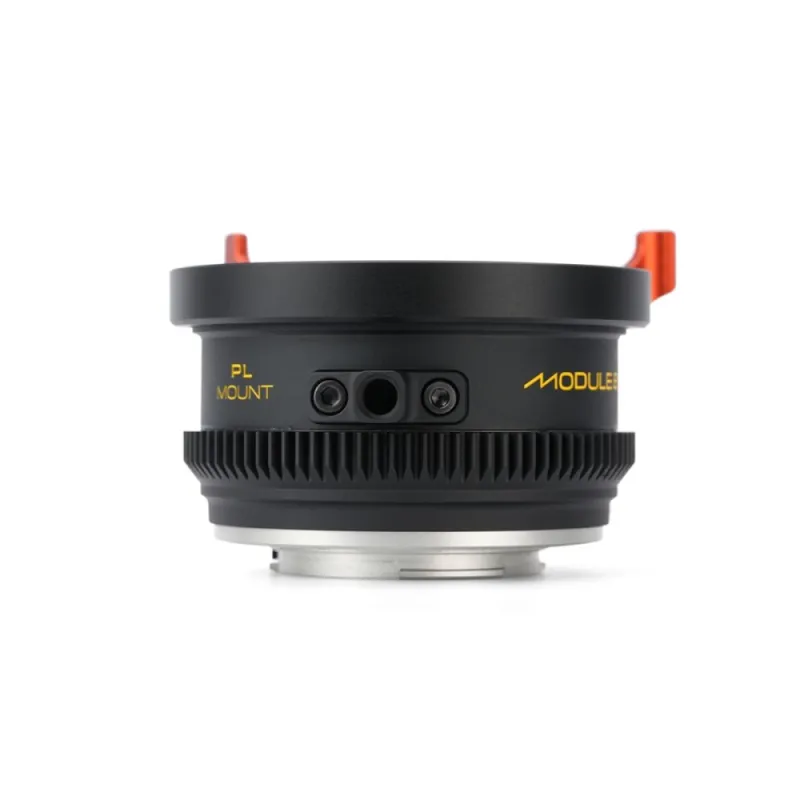

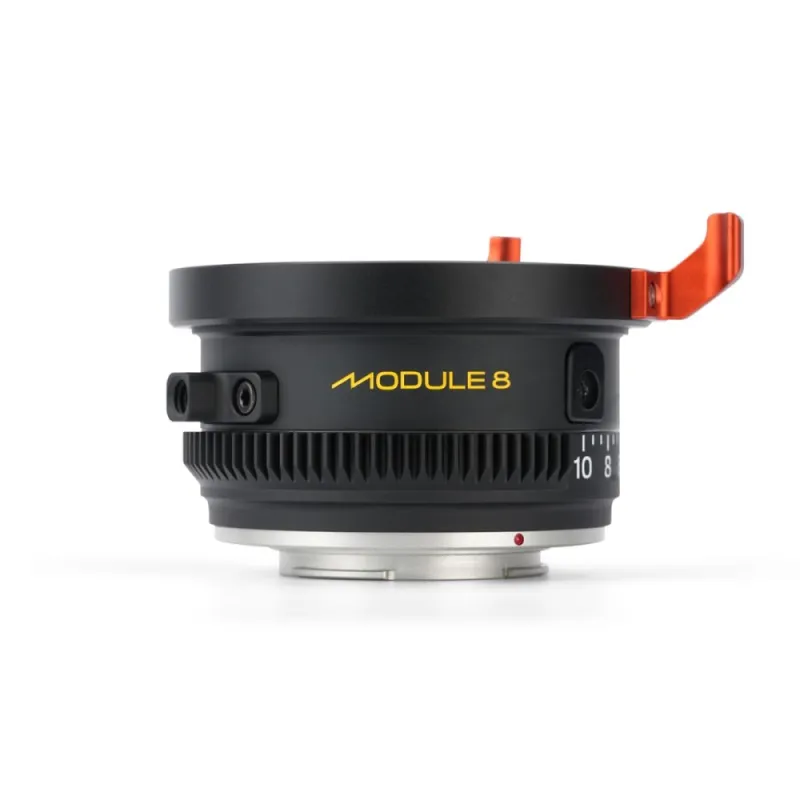

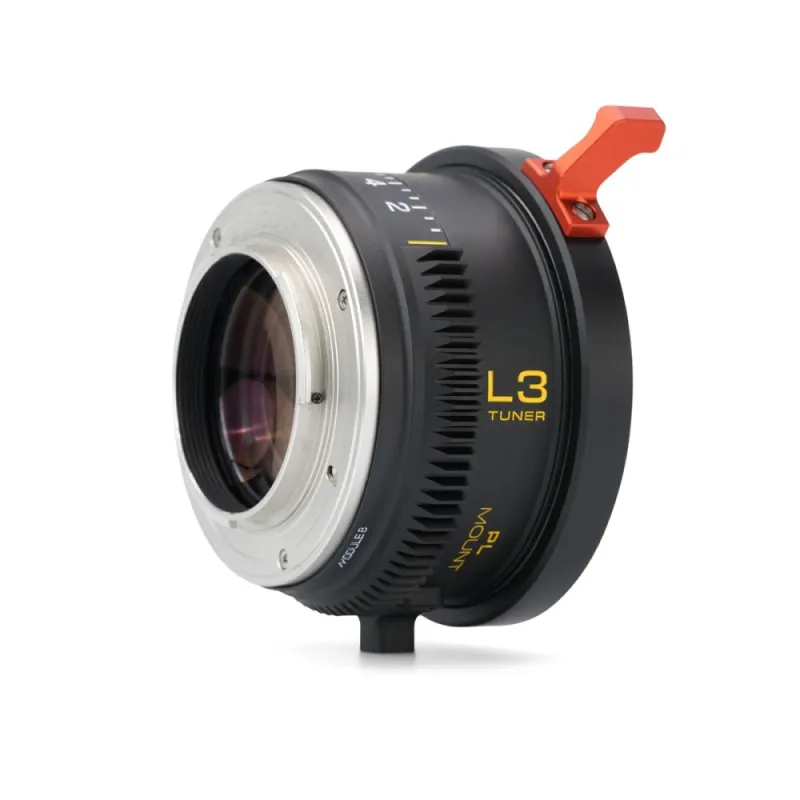

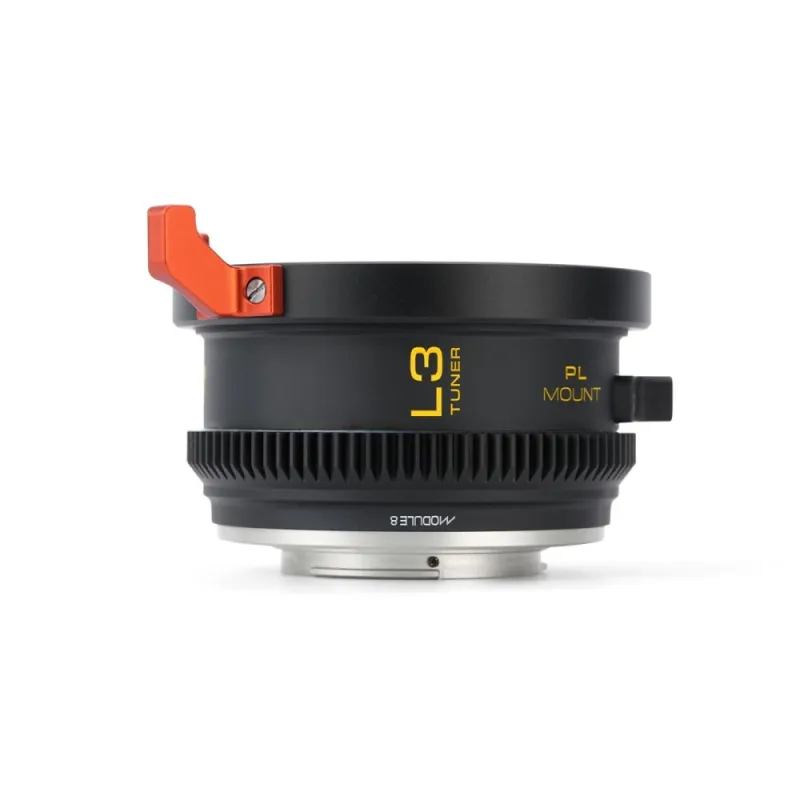

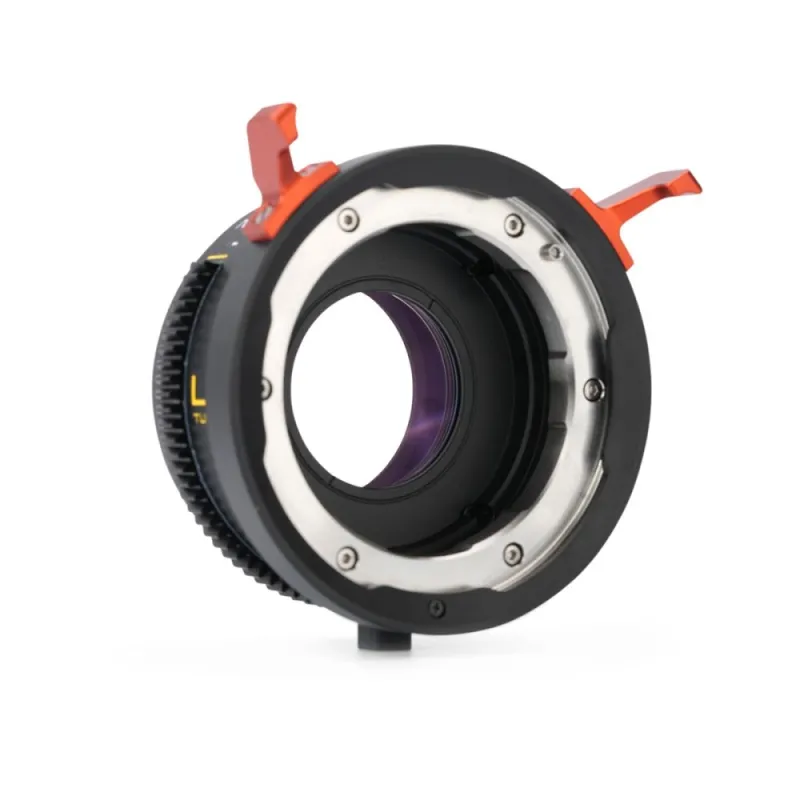

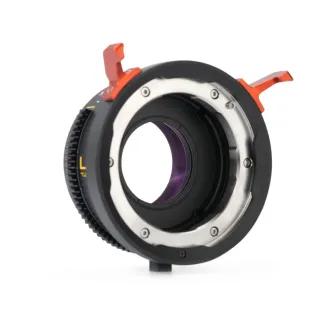

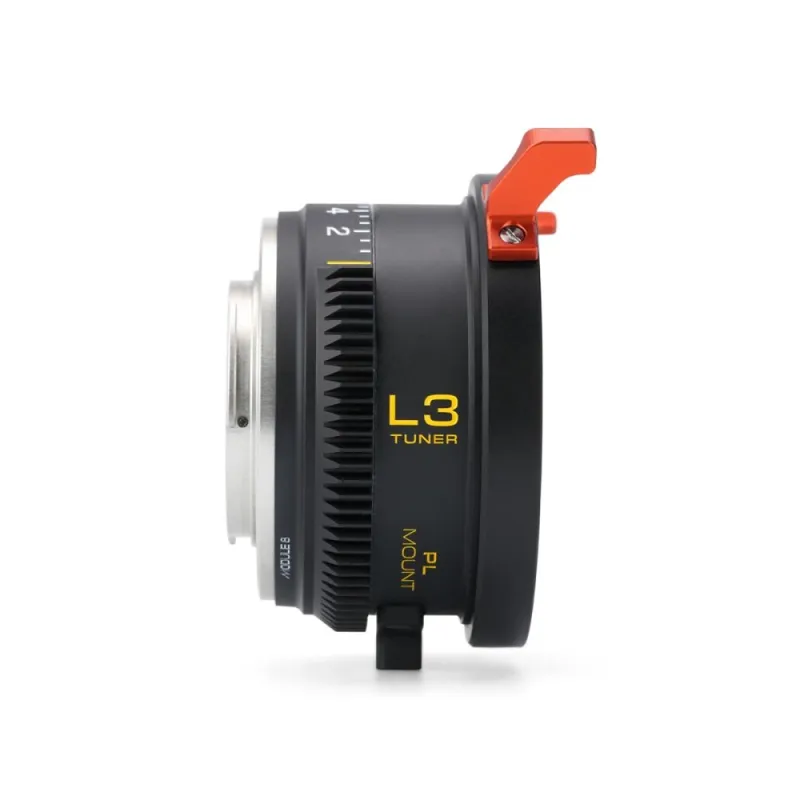

Module 8 L3 Tuner - Retroscope Variable Look - PL Lens to RF Mount (1003-04)

Module 8 L3 Tuner - Retroscope Variable Look - PL Lens to RF Mount (1003-04)

The Module 8 L3 Tuner is an innovative new lens that transforms your modern digital cameras into a nostalgic dream machine. It unlocks the cinematic magic of vintage films with a simple twist on lens adapter, available in three distinct looks. The L3 Tuner is Module 8’s co-founder Iain A. Neil signature look and is the culmination of decades of experience designing some of the most iconic cinematic lenses, especially anamorphic. L3 gives you the funky astigmatic characteristics of classic anamorphic lenses, even though you are using spherical optics. L3 will simulate the vertical / horizontal depth of field effects seen on vintage anamorphic glass (without the flares or bokeh). Most lens tunings focus on halation and glow, or simple filed curvature. The L3 creates a very complex effect that adds off-axis character.

• Iain Neil original, inspired by classic anamorphic lenses – we call it Retro-cope.
• Unique off-axis effect. Center stays in focus while Tuner adds astigmatism to edge of frame.
• Perfect for shooting spherical lenses and cropping to 2.4:1.
• Creature unique elliptical, swirly bokeh.
• Off Axis aberration cannot be focused out, just like vintage anamorphic glass.
• Ideal for full frame but S35 sensors will still have unique foreground effect.
• EF Tuner supports autofocus, focus and aperture control via camera (PL Mount Tuners has supports swappable camera mounts)
• PL version allows professional and affordable PL lenses from Zeiss, Leitz, Tokina, Sigma and DZO
• No shimming or complex setup. Twist on and start creating with vintage looks.
• Maintains 4k center resolution while softening the contrast/
• All aluminum construction with integrated gear for adjusting look.
• Affordable alternative to expensive “Tuned Lenses” or specially detuned lenses.
• Real time visual feedback with our patent pending Variable Tuning Technology.
• Variable Tuning ring enables precise amount of lens character while
• maintaining focus
• Pairs with modern , clean anamorphic lenses to add the cinematic character
• of vintage anamorphic lenses

The Tuner seamlessly integrates into your existing camera rig and allows adjustment of the look and character of your images in real time, during the shot. No more hunting down expensive lenses, paying exorbitant lens rehousing fees, or investing in the latest hyped up “detuned prime lenses”. The Module 8 Tuners work seamlessly with your existing glass to create the cinematic looks cherished by the top Cinematographers. The Tuners now come in two lens mounts, EF and PL. The EF Tuners are compatible with Sony E Mount and RF Mounts on Canon and RED cameras. The EF Tuners include build in electronics support for autofocus, aperture control and image stabilization of electronic lenses from Canon, Sigma and Tamron are supported. Due to the electronics, the EF version does not have the ability to change camera mounts. The PL mount Tuner supports a wide range of PL mount glass as long as the rear elements do not protrude too far from the mount. Since the PL Tuner does not have electronics, users can swap mounts to ANY mirrorless camera including Sony E, Canon RF, L Mount for Blackmagic, Panasonic and Leica, and Fujifilm X.

Tuner Compatibility
The EF Tuner is compatible with EF lenses from Canon, Sigma and Tamron and supports autofocus, aperture adjustment and image stabilization. The EF Tuner with electronics is only available for EF Lenses used on Sony E or Canon RF mount mirrorless cameras. The PL Tuners allow professional cinema lenses to benefit from our variable tuning technology called Vari-Tune™.) The PL Tuners are compatible with many popular modern PL lenses and allow for interchangeable mounts like E, RF, L and X. Each PL Tuner ships with a rear lens depth gauge to insure your PL lens is compatible. To see the full PL compatibility chart, please see the document in the download area.

In the Box
• L3 Tuner - Retroscope Variable Look - PL Lens to RF Mount (1003-04)

Technical specifications

Lens Type

Variable Look Zoom Adapter

Materials

Aerospace Quality

Mechanical Design

Precision Multi-cam

Lens Side Mount

Canon EF Lenses and PL Lenses Only

Electronics Support

Canon, Tamron, Sigma

Camera Side Mounts

Sony E or Canon RF (sold separately)

Electronics Support

EF Tuner: Focus (wire), Aperture, IS and Autofocus Pass though, PL Tuner: None

Inspired by

Anamorphic

Neutral Setting

No

Adjustment Range

0-10

Halation (Center)

Low

Halation (Edge)

Low

Axial Aberrations

Spherical

Full Frame Aberrations

Astigmastism

Resolution

4K+

Max. Bokeh Effect

Swirl

Magnification Factor

1.05x

Tuner Breathing

< 0.5%

F/# Range (Optimal)

EF Tuner: F/1.2-F/5.6 - PL Tuner: F/1.0-F/5.6

Stop Loss

< 1/4

Lens Image Circle

Full Frame

Coatings

Vintage Emulation

Dimensions

EF Tuner: Ø76mm x L32mm - PL Tuner: Ø80mm x L46mm

Weight

200g (E Mount) - 200g (RF Mount) - 300g (PL Tuners)

Tuner Dial Rotation

70 degrees

Firmware Update

EF Tuner: Via Micro USB - PL Tuner: No Firmware

Warranty

1 Year
