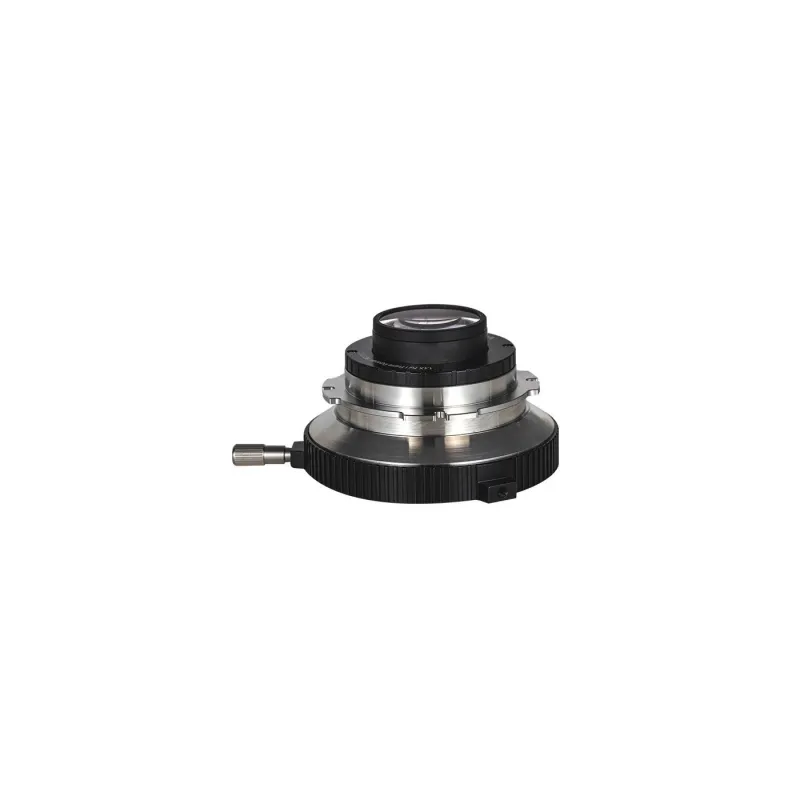

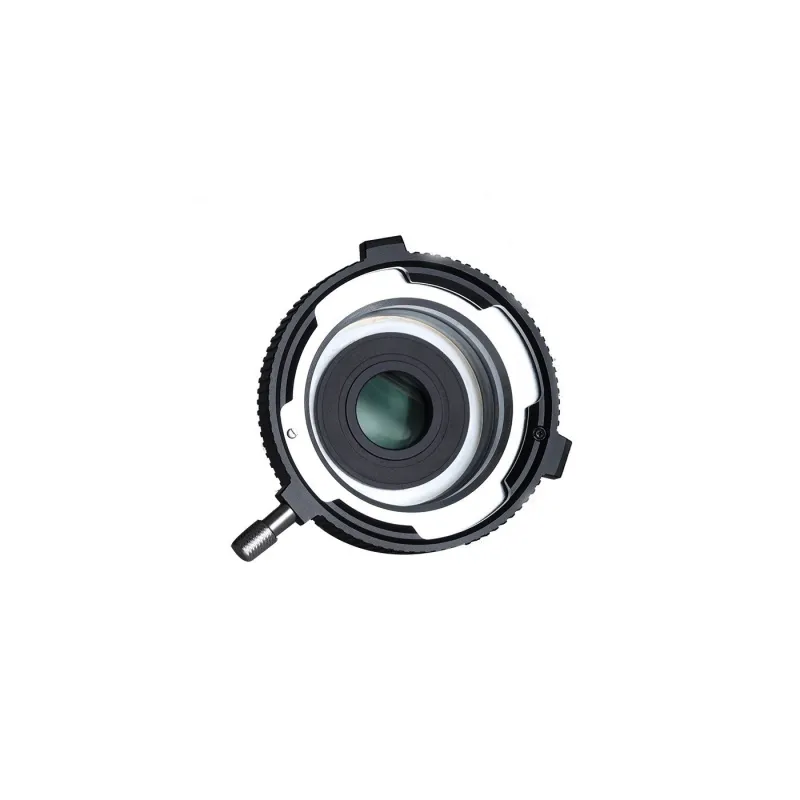

Laowa x1.4 Super 35 / FF - PL / PL teleconverter

Description

Venus Optics Laowa x1.4 Super 35 / FF – PL / PL teleconverter is a compact device that allows you to attach Super 35mm lenses to full frame cameras without compromising image quality. Unique construction and lens layout allow to maintain perfect sharpness and reduce chromatic aberration with minimal brightness loss of about 1 EV. The converter was designed especially for the Venus Optics Laowa OOOM 25-100 mm T2.9 Cine film lens, but the device is also compatible with many lens models from renowned manufacturers (including Angenieux, Arri, Canon, Carl Zeiss). Thanks to a special adjustment ring, setting the perfect focus does not require the use of additional shims, which greatly improves work on set. Make your productions even better and take full advantage of your equipment. See what you can achieve by converting from Super 35 format to full frame!

Main features of Venus Optics Laowa x1.4 Super 35 / FF – EN / EN teleconverter

• image magnification x 1.4
• conversion from Super 35 to full frame format
• installation between cameras
• install between camera and lens
• install between camera and lens
• Arri PL mount
• lossless image quality and exceptional sharpness
• converts zoom range from 25-100mm to 35-140mm
• compatible with lenses from reputable companies (including Angenieux, Arri, Canon, Carl Zeiss)
• included armored Peli case

The power of full frame

With the Venus Optics Laowa x1.4 teleconverter you can easily attach Super 35mm lenses to full frame cameras while maintaining the highest image quality and utilizing their full potential. The applied lens system will allow you to obtain great frames without degrading the quality of the recorded material.

Highest image quality

Image magnification is not everything. The converter is designed to reduce chromatic aberration, which can be caused by the dispersion of glass used in the construction of lenses. The unit’s perfectly engineered design preserves unique image characteristics while ensuring perfect sharpness.

Variety of Applications

The Venus Optics Laowa x1.4 Super 35 teleconverter is compatible with lenses from renowned film manufacturers such as Angenieux, Arri, Carl Zeiss and Canon. To see if the glass will fit your lens, download a special template for quick and convenient verification. Perfect focus point alignment is ensured by a curved adjustment ring that saves valuable time previously spent on fine-tuning metal shims.

Expedited focus adjustment

Unlike many competing teleconverters, installing the Venus Optics Laowa x1.4 on a Super 35 lens requires no technical expertise or assembly under sterile conditions. You simply plug the unit into the Arri PL mount. Adjusting the focus does not require the use of additional shims either. To perfectly calibrate the device, simply rotate the special adjustment ring until a satisfactory result is achieved.

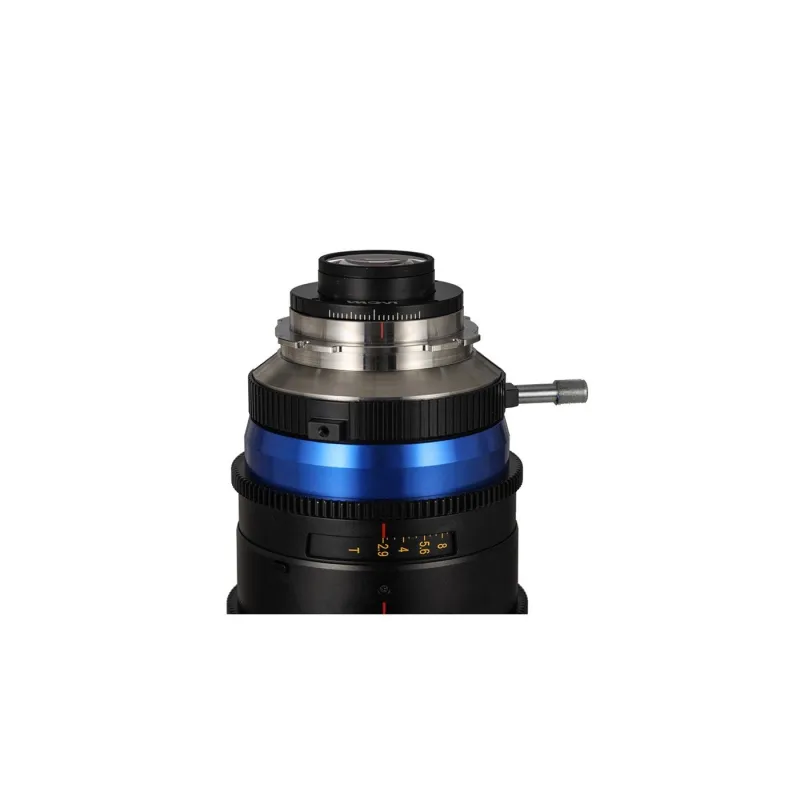

Ideal combination with Laowa OOOM 25-100 mm T2.9

The Venus Optics Laowa x1.4 Super 35 teleconverter was created with the Laowa OOOM 25-100mm T2.9 film lens in mind, allowing you to change the zoom range from 25-100mm to 35-140mm while maintaining the highest image quality. The lens is also equipped with a special button designed for the converter. With its help, depending on the current challenges and needs, you can conveniently change the focal length scale in an instant.

Minimum loss of brightness

A teleconverter offering a focal length multiplier of 1.4 is a kind of reversal of the speed booster you might have used in the past when attaching full-frame lenses to cameras with smaller sensors (e.g. Sony APS-C). With a magnification scale of more than “1” the loss of jansivity is inevitable. Fortunately, thanks to the lens system used and the unique design of the converter, it is only 1 T-stop. This allows you to fully enjoy the capabilities of full-frame cameras with minimal light loss.

Convenient and safe transportation

In the set with Venus Optics Laowa x1,4 Super 35 / FF – PL / PL teleconverter you will find a special case equipped with solid latching mechanisms and a comfortable handle. It has been entirely filled with elastic material that will provide the highest level of protection for your equipment. The case also features a perfectly shaped compartment which will additionally protect your teleconverter during transport.

Laowa film family

Laowa lenses and accessories are trusted by many great filmmakers and photographers. Their unique photos and videos can be found on the brand’s website and on social media – on Instagram and Facebook Get inspired and see how you can put all the latest products from Venus Optics into practice.

Specification

• Model: Venus Optics Laowa x1.4 Super 35 / FF – EN / EN
• Mount: Arri EN – Arri EN
• Mount: Arri EN
• Image magnification scale: x 1.4
• Conversion of zoom range for 25-100 mm lens: 35-140 mm
• Imaging diameter: ø46.5 mm
• Brightness loss: 1 T-stop
• Dimensions: 57.5 mm x ø89 mm
• Weight: 330 g

Compatibility

• Angenieux
  • Angenieux EZ-2 15-40 mm T2.0
  • Angenieux EZ-1 30-90 mm T2.0
  • Angenieux EZ-1 30-90 mm T2.0
  • Angenieux EZ-1 45-135 mm T3
  • Angenieux EZ-1 45-135 mm T3
  • Angenieux EZ2 FF 22-60 mm T3
• Arri
  • ARRI Ultra Prime 85 mm T 1.9
• Canon
  • Canon CN-E 15.5-47 mm T2.8 L S Wide-Angle Cinema Zoom
  • Canon CN-E 30-105 mm T2.8 L S Telephoto Cinema Zoom
• Carl Zeiss
  • Carl Zeiss Supreme Prime 29 mm T1.5
  • Carl Zeiss Supreme Prime 29 mm T1.5
  • Carl Zeiss Cinema Zoom 15-30 mm
• Other lenses according to the template provided by the manufacturer

Kit contents

• Venus Optics Laowa x1,4 Super 35 / FF – EN / EN converter
• decal for the front of the teleconverter
• decal for the back of the teleconverter
• carrying case
