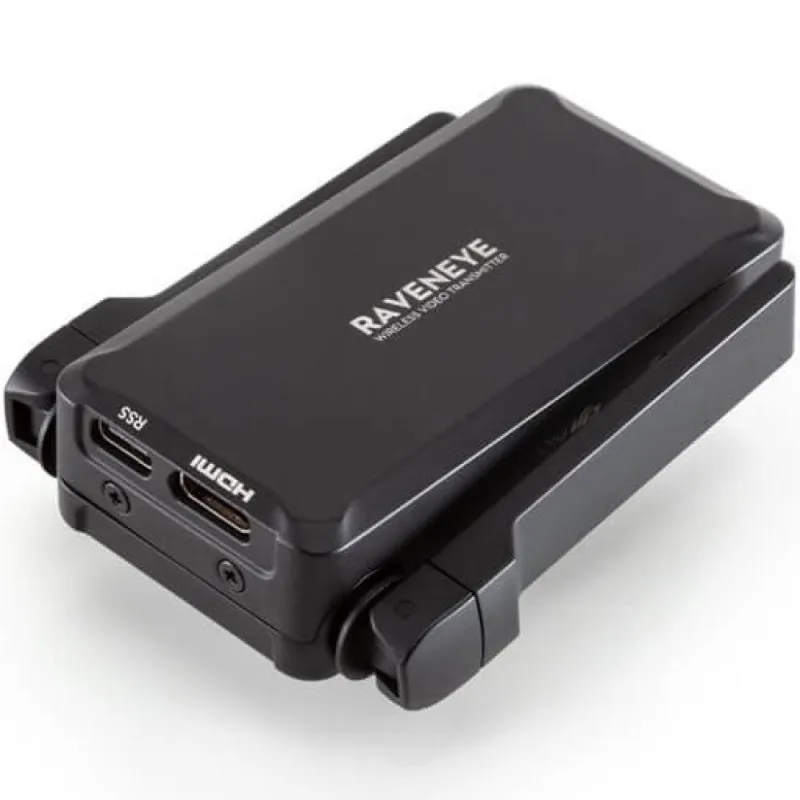

DJI RS/RSC 2 RavenEye Wi-Fi Image Transmitter

Allows live camera view and enables ActiveTrack 3.0 on DJI RS 2/DJI RSC 2, transmitting the camera live view directly on the Ronin app.

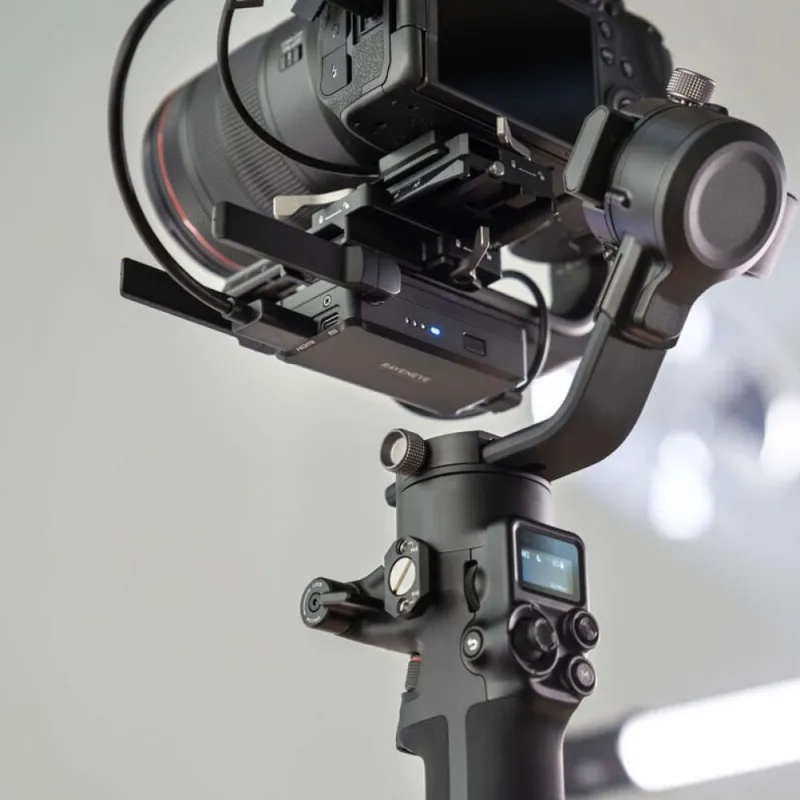

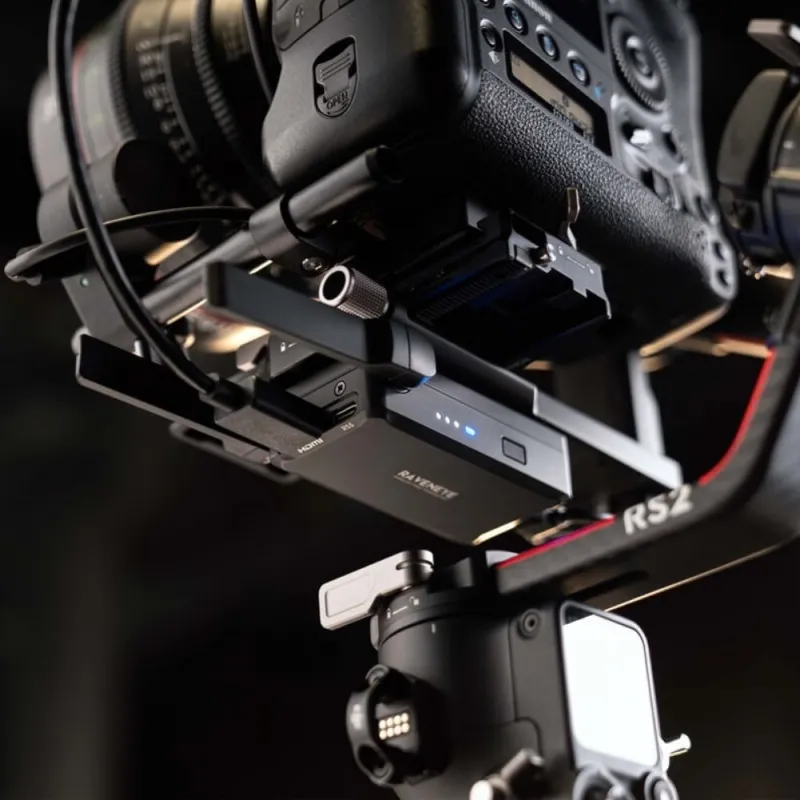

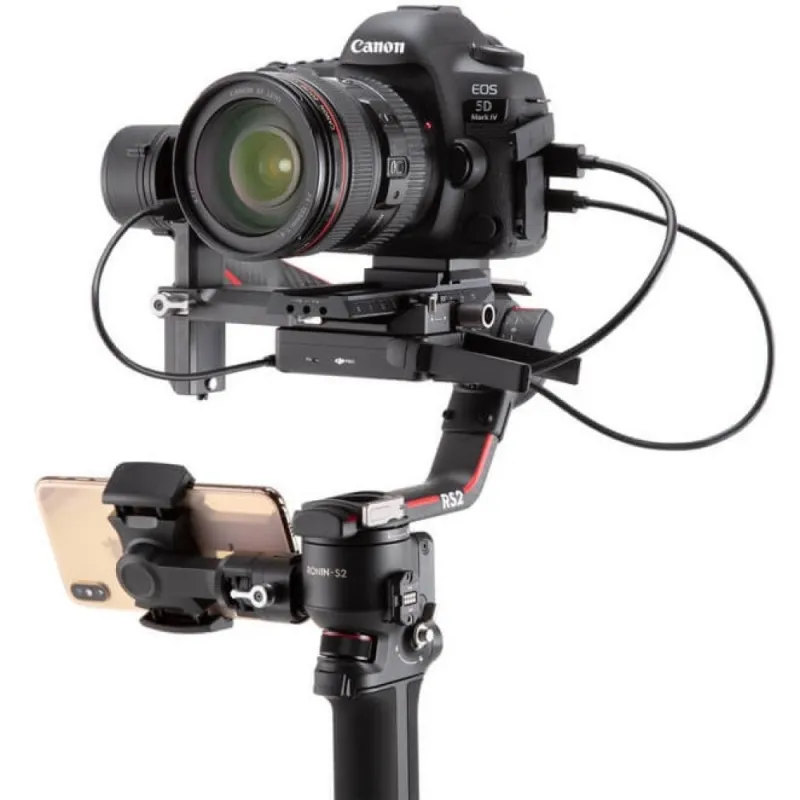

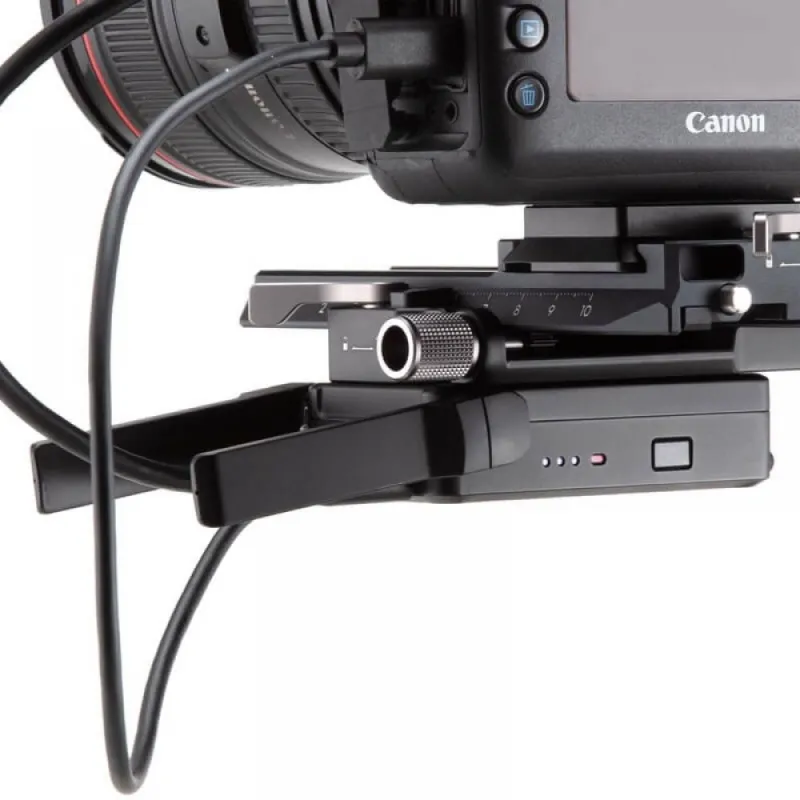

When using DJI RSC 2, RavenEye enables remote control of the gimbal, monitoring, and ActiveTrack 3.0, but the built-in screen cannot be used to transmit the camera live view. The system mounts to the gimbal and connects to the camera via HDMI cable and to the smartphone via Wi-Fi. Please visit the Ronin Series Compatibility Search at dji.com to see supported camera models and functions.

Note: Ronin-S and Ronin-SC do not currently allow remote gimbal control or the use of ActiveTrack 3.0 via RavenEye.

Features:
  • transmits video while giving you remote control of camera parameters.
  • transmits 1080p video from up to 200 m (656 ft) away with a latency of just 60 ms. [1]
  • with ActiveTrack built in, DJI RS 2 uses the source signal from the camera to track your subject. [2]
  • enhances Force Mobile, increasing responsiveness and decreasing latency.
Compatibility:
  • Ronin-S
  • Ronin-SC
  • DJI RS 2
  • DJI RSC 2

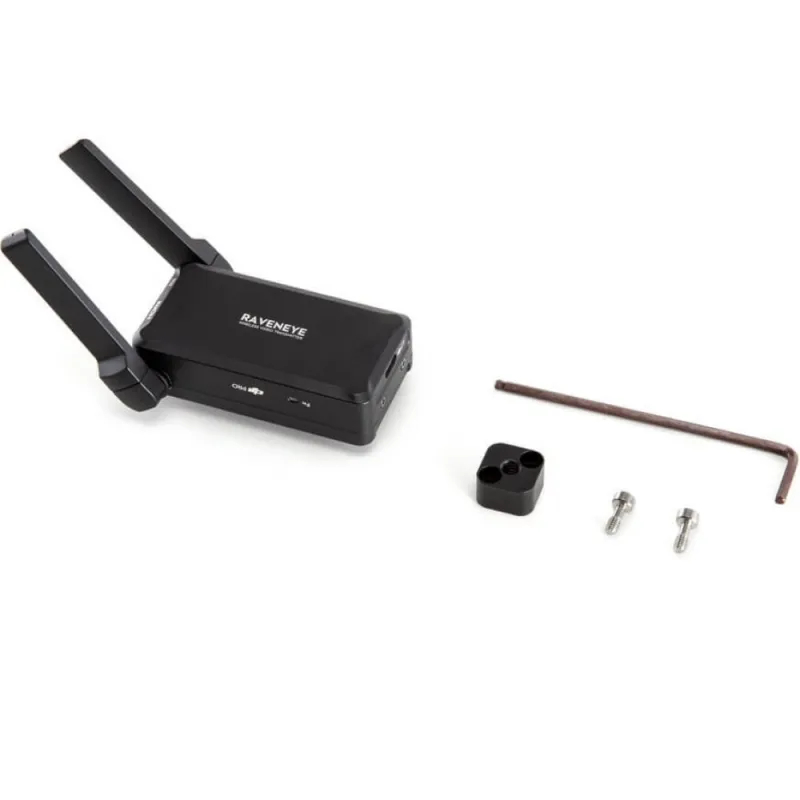

Delivery Content:
  • Image Transmitter × 1
  • Cold Shoe to 1/4''-20 Adapter × 1
  • USB-C Charging Cable (40 cm) × 1
  • USB-C Power Cable (20 cm) × 1
  • Mini-HDMI to HDMI Cable (20 cm) × 1
  • Mini-HDMI to Mini-HDMI Cable (20 cm) × 1
  • Mini-HDMI to Micro-HDMI Cable (20 cm) × 1
  • M4 Screw × 2
  • Allen Wrench (3 mm) × 1

Technical Specifications

Working Frequency
2.400-2.4835 GHz,5.725-5.850 GHz
Weight
126 g
Dimensions
82 mm x 63 mm x 24 mm
Transmission Power (EIRP)
2.400-2.4835 GHz:
<25dBm (FCC); <20dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
<25dBm (FCC/SRRC); <14dBm(CE)
1. The RavenEye Image Transmission System is required for ActiveTrack 3.0 to be used.
2. Tested in a closed environment in favorable conditions and an unobstructed wireless signal using the FCC and SRRC standard (max 100 m using the CE standard). Actual results may vary.
