Follow focus module for FeiyuTech gimbals in the Scorp series

Description

The follow focus module for FeiyuTech’s Scorp series gimbals is an advanced device for focusing or changing the focal length. The kit consists of an electric motor, a band that is attached to the lens and additional mounting elements. Thanks to the rack and pinion driven by a brushless motor, you will be able to move the rings smoothly. The module will significantly expand the possibilities of working with Scorp stabilisers. The unit features a multi-function button to automatically calibrate the travel to match your lens. In the kit you will find all the necessary accessories for quick and convenient installation on Scorp series gimbals.

Main product features

• • professional follow focus module compatible with FeiyuTech Scorp series gimbals
  • lightweight metal construction weighing 108g
  • allows you to manually change the focus or focal length of the lens
  • extends the capabilities of the multifunctional dials that Scorp gimbals are equipped with
  • equipped with a brushless motor
  • fast and convenient mounting
  • compatible with lenses with a maximum diameter of 10 cm

.

• multifunctional button and LED indicators to indicate operation mode
• option for automatic or manual calibration
• possibility to change the direction of movement of the motor by clicking the button 3 times

New possibilities of working with the gimbal

The Scorp series gimbals are equipped with special knobs, which allow you to not only control the movements of the gimbal. After connecting a follow focus module, you gain full control over the adjustment of the lens rings, which are responsible for changing the focus point or zoom. Thanks to this solution, comfortable working alone will be even more convenient. Your private focus puller will always be at your fingertips!

Fine-tuned construction

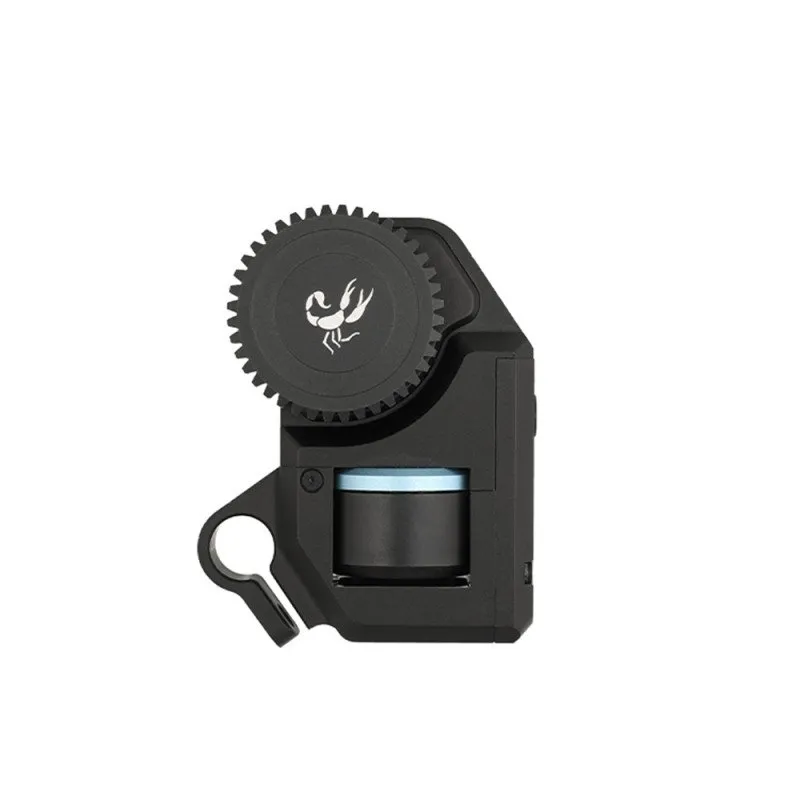

The follow focus module for FeiyuTech’s Scorp series gimbals weighs only 108 g, but right out of the box you will see that you are dealing with professional equipment for demanding filmmakers. The unit is made of high-quality metal. The module is equipped with a brushless motor that will easily set the gear in motion supporting the 0.8 MOD standard.

Convenient mounting

Included with the follow focus module for FeiyuTech’s Scorp series gimbals, you will find all the accessories necessary to properly connect the device to your stabiliser. Perfect fit of the individual components and convenient installation of the motor on the quick-mount plate will make you ready to work with your camera or camcorder in no time. The wide range of adjustments will make the follow focus work with almost any lens used for filming.

One-button calibration

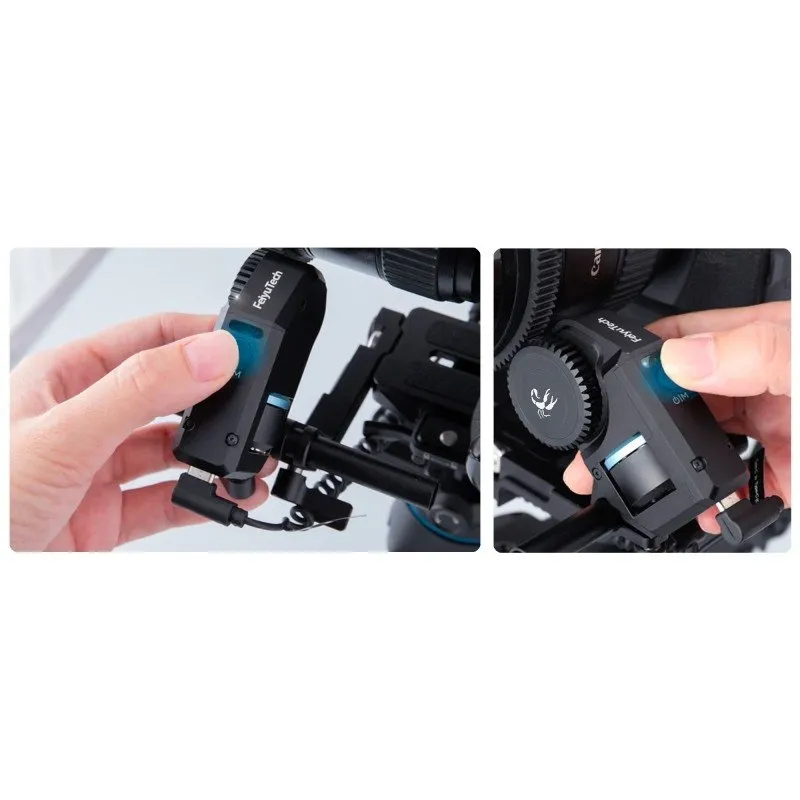

The follow focus module for FeiyuTech’s Scorp series gimbals features a multi-functional button that will allow you to calibrate the stroke and adjust the motor parameters to the installed lens in seconds. You can also do this manually if required. LEDs will inform you of the current operating mode of the module. By pressing the button three times, you can instantly reverse the direction of movement of the motor.

Wide compatibility

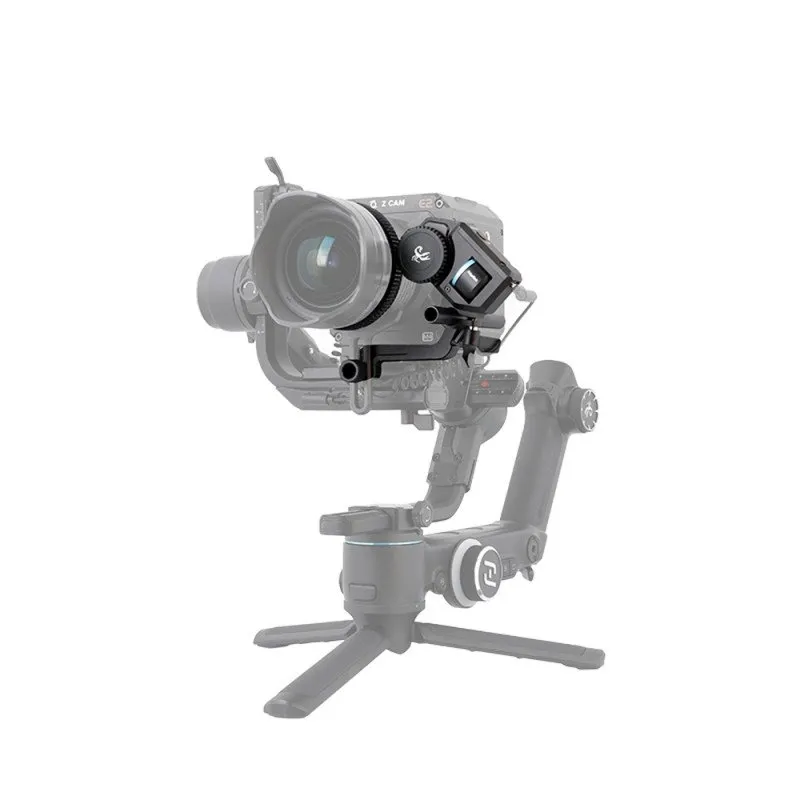

The presented follow focus module was created with the Scorp series gimbals in mind. You can easily combine it with models such as the FeiyuTech F2 Scorp, FeiyuTech F4 Scorp Pro and FeiyuTech Scorp-C. The attachment band you will find in the kit is 35 cm long. With it, you will connect the module to dozens of different lenses – from telephoto to medium format lenses. The maximum diameter of supported devices can be as large as 10 cm!

Compatibility

• FeiyuTech F2 Scorp handheld gimbal for VDSLR cameras
• FeiyuTech F4 Scorp Pro hand-held gimbal for VDSLR cameras
• FeiyuTech Scorp-C handheld gimbal for VDSLR cameras
• Lenses with a maximum diameter of 10 cm

Specification

• Model: follow focus module for FeiyuTech’s Scorp series gimbals
• Maximum torque: 0.38 Nm
• Working current:
  • 35 mA (uninstalled)
  • 660 mA (when installed on the instrument)
• Operating voltage: 5 V
• Motor gear:
  • system: 0.8 MOD
  • number of teeth: 40
• Length of clamping band: 350 mm
• Bar diameter: 10 mm
• Dimensions: 80 x 70 x 24 mm
• Weight: 108 g

Kit contents

• Follow focus module (motor)
• Attachment strap
• Aluminum guide
• Mounting bracket
• USB-C / USB-C cable
• Set of screws
• Allen wrench
