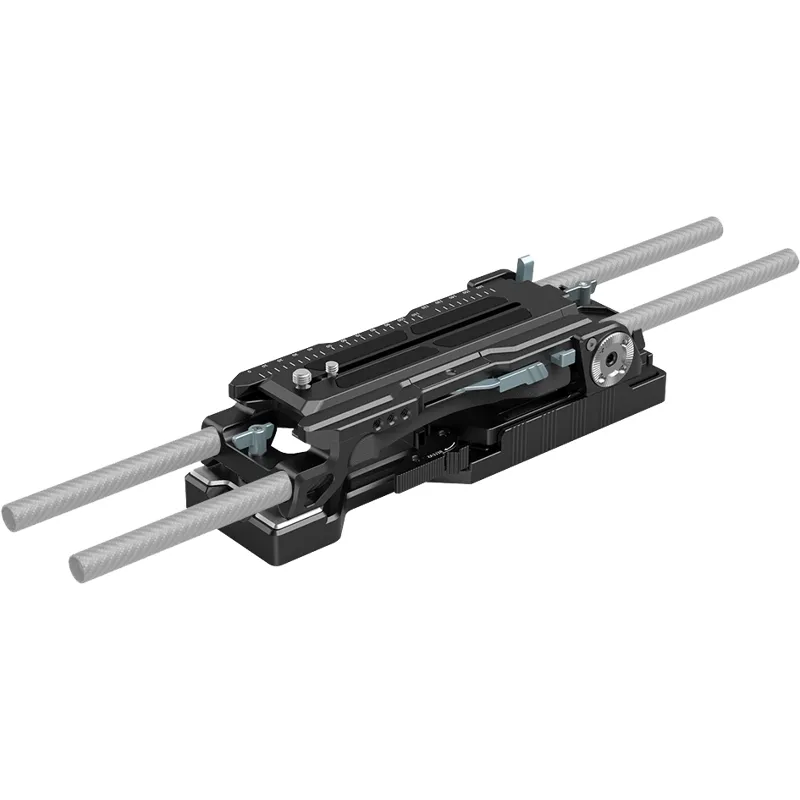

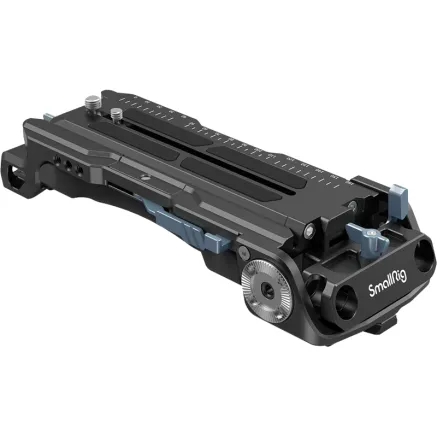

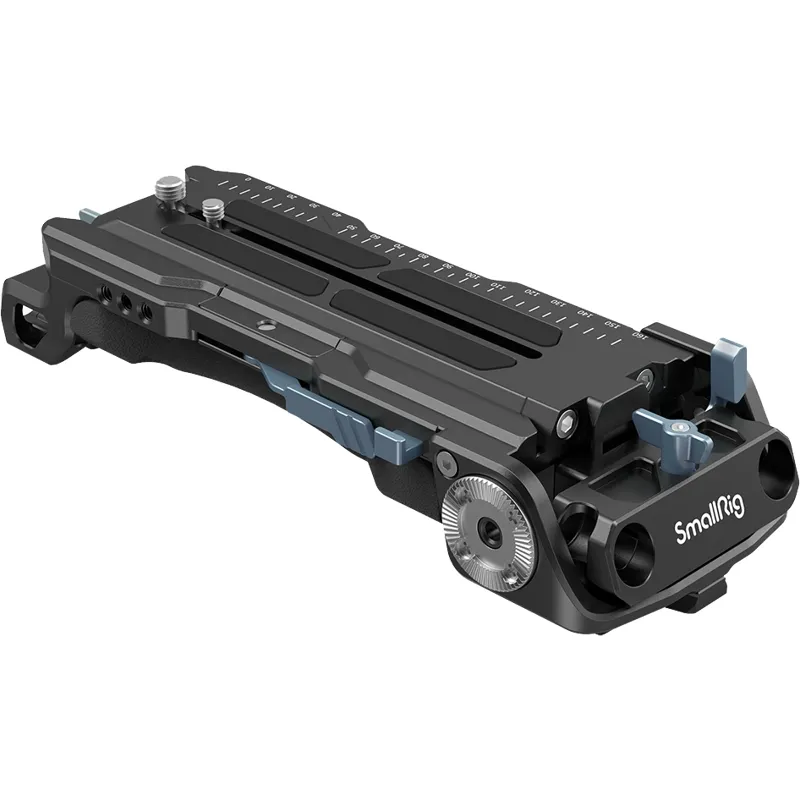

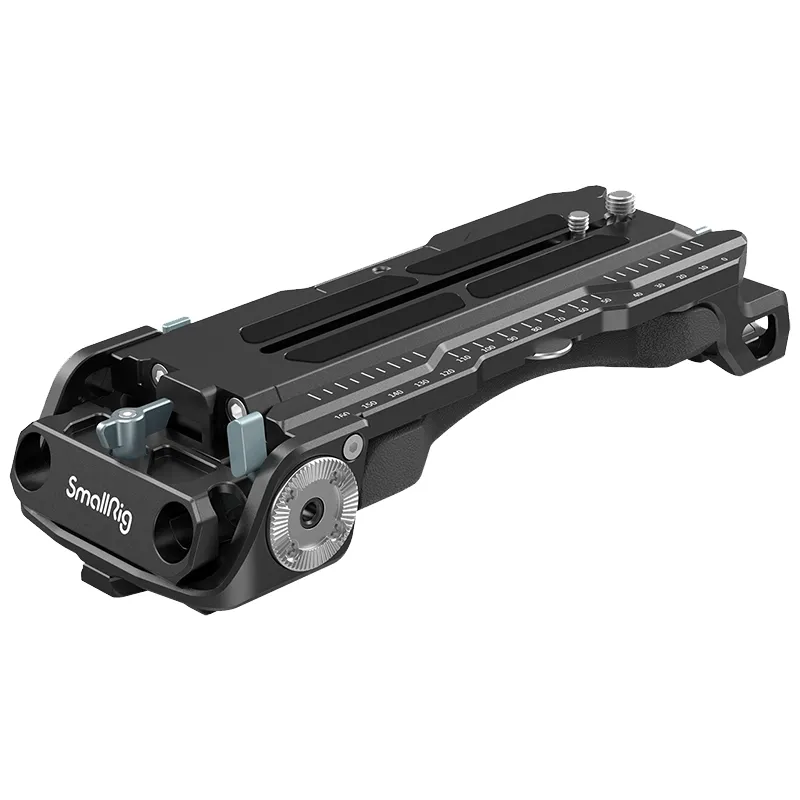

SMALLRIG 2837 SHOULDER PAD PRO 2837

2837 is designed for SONY VCT-14 quick release baseplate, which fits the camera through Manfrotto 501 quick release plate. Users can realize a rapid switch between shoulder shooting and tripod shooting through the shoulder pad. Both sides of the shoulder pad are standard M6 ARRI rosette mount, which can be installed with the original control handle of 1810 or FX9 machines.

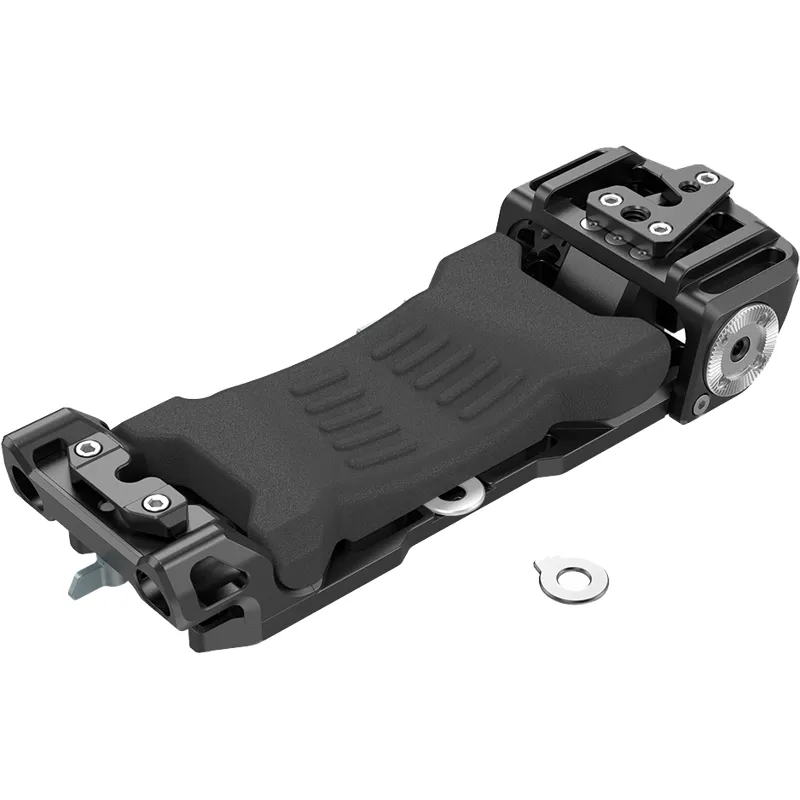

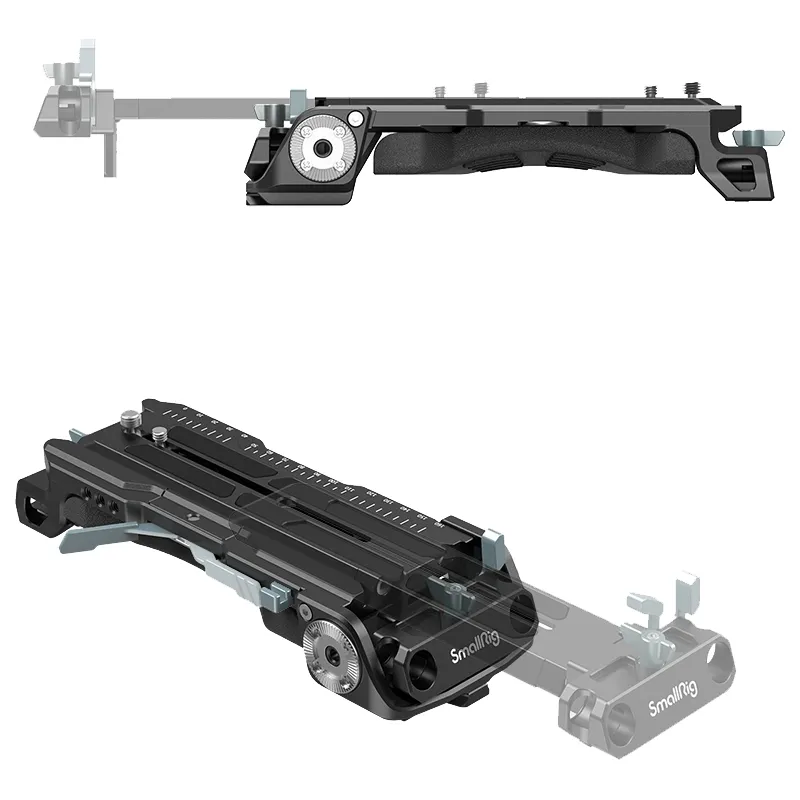

The front and rear ends of the dual rod system have a standard diameter of 15mm and a spacing of 60mm. Moreover, the front-end dual rod system can save 24mm for up-regulating, which can guarantee the spacing between the lens center of FX9, FS5, URSA MINI, CANON C300, and other devices to be 85mm as the standard. In order to facilitate users to adjust the equipment’s center gravity and install the following focus and matte box, 2837 can be adjusted forward about 80mm through the built-in Manfrotto 501 quick release plate, and the front two tubes can be adjusted together with the quick release plate, so there is no need to remove the equipment such as follow focus and matte box. The right side of 2837 is reserved with a 1/4 "-20 threaded hole, which can be used for installing magic arm and other products. The shoulder pad adopts the new silicone shoulder pad, which conforms to the shape of human shoulders and is soft and comfortable. In addition, the 2837 built-in flat wrench can be used on-demand.

The front and rear ends of the double bar system have a standard diameter of 15 mm and a pitch of 60 mm. In addition, the front end of the double rod system can spare 24 mm for upward adjustment, which can guarantee that the lens center distance of FX9, FS5, URSA MINI, CANON C300 and other devices will be 85 mm as standard. To make it easier for users to adjust the center of gravity of the device and install the follow focus and matte box, the 2837 can be adjusted forward by approximately 80mm via the built-in Manfrotto 501 quick release plate, and the front two tubes can be adjusted together with the quick release plate, so there is no need to disassemble devices such as the follow focus and matte box. There is a dedicated 1/4"-20 threaded hole on the right side of the 2837 that can be used to install the magic arm and other products. The shoulder pad uses a new silicone shoulder pad that conforms to the shape of human shoulders and is soft and comfortable. In addition, the built-in 2837 flat wrench can be used upon request.

Package Contents:

• SmallRig Pro shoulder pad
• Manfrotto 501 Quick Release Plate
• 1/4"-20 mounting screw for camera
• 3/8"-16 camera mounting screw
• Flat wrench

• Standard 15 mm LWS rod / 60 mm spacing
• Base plate for mounting accessories: Multiple x 1/4"-20 threads
• Camera mounting plate Manfrotto 501 with 1/4"-20 screw, 3/8"-16 screw
• Base plate for tripod mounting: V-Lock, VCT-14
• Base plate, front: 2 x 15 mm rod holes
• Base plate, rear: 2 x 15 mm rod port
• Rosettes: 2 x ARRI rosette with M6 thread
• Construction: aluminium, silicone
• Dimensions 9.9 x 3.9 x 2" / 25.1 x 9.8 x 5.1 cm
• Weight 1.6 lb / 740 g
