  • passive 2 channel XLR adapter for camcorders and DSLRs
  • for connecting audio devices to a camera
  • Attachment of the audio adapter to the camera via a 1/4 inch thread

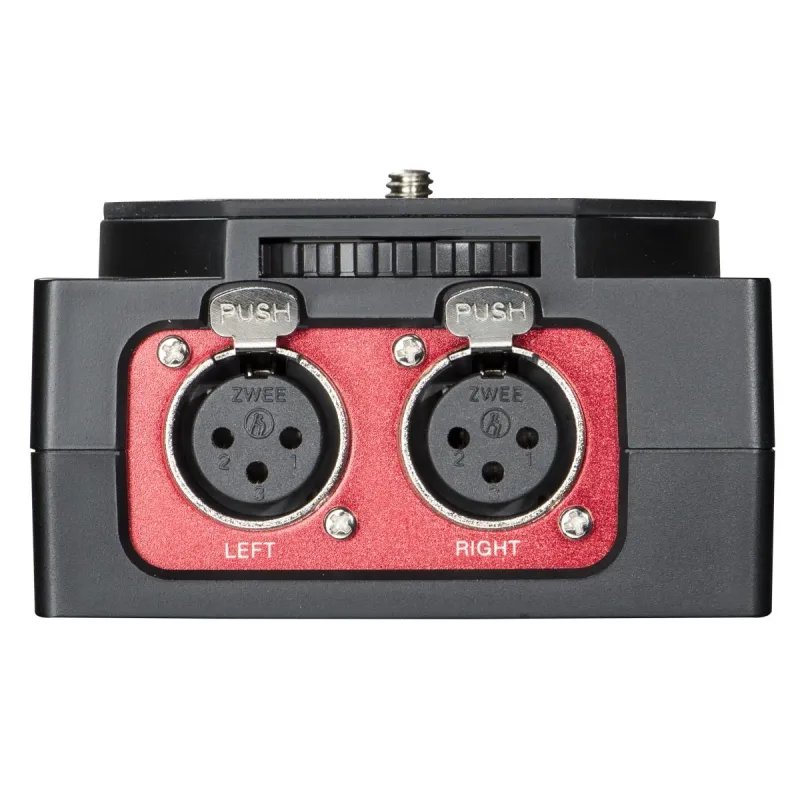

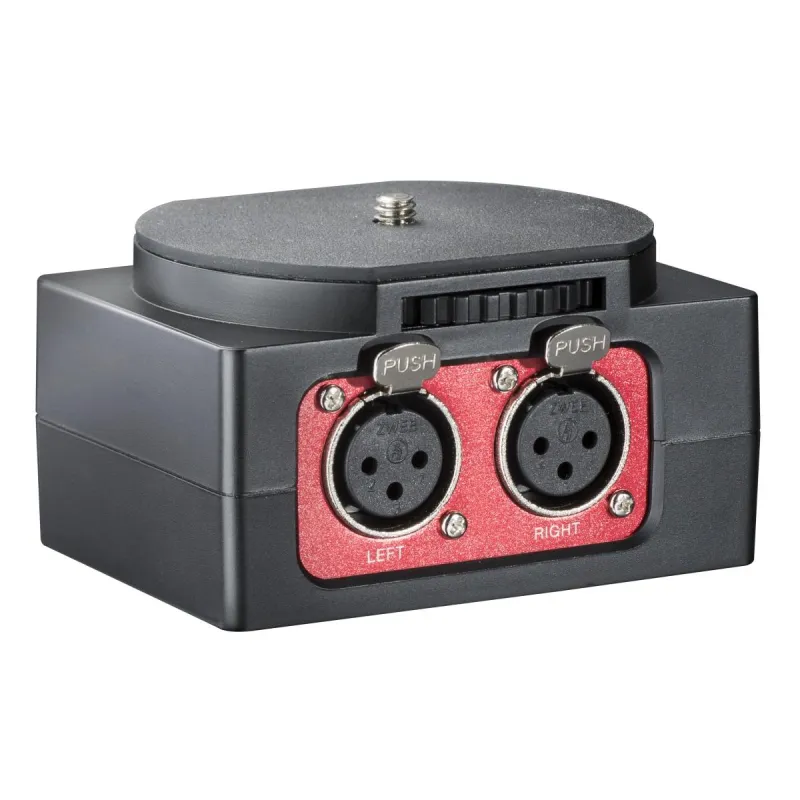

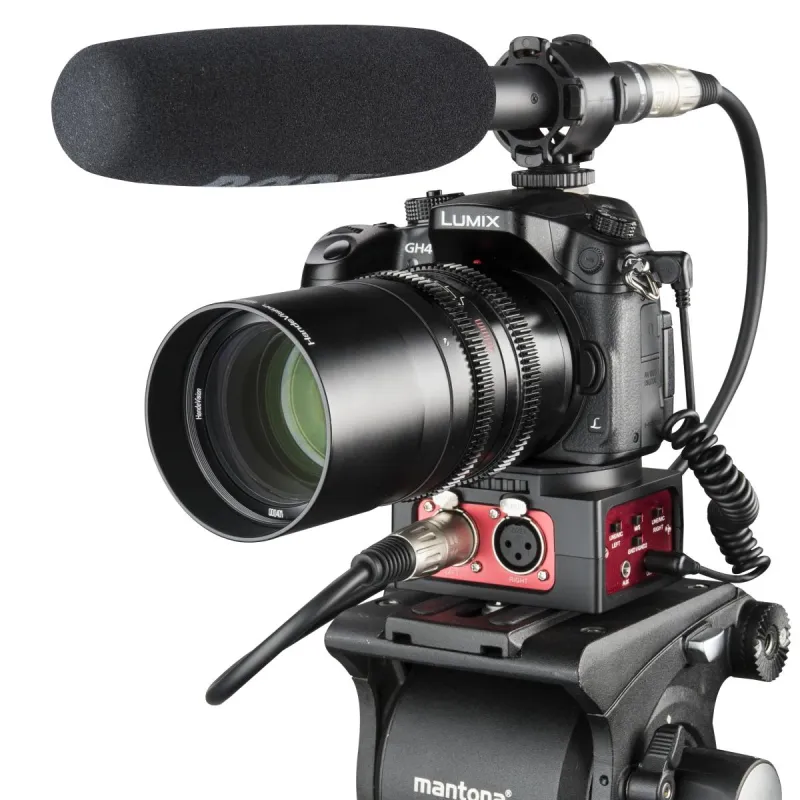

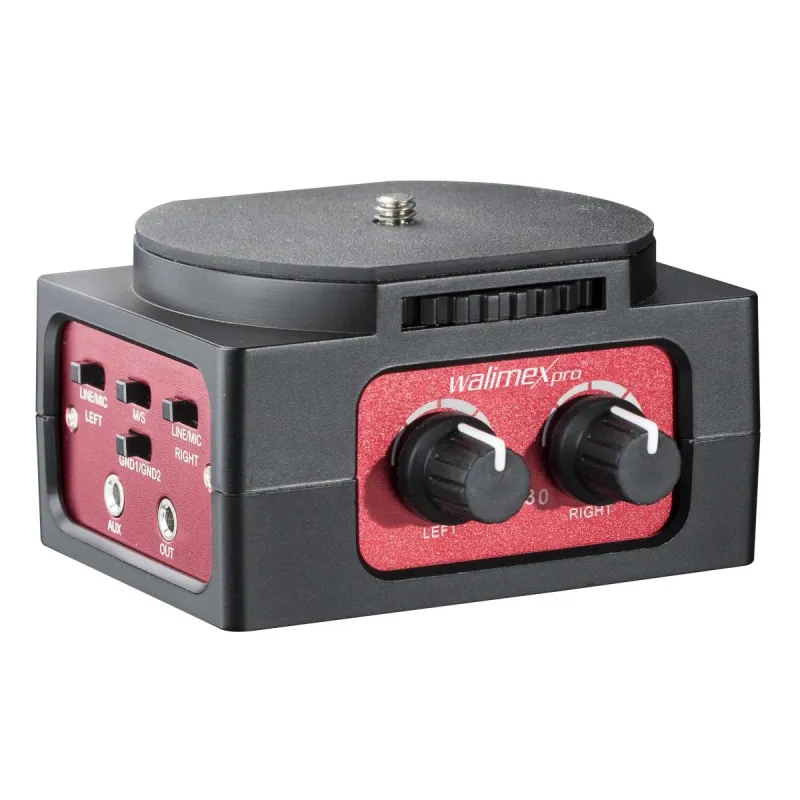

The walimex pro audio adapter is a passive 2 channel XLR adapter for camcorders and DSLR cameras via an integrated microphone socket. It offers the possibility of connecting a wide range of audio devices, such as XLR, wireless microphones, external audio mixers or pre-amplifiers, via the adapter to the camera. The audio adapter can be attached simply from below via a 1/4 inch thread to the camera.

Functions

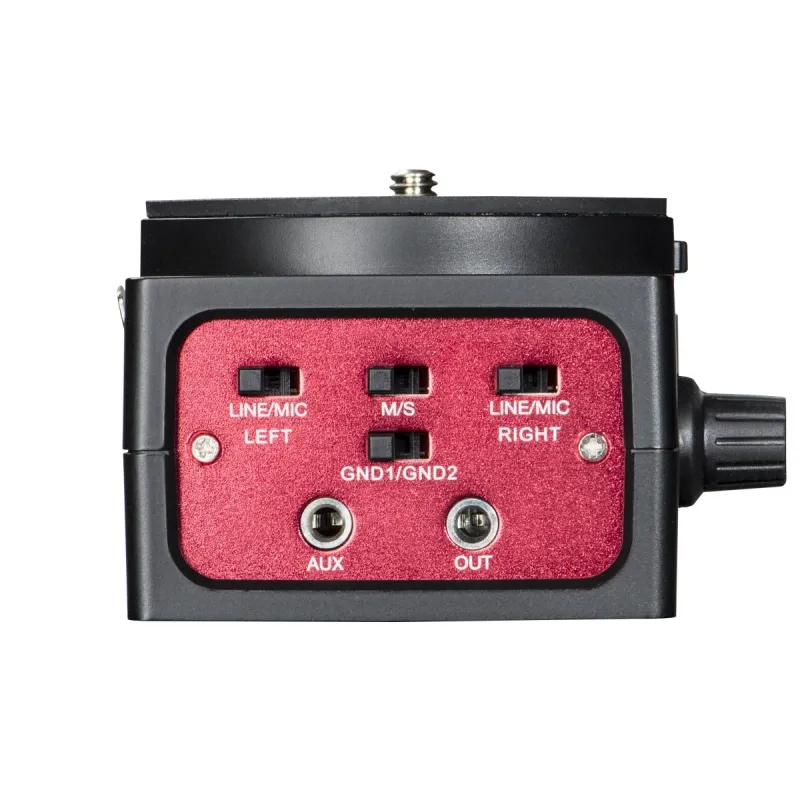

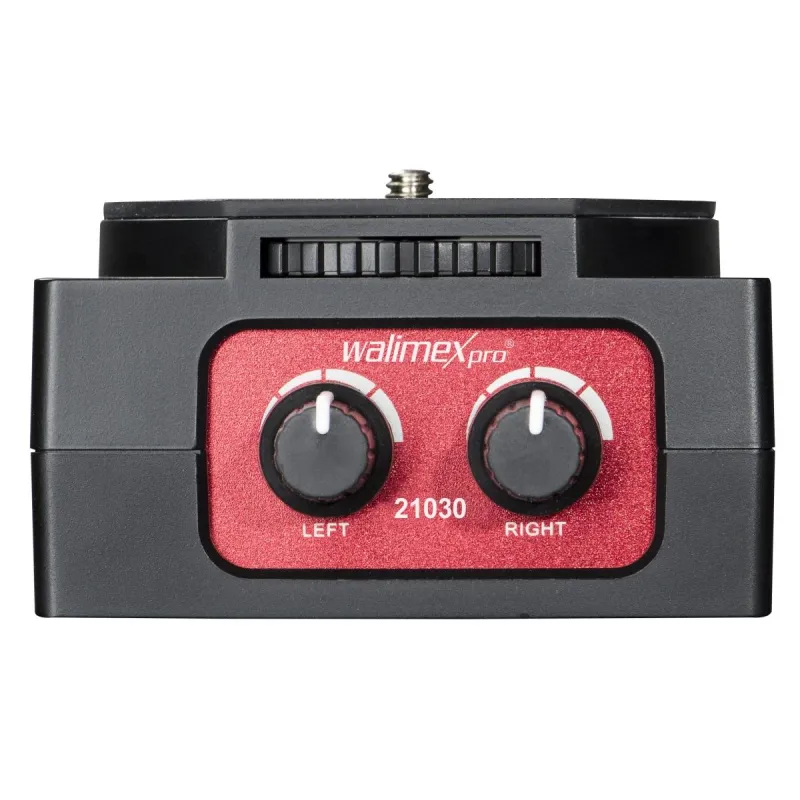

dual trim controller: Using the dual trim controller, you can correct and adjust the recording level.
Mono/stereo switch: Select output mode. The mono mode is to be selected for a mono microphone. Mono audio signals can be switched to any channel and output stereo audio signal.
The stereo mode is for two channel recordings, and offers two separate audio channels.
LINE/mic. Switch: Mic level is for microphone or radio systems. The LINE level is for audio devices with a LINE output. The signal is reduced to 40dB.
GND1/GND2 ground switch: Removes interference such as humming and hissing. GND1: Separates the output signal from the input signal and prevents the input signal interfering with the output signal. GND2: Switches the output signal to the input signal.



General information

Product Color Black, Red
Length 87mm
Height 52mm
Width 80mm
Weight 191g
frequency 10 - 100.000Hz

Specifications

1/4 inch accessories thread Yes
Made in Germany No

Packaging

Girth 549mm
Height of Packaging 104mm
Length of Packaging 123mm
Packaging Material Carton
Packaging with Euro Hole No
Weight incl. Packaging 340g
Width of Packaging 109mm
